Bridgeport Trak KMX-2 Axis Control CNC VERTICAL MILLING MACHINES

Price on Request

Make:: Bridgeport

Model:: Trak KMX-2 Axis Control

Year:: 2017

Ref #:: 178288

Or call us for a quote at (973) 497-7500 or send us an email at boringmills@machineryvalues.com

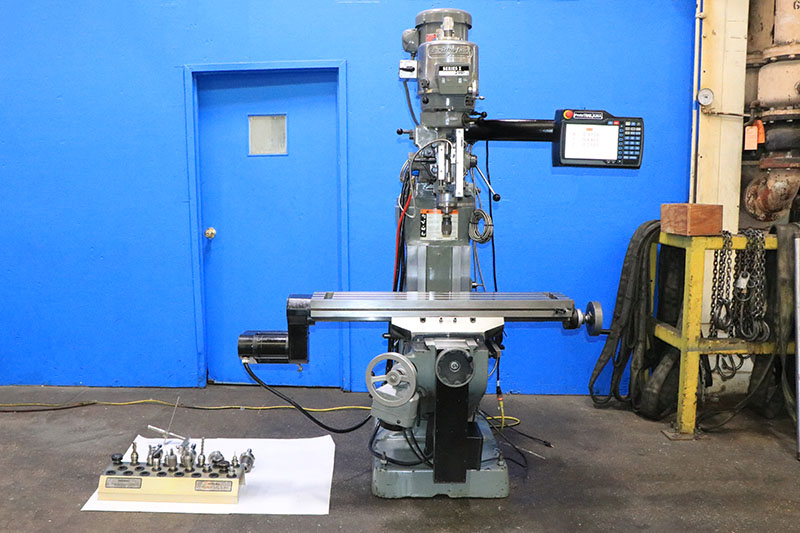

BRIDGEPORT PROTO-TRAK 2-AXIS CNC VERTICAL MILL
SERIES-I w/PROTOTRAK KMX CONTROL
S/N: BR 250841
CNC RETROFIT PACKAGE ADDED in 2017

SPECIFICATIONS:
WORKING SURFACE OF TABLE ................. 9" x 42"
TABLE CROSS TRAVEL(X) .................... 26"
TABLE SADDLE TRAVEL(Y) ................... 12"
QUILL TRAVEL(Z) .......................... 5"
KNEE TRAVEL .............................. 16"
SPINDLE TAPER ............................ R-8
VARIABLE SPINDLE SPEEDS .................. 60 TO 4200 RPM
VARIABLE TABLE FEEDS ..................... 3/4 TO 35 IPM
FLOOR SPACE: ............................. 60" x 63" x 82"
WEIGHT APPROXIMATELY: .................... 2,400 LBS.

EQUIPPED WITH:
SOUTHWESTERN INDUSTRIES / PROTO-TRAK MODEL: KMX CONTROL:
   2-AXIS CNC CONTROL SYSTEM (AUTO GEOMETRY ENGINE)
   WITH SERVO MOTORS, MANUAL DATA INPUT 2 AXIS
   LINEAR & CIRCULAR INTERPOLATION, PROGRAM DOWNLOAD,
   MIRROR IMAGE, PART GRAPHICS & MUCH MORE
9" COLOR LCD SCREEN
TWO USB PORTS
RJ 45 & ETHERNET CARD
IN MANUAL OPERATION, CONTROL BECOMES 3 AXIS DIGITAL READOUT

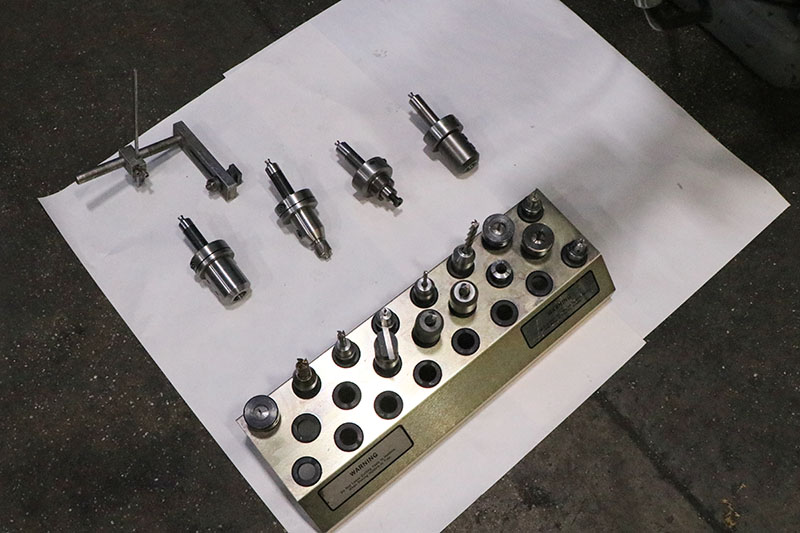

MACH-1 QUICK CHANGE TOOLING SYSTEM W/TOOLS
GROUND BALLSCREWS ON TABLE & SADDLE
SERVO POWER FEED FOR VERTICAL KNEE POSITIONING
BIJUR ONE SHOT LUBRICATION SYSTEM
CHROME WAYS
2 HORSE POWER MAIN MOTOR

TRANSITION FREELY FROM 2-AXIS CNC TO MANUAL
PERFECT FOR A TOOLROOM OR PROTO-TYPE WORK

INSPECT UNDER POWER IN OUR NEW NERSEY WAREHOUSE
