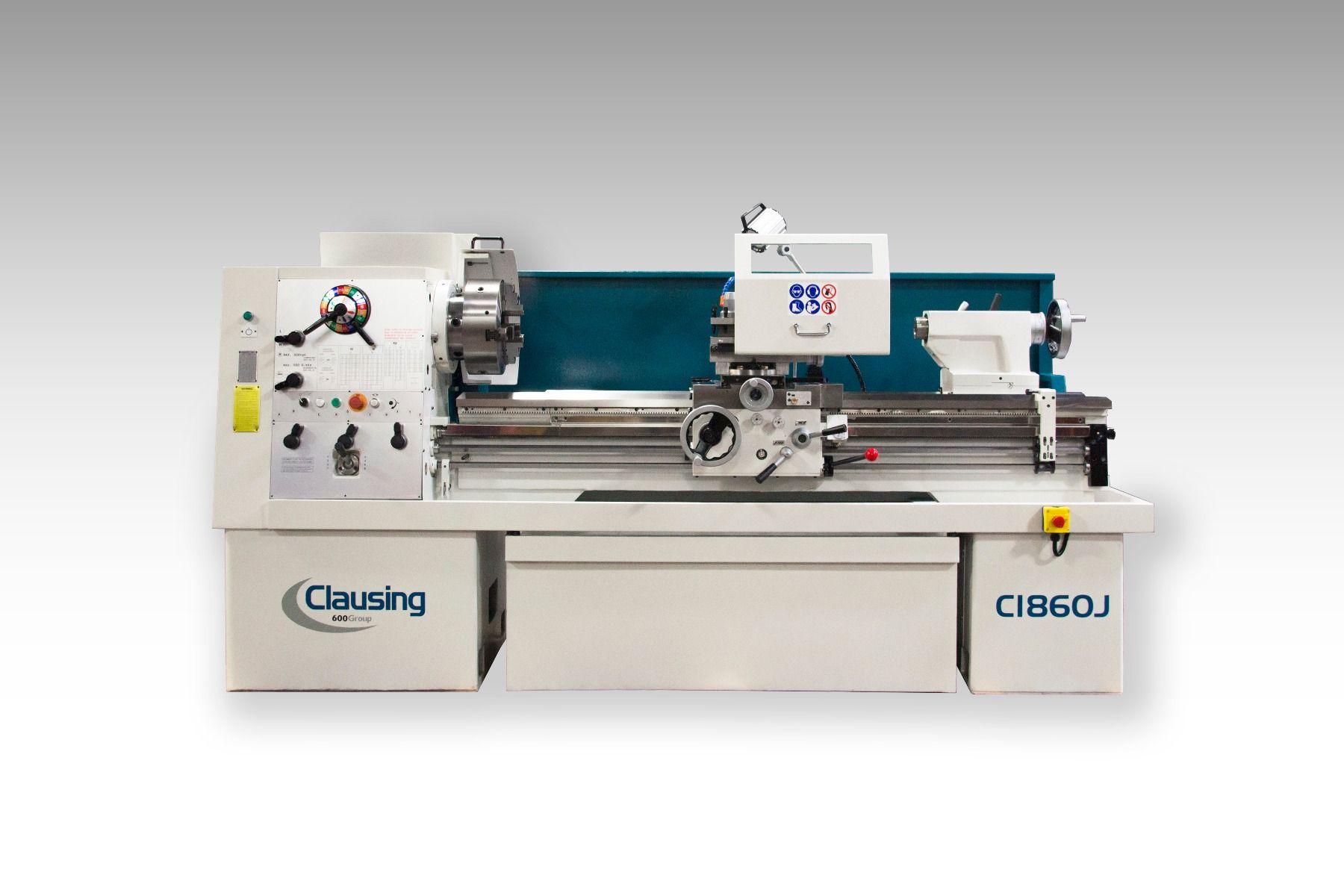

Clausing C18 NEW LATHES

Price on Request

Make:: Clausing

Model:: C18

Year:: NEW

Ref #:: 168885

Or call us for a quote at (973) 497-7500 or send us an email at toolroom@machineryvalues.com

NEW 18” CLAUSING "C-SERIES" MANUAL LATHE
MODEL: C18
cc options: 40" / 60" / 80" / 120"

SPECIFICATIONS
CAPACITY
SWING OVER BED ..................... 18”
CENTER HEIGHT ...................... 9”
SWING IN GAP ....................... 28”
GAP LENGTH (IN FRONT OF FACE PLATE). 8.7”
SWING OVER CROSS SLIDE ............. 11.5”
BED WIDTH .......................... 13”
CENTER DISTANCE .................... 40”/60”/80”/120”
HEADSTOCK
SPINDLE BORE ....................... 3.125”
SPINDLE NOSE ....................... D1-8
SPINDLE TAPER / BUSHING TAPER ...... 7MT/5MT
NO. SPINDLE SPEEDS GEARED DRIVE .... 16
SPINDLE SPEED (RPM) GEARED DRIVE ... 20-1600
NO. SPINDLE SPEEDS VARIABLE DRIVE .. 3
SPINDLE SPEED VARIABLE DRIVE ....... 16-2000
THREAD AND FEED BOX
NO. OF LONGITUDINAL FEEDS .......... 20
RANGE (INCHES) ..................... 0.0015-0.04
NO. OF CROSS FEEDS ................. 20
RANGE (INCHES) ..................... 0.0008-0.02
NO. OF METRIC THREADS .............. 39
RANGE (MM) ......................... 0.2 - 14
NO. OF INCH THREADS ................ 45
RANGE (INCHES) ..................... 2 - 72
NO. OF MODULAR THREADS ............. 18
RANGE (MM) ......................... 0.3 - 3.5
NO. OF DIAMETRAL PITCH THREADS ..... 21
RANGE (INCHES) ..................... 8 - 44
LEADSCREW DIA./TPI ................. 1.26”/4
SLIDE AND CARRIAGE
CROSS SLIDE TRAVEL ................. 10.5”
CROSS SLIDE WIDTH .................. 7.8”
COMPOUND TRAVEL .................... 5.1”
COMPOUND WIDTH ..................... 5.31”
MAX. TOOL SIZE ..................... 1” X 1”
TAILSTOCK
TAILSTOCK QUILL DIAMETER ........... 3”
TAILSTOCK QUILL TRAVEL ............. 7”
TAILSTOCK TAPER .................... 5MT
MOTORS
SPINDLE MOTOR (GH&VS) (HP) ......... 15
COOLANT PUMP MOTOR (HP) ............ 1/8
DIMENSIONS
HEIGHT ............................. 52”
WIDTH .............................. 43”
LENGTH:
-40" BETWEEN CENTERS ............... 88"
-60" BETWEEN CENTERS ............... 108"
-80" BETWEEN CENTERS ............... 128"
-120" BETWEEN CENTERS .............. 168"
WEIGHT 40”/60”/80”/120” (LBS) ...... 3,960/4,400/5,060/7,260
SHIPPING DIMENSIONS
HEIGHT ............................. 75”
WIDTH .............................. 44”
LENGTH:
-40" BETWEEN CENTERS ............... 97"
-60" BETWEEN CENTERS ............... 116"
-80" BETWEEN CENTERS ............... 136"
-120" BETWEEN CENTERS .............. 176"
WEIGHT 40”/60”/80”/120” (LBS) ...... 4,510/5,060/5,830/8,360

STANDARD EQUIPMENT
• INCH DIALS
• DEAD CENTERS
• 4-WAY TOOL POST
• 2 SPEED TAILSTOCK QUILL ADVANCE
• COOLANT SYSTEM
• ONE-SHOT LUBRICATION
• INTERLOCKING CHUCK GUARD
• 12” 3-JAW CHUCK SK
• STEADY REST W/ROLLERS .98” TO 5.3” CAPACITY
• 5-POSITION TURRET TYPE W/MICROMETER BED STOP
• SPLASH GUARD
• LEADSCREW COVER
• THREAD DIAL INDICATOR
• T-SLOTTED TOP SLIDE
• SPINDLE BRAKE MAGNETIC GEARED HEAD
• SPINDLE BRAKE INVERTER VARIABLE SPEED HEAD
• ROLL OUT CHIP PAN
• CHIP GUARD
• LED WORK LIGHT
• CE ELECTRICS
• TOOL BOX AND MANUAL

• GEARED HEADSTOCK AND CONTROL PANEL:  THE 18” CLAUSING LATHE HAS A DRIVE MOTOR THAT DRIVES A FULLY GEARED HEAVY-DUTY HEADSTOCK GIVING YOU A TOTAL OF 16 SPINDLE SPEEDS.  ALL GEARS ARE HARDENED AND GROUND AND RUN IN A CONTINUAL BATH OF OIL.  THE SPINDLE IS MADE OF FORGED, QUENCHED AND TEMPERED STEEL, WITH A CASE HARDENED SPINDLE NOSE AND MOUNTED ON PRECISION TAPER ROLLER BEARINGS.  THE EASY-TO-OPERATE CONTROL PANEL IS DESIGNED FOR EFFICIENCY. SOFT START INVERTER CONTROL.
• VARIABLE SPEED HEADSTOCK AND CONTROL PANEL (VS MODELS):  THE 18” VS CLAUSING LATHE HAS A TWO RANGE HEADSTOCK GIVING YOU A WIDE SELECTION OF VARIABLE SPEEDS.  ALL GEARS ARE HARDENED AND GROUND AND RUN IN A CONTINUAL BATH OF OIL.  THE SPINDLE IS MADE OF FORGED, QUENCHED AND TEMPERED STEEL, WITH A CASE HARDENED SPINDLE NOSE AND MOUNTED ON PRECISION TAPER ROLLER BEARINGS.  THE EASY-TO-OPERATE CONTROL PANEL IS DESIGNED FOR EFFICIENCY.
• SPINDLE BRAKE MAGNETIC BRAKE SYSTEM FOR GEARED HEAD MACHINE AND INVERTER BRAKE SYSTEM FOR VARIABLE SPEED MACHINE
• CHIP TROLLEY CHIP TROLLEY PULL OUT FOR EASY CLEAN UP
• FULL LENGTH SPLASH GUARD:  A STANDARD FEATURE ON THE 18” LATHE, FOR CLEAN WORK ENVIRONMENT.
• CARRIAGE & APRON:  CONTROLS ARE DESIGNED FOR EASY OPERATION TO ENSURE MAXIMUM PRODUCTIVITY.  EASY-TO-READ INCH, AND A 4-WAY TOOL POST, AND THREAD DIAL ARE STANDARD EQUIPMENT ON THE 18” LATHE.
• CHUCK SAFETY GUARD AND TRAVELING CHIP GUARD:  FOR SAFE OPERATION OF THE LATHE AND CE SAFETY MARKING.
• BED & BEDWAYS: THE EXTRA-WIDE SCIENTIFICALLY DESIGNED BED, WITH TAPERED CROSS BRACES FOR FAST AND EASY CHIP REMOVAL, IS CONSTRUCTED OF STABILIZED CAST IRON WITH BEDWAYS HARDENED OF 42 TO 47 RC.  THE BED IS MOUNTED ON A RIGID, FABRICATED STEEL BASE THAT IS SPECIALLY ENGINEERED TO ABSORB VIBRATION AND ENSURE SMOOTH, ACCURATE OPERATION.
• TAILSTOCK:  A HEAVY-DUTY CASTING DESIGN WITH 3” QUILL FOR MAXIMUM RIGIDITY TO SUPPORT WORK PIECES OR TOOLING. 2 SPEED QUILL ADVANCE SELECTOR

OPTIONAL EQUIPMENT AVAILABLE. INQUIRE.
