Deckel ISOG S11 SPEED, MICROSCOPE WITH VIDEO SYSTEM TOOL & CUTTER GRINDERS
Price on Request
- Make:
- Deckel
- Model:
- ISOG S11 SPEED, MICROSCOPE WITH VIDEO SYSTEM
- Year:
- 2000
- Ref #:
- 158706
Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

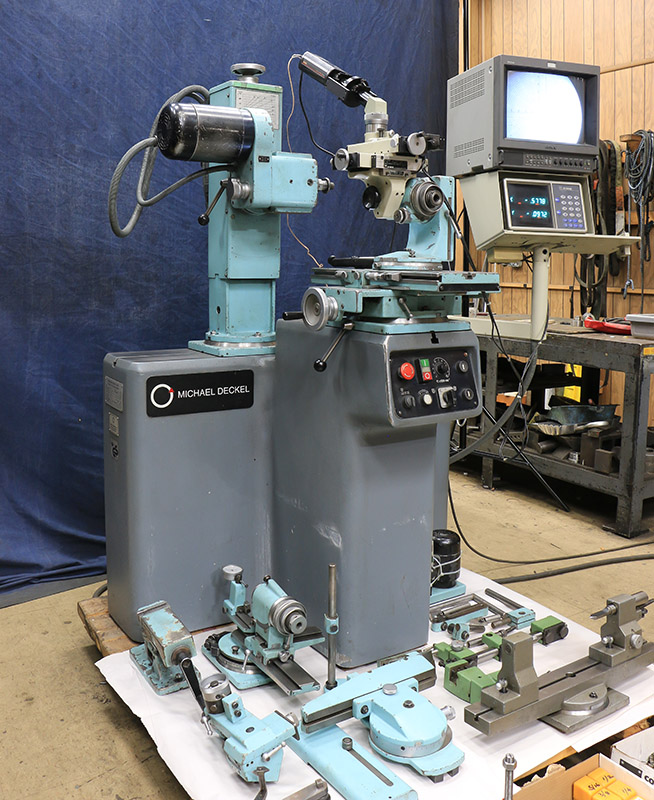

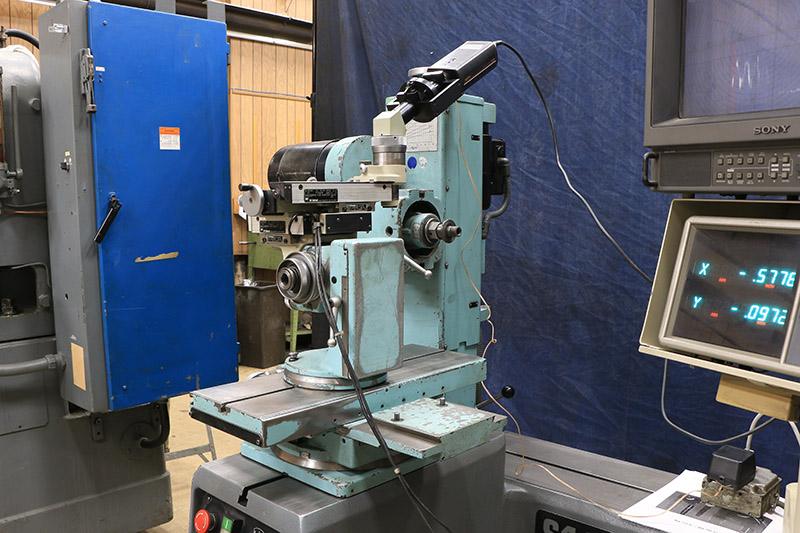

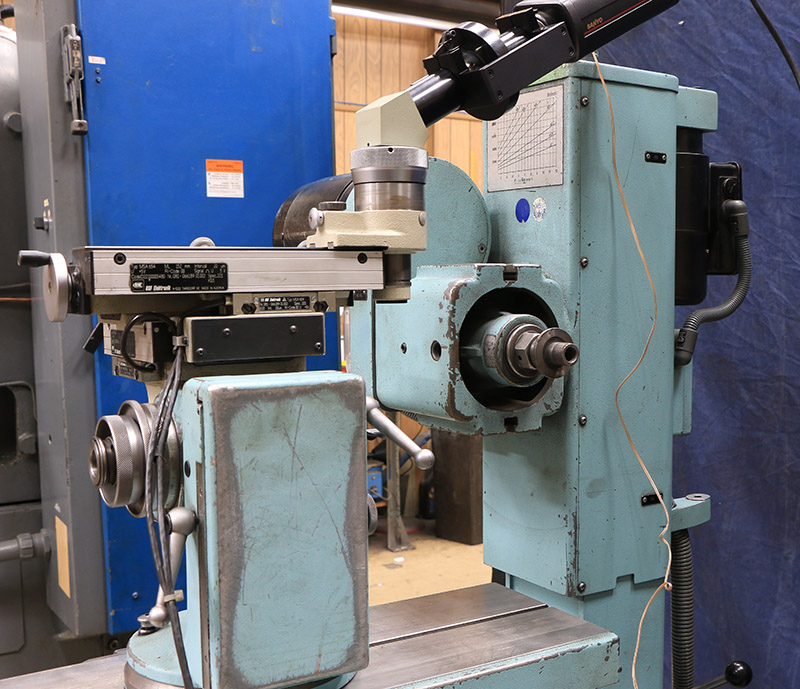

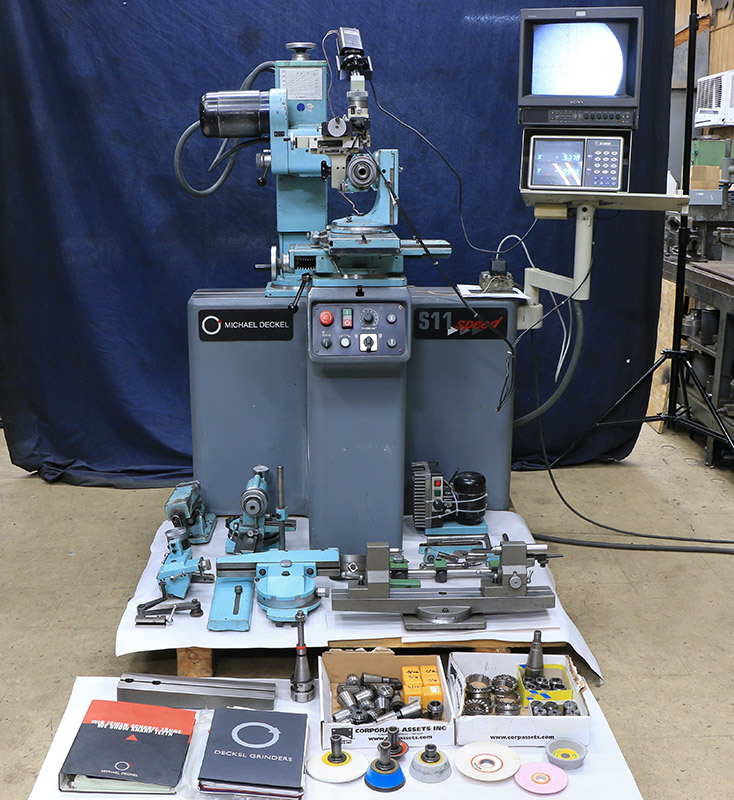

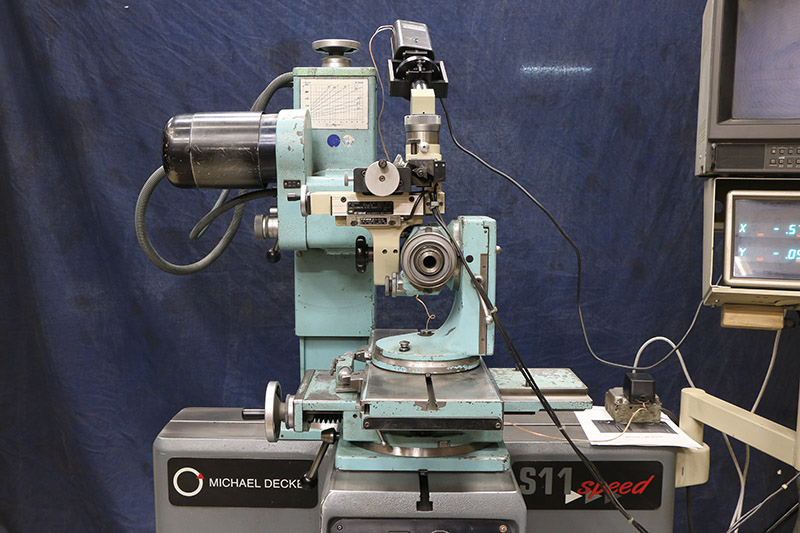

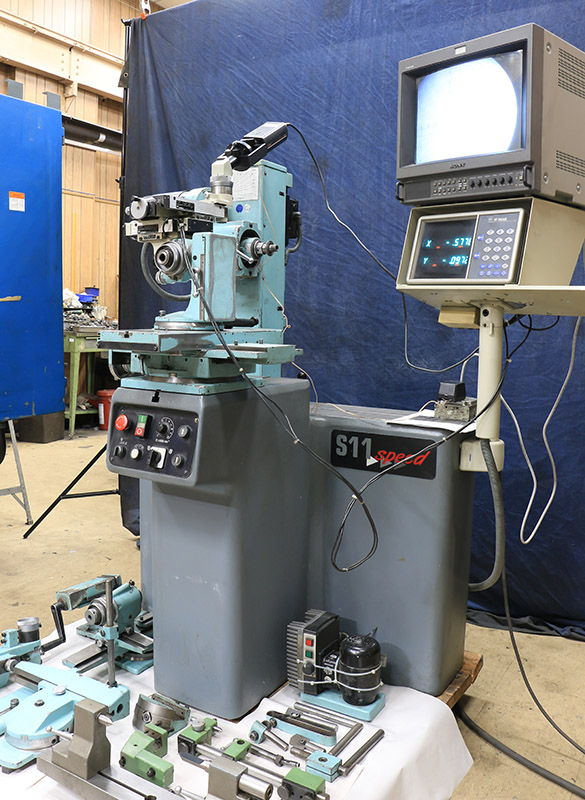

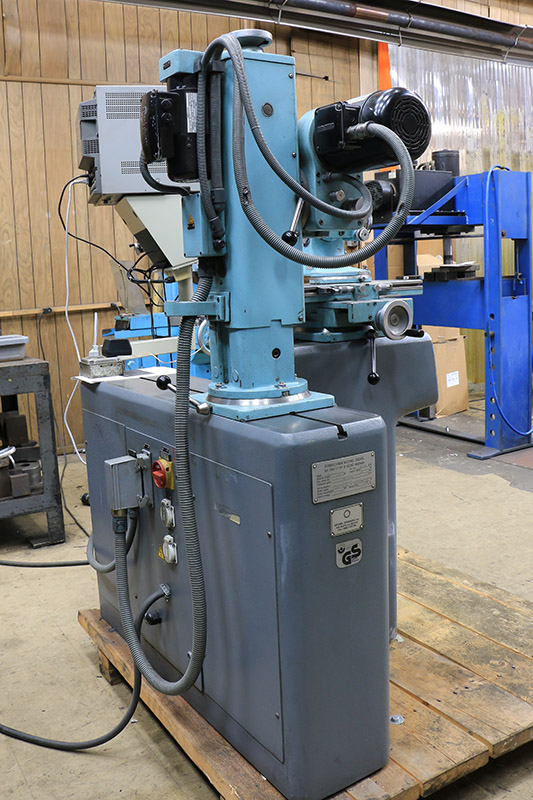

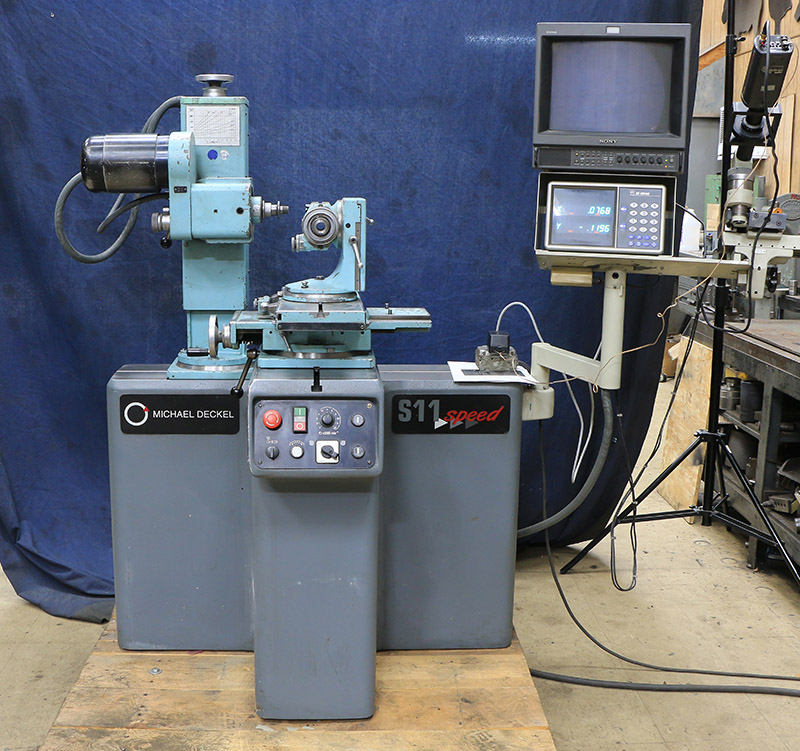

DECKEL (ISOG) UNIVERSAL TOOL & CUTTER GRINDER
** ADJUSTABLE THROUGH 360 DEG. IN 5 AXES **
** MACHINE COMES WITH MANY ACCESSORIES **
TYPE: S11 SPEED S/N: 2147 NEW: 2000
WORTABLE LONGITUDINAL TRAVEL .................. 7.5"
WORKTABLE CROSS TRAVEL ........................ 4"
SPINDLE, VERTICAL TRAVEL ...................... 13"
SPINDLE AXIAL FEED ............................ 0.187"
MAX. WORKPIECE DIA. BETWEEN CENTERS ........... 13.5"
MAX. WORKPIECE LENGTH BETWEEN CENTERS ......... 37"
SPINDLE COLUMN SWIVEL, HORIZONTAL ............. 360 DEG.
SPINDLE COLUMN SWIVEL, VERTICAL ............... 360 DEG.
WORKTABLE SWIVEL .............................. 360 DEG.
UNIVERSAL INDEX HEAD SWIVE, HORIZONTAL ........ 360 DEG.
UNIVERSAL INDEX HEAD SWIVEL, VERTICAL ......... 360 DEG.
MAX. WHEEL DIAMETER ........................... 5"
MAX. CUT-OFF WHEEL DIAMETER ................... 8"
SPINDLE MOTOR ................................. 1.75 H.P.

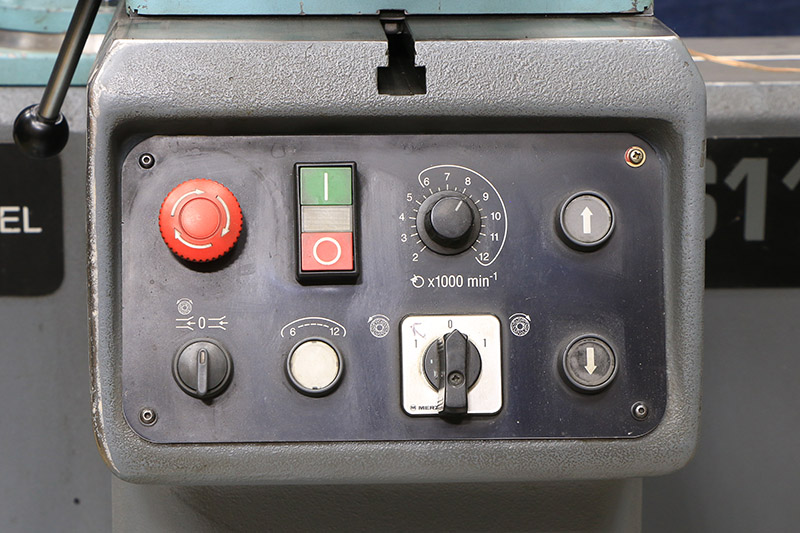

SPINDLE SPEED RANGE (RPM) ..................... 2,000 TO 12,000 RPM
MACHINE TOOL DIMENSIONS ............ 43.3"L x 31.5"W x 69.3H
MACHINE TOOL WEIGHT ........................... 1,145 LBS.
"LISTA" TOOL CABINET DIMENSIONS ....... 22"W x 29"D x 40"H
APPROX. WEIGHT WITH ACCESSORIES ............... 450 LBS.
OPTO-ELECTONIC MEASURING UNIT SPECS:
MEASURING RANGES:
PARALLEL TO TOOL AXIS ........................ 6"
SQUARE TO TOOL AXIS ................... 2- 1/2" OR 5" DIA.
RADII ....................................... UP TO 1/8"
FIELD OF VIEW ............................... 1/4"
MAXIMUM DISTANCE OF MEASURING POINT TO
INDEX SPINDLE END FACE:
INDEX SPINDLE END FACE ...................... 6- 3/4"
WITH ADDITIONAL EXTENSION ................... 10- 5/8"
MAGNIFICATION ................................ ZOOM LENS

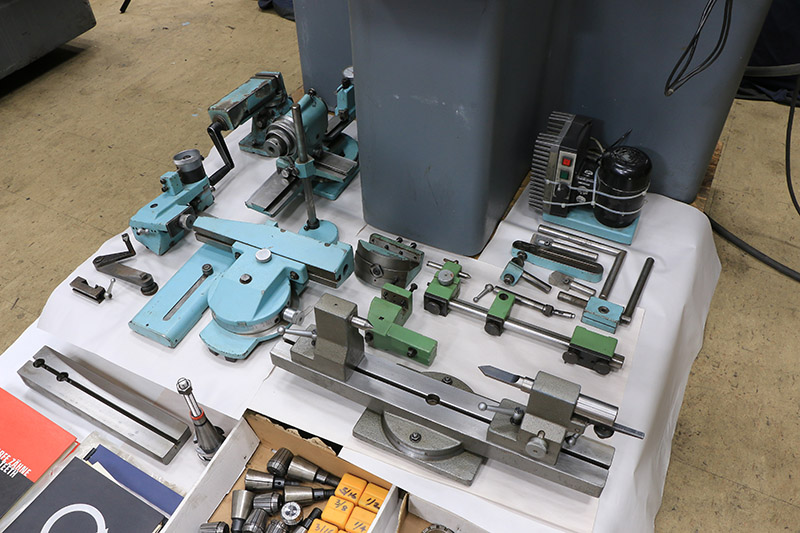

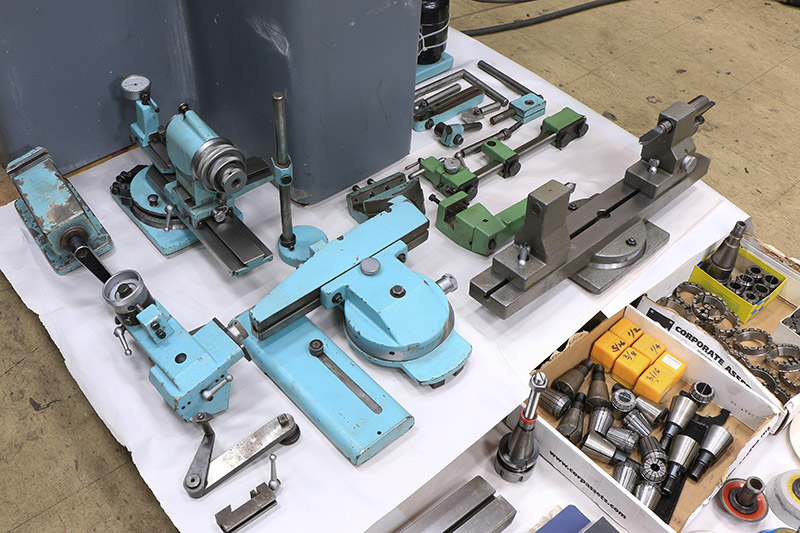

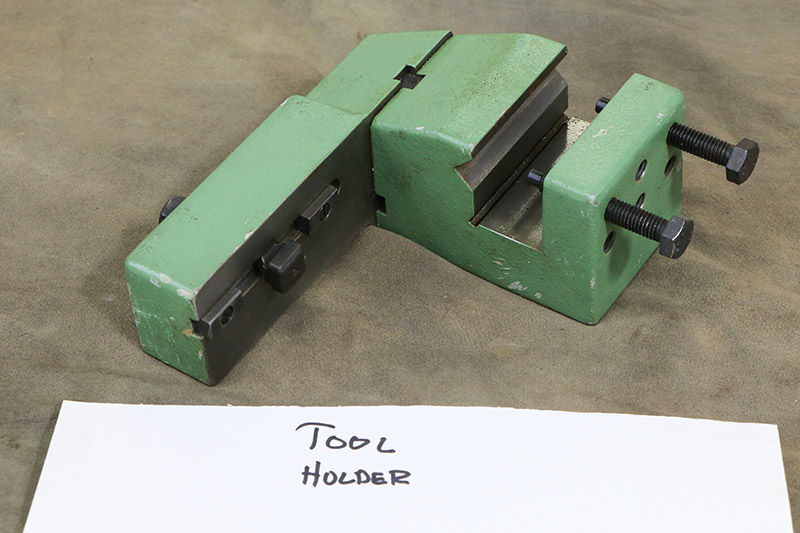

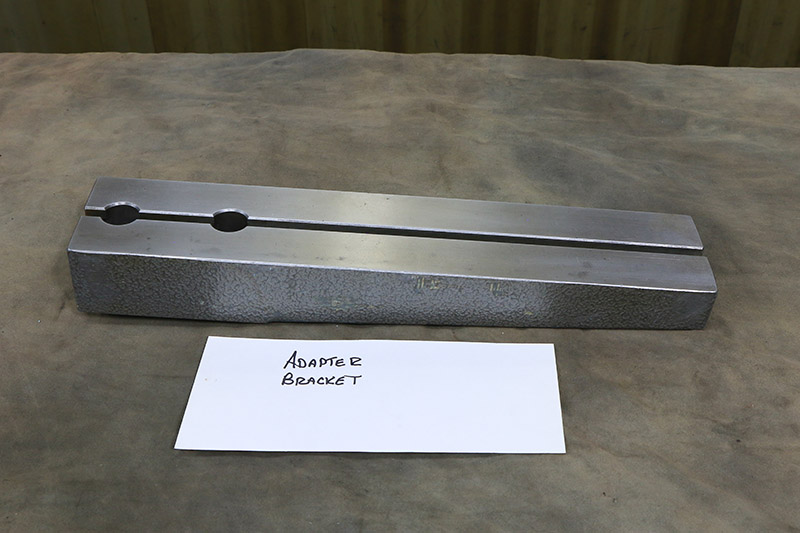

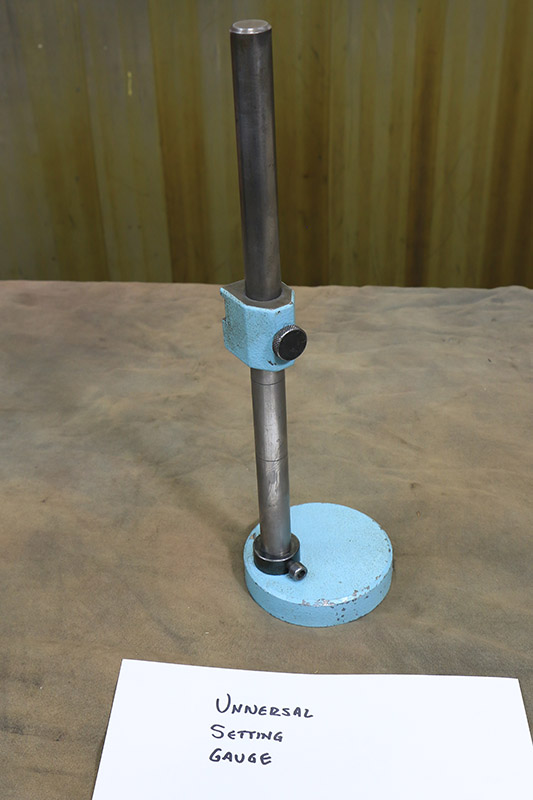

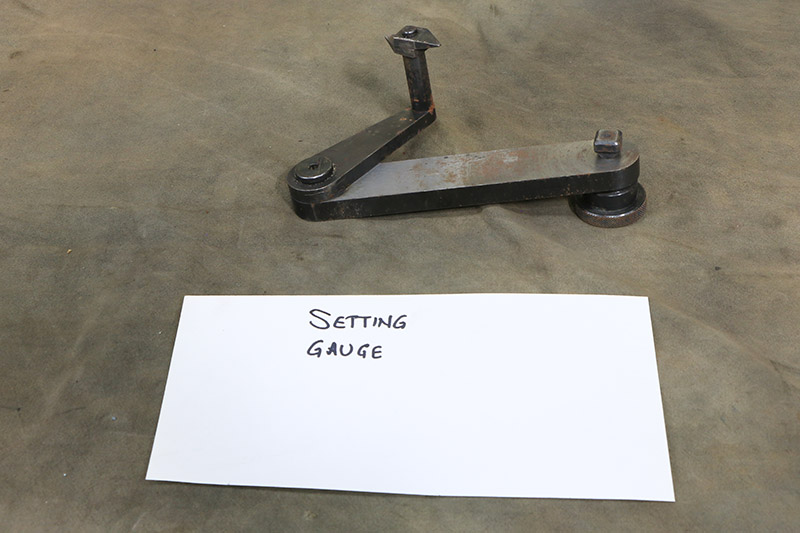

THIS MACHINE IS EQUIPPED WITH MANY DECKEL ACCESSORIES:
DESCRIPTION OF SOME OF THE MAJOR ACCESSORIES:

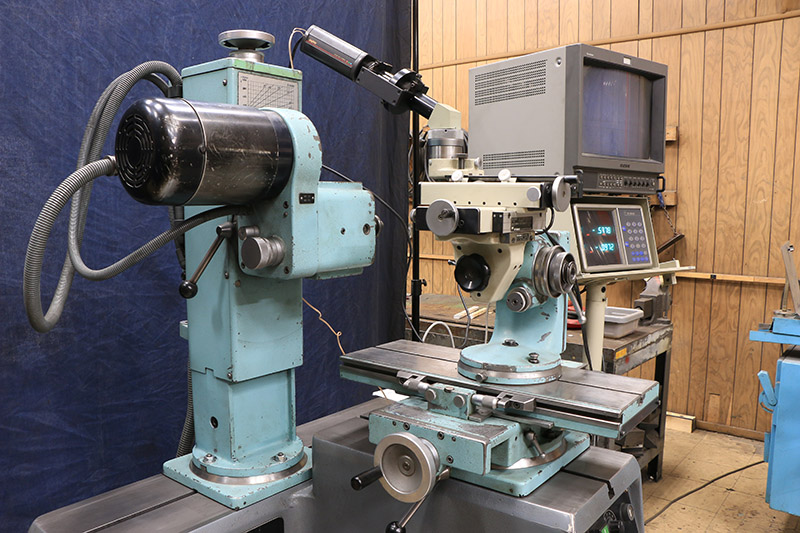

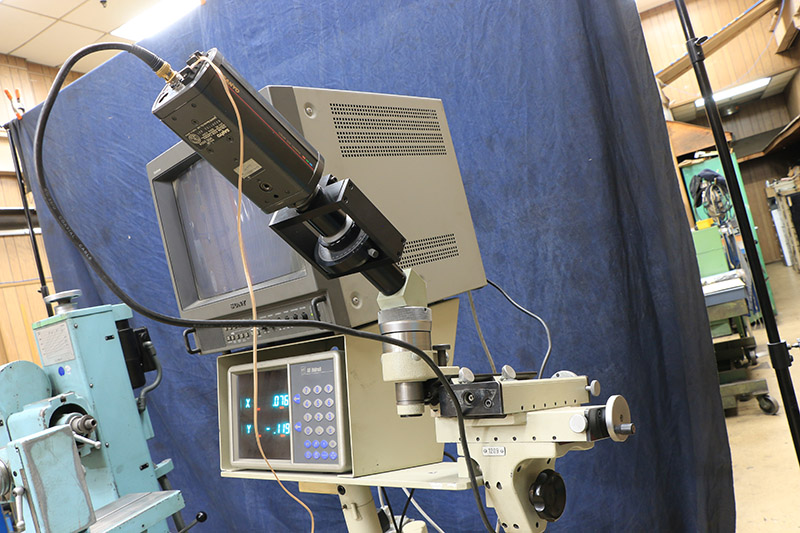

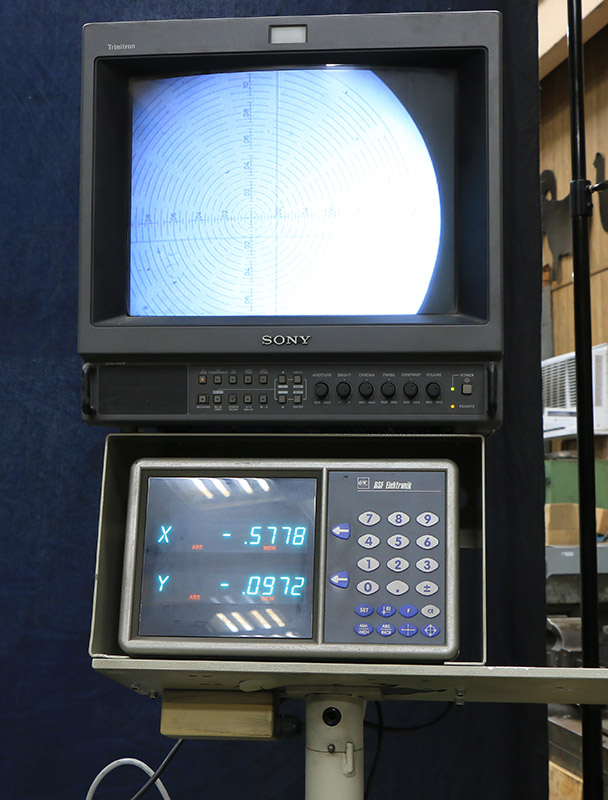

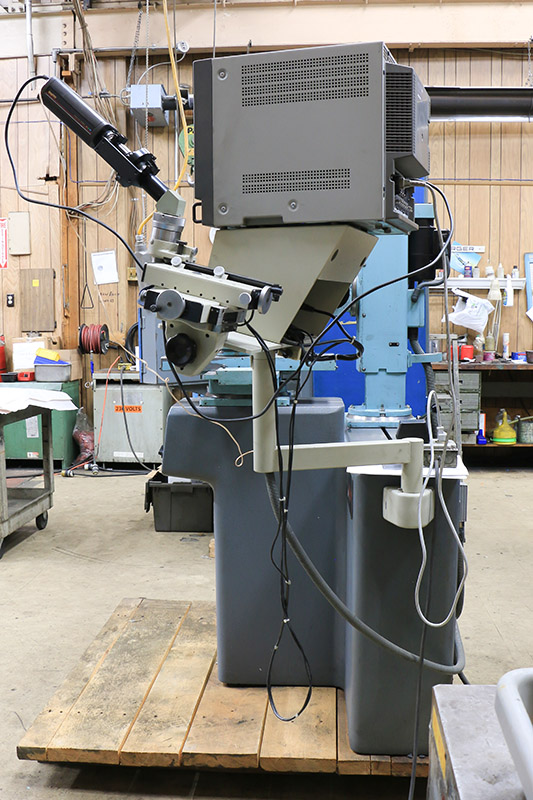

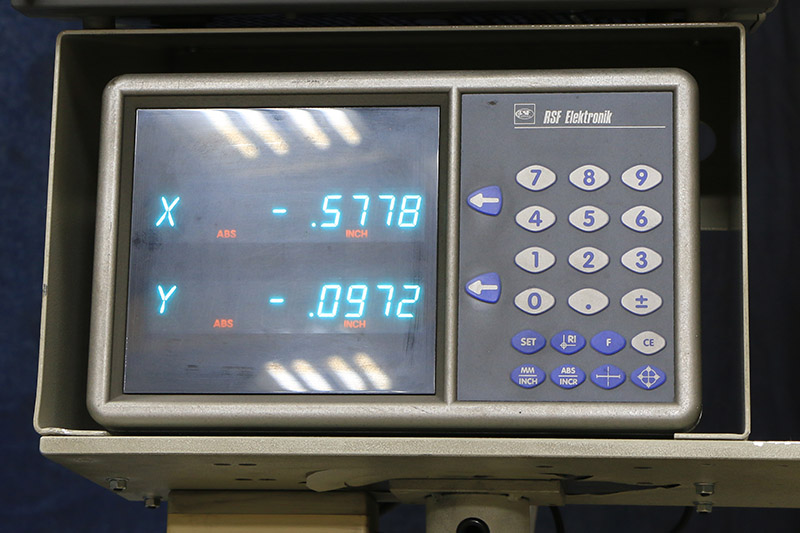

"MEASURING UNIT" WITH MICROSCOPE (2658014). UNIT INCLUDES
DIGITAL READOUT DISPLAY, AND VIDEO DISPLAY.
ALLOWS FOR PRECISE & COMFORTABLE MEASUREMENTS PARALLEL
& SQUARE TO THE TOOL AXIS. WITH THE HELP OF THE
RETICULE IN THE LENS YOU CAN ALSO DETERMINE RADII
& ANGLES WITH GREAT ACCURACY.
THE MICROSCOPE DOES NOT REQUIRE BACKLIGHTING. IT ALSO
ALLOWS UNOBSTRUCTED MEASUREMENT OF TOOLS THAT ARE MOUNTED
IN THE TAILSTOCK BRACKET & OFFERS MORE FREEDOM OF MOVEMENT.
THE 3-DIMENSIONAL REPRESENTATION PERMITS YOU TO JUDGE TOOL
FORM & SURFACE PRECISELY.

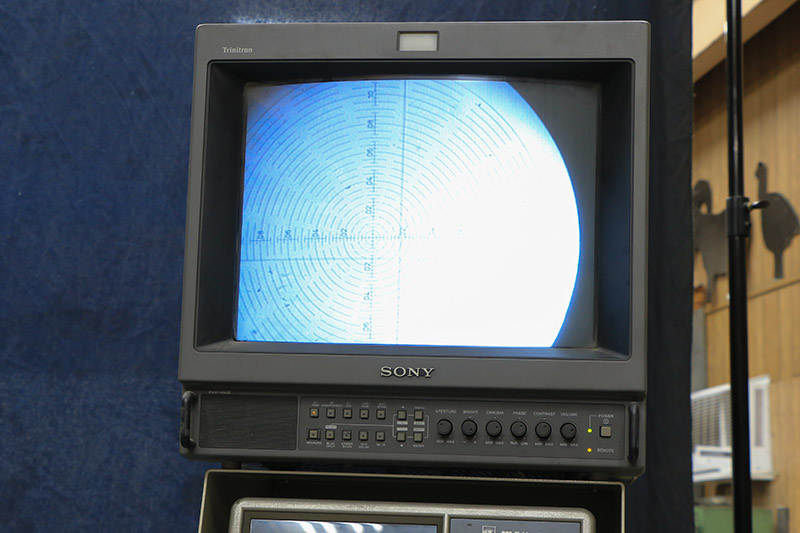

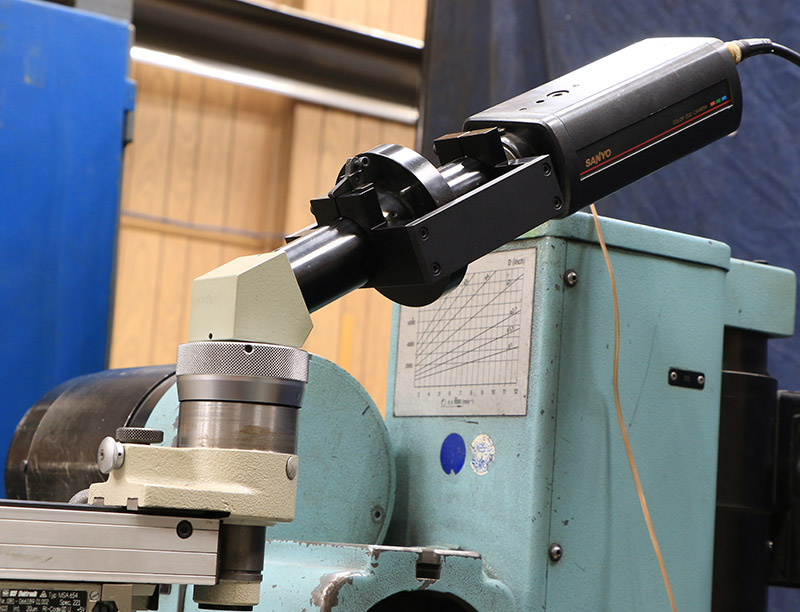

VIDEO CAMERA & MONITOR, ALLOWING THE OPERATOR GRETATER FLEXIBILITY.
DRASTICALLY REDUCED TIMES, MEASURING IN THE MACHINE, NO CHANGE
BETWEEN THE MACHINE AND THE DESK, NO CLAMPING ERRORS, WHICH ARE
NORMALLY INEVITABLE AFTER UNCLAMPING & RECLAMPING, IMPRESSIVE REPEAT
ACCURACY, THE OPTION OF CONSTANTLY CHECKING THE GRINDING PROCESS
TO GUARANTEE THE DESIRED WORK QUALITY.

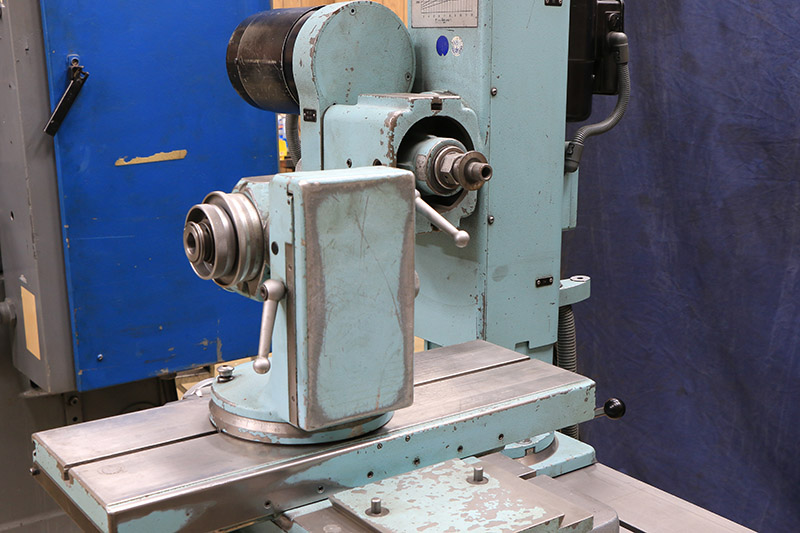

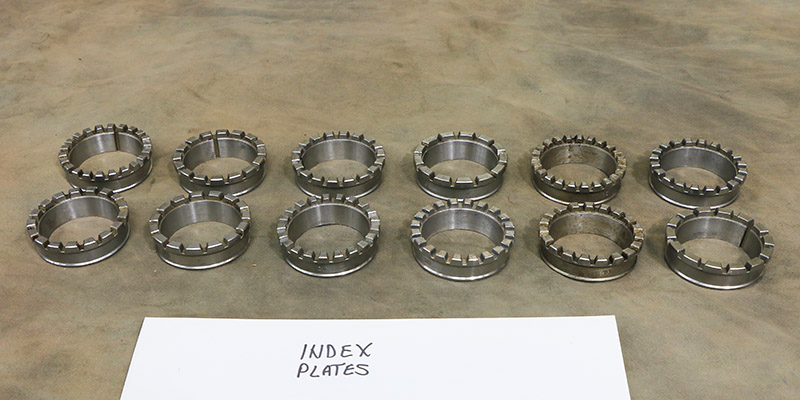

STANDARD UNIVERSAL INDEX HEAD #ST 40 (DECKEL PART #2555201)
WITH CONNECTION FOR OPTO-ELECTRONIC MEASUREMENT SYSTEM.
INSTRUCTION MANUAL FOR THE MICROSCOPE & VIDEO CAMERA:

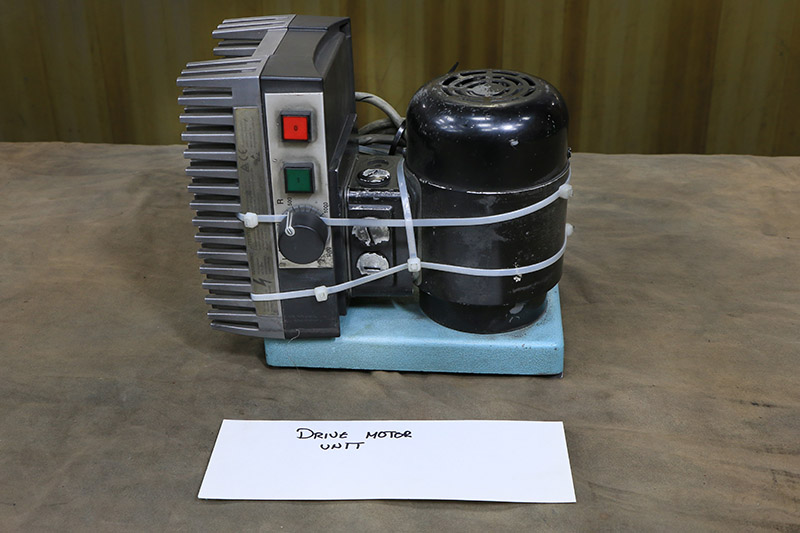

MOTOR DRIVE FOR UNIVERSAL INDEX HEAD (DECKEL PART #2667000)
PROVIDES INFINITELY VARIABLE SPINDLE SPEEDS FROM 100 TO
1,000 RPM. UNIT ALSO HAS A SWITCH FOR FORWARD & REVERSE.

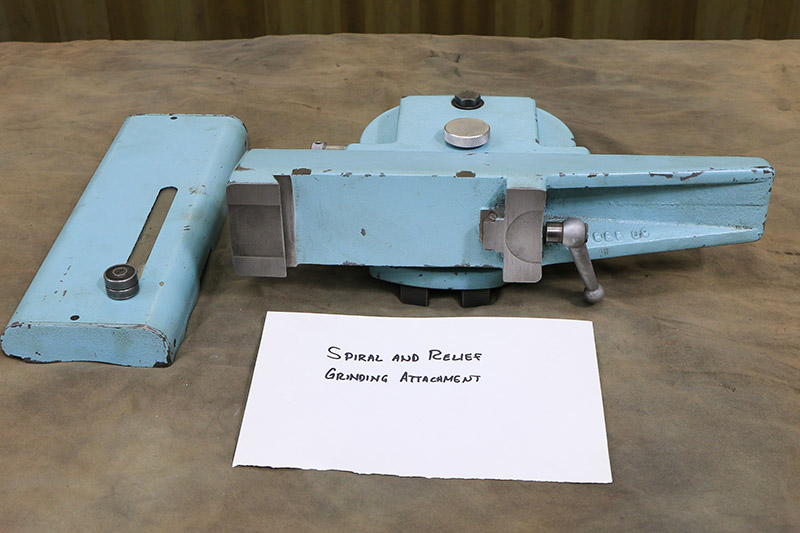

"SPIRAL & RELIEF GRINDING ATTACHMENT" (DECKEL PART #2580000)
FOR GRINDING TOOLS WITH R.H. OR L.H. FLUTES& FOR RELIEF
GRINDING OF COUNTERBORES, TAPS, SPADE DRILLS& PROFILED
CUTTERS, THE UNIVERSAL INDEX HEAD CAN BE COMBINED WITH
THE TWIST& RELIEF GRINDING ATTACHEMENT. IT'S LEAD RANGE
IS FROM 0 TO INFINITY. THE RELIEF GRINDING MOTION CAN BE
AXIAL, RADIAL OR A COMBINTION OF THE TWO.
RELIEF GRINDING SLIDE (DECKEL PART No. 2673000).
STROKE LENGTH 50mm (2") FOR AXIAL-RADIAL RELIEF GRINDING WITH DIRECT FEED
TO TOOL IN TWO DIRECTIONS.

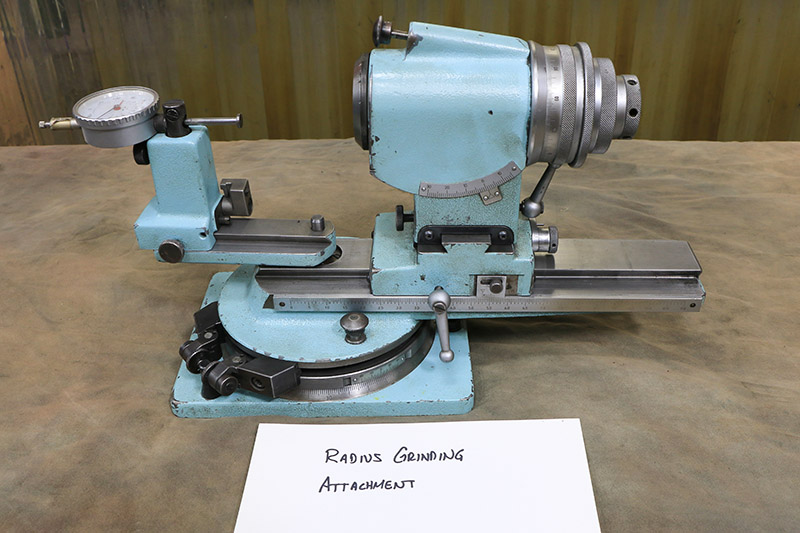

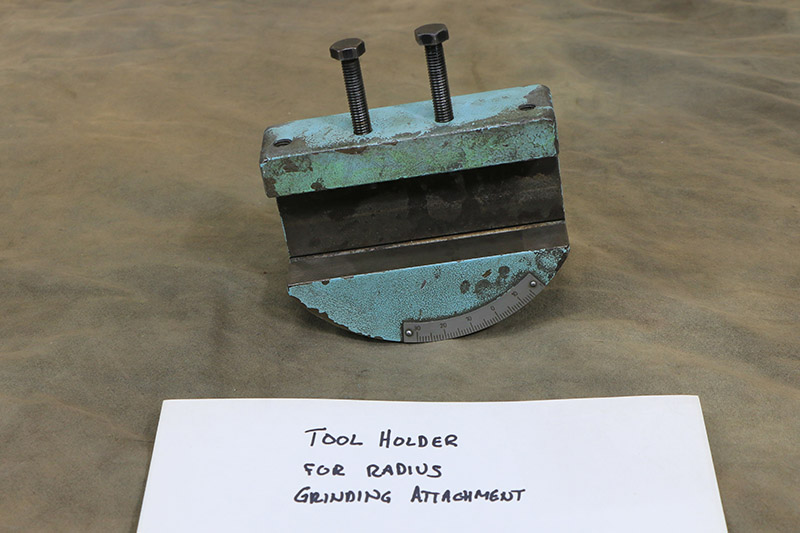

"RADIUS GRINDING ATTACHMENT" (DECKEL PART #2601000).
RADIUS ATTACHEMENT DESCRIPTION:
CONVEX& CONCAVE RADII ON TOOLS STRAIGHT, BEVELLED &
SPIRAL FLUTES, OR ON SINGLE-LIP CUTTERS AND ON TURNING
TOOLS ARE NO PROBLEM. WITH IT, YOU CAN ALSO GRIND THE
CURVED FLUTES OF DIE SINKING CUTTERS TO THE CORRECT ARC.

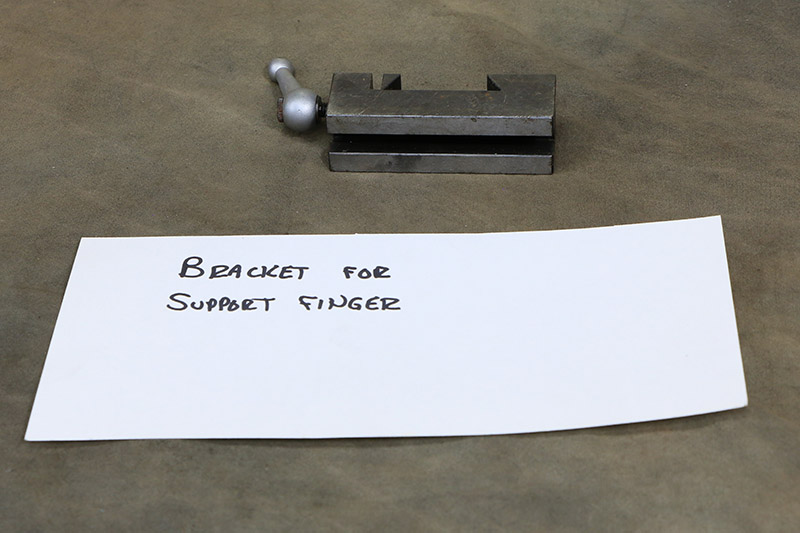

WITH THE HELP OF THE SUPPORT FINGER, YOU CAN GRIND PERFECT
FLANKS ON SPIRAL-FLUTED RADII CUTTING TOOLS. EVEN RADIAL
&PERIPHERAL CUTTING EDGES CAN BE GROUND IN A SINGLE
OPERATION.

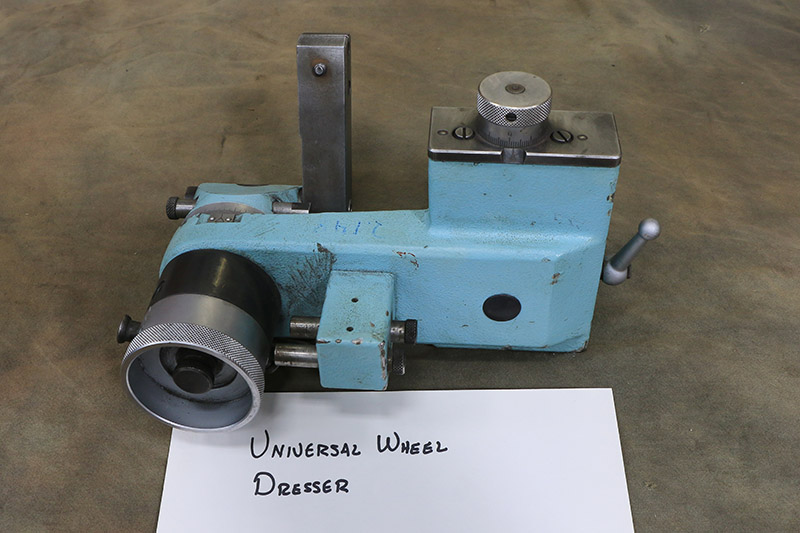

"UNIVERSAL WHEEL DRESSER", DECKEL PART #2628000. FOR
PROFILING OF GRINDING WHEELS, RADII& CYLINDRICAL, TAPERED
& PLANE SURFACES.

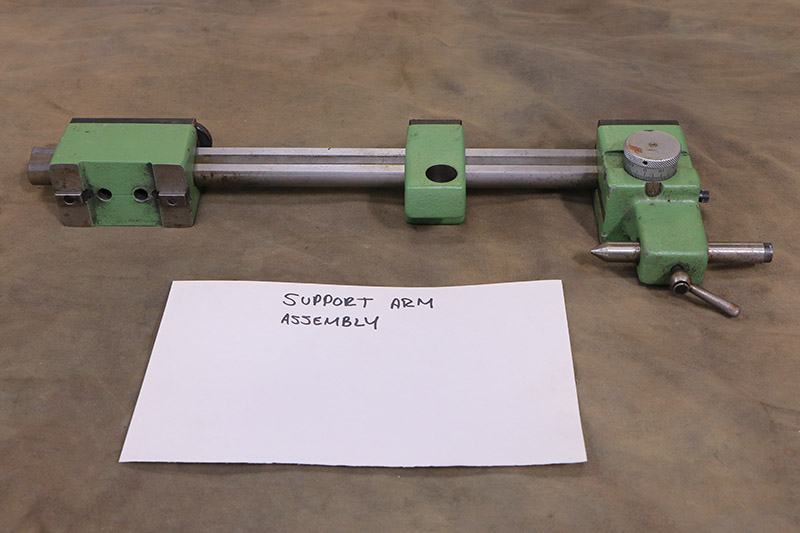

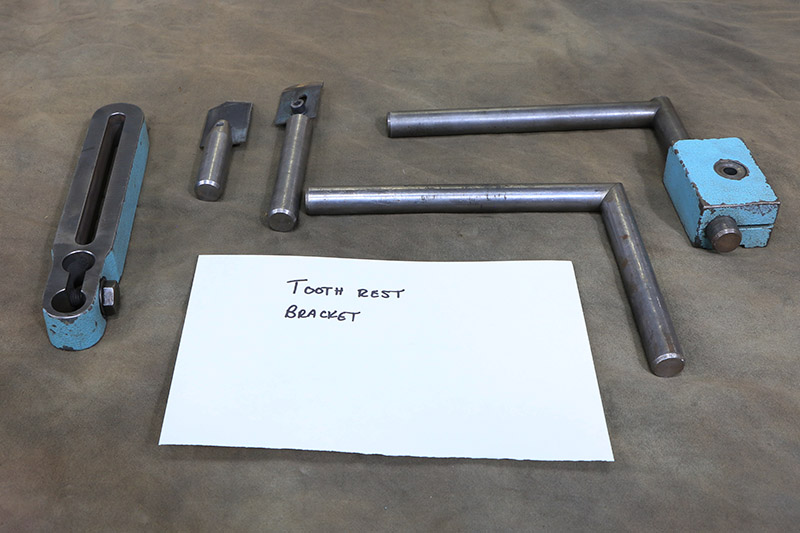

SUPPORT ARM ASSEMBLY (2576000) WITH TAILSTOCK CENTER & SUPPORT BLADE,
FOR UNIVERSAL INDEX HEAD ST-40 & MT4.

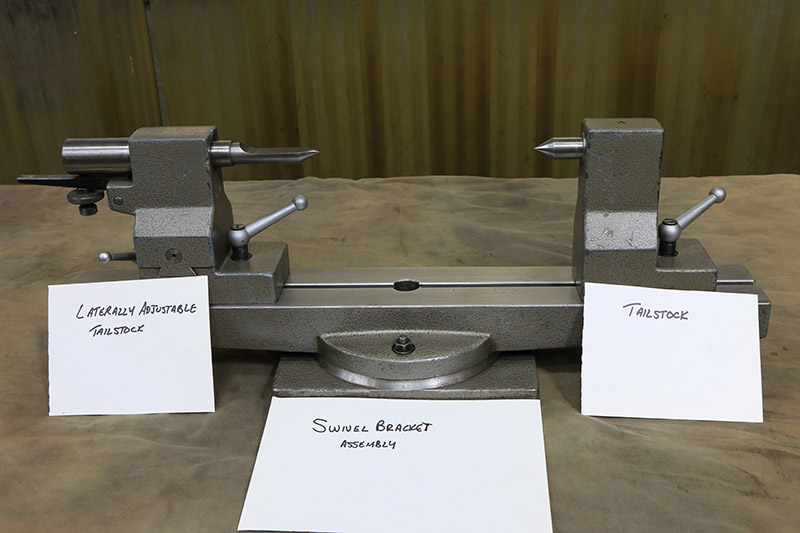

SWIVEL BRACKET ASSEMBLY (2626000) WITH TAILSTOCKS

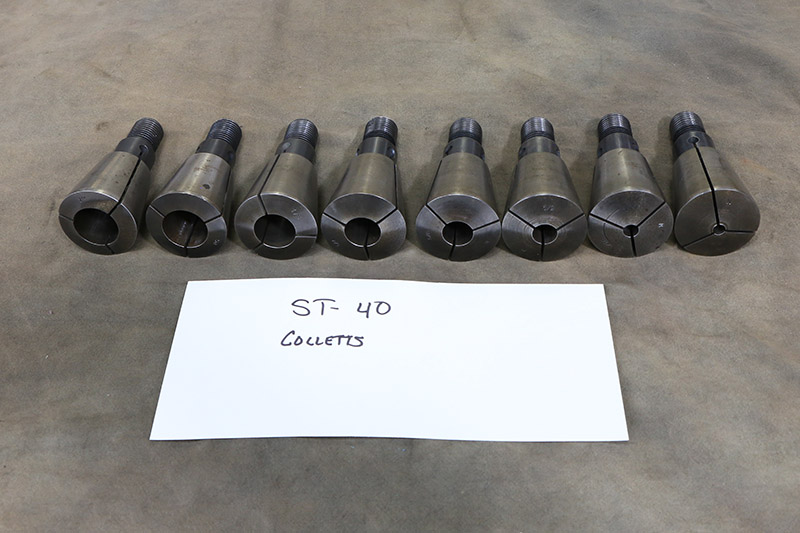

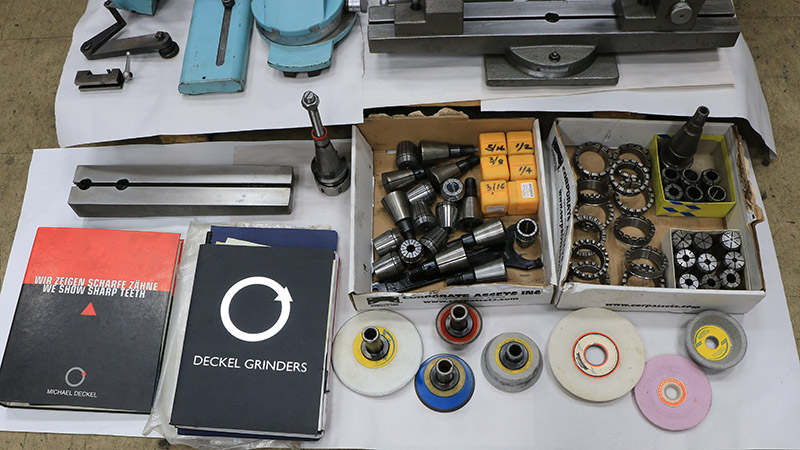

DECKEL ST-40 COLLETS. (8) COLLETS. SIZES ARE:
1/4", 5/16", 3/8", 1/2", 5/8", 3/4", 7/8" & ONE OTHER

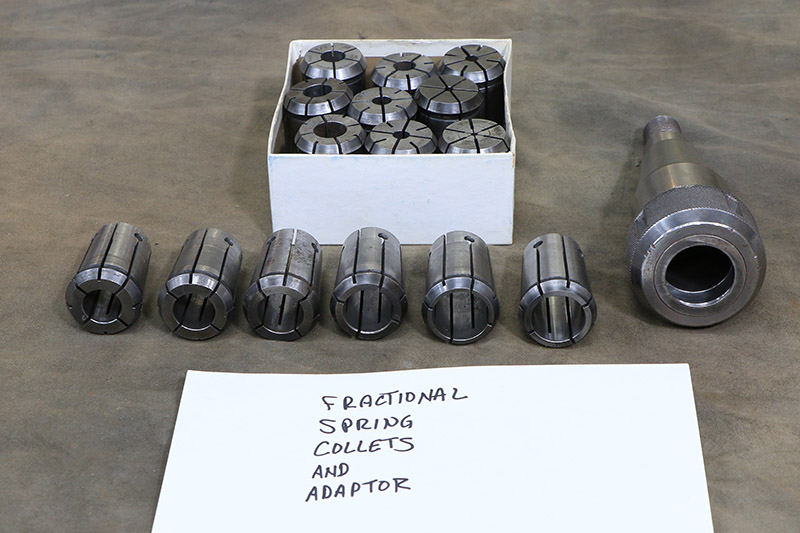

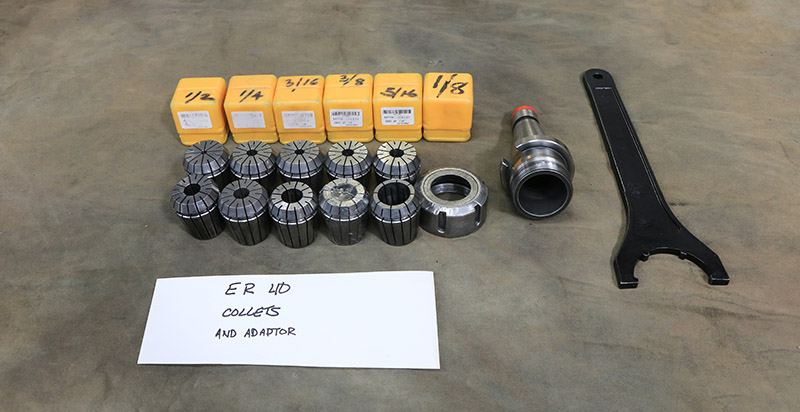

ADAPTOR FOR ST-40 COLLETS TO ER-40 COLLETS:
ER-40 COLLETS SIZES:
(6) INCH SIZES …. 1/8", 3/16", 1/4", 5/16", 3/8" & 1/2"
(9) METRIC SIZES …. 4-5, 8-7, 9-8, 10-9, 12-11, 13-12, 14-13, 17-16 & 21-20
ASSORTMENT OF DECKEL CAMS

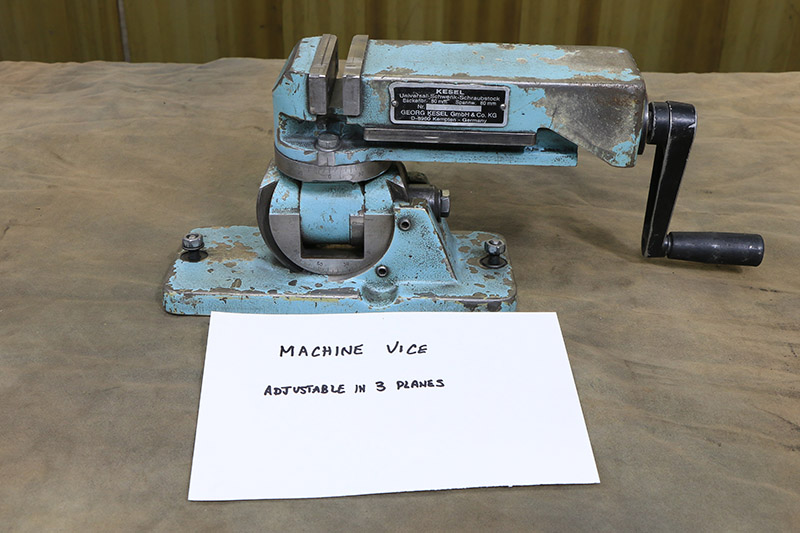

MACHINE VISE (2635000)
ADJUSTABLE IN THREE PLANES. WIDTH OF JAWS IS 3". CLAMPING CAPACITY IS 3".

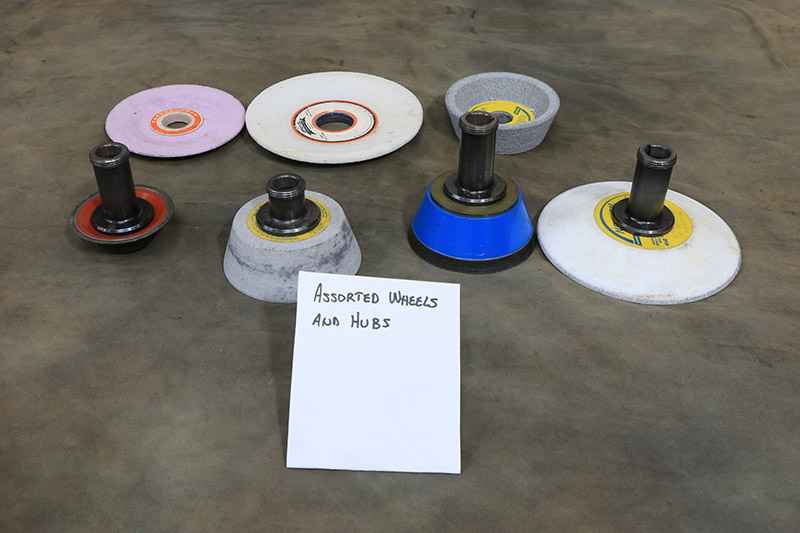

ASSORTMENT OF GRINDING WHEELS & HUBS.
CABNET FOR ACCESSORY STORAGE. CABINET HAS INSERT PANELS, MADE FOR THE ACCESSORIES.

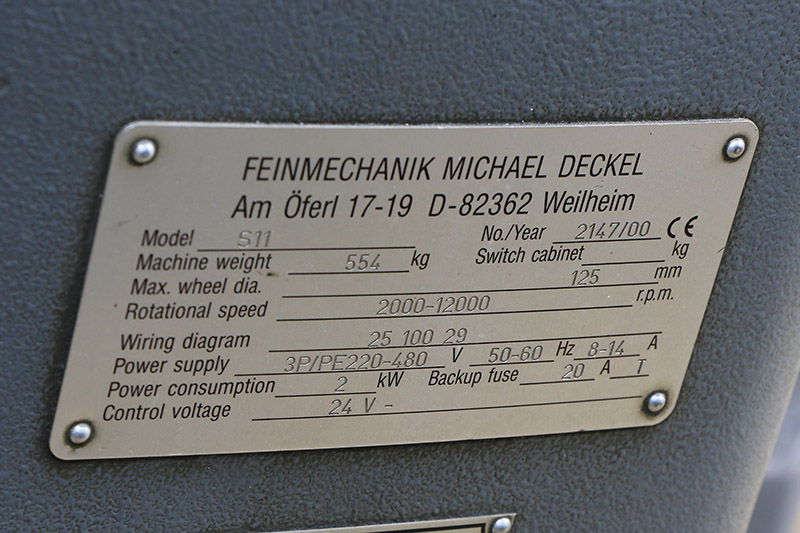

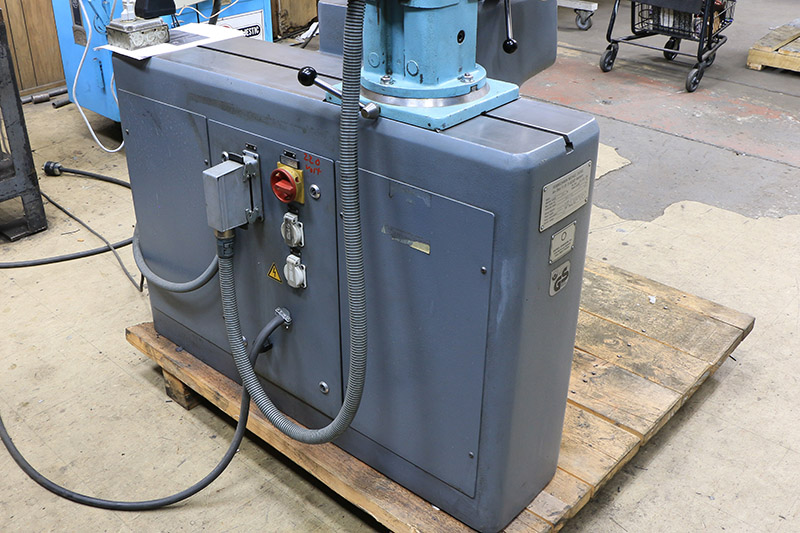

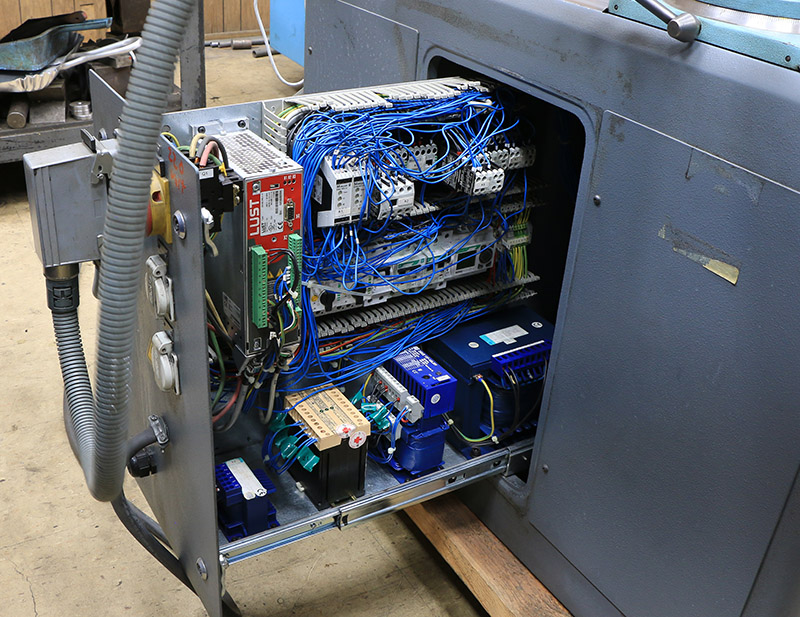

TOTAL POWER, 2KW, 220-480 VOLT, 50-60 HZ
MACHINE IS PRESENTLY WIRED FOR 3/60/220 VOLTS/8-14 AMPS
SPECIAL NOTE:
ISOG DECKEL S11 BROCHURE, DESCRIBES THE MACHINE NICELY:
** SUPERIOR CONDITION & APPEARANCE - ORIGINAL PAINT **
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
** LINK TO VIDEO: https://youtu.be/eOalkQ9Mo3o **
