Seneca Falls 25 RO TOOL & CUTTER GRINDERS

Price on Request

Make:
Seneca Falls
Model:
25 RO
Year:
1990
Ref #:
150599

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

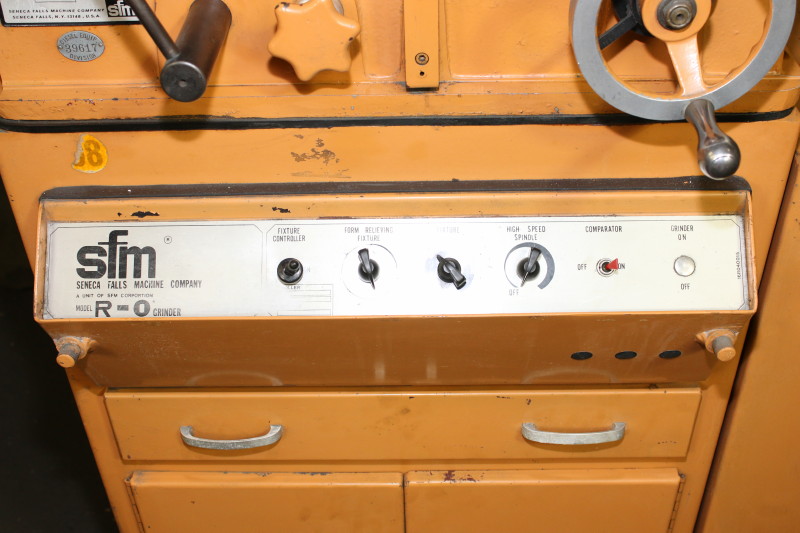

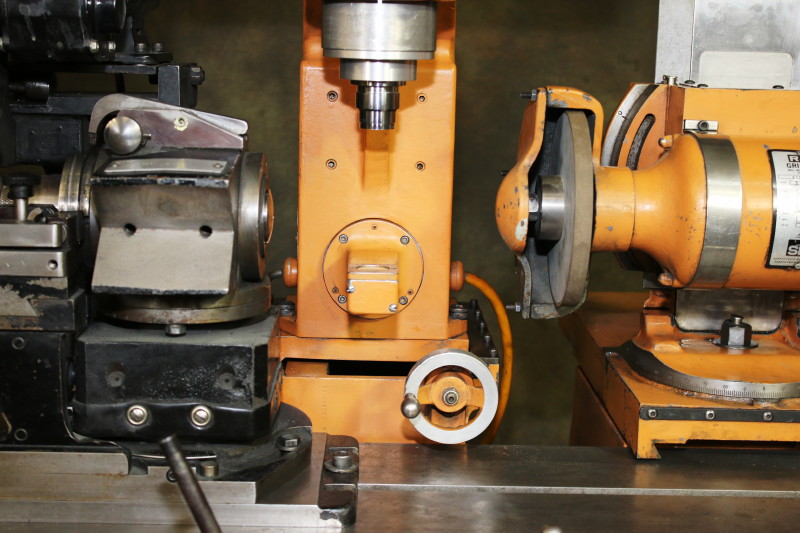

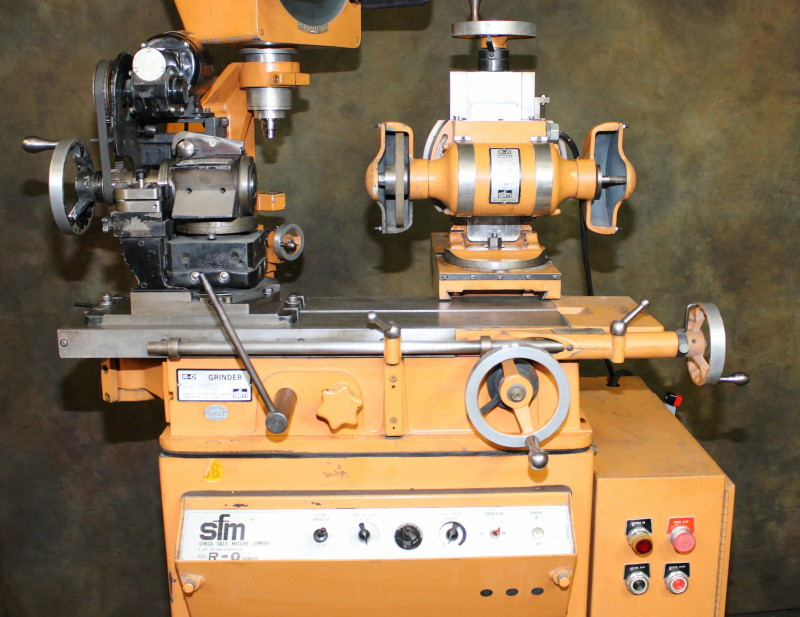

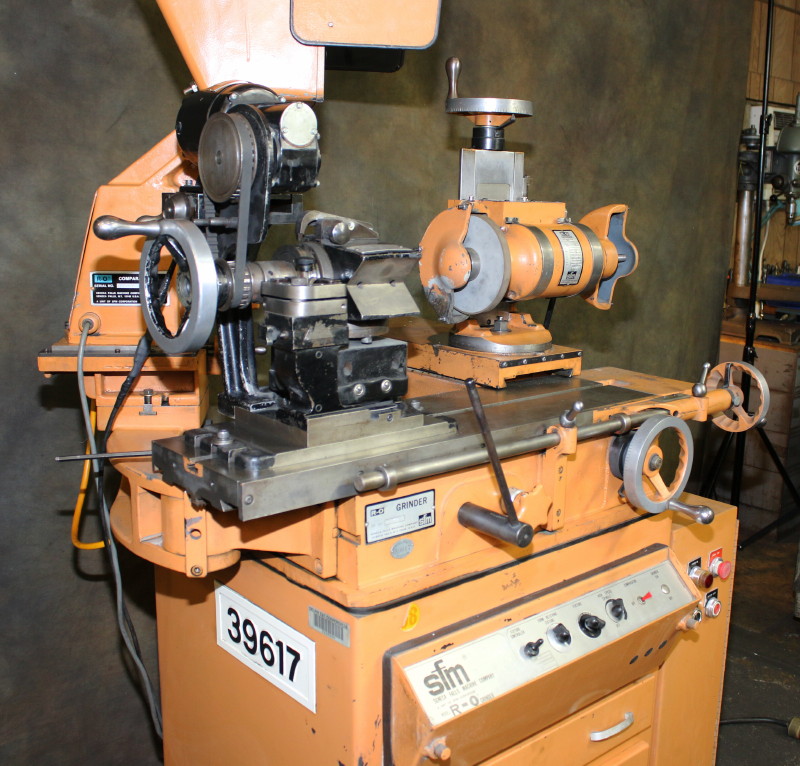

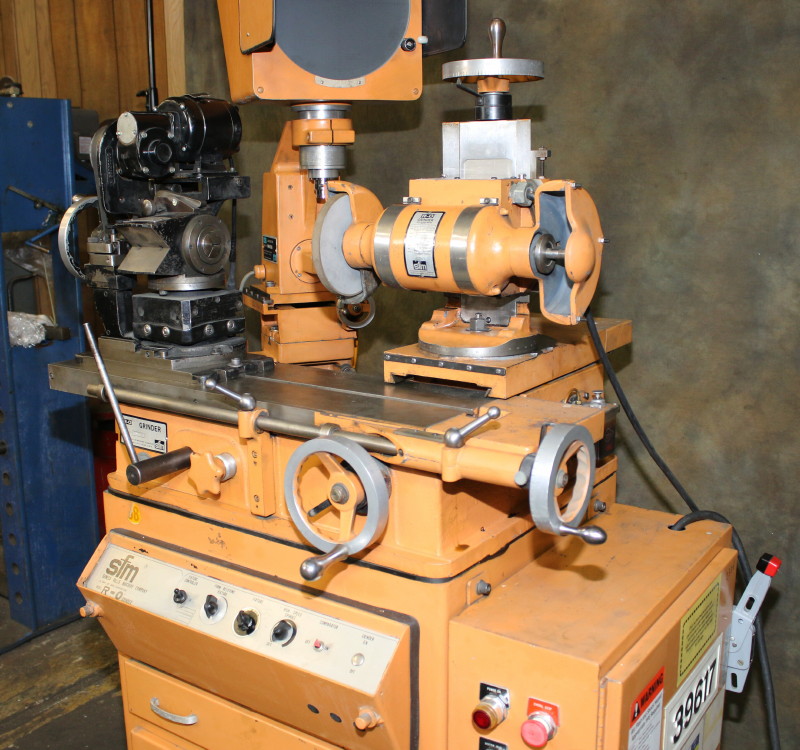

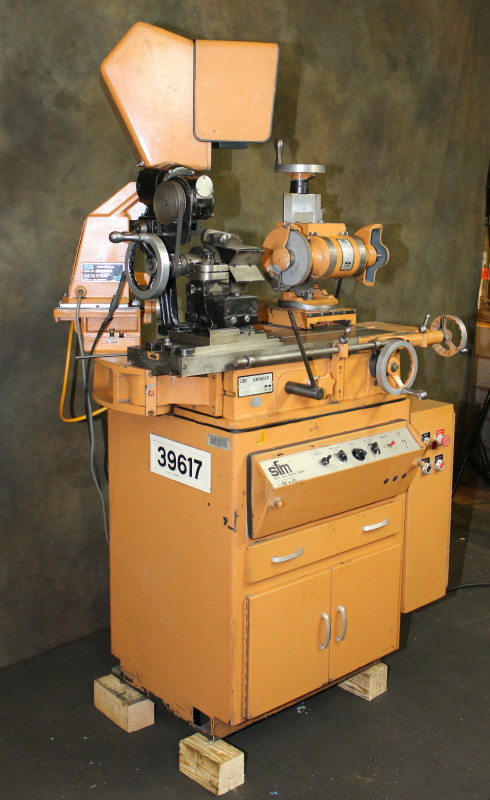

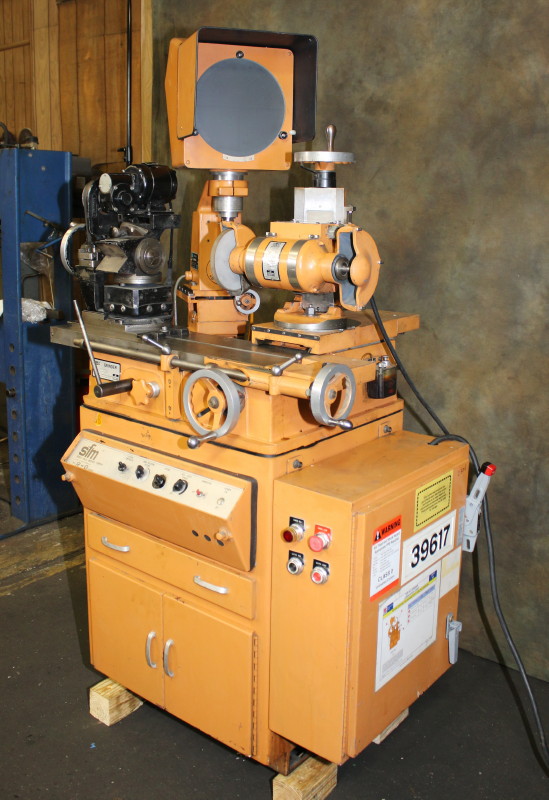

    SENECA FALLS (ROYAL OAK) FORM RELIEVING GRINDER

       ********* OPTICAL COMPARATOR *********

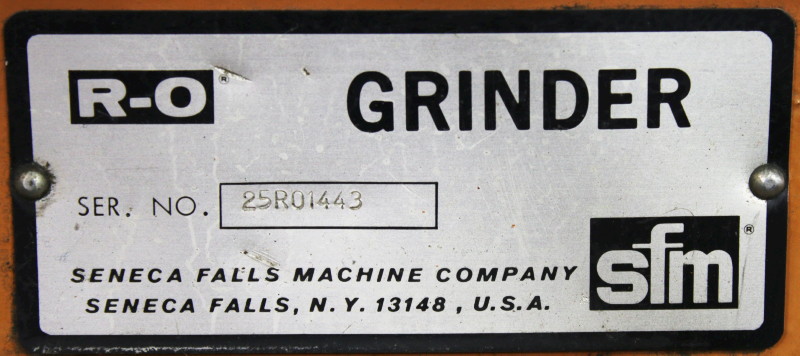

   MODEL:  25R0    S/N:  25R01443    NEW:  1990

PLATEN TABLE SIZE ................................. 8-7/8" X 30"
PLATEN TABLE TRAVEL ............................... 16"
GRINDER COLUMN CROSS TRAVEL ....................... 5-1/8"
GRINDER SPINDLE VERTICAL TRAVEL ................... 5-1/4"
GRINDER SPINDLE TILT .............................. 25 DEGREES ABOVE & BELOW
GRINDER SPINDLE INDEXES ........................... 360 DEGREES
MAXIMUM DIAMETER BETWEEN CENTERS OF FORM RELIEVING
  FIXTURE WITH .................................... 1-3/4" SQUARE
  CENTER HOLDING FIXTURE .......................... 5-1/2"
MAXIMUM LENGTH BETWEEN CENTER OF FORM RELIEVING
  FIXTURE WITH .................................... 1-3/4" SQUARE
  CENTER HOLDING FIXTURE .......................... 8"
MAXIMUM COLLET CAPACITY OF FORM RELIEVING
  FIXTURE ......................................... 2-1/2"
APPROX. MACHINE WEIGHT ............................ 1,000 LBS.

EQUIPPED WITH:

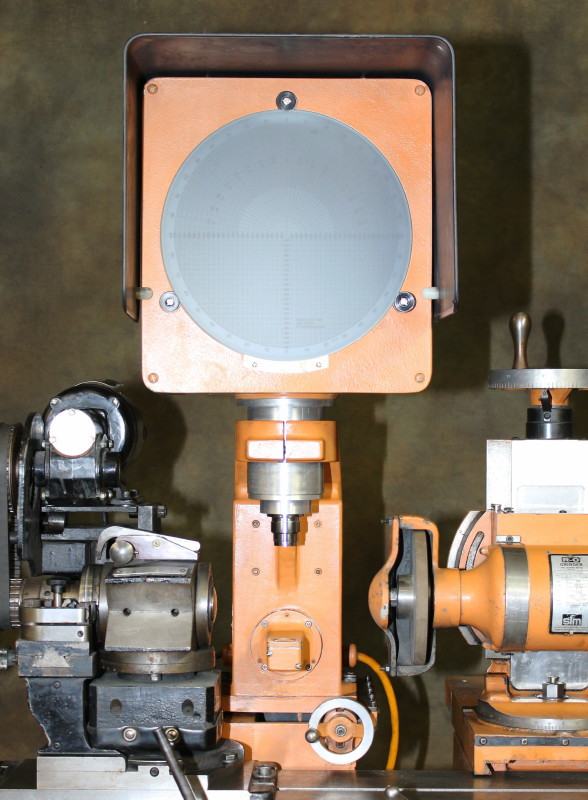

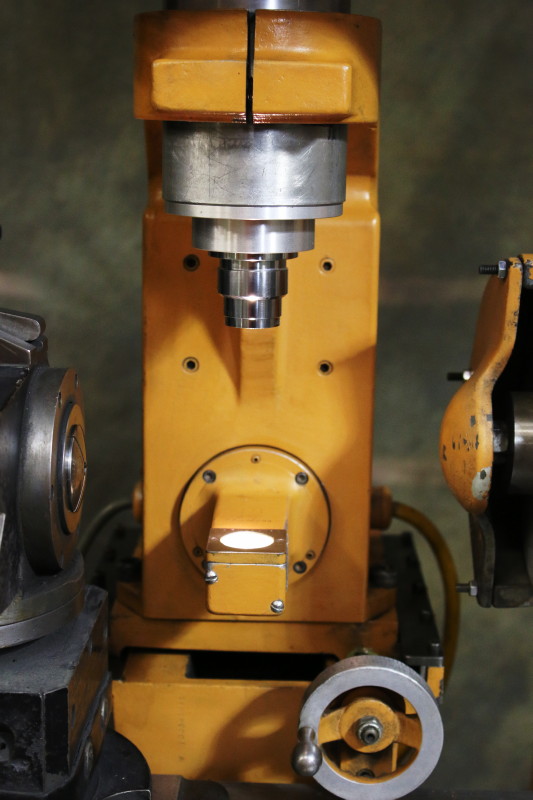

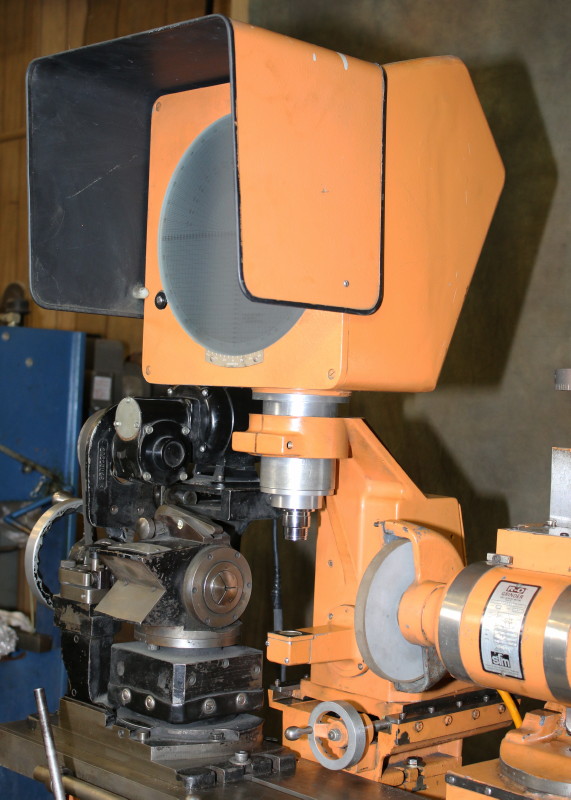

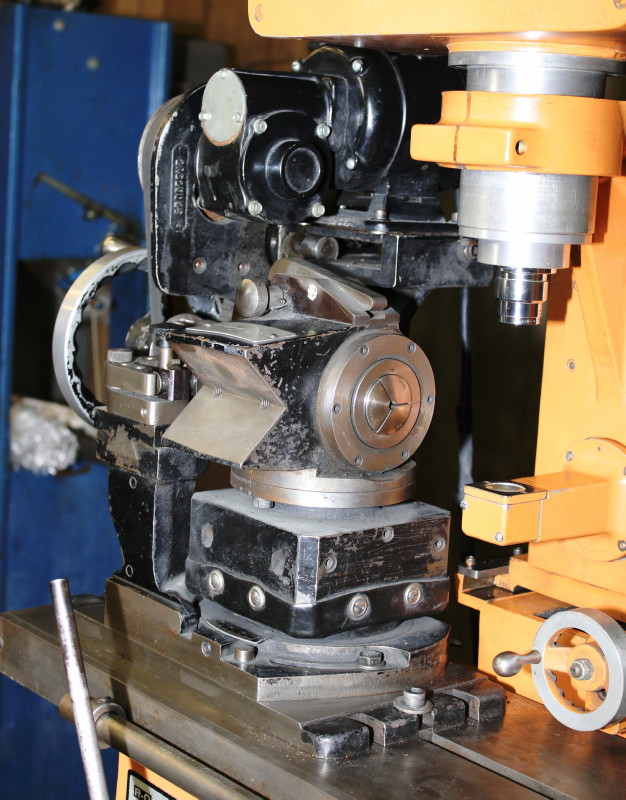

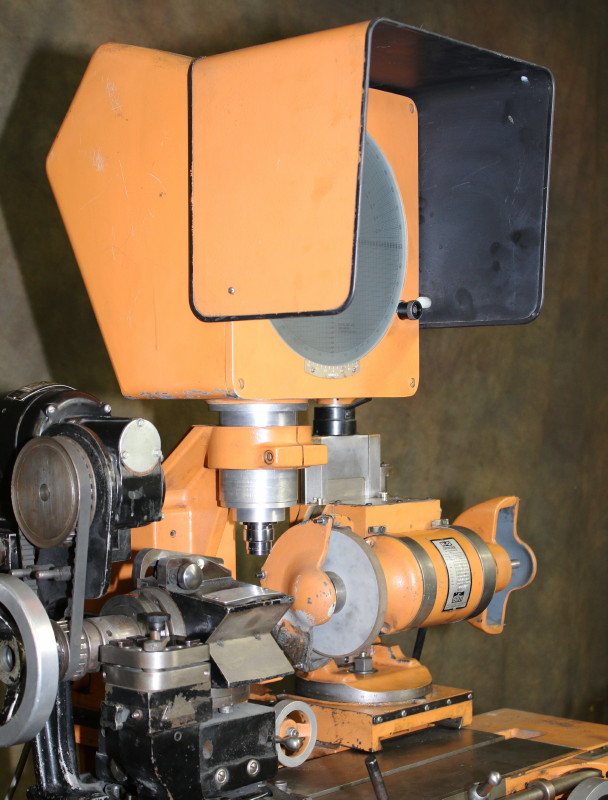

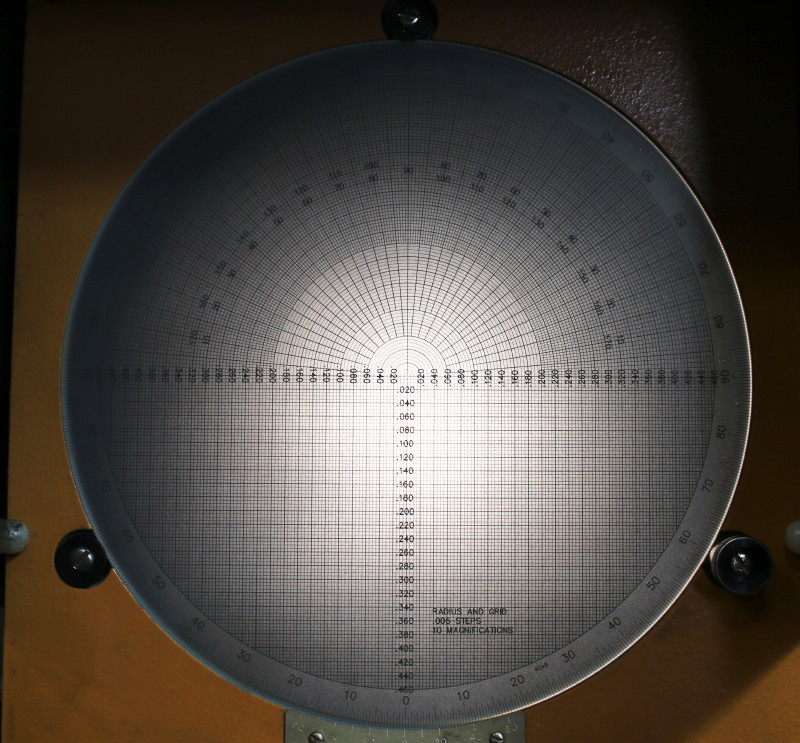

R-O OPTICAL COMPARATOR ATTACHMENT W/LENS

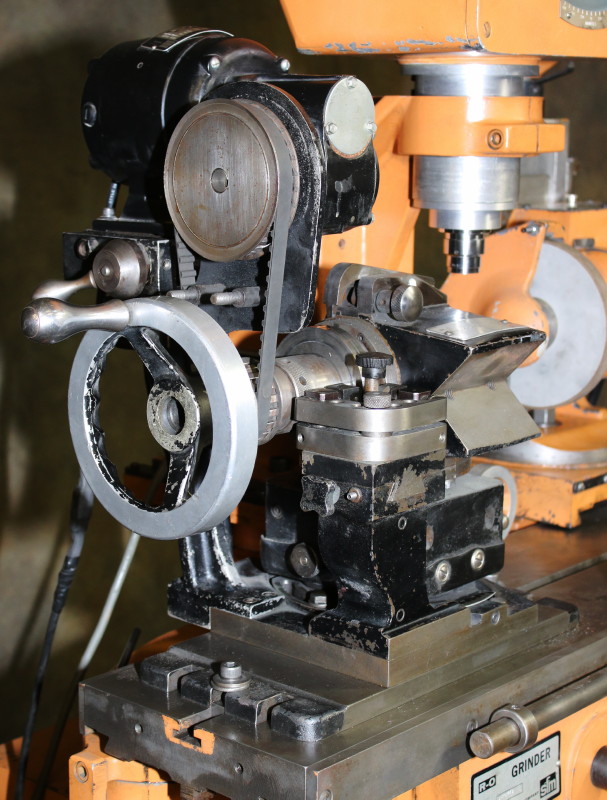

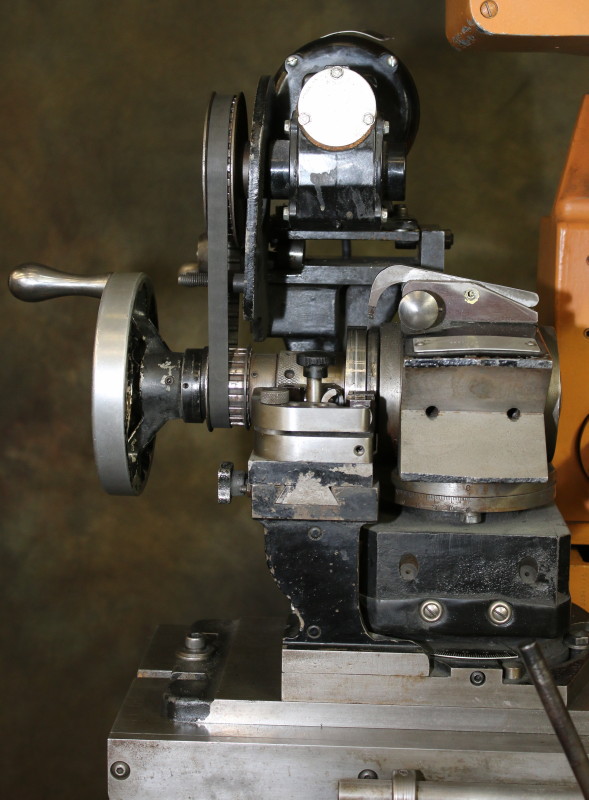

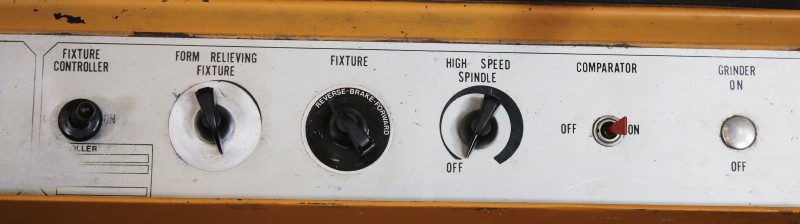

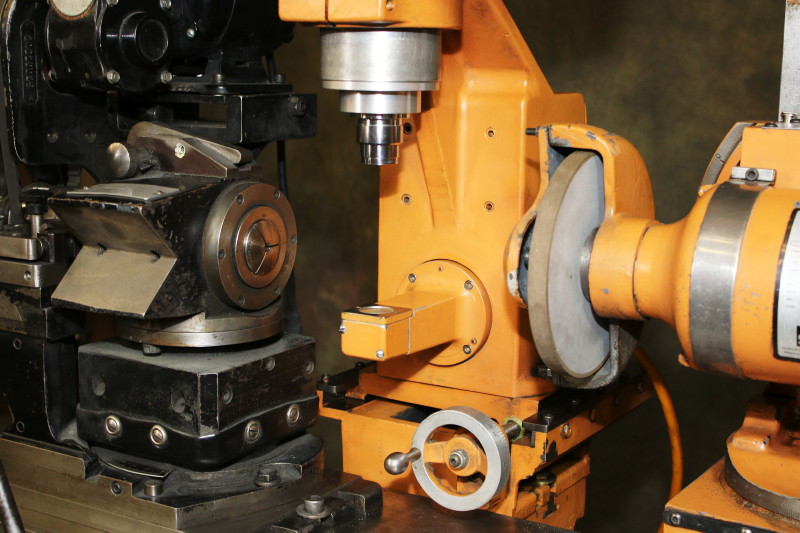

R-O MOTORIZED RELIEVING FIXTURE W/INFINITELY VARIABLE
  SPEED RHEOSTAT CONTROL (0 TO 80 RPM)

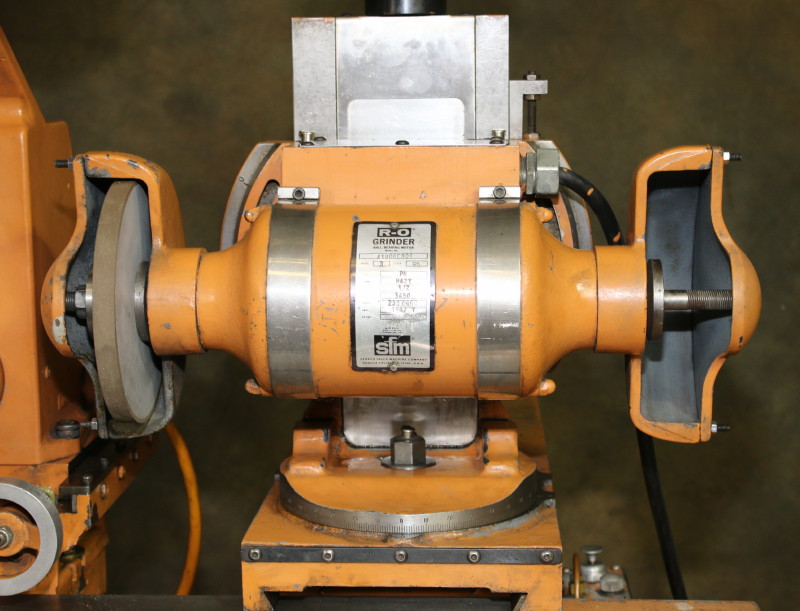

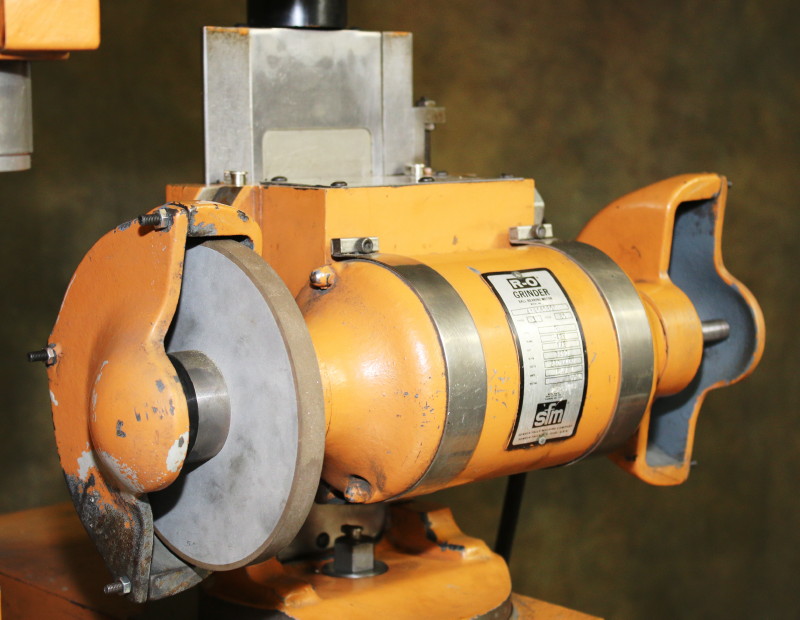

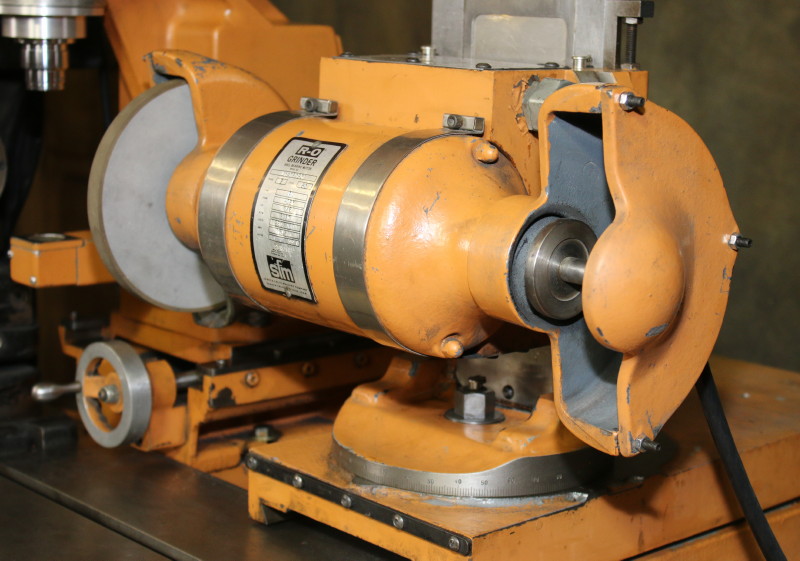

R-O GRINDING WHEELHEAD W/1 H.P. /3/60/220-440 VOLT MOTOR

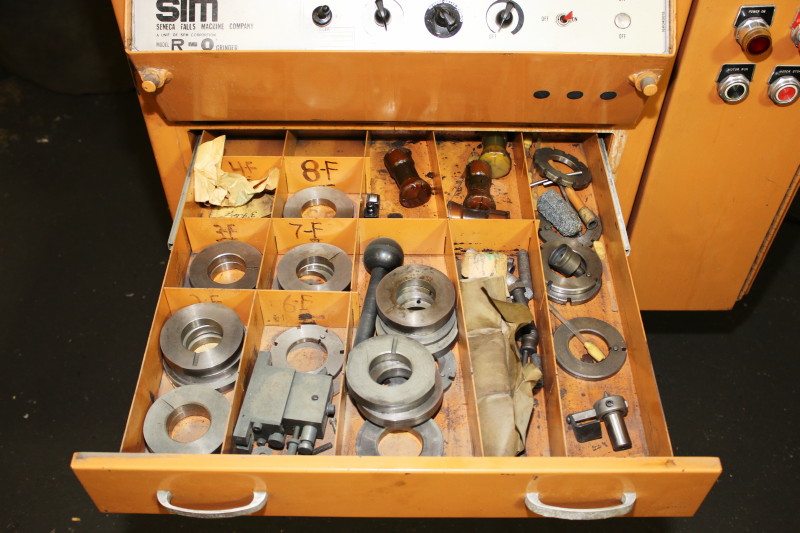

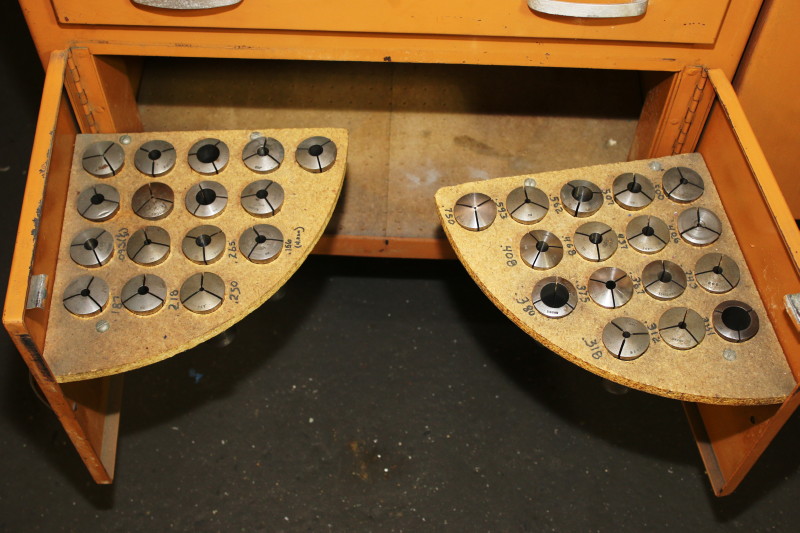

ACCESSORIES INCLUDING "R-O" CAMS & INDEX PLATES, R-O COLLETS, ETC.

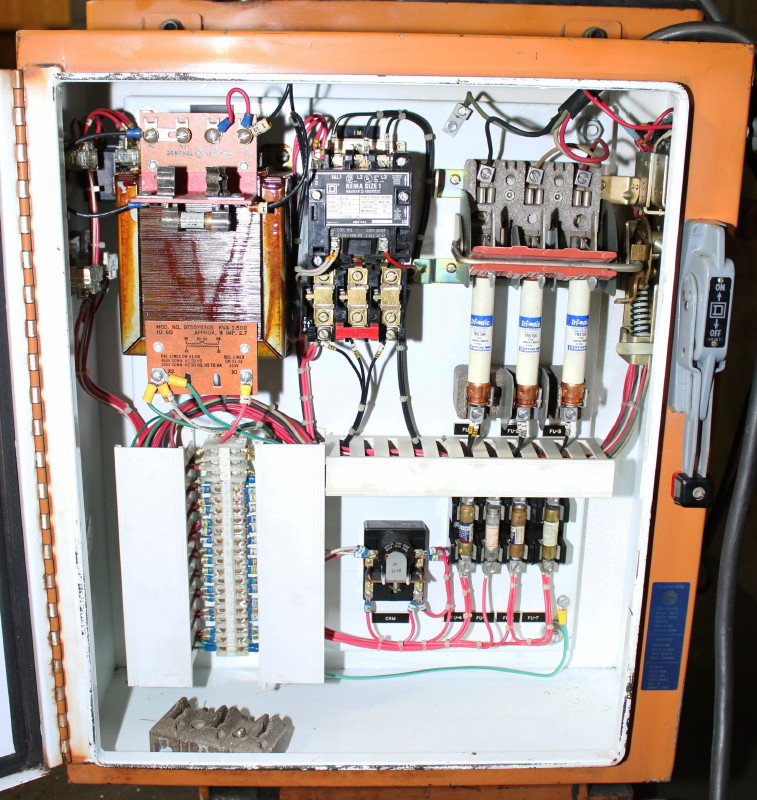

MACHINE IS PRESENTLY WIRED FOR 3/60/230 VOLTS


** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **
*** EXCELLENT CONDITION & APPEARANCE ***
