Cincinnati-Milacron MT, MONOSET, 1980, ENORMOUS TOOLING PACKAGE TOOL & CUTTER GRINDERS

Price on Request

Make:: Cincinnati-Milacron

Model:: MT, MONOSET, 1980, ENORMOUS TOOLING PACKAGE

Year:: 1980

Ref #:: 164326

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

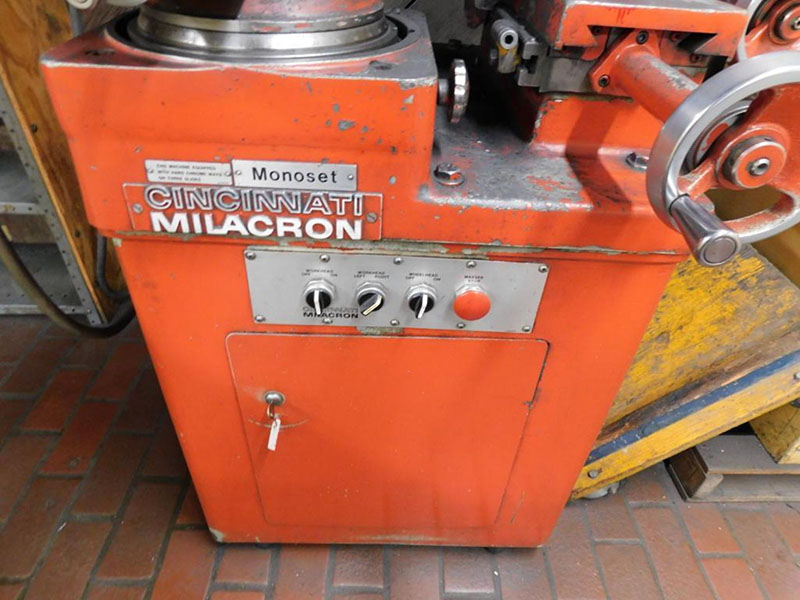

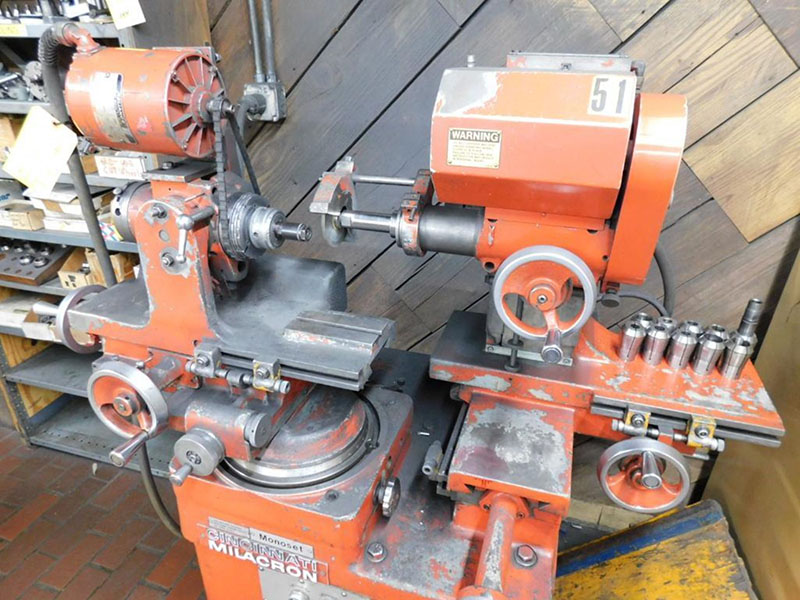

CINCINNATI MILACRON "MONOSET" TOOL & CUTTER GRINDER

** WITH ENORMOUS COMPLIMENT OF ACCESSORIES **

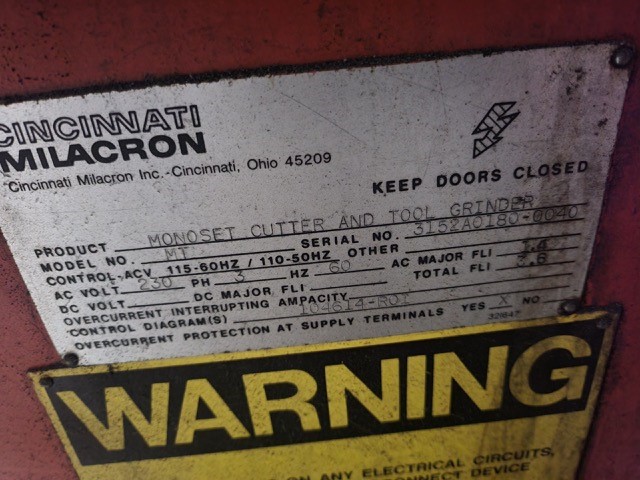

MODEL: MT     S/N:3152A0180-0040        NEW: 1980


CAPACITY -
WORKHEAD SWING OVER MAIN SLIDE, MAX. DIA. ... 12"
MAX. WORKHEAD COLLET HOLE DIA. .............. 1-1/4"
MIN. WORKHEAD COLLET HOLE DIA. .............. 0.12"
MAX. GRINDING WHEEL DIA. .................... 4"
MAX. LENGTH OF WORK BETWEEN SPINDLE &
TAILSTOCK CENTER ............................ 6"
RANGE -
WORKHEAD SLIDE TRAVEL:
LONGITUDINAL ................................ 5-3/4"
CROSS ....................................... 5-3/4"
WORKHEAD ANGULAR ADJUSTMENT:
MAX. TURNTABLE SWIVEL ....................... 235°
ABOVE AND BELOW CENTER ...................... 40°
WHEELHEAD SLIDE TRAVEL:
LONGITUDINAL ................................ 6"
CROSS ....................................... 7-1/2"
WHEELHEAD, VERTICAL MOVEMENT:
ABOVE CENTER ................................ 4.5"
BELOW CENTER ................................ 5"

SPEEDS -
(3) WHEELHEAD SPINDLE SPEEDS ..... 4K, 5,730 & 8K RPM
(1) WORKHEAD SPINDLE SPEED ....... 436 RPM

APPROXIMATE WEIGHT ............... 1,500 LBS.


MACHINE FEATURES:
HARD WAYS & SCREWS
MOTORIZED WORKHEAD

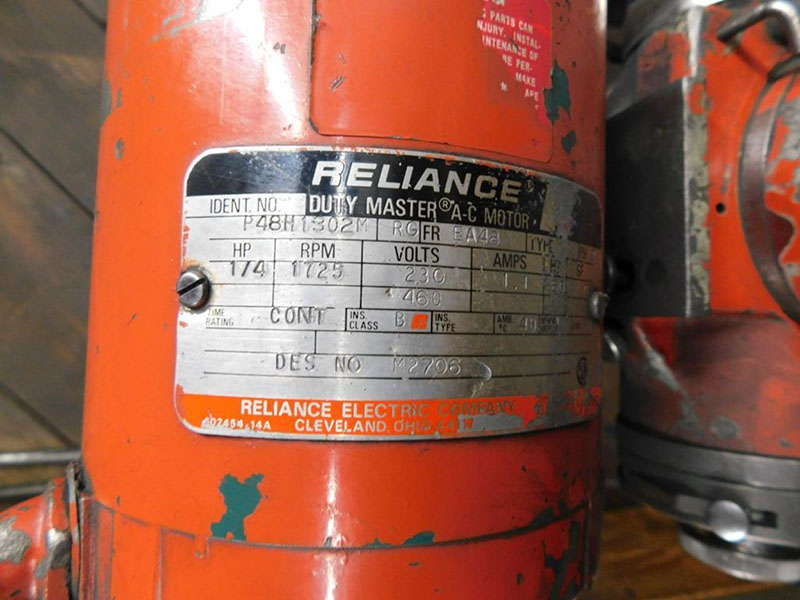

1/4 HP 3/60/230-460 VOLT MOTORIZED WORKHEAD
BIJUR ONE-SHOT LUBRICATION SYSTEM
1/2 HP 230-460 VOLT WHEELHEAD DRIVE MOTOR
MACHINE IS PRESENTLY WIRED FOR 3/60/230 VOLTS

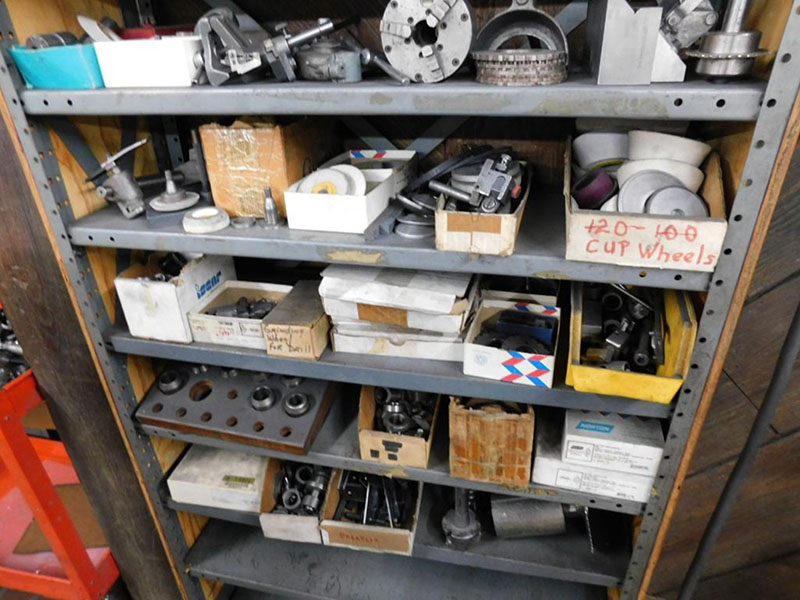

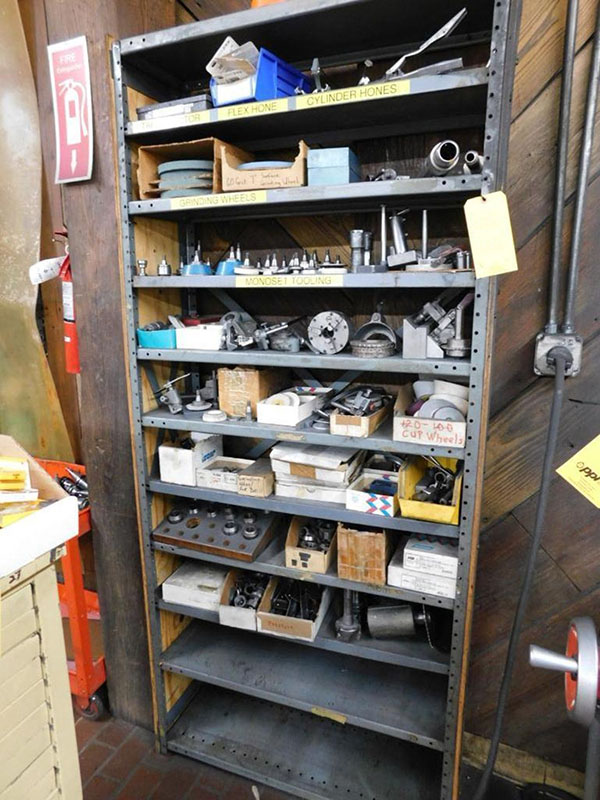

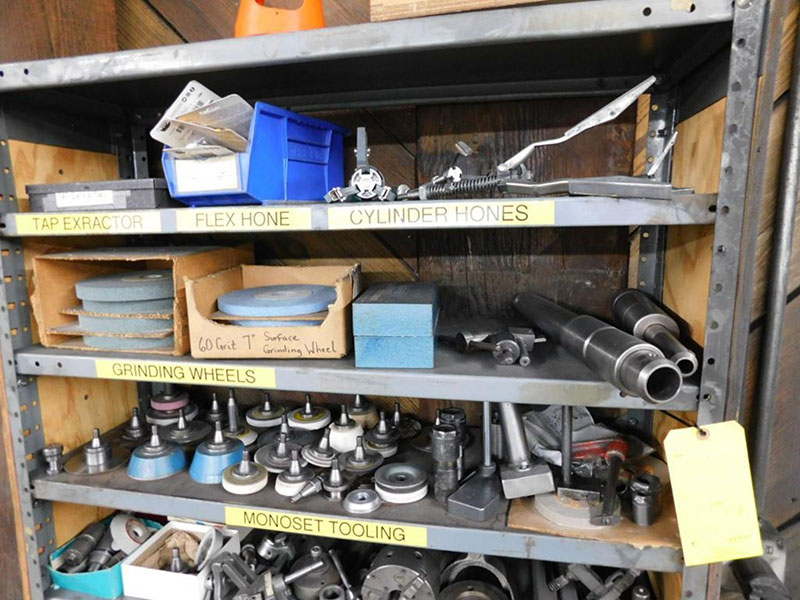

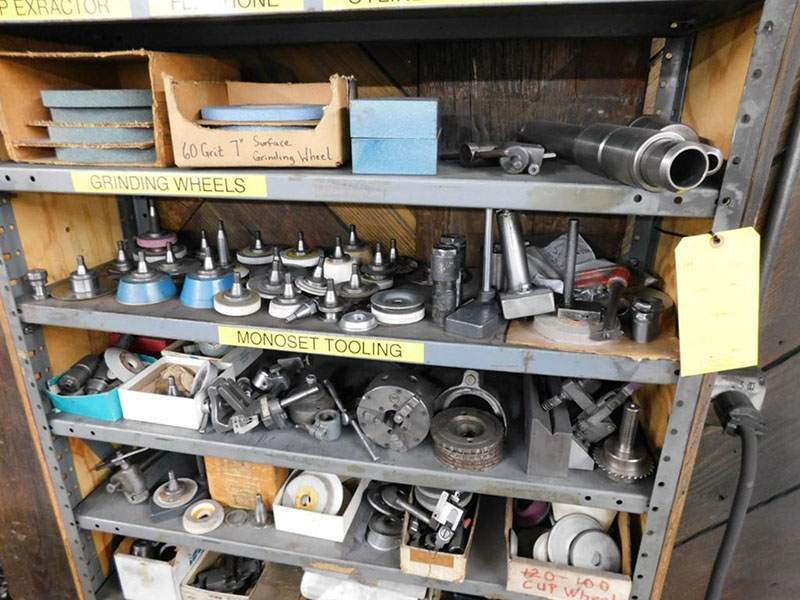

"C" SERIES COLLETS
"A" SERIES COLLETS
TAPERED HOLE COLLETS
INDEX PLATES
CHUCK
WHEEL ARBORS
DIAMOND CUP WHEELS
STONE WHEELS
SO MUCH MORE!
EVERYTHING YOU SEE, YOU GET!

** EXCELLENT CONDITION & APPEARANCE  **
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
