K.O. Lee DAKOTA SERIES #B6060, NEW 1985, ACCESSORIES TOOL & CUTTER GRINDERS

Price on Request

Make:: K.O. Lee

Model:: DAKOTA SERIES #B6060, NEW 1985, ACCESSORIES

Year:: 1985

Ref #:: 164416

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

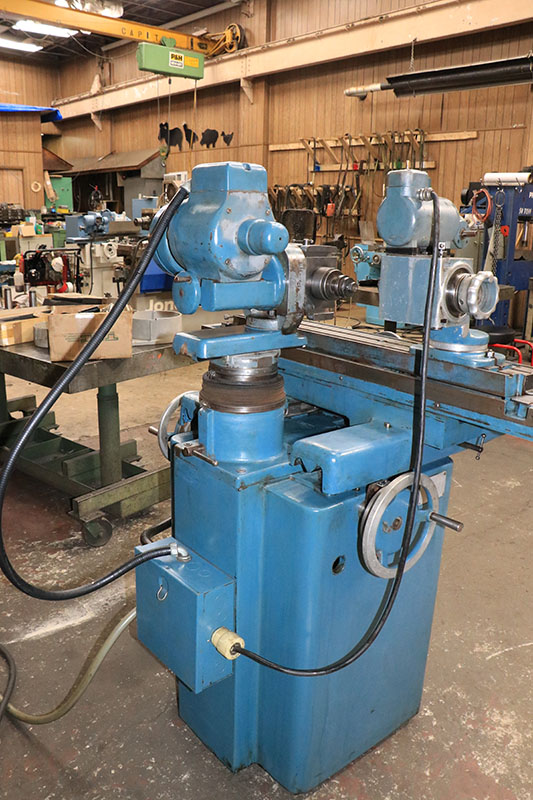

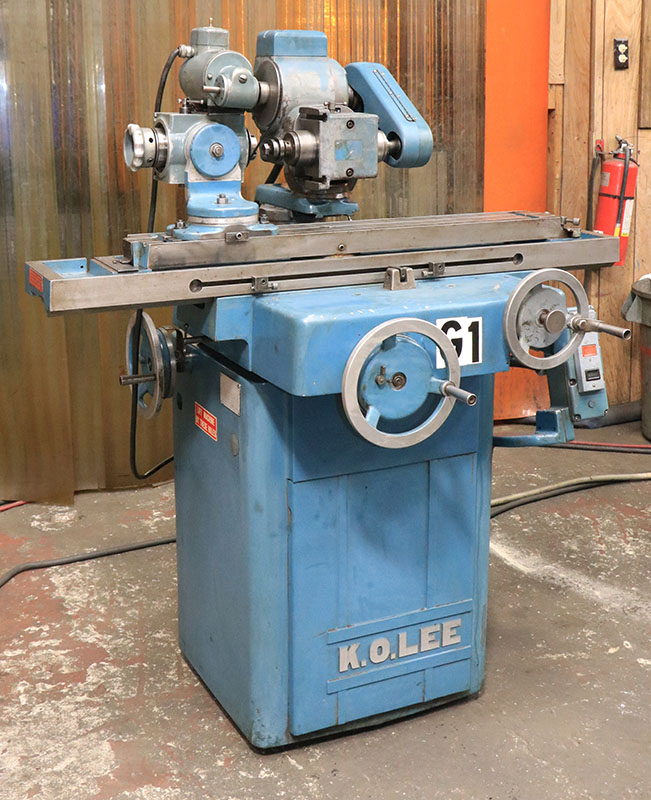

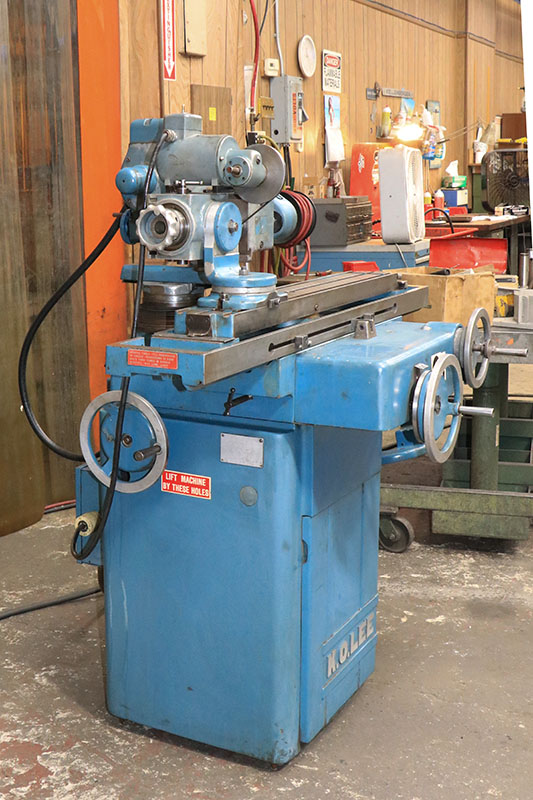

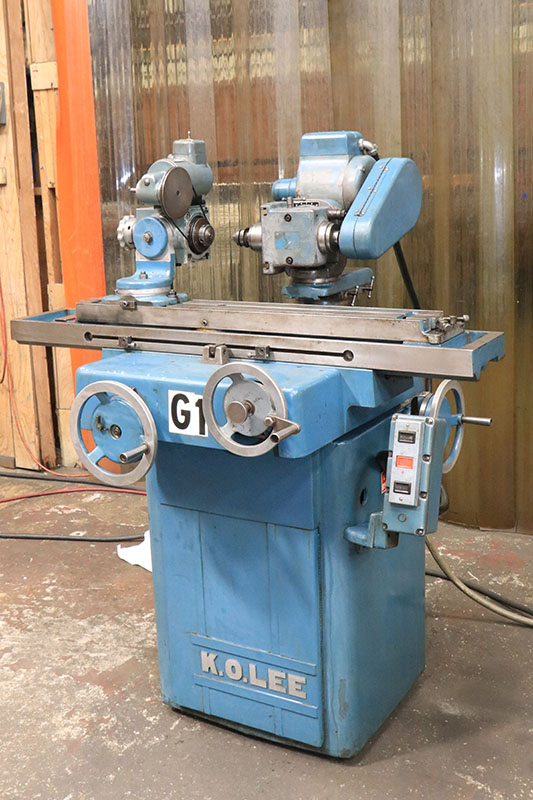

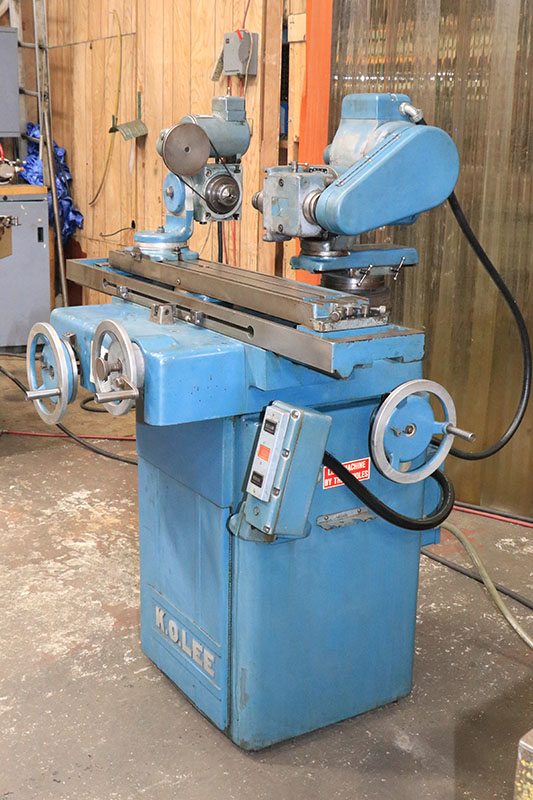

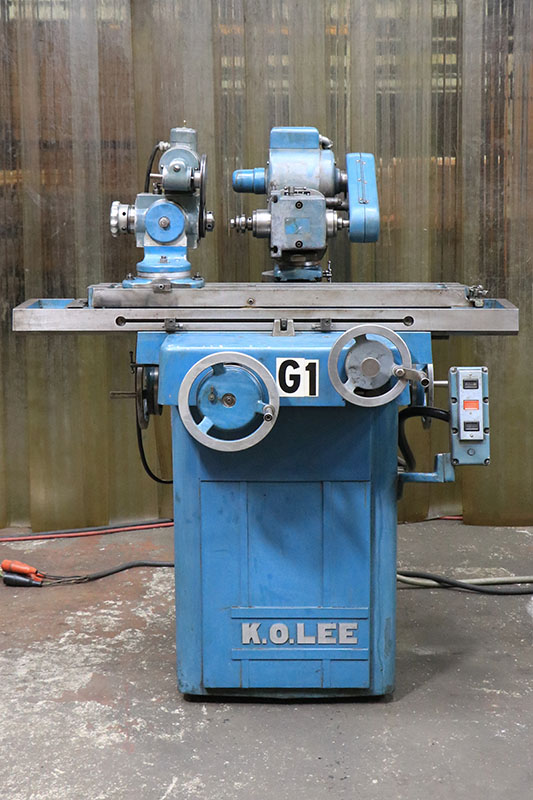

   K.O. LEE "DAKOTA" SERIES
  (WHEELHEAD TILTS & SWIVELS)
 UNIVERSAL TOOL & CUTTER GRINDER
    WITH MANY ACCESSORIES

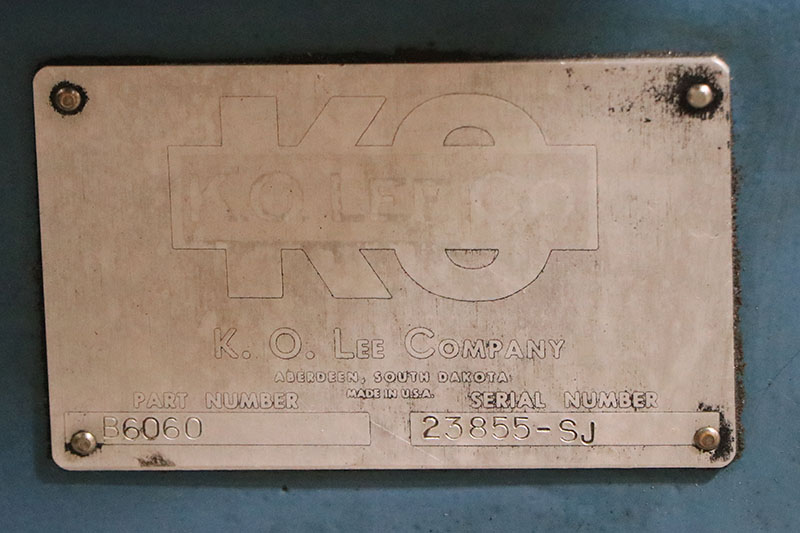

MODEL: B6060       S/N: 23855-SJ        NEW: 1985

  SWING OVER TABLE ................. 12-1/4"
DISTANCE BETWEEN TAILSTOCKS ........ 32"

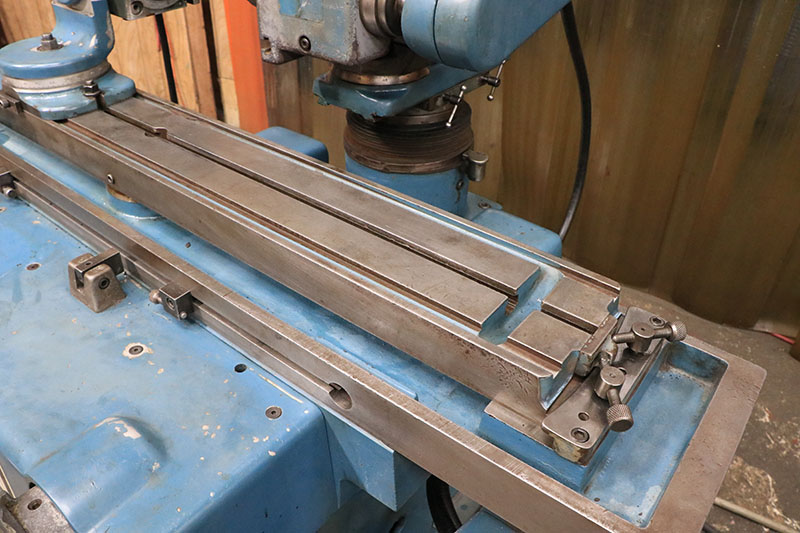

TABLE WORKING SURFACE .............. 5-1/4" X 37-1/4"
SUB TABLE .......................... 8" X 48"
LONGITUDINAL TABLE TRAVERSE ........ 20"

TABLE FEED PER REV. OF HANDWHEEL:
FAST .................................. 2-13/16"
SLOW .................................. 9/16"
CROSS FEED ............................ 8"
HANDWHEEL, GRAD ....................... 0.001"
FEED PER REV. OF HANDWHEEL .............0.100"
VERTICAL MOVEMENT OF COLUMN ........... 10-1/2"
FEED PER REV. OF HANDWHEEL ............ 0.050"
COLUMN DIAMETER ....................... 6"

MINIMUM/MAXIMUM DISTANCE CENTERLINE
 OF WHEEL SHAFT TO TABLE .............. 5-3/8"/15-1/4"
MAXIMUM DISTANCE FROM COLUMN
  TO OUTSIDE OF STRAIGHT WHEEL;
  DOVETAIL SLIDE NOT EXTENDED,
  SPINDLE 90 DEG. TO TABLE ............ 4-5/8"
MAXIMUM DISTANCE FROM COLUMN
  TO OUTSIDE OF STRAIGHT WHEEL;
  DOVETAIL SLIDE EXTENDED,
  SPINDLE 90 DEGREES TO TABLE ......... 9-1/4"
TABLE SWIVELS
  (CALIBRATION: 3" PER FT.,
  15° EITHER SIDE OF CENTER) .......... 225°
WHEEL HEAD SWIVEL ..................... 360°
MAXIMUM I.D. DEPTH,
  HOLE SIZE 9/32" TO 2" ............... 1-1/4"
MAXIMUM CROSS FEED SURFACE
 GRINDING W/8" WHEEL .................. 3"
SPINDLE SPEED RANGE ............... 3,450 TO 17,250 RPM

APPROXIMATE MACHINE WEIGHT ............ 1,300 LBS

MACHINE FEATURES:
"DAKOTA" SERIES #B6055

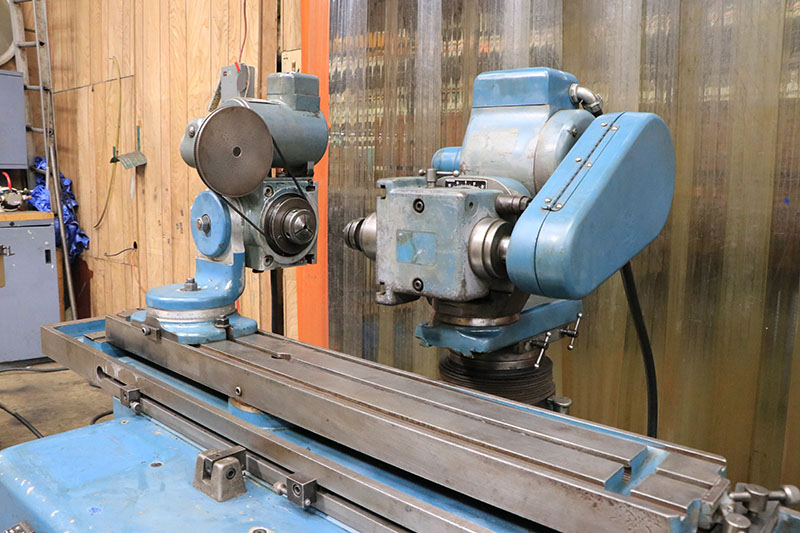

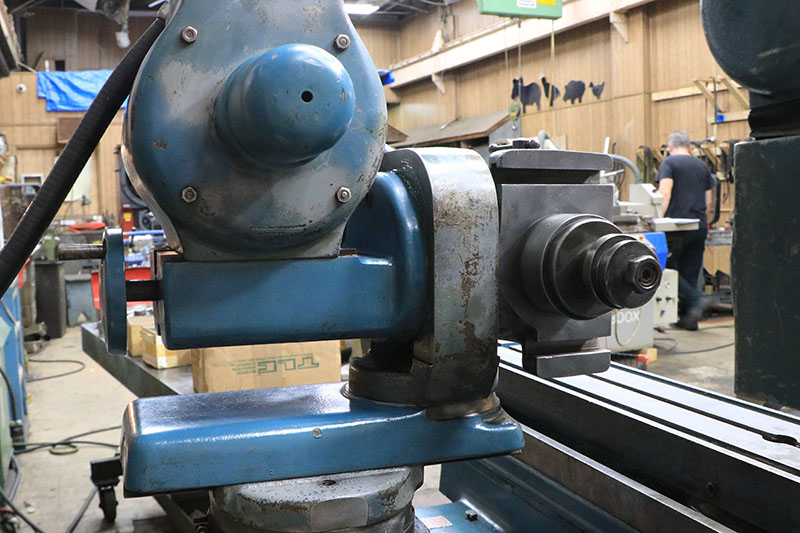

 UNIVERSAL GRINDING WHEELHEAD FEATURES:
- SWIVELLING & TILTING (22° EITHER SIDE OF VERTICAL)
- 1 HP MOTOR WIRED FOR 3/60/230-460 VOLT OPERATION
- 3/4" TO 6" DIAMETER WHEELS (O.D. GRINDING)

"DAKOTA" SERIES, 12- 1/4" SWING
BIJUR LUBRICATOR (ONE-SHOT)

EQUIPPED WITH:

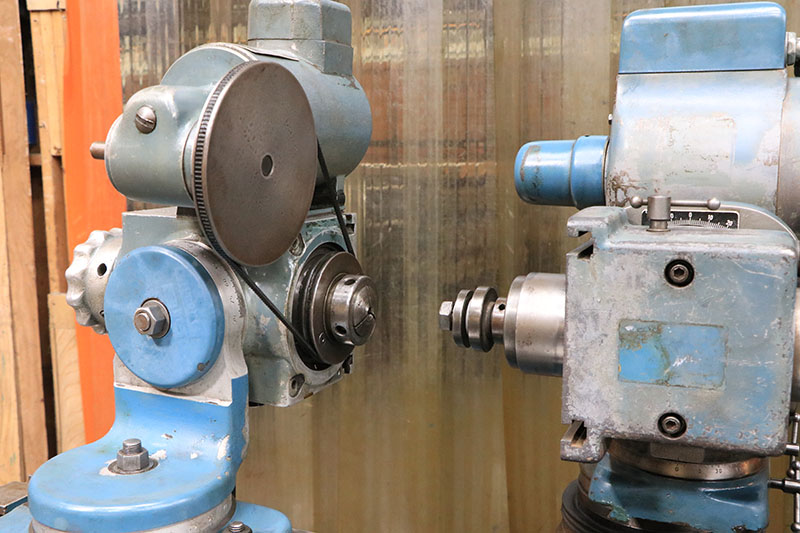

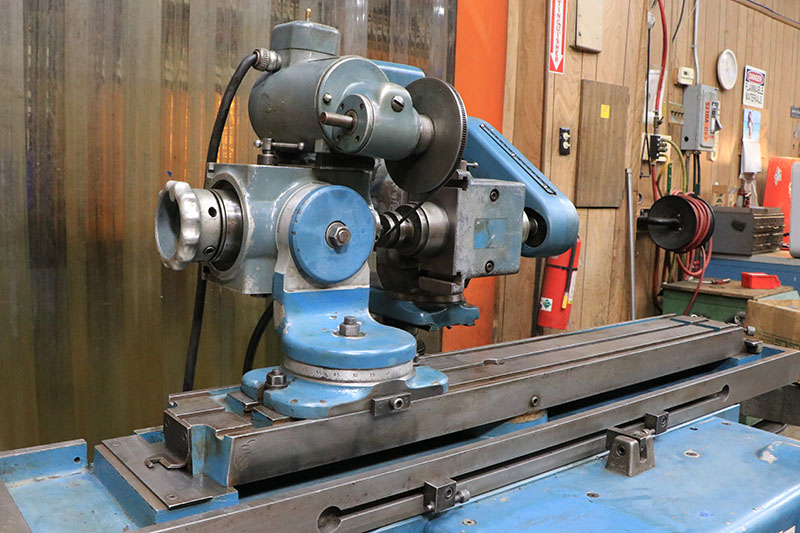

K.O. LEE MOTORIZED WORKEAD, WITH 5C COLLET DRAW BAR
ASSORTMENT OF 5C COLLETS
K.O. LEE AIR-BEARING FIXTURE
K.O. LEE #B7042 SENSITIVE WORKHEAD, NON-MOTORIZED
SET OF K.O. LEE #B6022 TAILSTOCKS
K.O. LEE #7089 WORKHOLDING FIXTURE
ASSORTMENT OF GRINDING WHEELS
  CUP WHEELS & OTHER WHEELS

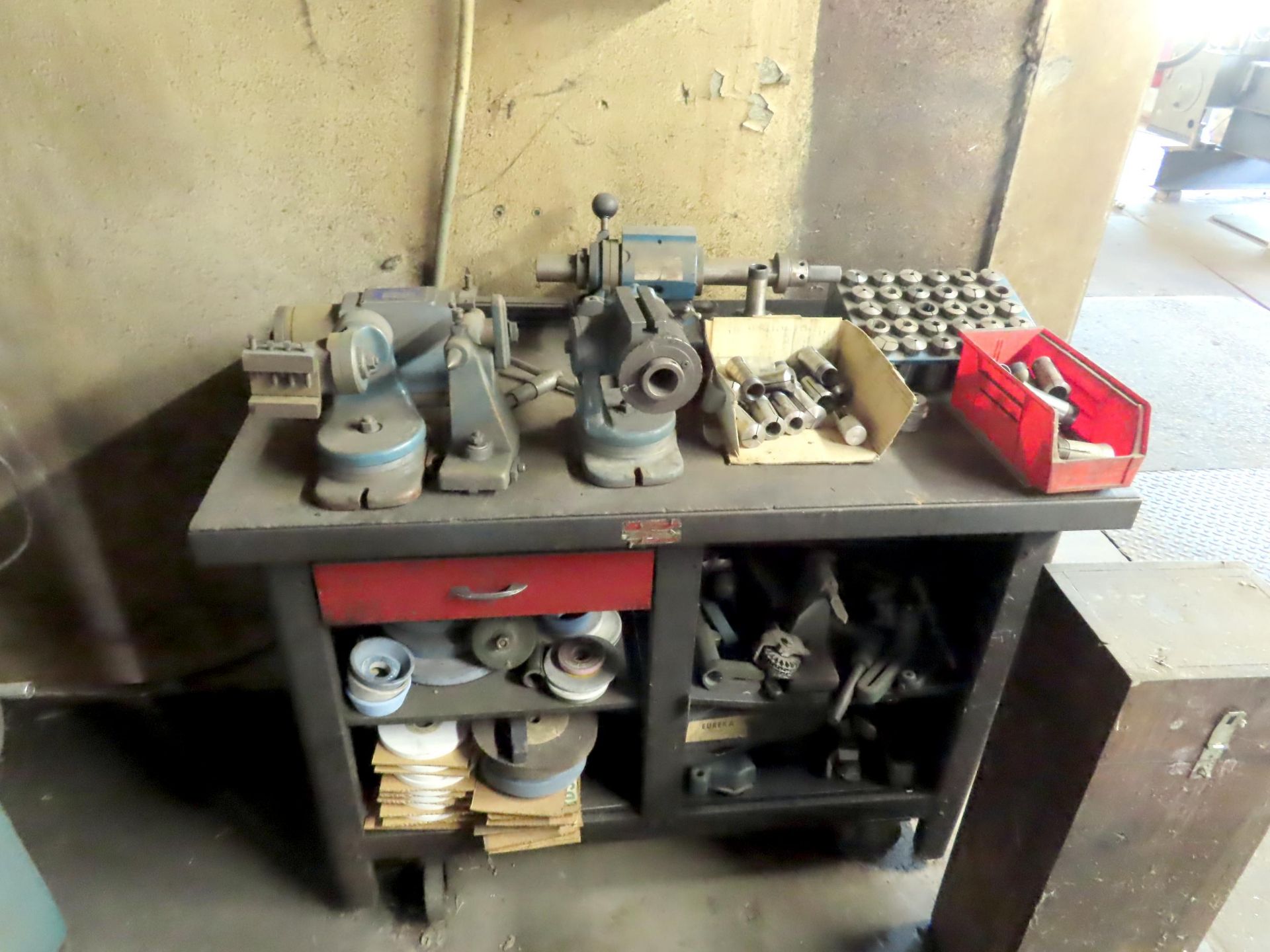

OTHER ACCESSORIES AS SHOWN IN THE PHOTOS
DUST COLLECTOR

LINK TO VIDEO: https://youtu.be/z_As8q9yxm8

  ** EXCELLENT APPEARANCE (ORIGINAL PAINT) **
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
