Cincinnati-Milacron MONOSET MT, 2010 REBUILT BY TRIPLE R SYSTEMS TOOL & CUTTER GRINDERS

Price on Request

Make:: Cincinnati-Milacron

Model:: MONOSET MT, 2010 REBUILT BY TRIPLE R SYSTEMS

Year:: 2010

Ref #:: 174567

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

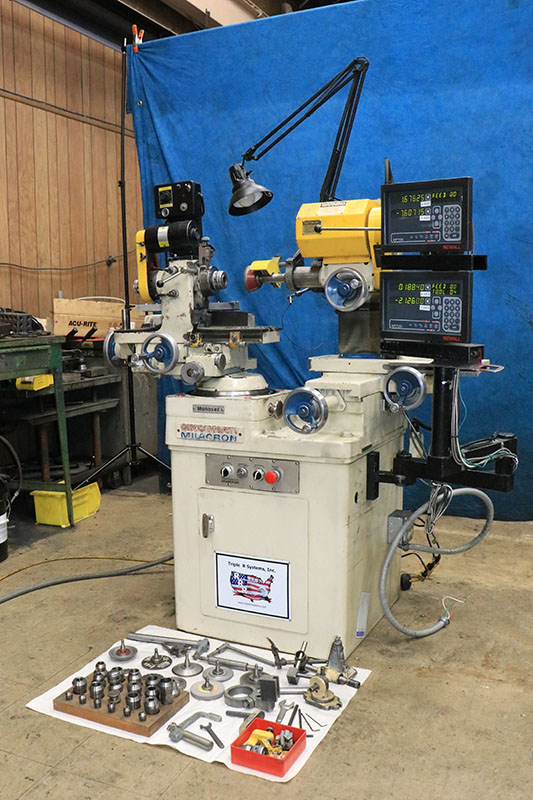

REBUILT BY "TRIPLE R SYSTEMS" IN 2010,
CINCINNATI MILACRON "MONOSET"
  TOOL & CUTTER GRINDER,
WITH ENORMOUS COMPLIMENT OF ACCESSORIES,
AND (2) NEWALL 2-AXIS DIGITAL READOUTS **

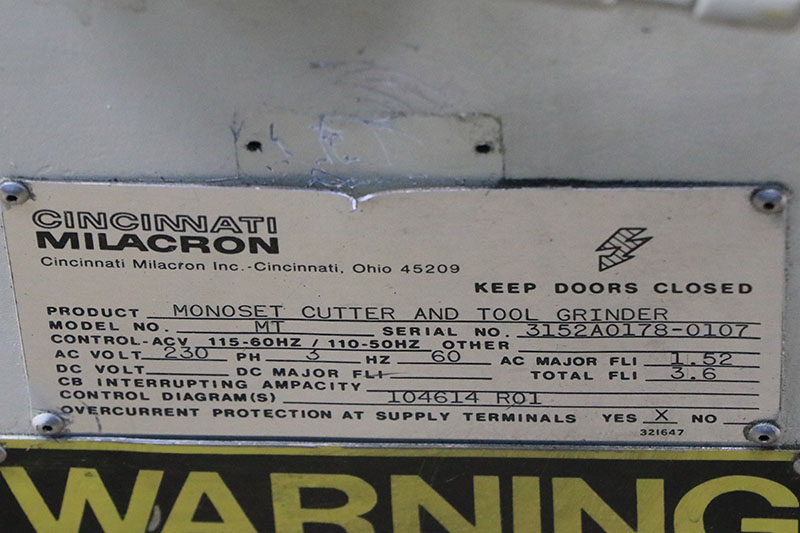

MODEL: MT     S/N:3152A0178-0107

    NEW: 1978/REBUILT 2010


CAPACITY -
WORKHEAD SWING OVER MAIN SLIDE, MAX. DIA. ... 12"
MAX. WORKHEAD COLLET HOLE DIA. .............. 1-1/4"
MIN. WORKHEAD COLLET HOLE DIA. .............. 0.12"
MAX. GRINDING WHEEL DIA. .................... 4"
MAX. LENGTH OF WORK BETWEEN SPINDLE &
TAILSTOCK CENTER ............................ 6"
RANGE -
WORKHEAD SLIDE TRAVEL:
LONGITUDINAL ................................ 5-3/4"
CROSS ....................................... 5-3/4"

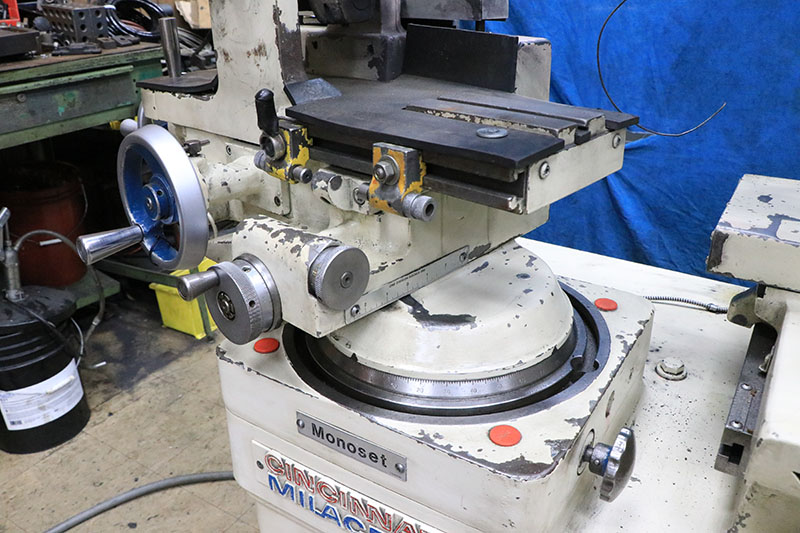

WORKHEAD ANGULAR ADJUSTMENT:
MAX. TURNTABLE SWIVEL ....................... 235°
ABOVE AND BELOW CENTER ...................... 40°
WHEELHEAD SLIDE TRAVEL:
LONGITUDINAL ................................ 6"
CROSS ....................................... 7-1/2"
WHEELHEAD, VERTICAL MOVEMENT:
ABOVE CENTER ................................ 4.5"
BELOW CENTER ................................ 5"

SPEEDS -
(3) WHEELHEAD SPINDLE SPEEDS ..... 4K, 5,730 & 8K RPM
(1) WORKHEAD SPINDLE SPEED ....... 436 RPM

APPROXIMATE WEIGHT ............... 1,500 LBS.


MACHINE FEATURES:
HARD WAYS & SCREWS
MOTORIZED WORKHEAD
1/4 HP 3/60/230-460 VOLT MOTORIZED WORKHEAD
BIJUR ONE-SHOT LUBRICATION SYSTEM
1/2 HP 230-460 VOLT WHEELHEAD DRIVE MOTOR
MACHINE IS PRESENTLY WIRED FOR 3/60/230 VOLTS

EQUIPPED WITH:

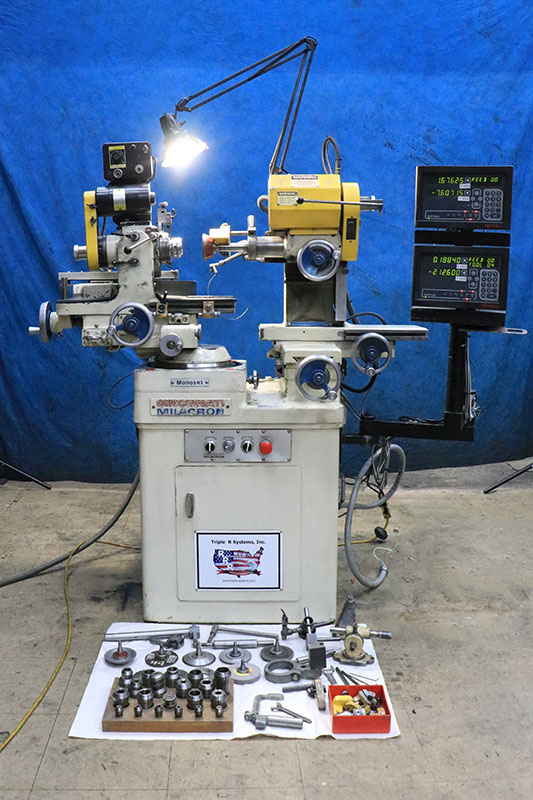

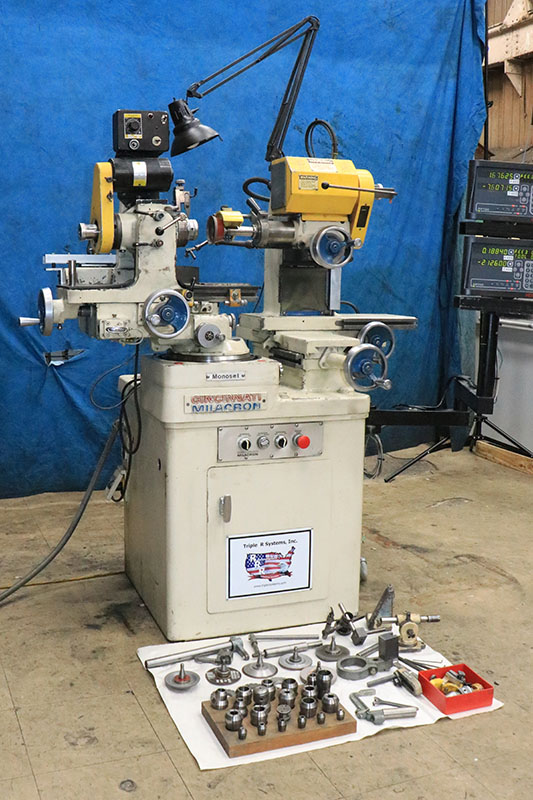

EVERYTHING YOU SEE, YOU GET!

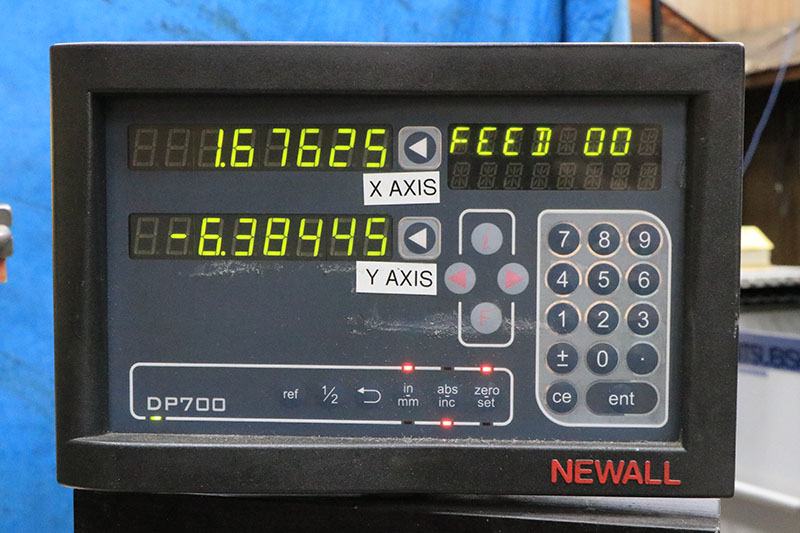

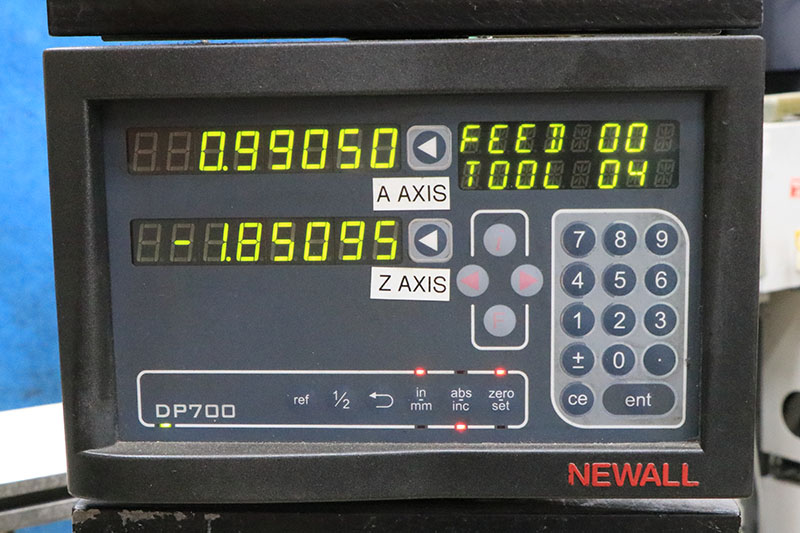

TWO "NEWALL" "DP700 DIGITAL READOUT DISPLAYS,
 EACH DISPLAYING TWO AXES.
 READOUT DISPLY SHOWS 0.00005".
 X, Y, A & Z AXES.

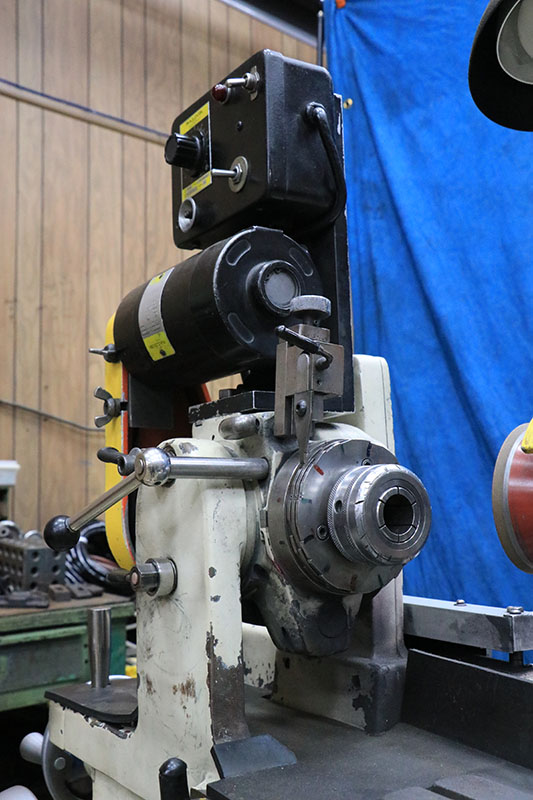

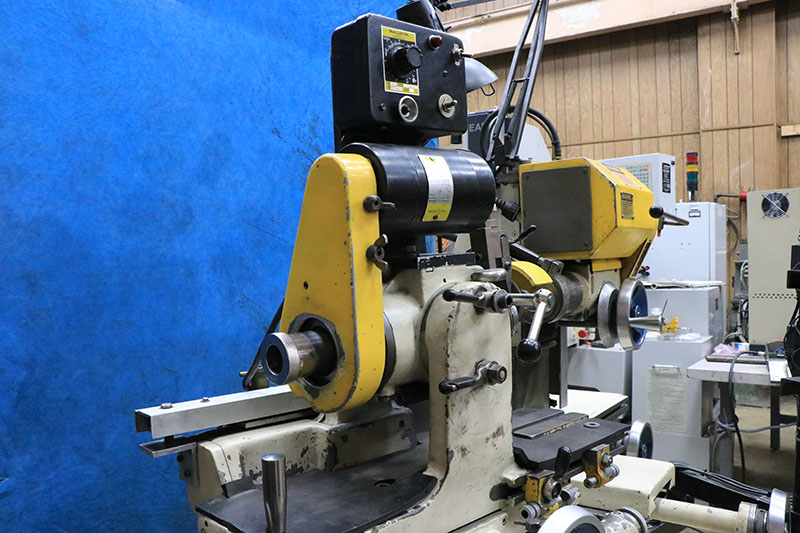

MOTORIZED POWER WORKHEAD, WITH THE FOLLOWING:

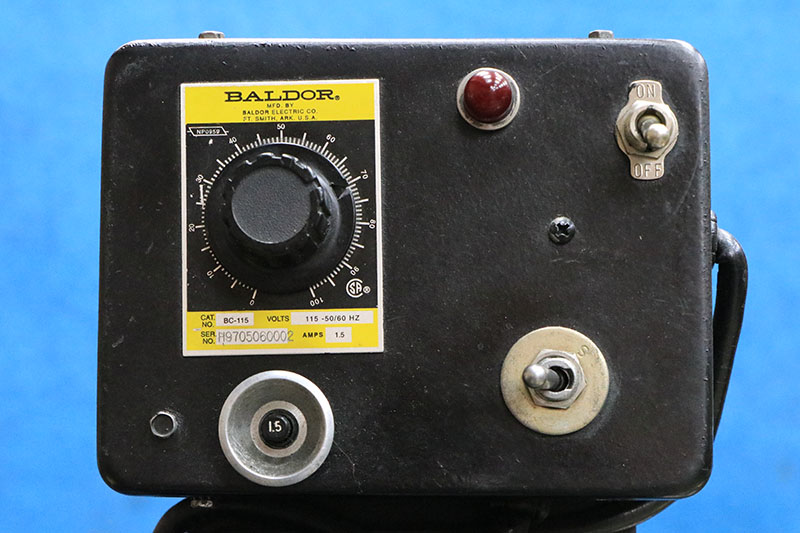

"BALDOR" CAT. No. BC-115 VARI-SPEED CONTROL UNIT.

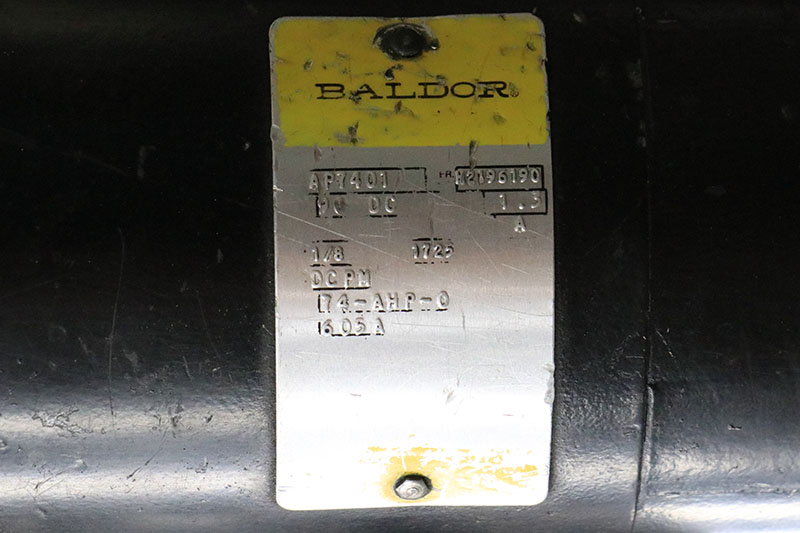

"BALDOR 1/8 H.P. MOTOR

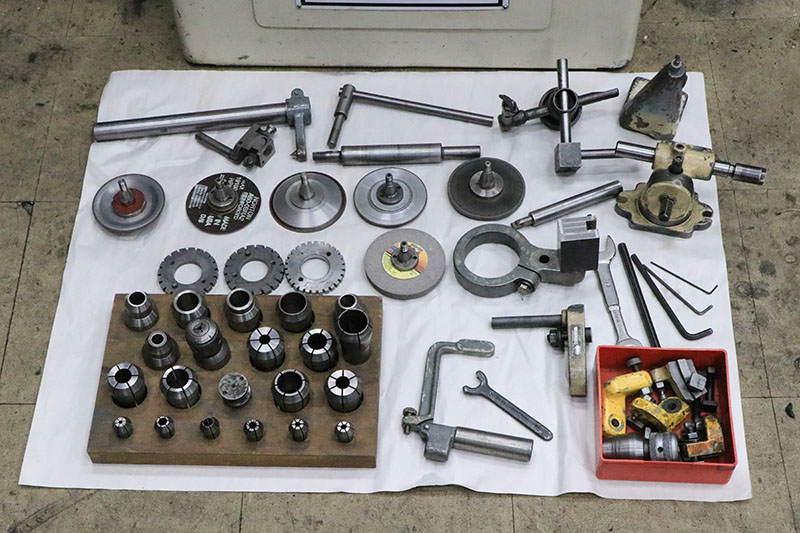

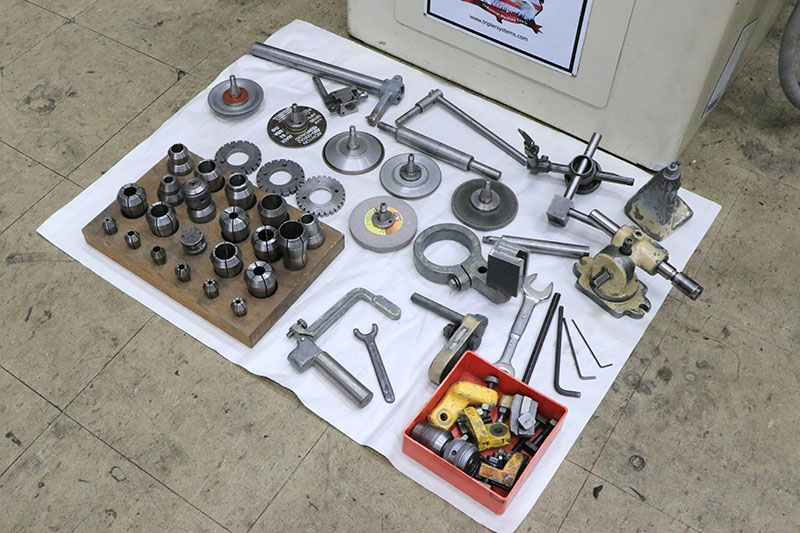

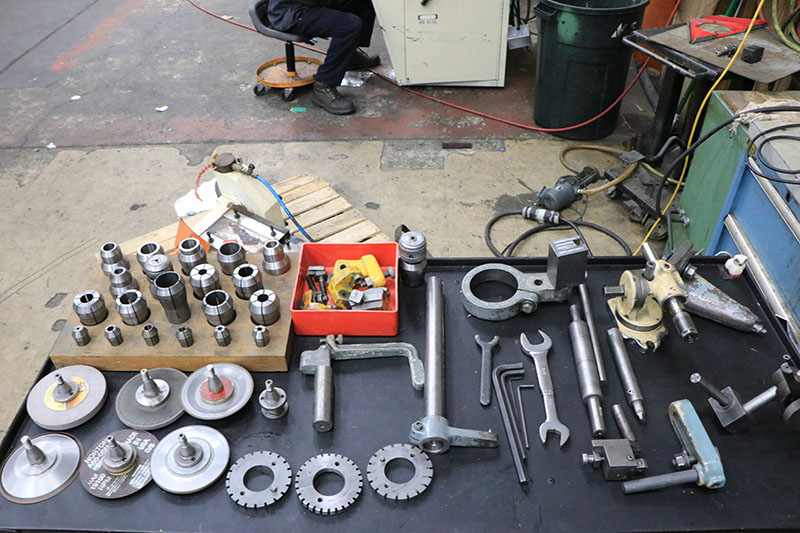

EQUIPPED WITH:
(7) - GRINDING WHEEL MANDRELS
(2) - GRINDING WHEEL GUARDS; ONE FOR TYPES 1, 5
       AND 12 WHEELS, AND ONE FOR TYPE 11 WHEELS
(1) - GRINDING WHEELHEAD TOOTHREST AND EXTENSION BAR FOR
       TOOTHREST
(1) - WORKREST, LOWER
(1) - SPRING LOADED INDEX PAWL FOR WORKHEAD FRONT INDEX.

(13) - STRAIGHT CYLINDRICAL COLLETS FOR THE WORKHEAD SPINDLE
     WITH HOLE DIAMETERS IN INCH SIZES THAT ACCEPT STRAIGHT
     CYLINDRICAL DIAMETER WORKPIECES; AND, INCLUDING AN
     ADAPTER ("C" TO "A") THAT ACCOMMODATES THE COLLETS
     SMALLER THAN 1/2" SIZE.  THE COLLETS ARE:
    (7) - SERIES "A" (FITS INTO THE "C" TO "A" COLLET
          ADAPTER, WHICH MOUNTS DIRECTLY INTO THE SPINDLE
          NOSE) 1/8", 3/16", 1/4", 5/16" 3/8", 7/16" AND
          1/2".
    (6) - SERIES "C" (MOUNTS DIRECTLY INTO SPINDLE NOSE),
          5/8", 3/4", 7/8", 1", 1-1/8", AND 1-1/4"

(6) - TAPER  HOLE COLLETS, "C" SERIES, FOR THE WORKHEAD
      TO ACCOMMODATE TAPER SHANKS OF #2, 3, AND 4 MORSE
      TAPERS, AND #5, 7 AND 9 BROWN AND SHARPE TAPERS
(1) - WOODEN RACK FOR HOLDING 1 SET OF CYLINDRICAL COLLETS
      AND 1 SET OF TAPER COLLETS

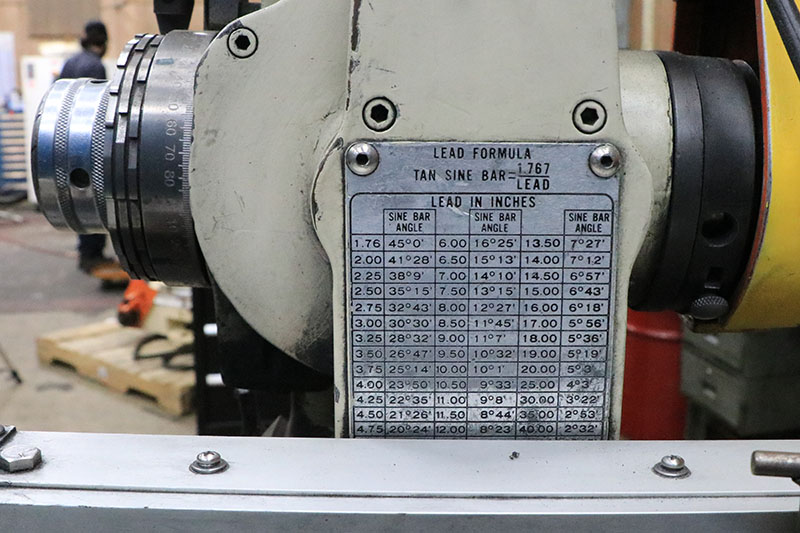

(3) - INDEX PLATES FOR THE LEAD MECHANISM INDEXING DEVICE
       OF 8, 10 AND 12 DIVISIONS
(1) - ADJUSTABLE TAIL-CENTER SUPPORT
(1) - DIAMOND BRACKET, WITH WORKREST, INCLUDING ONE
       MOUNTED DIAMOND
(1) - SET OF WRENCHES

(7) - GRINDING WHEELS; WITH 3/4" MOUNTING HOLES
   NO.   DIA      WIDTH    TYPE  SHAPE
   1      4"      1/16"     1    STRAIGHT
   2      4"      1/8"      1    STRAIGHT
   3      4"      1/4"      1    STRAIGHT
   4      4"      1/2"      1    STRAIGHT
   5      4"      3/4"      5    RECESSED
   6      4"      1/2"      12   DISH
   7      3-1/2"  1-1/2"    11   FLARING

** EXCEPTIONAL CONDITION & APPEARANCE  **
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **

LINK TO VIDEO: https://youtu.be/sX9ZueDL5Xk?si=FAUMN9BtxR6gMPig
