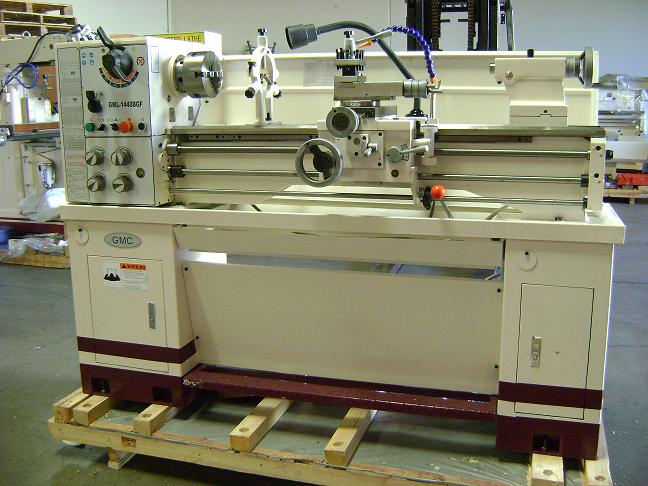

GMC GML-1440BGF-1, 220V, 1 Ph, 3 HP NEW LATHES

Price on Request

Make:: GMC

Model:: GML-1440BGF-1, 220V, 1 Ph, 3 HP

Year:: NEW

Ref #:: 146516

Or call us for a quote at (973) 497-7500 or send us an email at toolroom@machineryvalues.com

GMC NEW Model # GML-1440BGF-1
HIGH SPEED PRECISION ENGINE LATHES




Machine Standard Features and Equipment:

ISO 9001 certified
With free SINO DRO installed
With free Taper Attachment installed

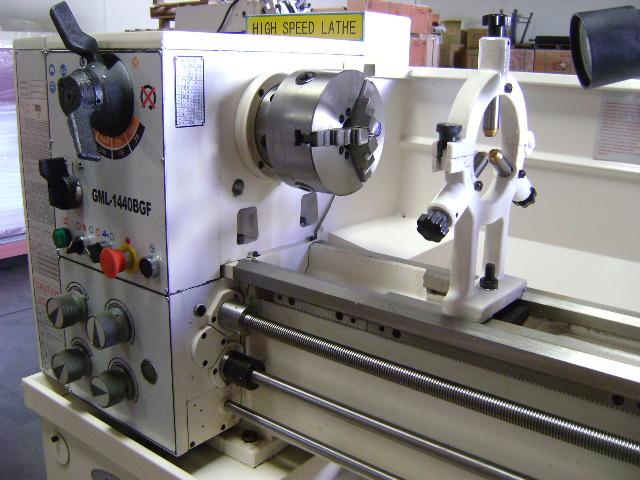

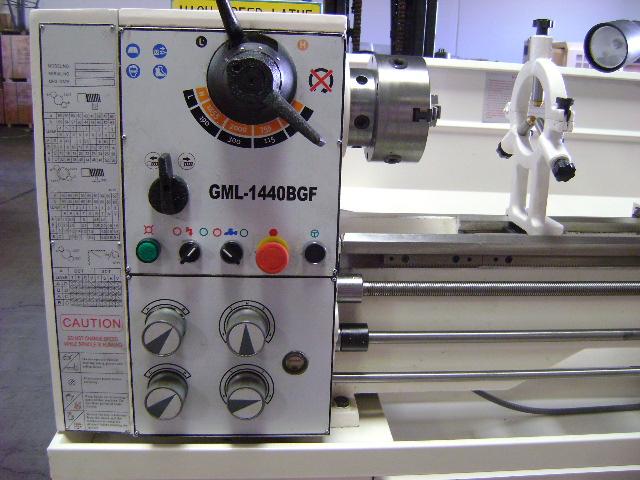

Full Geared-head precision Engine Lathe with foot brake
Quick-change gearbox with fast and easy threading set up
Heavy Duty main motor 3HP, 220V, 1 phase
Spindle bore 1 1/2”
Heavy Duty spindle D1-4
Heavy Duty guideway width 7 1/2”
8 spindle speeds from 70-2,000 rpm, speeds: 70/115/190/300/460/755/1255/2000 rpm
56 kinds of inch threads, and 44 kinds of metric threads
Spindle is balanced, hardened and precision ground
All gears and shafts are hardened and precision ground
Guideways induction hardened and precision ground
Automatic lubrication system in headstock and feed box


One year warranty for parts



Specifications:
Max. swing over bed: 14”
Max. length of workpiece / Max. length of cutting: 40” / 34"
Max. swing over cross slide: 8-1/4”
Width of Bed: 7-1/2”
Spindle bore: 1 ½” , D1-4
Taper of spindle center: M.T.# 5 (MT5/MT3)
Spindle speeds: 70-2,000 rpm / 8 steps
Longitudinal feeds: 0.00168-0.11750 IPR, 24 kinds
Cross feeds: 0.00046-0.03231 IPR, 24 kinds
Inch threads: 4-112 TPI, 56 kinds
Metric threads: 0.1-7.0 mm , 44 kinds
Diametral Pitch threads: 16-112 DP, 32 kinds
Module threads: 0.1 – 1.75 mm , 34 kinds
Max. travel of top slide: 4-1/4”
Max. travel of cross slide: 7-1/4”
Spindle speeds, 8 steps: 70/115/190/300/460/755/1255/2000 rpm

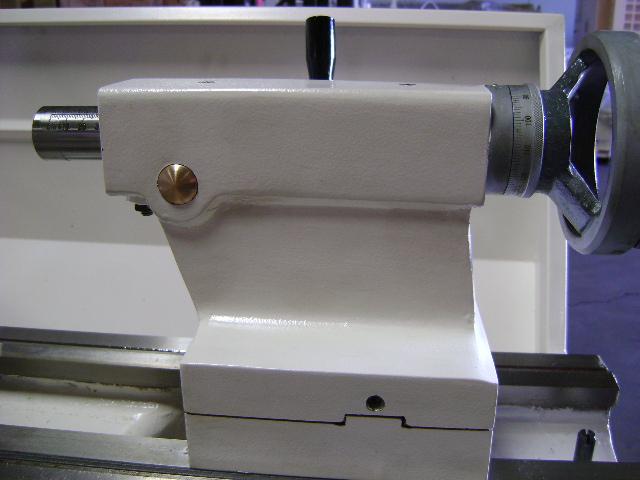

Diameter of tailstock quill: 1-1/2”
Max. travel of tailstock quill: 4”
Taper of tailsotck quill center: M.T. # 3
Main motor: 3HP, 220V, 1phase
Coolant pump: 1/16HP, 220V, 1phase
Net weight, approx.: 1,730 LBS
Overall dimensions, LxWxH: 70” x 35” x 59”

Standard Equipment:
Free SINO DRO installed
Free Taper Attachment installed
6” 3-jaw chuck with set reversible jaws
8” 4-jaw chuck with set reversible jaws
10” Face plate
3 ¾” large steady rest
2” follow rest
Removeable gap
Foot brake
Coolant system
Halogen work light

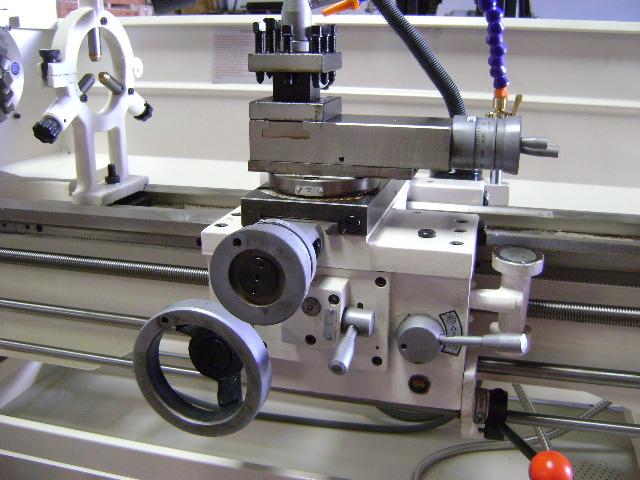

4-way tools post
Full length splash guard
(2) dead centers and (1) reducing sleeve
Thread chasing dial
Tool box

Optional Equipment
10” Drive Plate# DPD410
Micro Carriage Stop#MCS1440
5-C Hand lever type collet closer, # 5C,”JFK” USA,free install
33 pc 5C collet set, from 1/16 to 1-1/16” by 32ndth, # 900-0014
6pc ALORIS type quick change toolpost# 900-0051-200 (wedge)
Live Center MT3 # 900-0050-03
½” drill chuck # 700-0102
½” drill chuck arbor # 700-0153\
Lathe package # 1:
incl 5pc indexable carbide turning set# 2003-0003,
½ drill chuck # 700-0102, Chuck arbor # 700-0153 and 29pc Titanium
drill bit set #5000-0001T
