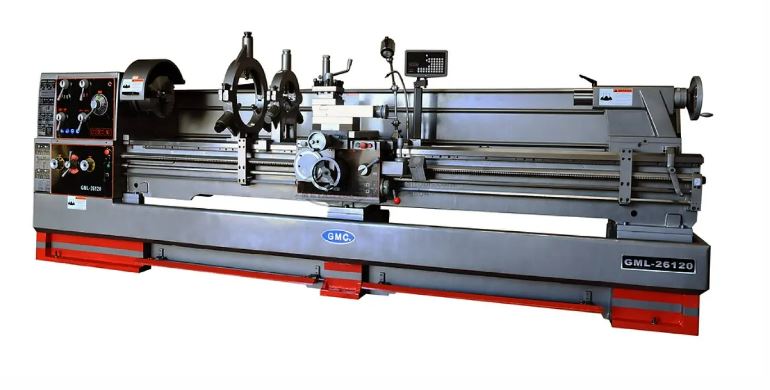

GMC GML-26120 NEW LATHES

Price on Request

Make:

GMC

Model:

GML-26120

Year:

NEW

Ref #:

160500

Get a quote

Get financing

Or call us for a quote at (973) 497-7500 or send us an email at toolroom@machineryvalues.com

---

NEW GMC HEAVY DUTY PRECISION GAP BED LATHES

MODEL: GML-26120

with Taper Attachment & Sino DRO



Machine Standard Features and Equipment:

• ISO 9001 certified
• Large spindle bore 4-1/8"
• Heavy Duty spindle D1-8
• Heavy Duty guideway width 16"
• Heavy Duty main motor 15HP
• 16 spindle speeds from 25-1,600 rpm, 16 speeds
• 4-way rapid traverse on the carriage, cross & longitudinal ways
• 54 kinds of inch threads, and 54 kinds of metric threads
• Threading and feeding rate change without changing gears
• Spindle is balanced, hardened and precision ground
• Spindle is supported at 3-point by high precision bearings
• All gears and shafts are hardened and precision ground
• Guideways induction hardened and precision ground
• Automatic lubrication system in headstock and feed box
• One year industrial warranty for parts



Specifications:

Max. swing over bed: 26"

Max. length of workpiece: 120"

Max. Swing over cross slide: 17-1/4"

Max. Swing in gap: 35-3/8"

Width of bed: 16"

Effective length in gap to spindle: 9"

Effective length in gap to chuck jaws: 4-1/2"

Spinde bore: 4-1/8", D1-8

Taper of spindle center: M.T. #5

Spindle speeds: 25-1,600 rpm / 16 steps

Longitudinal feeds: 0.0016-0.055 IPR, 25 kinds

Cross feeds: 0.0008-0.027 IPR, 25 kinds

Inch threads: 80-7/16 TPI, 54 kinds

Metric threads: 0.45-120 mm, 54 kinds

Module threads: 0.25-60mm, 46 kinds

Diametral pitch threads: 7/8-160 DP, 42 kinds

Max. Travel of top slide: 9"

Max. Travel of cross slide: 14-1/2"

Spindle length w/o chuck: 20-1/2"

Leadscrew length X TPI: 1-1/4" x 4 TPI

Diameter of tailstock quill: 3-1/2"

Max. Travel of tailstock quill: 9-1/4"

Taper of tailstock quill center: M.T.#5

Main motor: 15HP, 220V or 440V, 3 phase

Rapid traverse motor: 1HP, 220V or 440V, 3 phase

Coolant pump motor: 1/8HP, 220V, or 440V, 3 phase

Net weight Approx: 9,850 lbs.

Overall dimensions, LxWxH: 187" x 46" x 72"



Standard Equipment:

• Taper turning attachment installed
• Sino DRO installed
• Chuck guard with safety shut off
• Carriage stop
• 12" 3-jaw chuck with top reversible jaws, direct mount
• 16" 4-jaw chuck, direct mount
• 18" Face plate
• 7-1/2" large steady rest with roller jaws
• 3" follow rest
• Removeable gap
• 4-way tool post
• Foot brake
• Halogen work light and coolant system
• Full length splash guard
• Dead centers
• Thread chasing dial
• Tool box and leveling pads



Optional Equipment:

Aloris type QC tool post set#900-0051-500, 6 pcs

Live Center #900-0050-05

Extra 7-1/2" large steady rest with roller jaws

15" large steady rest with roller jaws
