Hardinge HLV-EM PRECISION LATHES LIKE HARDINGE

$39,500

Make:
Hardinge
Model:
HLV-EM
Year:
1994
Ref #:
172461

Or call us for a quote at (973) 497-7500 or send us an email at toolroom@machineryvalues.com

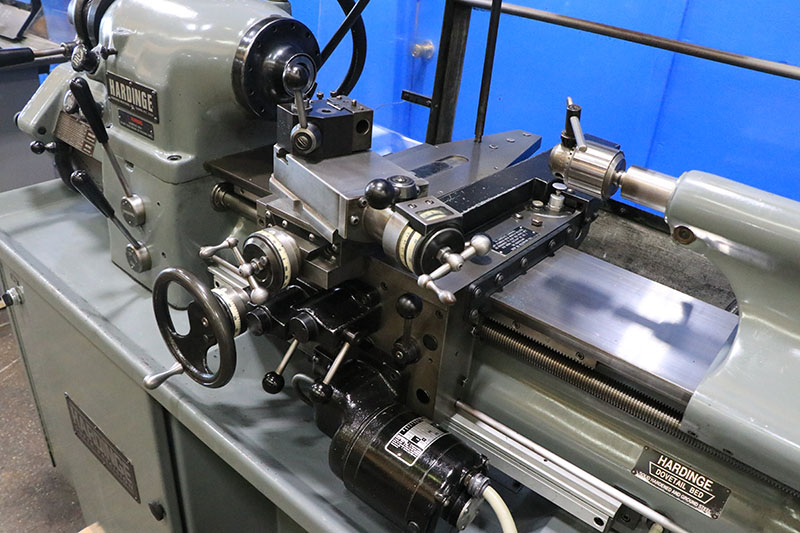

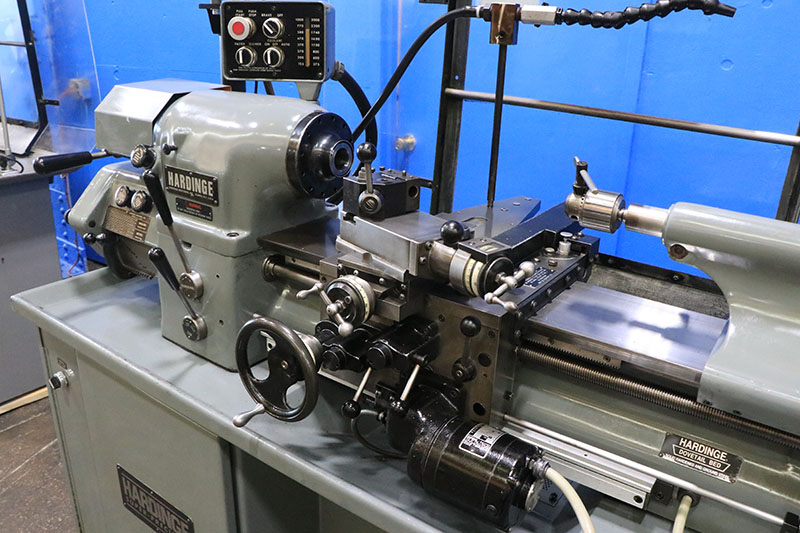

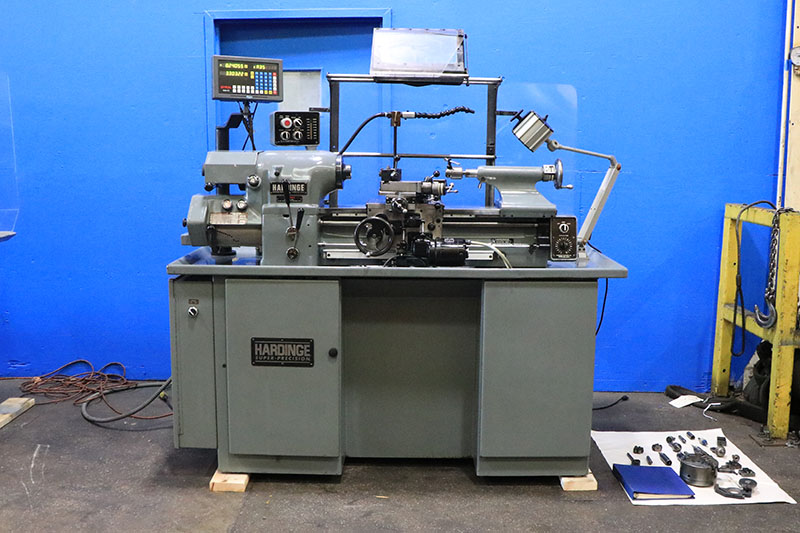

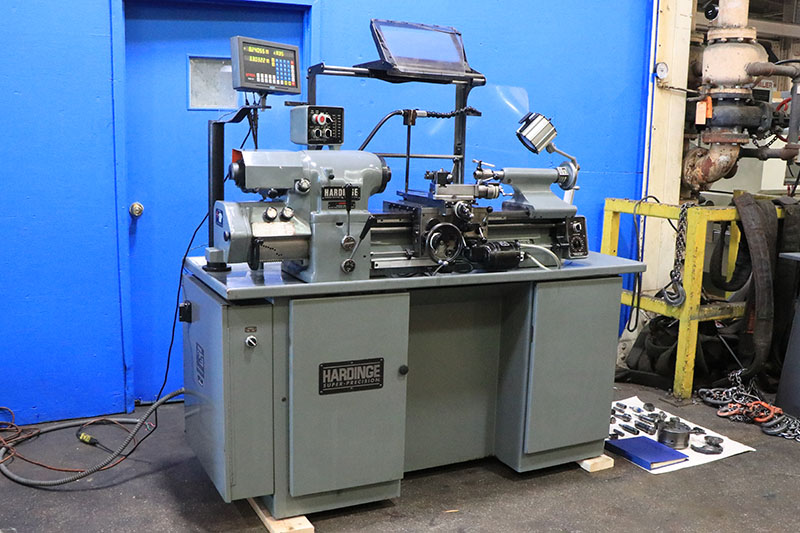

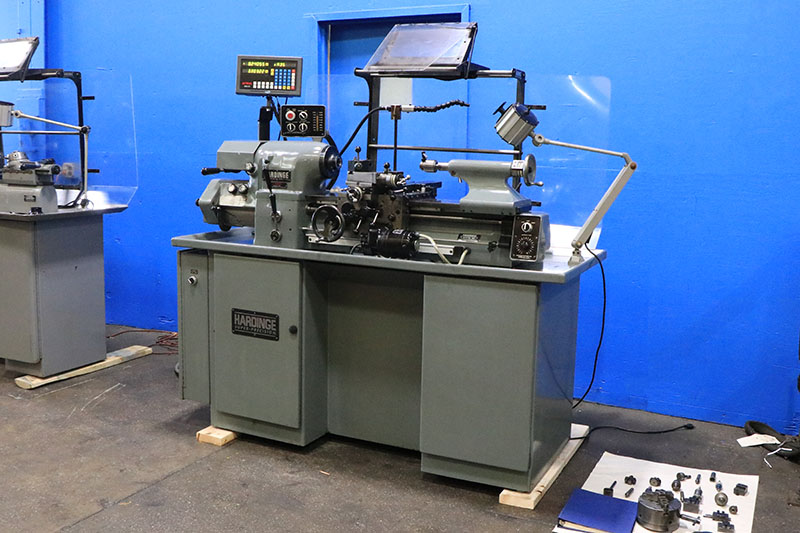

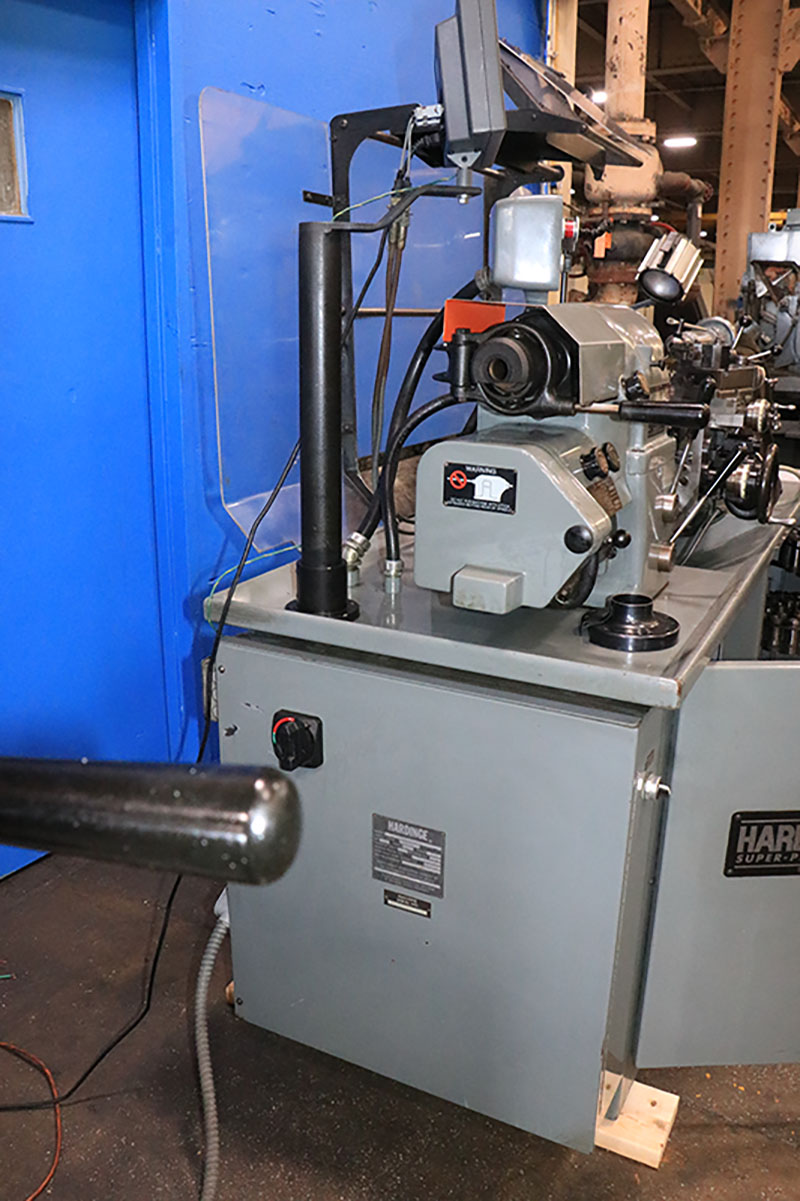

HARDINGE SUPER-PRECISON TOOLROOM LATHE

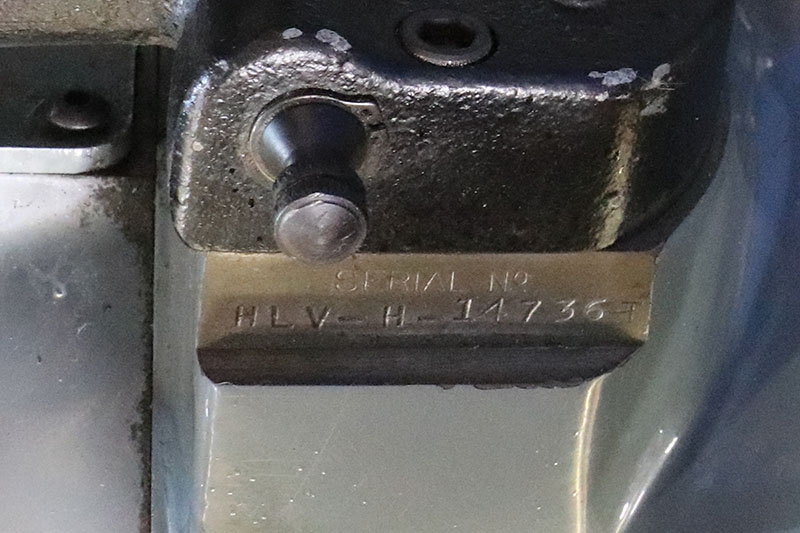

MODEL: HLV-EM, S/N: HLV-H-14736-T, NEW: 1994

SPECIFICATIONS:
SPINDLE CONSTRUCTION ............. HARDINGE SUPER-PRECISION
                                   PRELOADED BALL BEARING
SPINDLE NOSE ..................... HARDINGE TAPERED

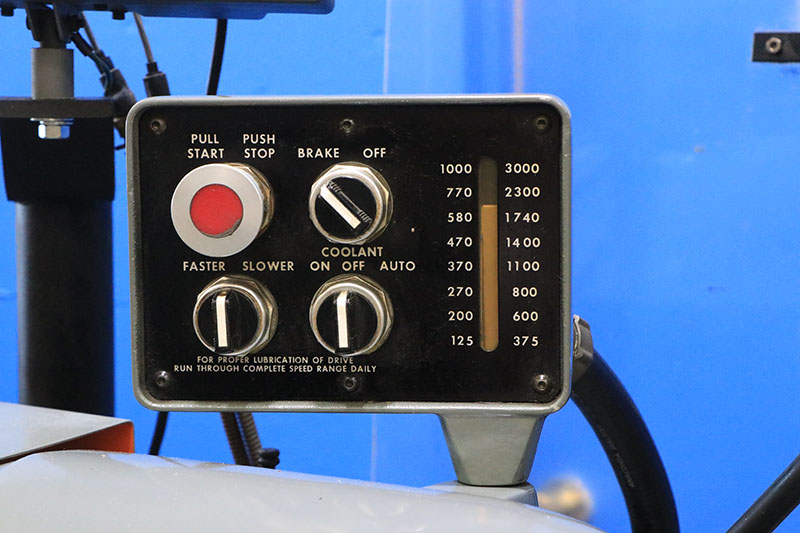

INF. VARIABLE SPINDLE SPEEDS ..... 125 TO 3000 RPM
HOLE THROUGH SPINDLE ............. 1-1/4"
SPINDLE CAPACITY:
    w/ROUND 5C COLLETS ........... 1-1/6
    w/HEXAGON 5C COLLETS ......... 7/8"
    w/SQUARE 5C COLLETS .......... 3/4"
    w/STEP CHUCKS ................ 1-1/16" TO 6"
    w/JAW CHUCKS ................. 5"
    w/EXPANDING COLLETS .......... 3"
SWING OVER BED ................... 11"
SWING OVER CARRIAGE .............. 9"
SWING OVER CROSS SLIDE ........... 6"
DISTANCE BETWEEN CENTERS ......... 18"
COMPOUND SLIDE TRAVEL ............ 3"

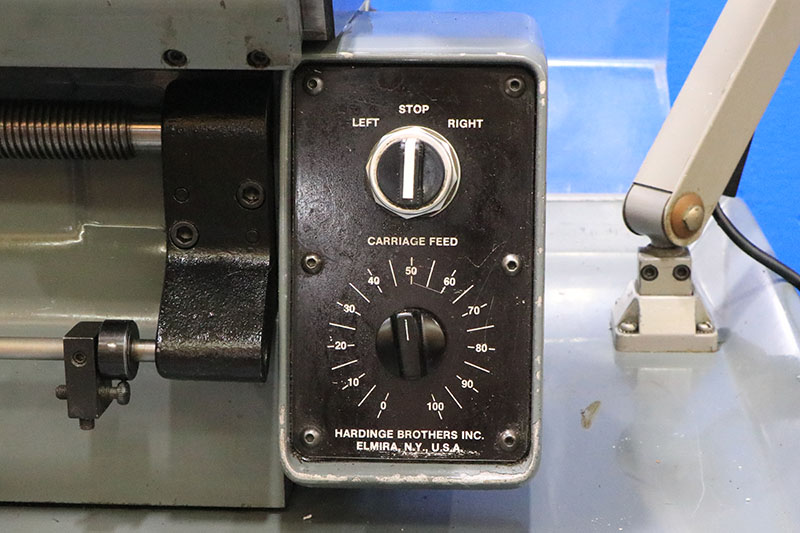

CARRIAGE POWER FEED RANGE ........ 5/16" TO 7" IPM
CROSS SLIDE POWER FEED RANGE ..... 3/16" TO 4" IPM

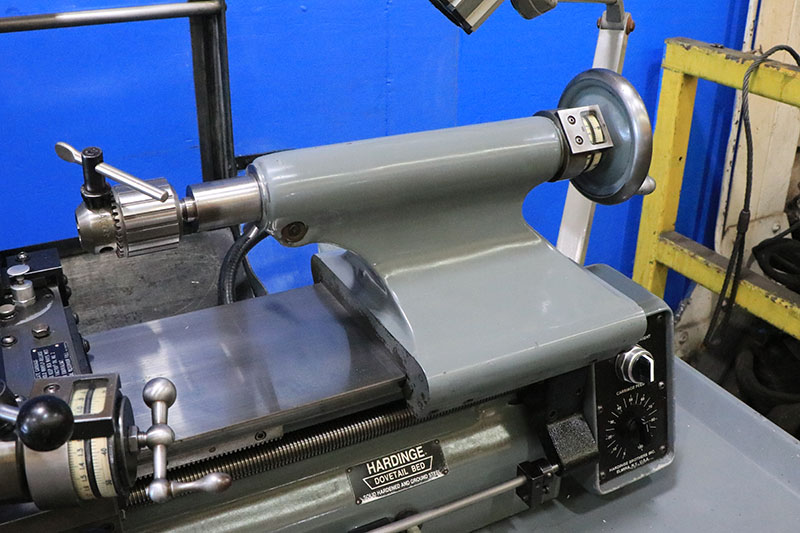

TAILSTOCK SPINDLE DIAMETER ....... 1-3/8"
TAILSTOCK SPINDLE TRAVEL ......... 3-3/4"
TAILSTOCK SPINDLE TAPER .......... #2 MT
THREADING RANGE .................. 11" TO 108" TPI
INCH THREADING RANGE ............. 11 - 108 T.P.I.
METRIC THREADING RANGE ........... 0.275 - 2.7 MM
APPROX. DIMENSIONS ... LxWxH ..... 68" x 30" x 60"
APPROX. WEIGHT ................... 1,700 LBS.

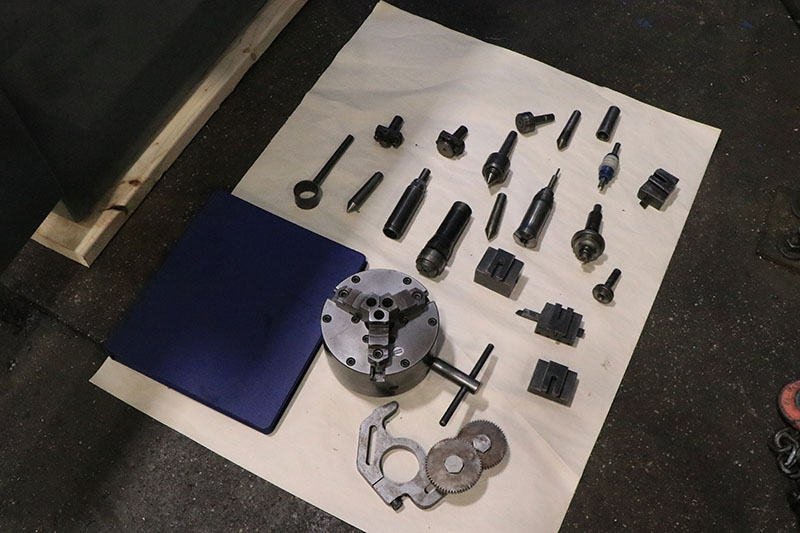

EQUIPPED WITH:
- INCH/METRIC THREADING CAPABILITY

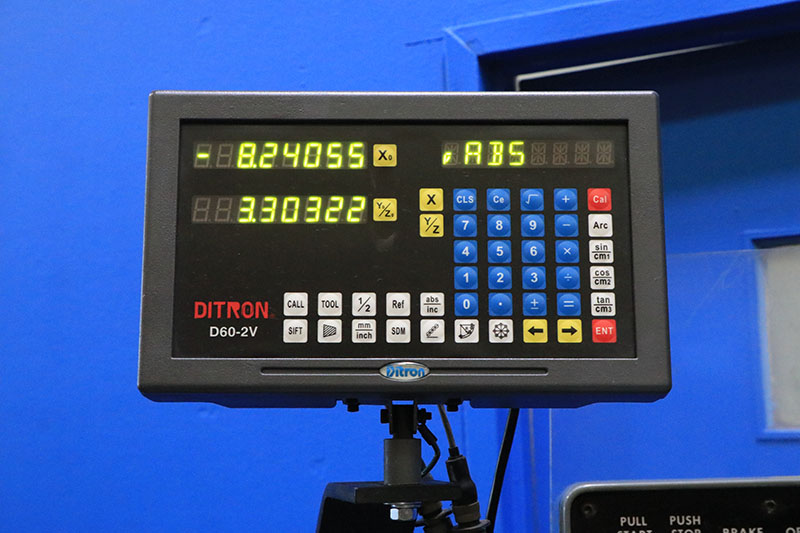

- TWO AXIS DIGITAL READOUT
- INCH/METRIC DUAL DIALS ON TAILSTOCK & COMPOUND

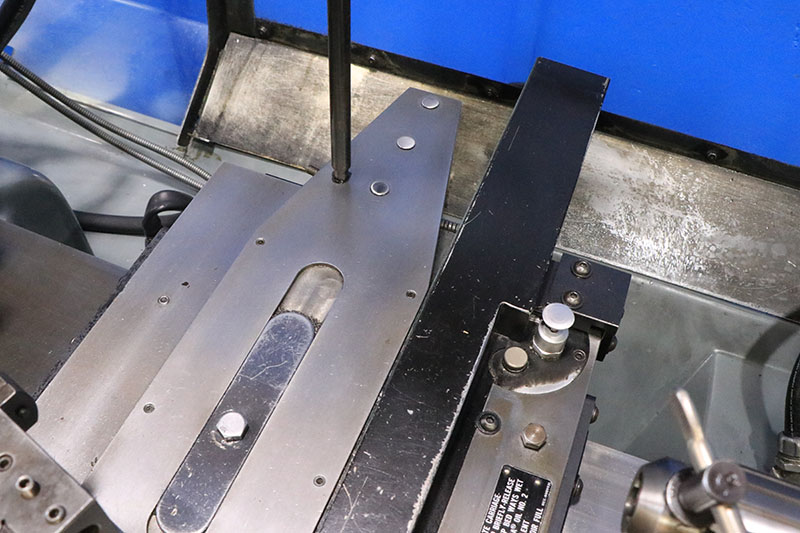

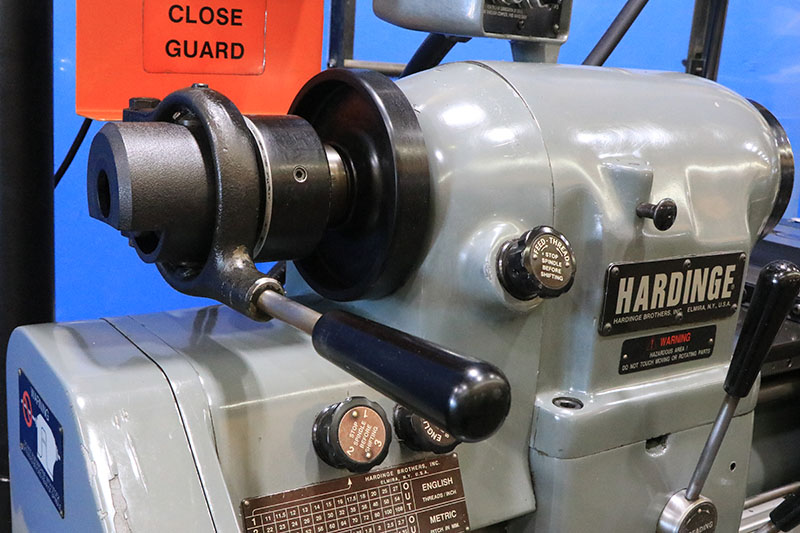

- HARDINGE LEVER TYPE 5C-COLLET CLOSER
- HARDINGE 3-JAW CHUCK

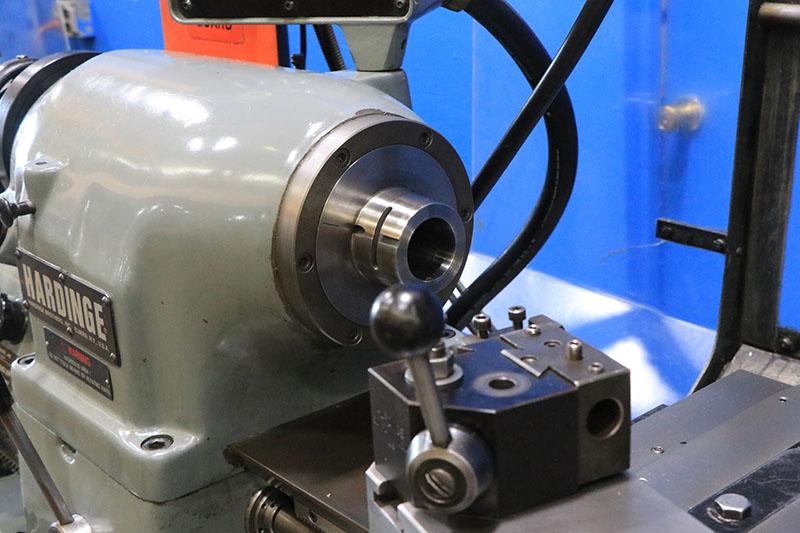

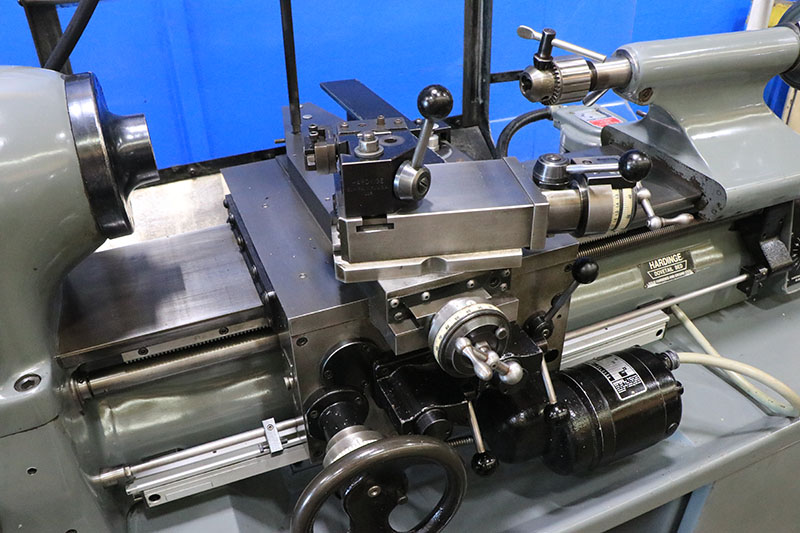

- HARDINGE MODEL: L19 QUICK CHANGE TOOLPOST WITH HOLDERS
- JACOBS DRILL CHUCK FOR TAILSTOCK
- LIVE CENTER FOR TAILSTOCK

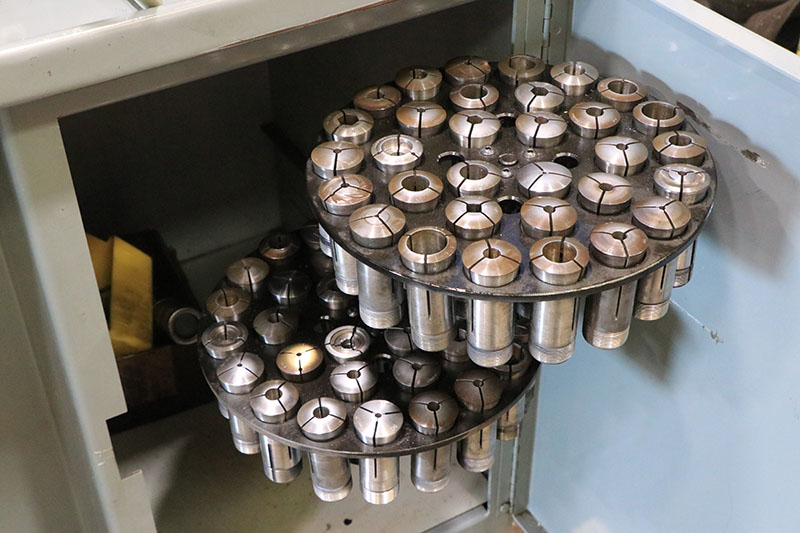

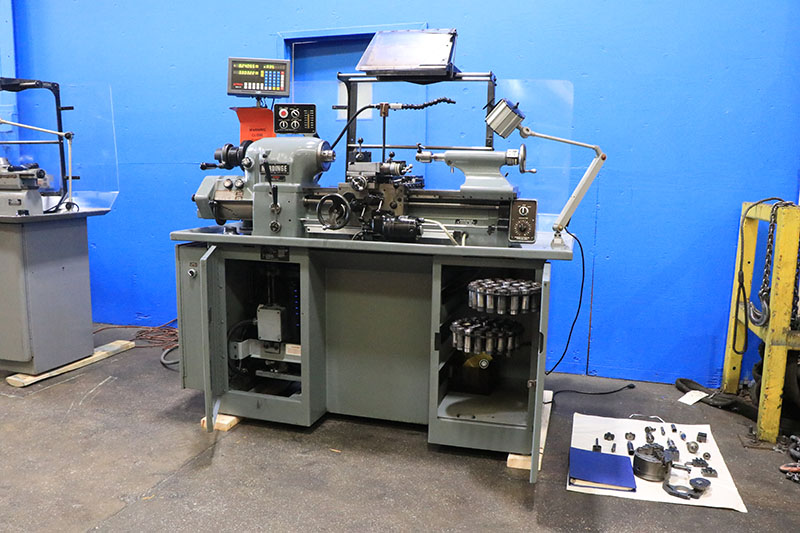

- ASSORTMENT OF 5C COLLETS
- COOLANT SYSTEM

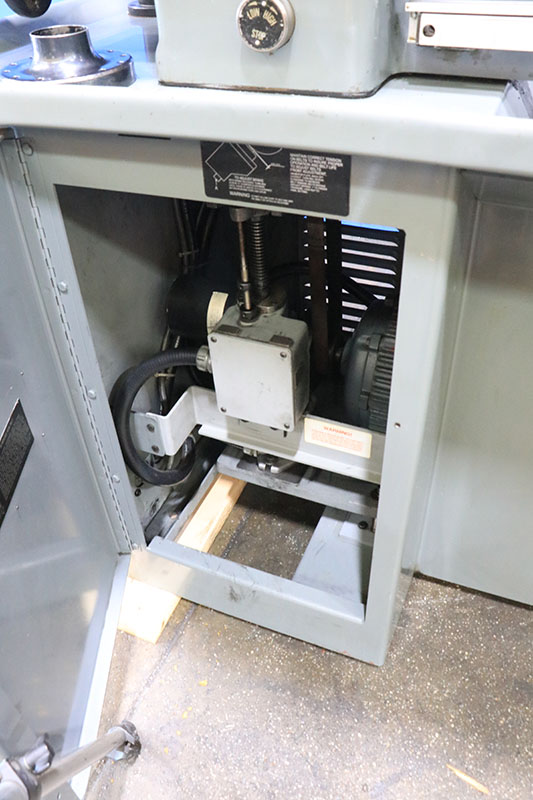

- 1.5 HORSE POWER TWO SPEED MOTOR

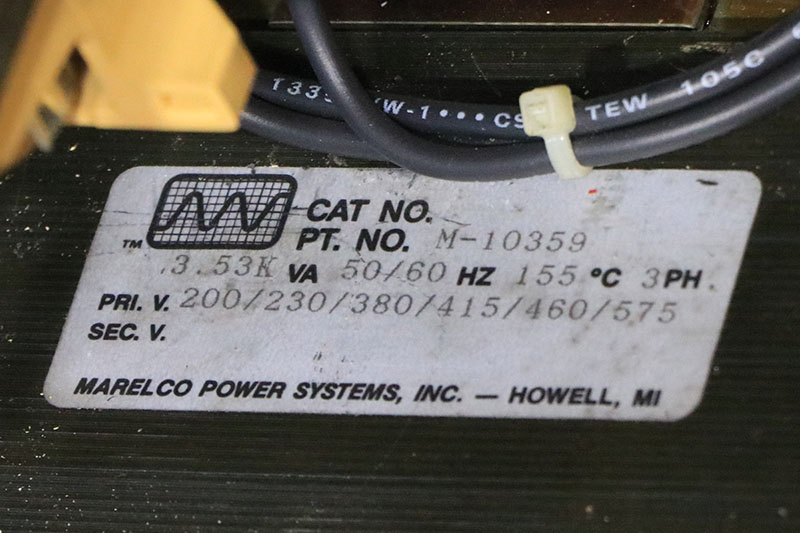

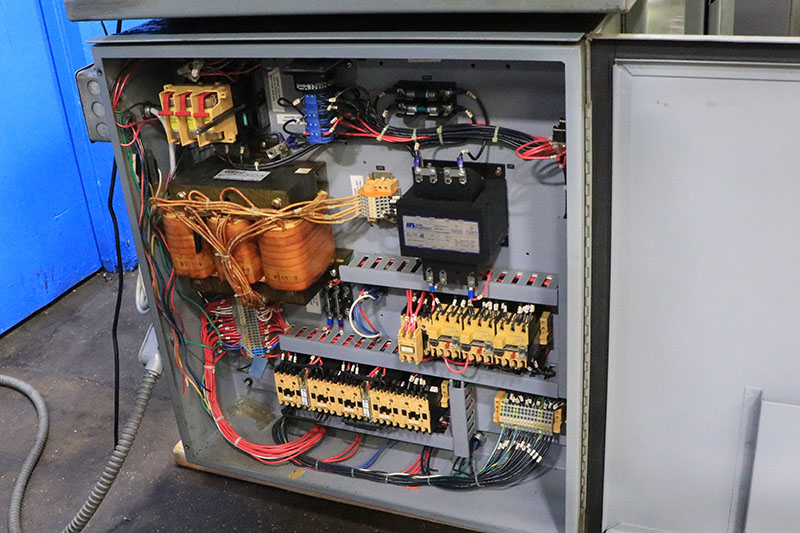

- MACHINE HAS A FACTORY-INSTALLED MULTI-TAP TRANSFORMER ALLOWING THE FOLLOWING VOLTAGE OPTIONS: 200/230/380/415/460 & 575 VOLTS

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE

 MACHINE HAS ITS ORIGINAL PAINT
****  SUPERB-CONDITION  ****

DISCLAIMER: The information presented in the write ups and the photographic representations of the equipment are believed to be accurate at the time the pages are created. The information presented on the web site should not be used for formal quotation. Price and information presented in the write ups on the web site are subject to change without notice. Machinery Values claims no responsibility for inaccuracies of the information presented on the pages of this website. Please contact one of our sales representatives if you require more information or a current formal quotation.

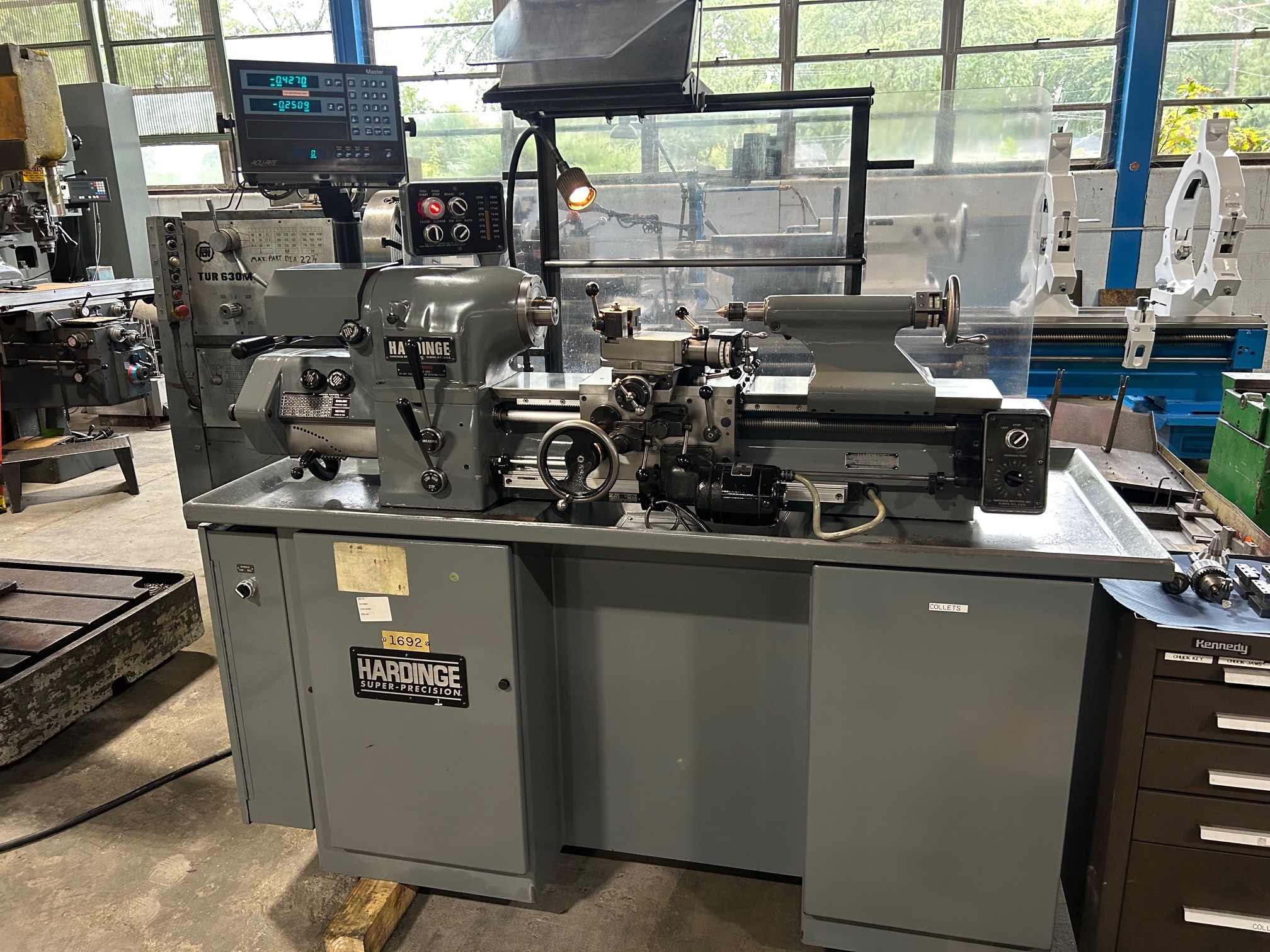

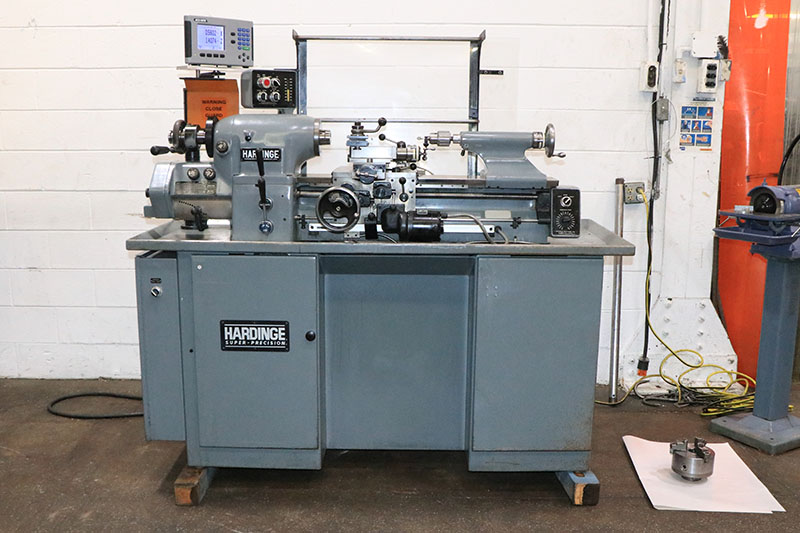

Similar Machines
