Hardinge HLV-H PRECISION LATHES LIKE HARDINGE

$22,950

Make:: Hardinge

Model:: HLV-H

Year:: 1985

Ref #:: 169239

Or call us for a quote at (973) 497-7500 or send us an email at toolroom@machineryvalues.com

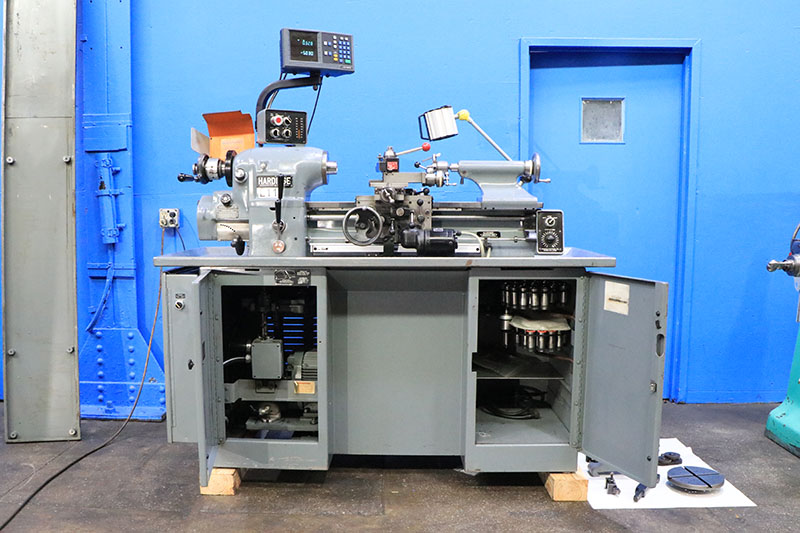

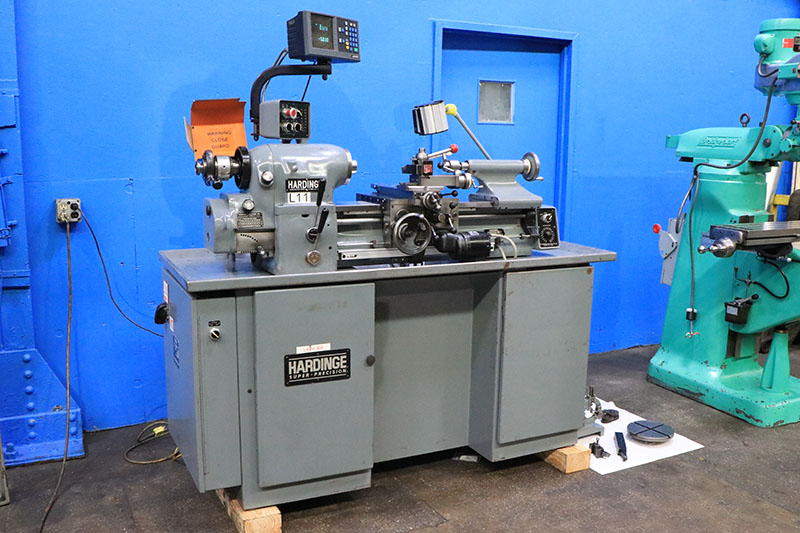

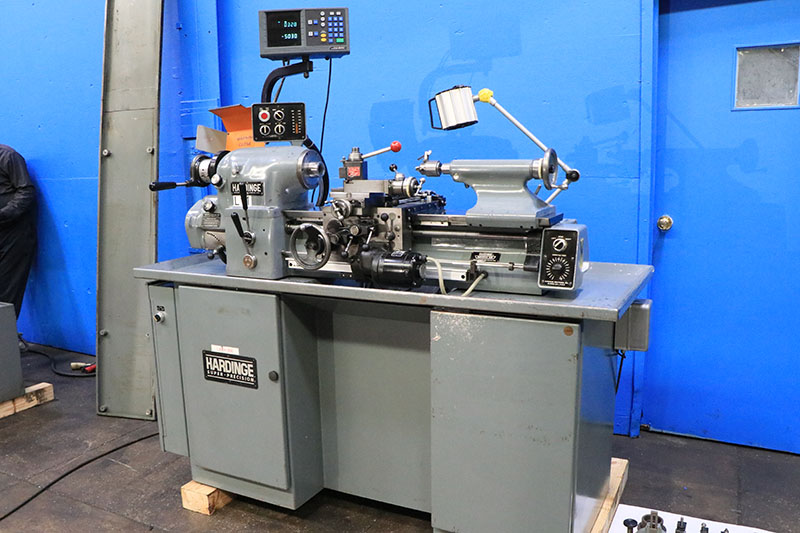

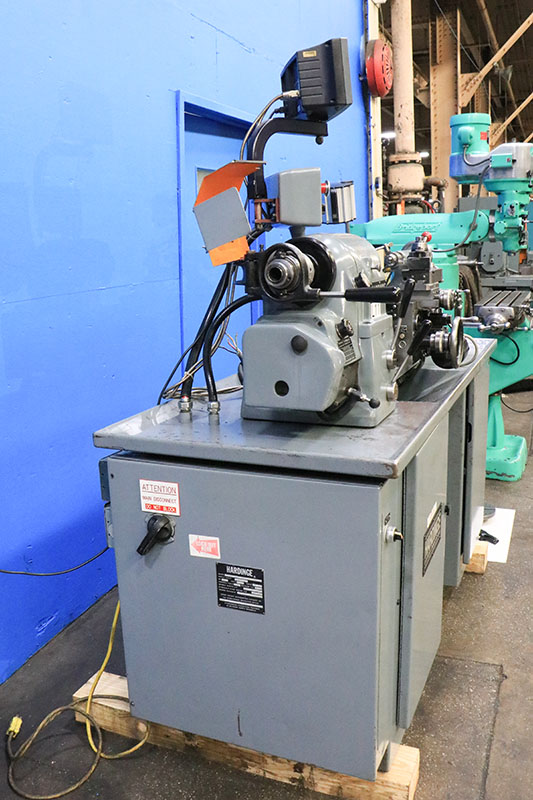

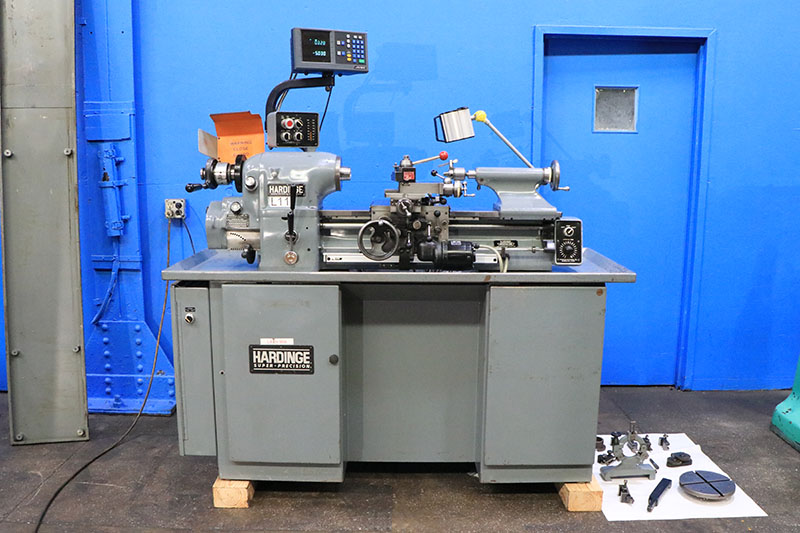

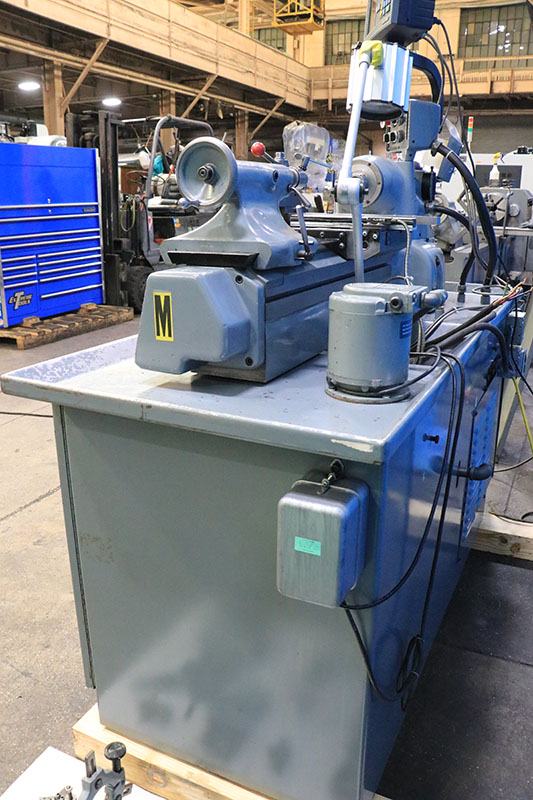

HARDINGE PRECISION TOOLROOM LATHE

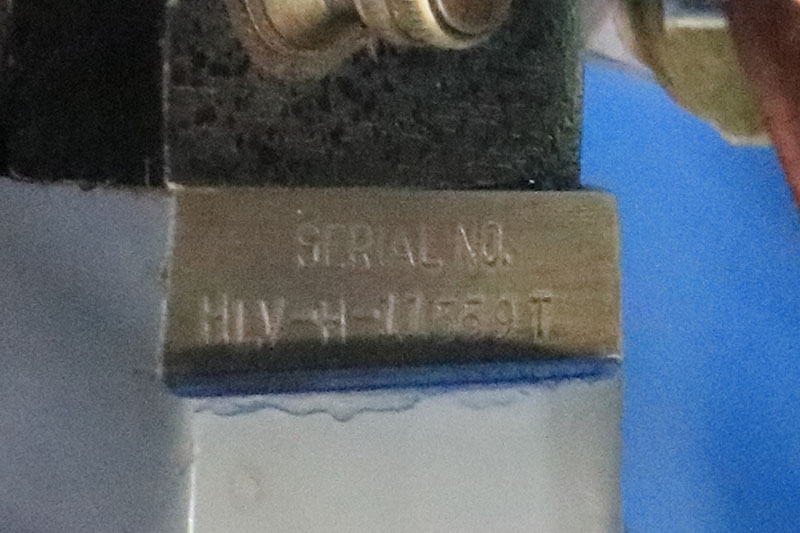

MODEL: HLV-H, S/N: HLV-H-11559-T, NEW: 1985

SPECIFICATIONS:

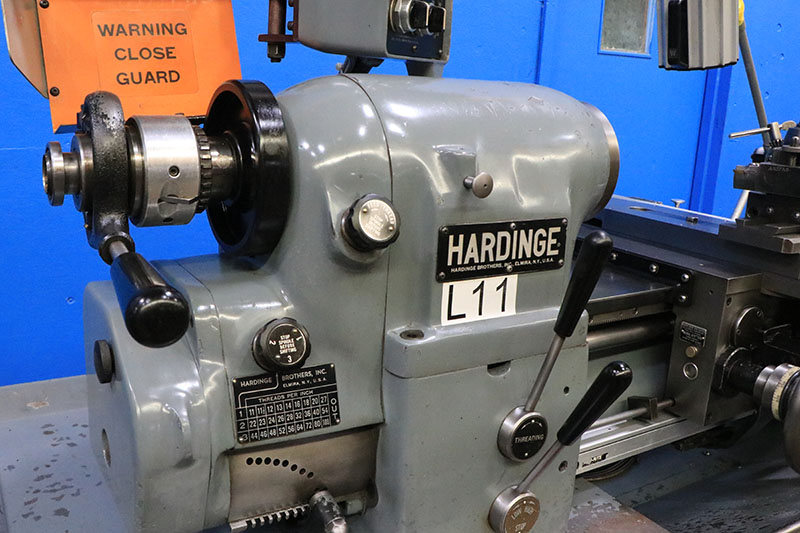

SPINDLE CONSTRUCTION ............. HARDINGE SUPER-PRECISION
                                   PRELOADED BALL BEARING
SPINDLE NOSE TAPERED ............. HARDINGE TAPERED

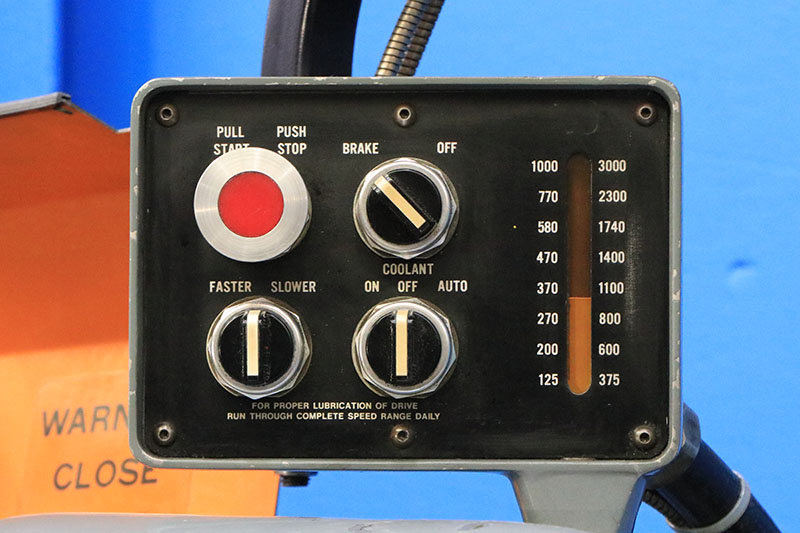

INF. VARIABLE SPINDLE SPEEDS ..... 125 TO 3000 RPM
HOLE THROUGH SPINDLE ............. 1-1/4"
SPINDLE CAPACITY:
  W/ROUND 5C COLLETS ............. 1-1/6
  W/HEXAGON 5C COLLETS ........... 7/8"
  W/SQUARE 5C COLLETS ............ 3/4"
  W/STEP CHUCKS .................. 1-1/16" TO 6"
  W/JAW CHUCKS ................... 5"
  W/EXPANDING COLLETS ............ 3"
SWING OVER BED ................... 11"
SWING OVER CARRIAGE .............. 9"
SWING OVER CROSS SLIDE ........... 6"
DISTANCE BETWEEN CENTERS ......... 18"
COMPOUND SLIDE TRAVEL ............ 3"

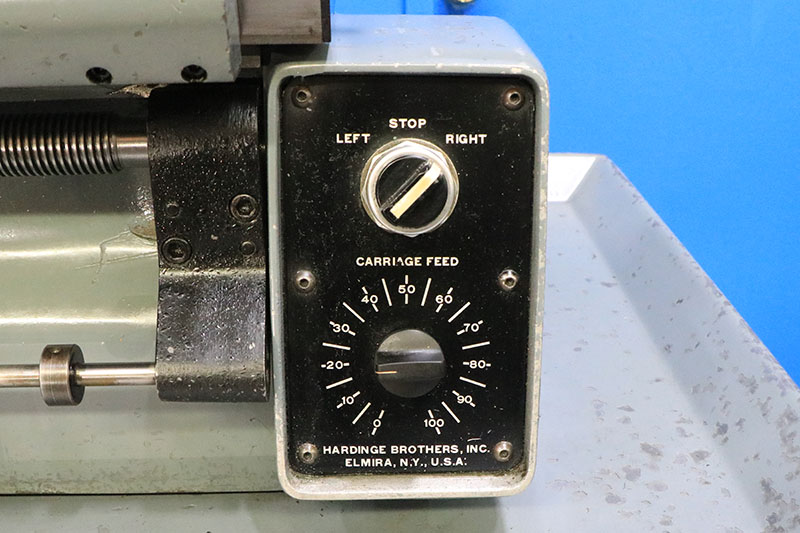

CARRIAGE POWER FEED RANGE ........ 5/16" TO 7" IPM
CROSS SLIDE POWER FEED RANGE ..... 3/16" TO 4" IPM
TAILSTOCK SPINDLE DIAMETER ....... 1-3/8"
TAILSTOCK SPINDLE TRAVEL ......... 3-3/4"
TAILSTOCK SPINDLE TAPER .......... #2 MT
THREADING RANGE (27) ............. 11" TO 108" TPI
APPROX. DIMENSIONS ... LxWxH ..... 65" x 28" x 58"
APPROX. WEIGHT ................... 1,700 LBS.

EQUIPPED WITH:
- LEVER TYPE 5C COLLET CLOSER

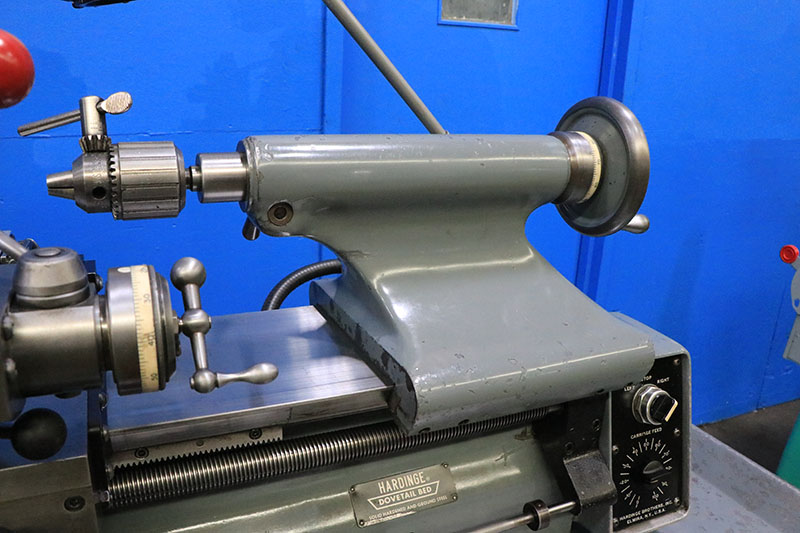

- SOLID FULL BEARING TAILSTOCK

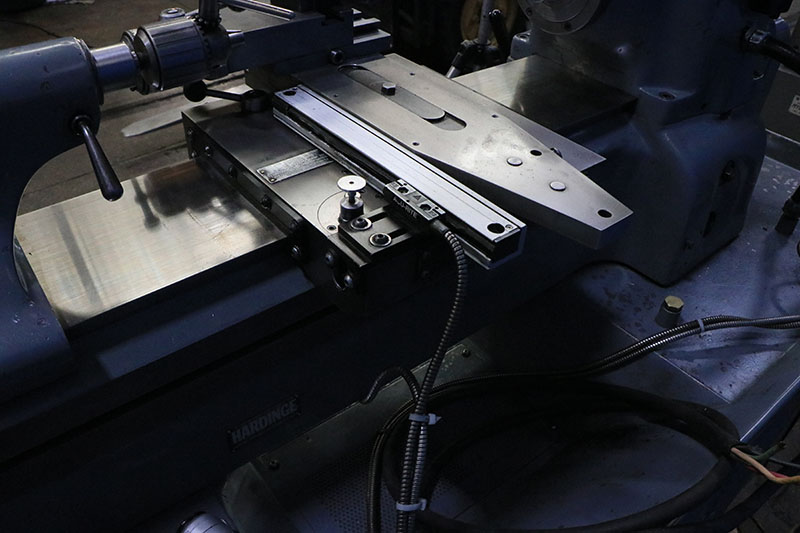

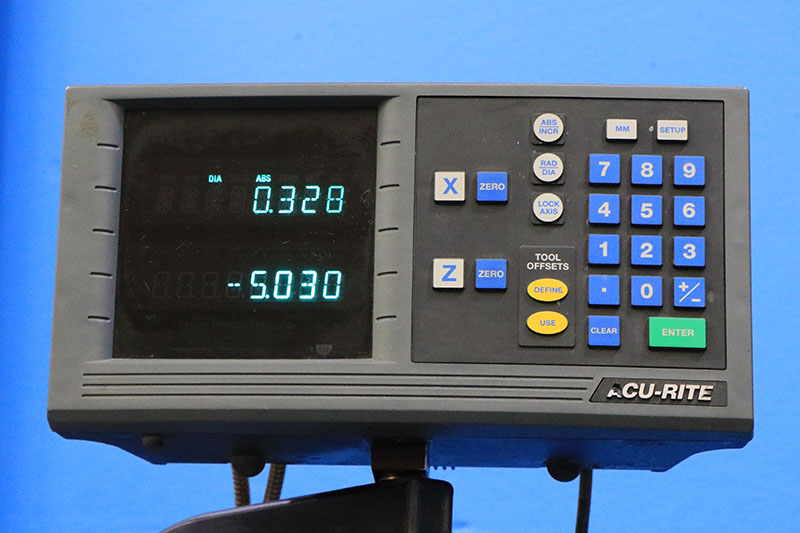

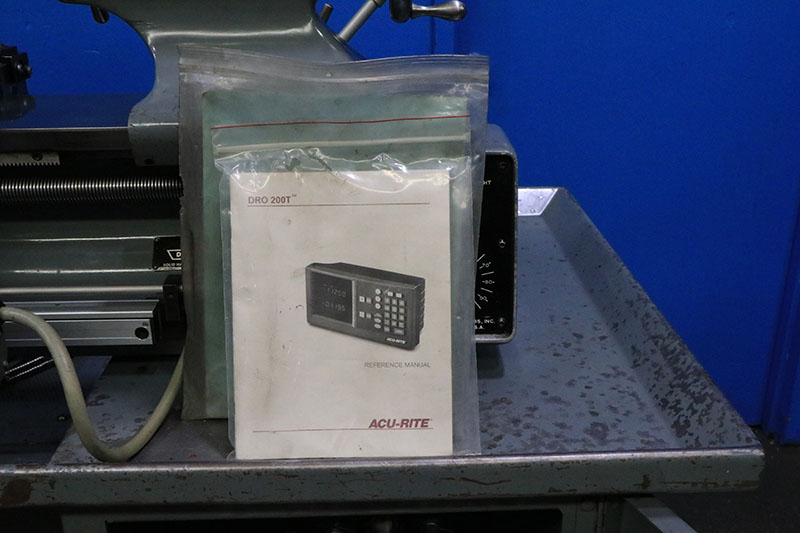

- ACU-RITE TWO AXIS DIGITAL READOUT
- JACOBS DRILL CHUCK FOR TAILSTOCK
- LIVE CENTER FOR TAILSTOCK

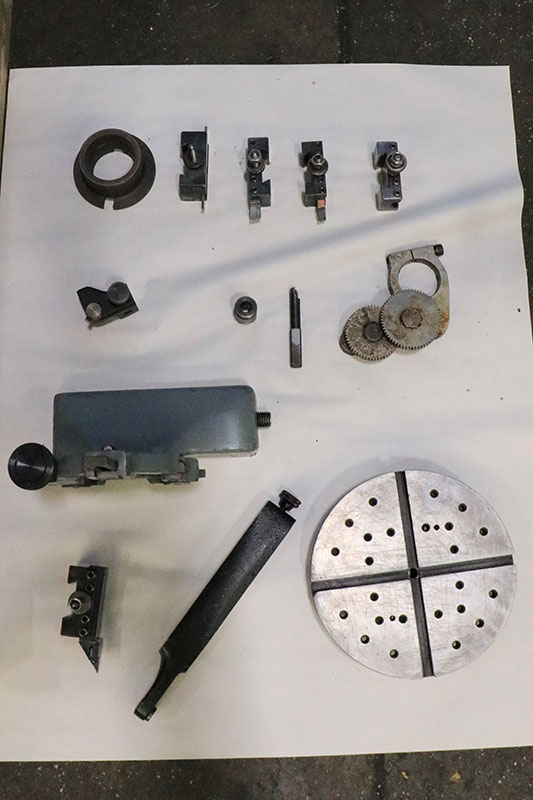

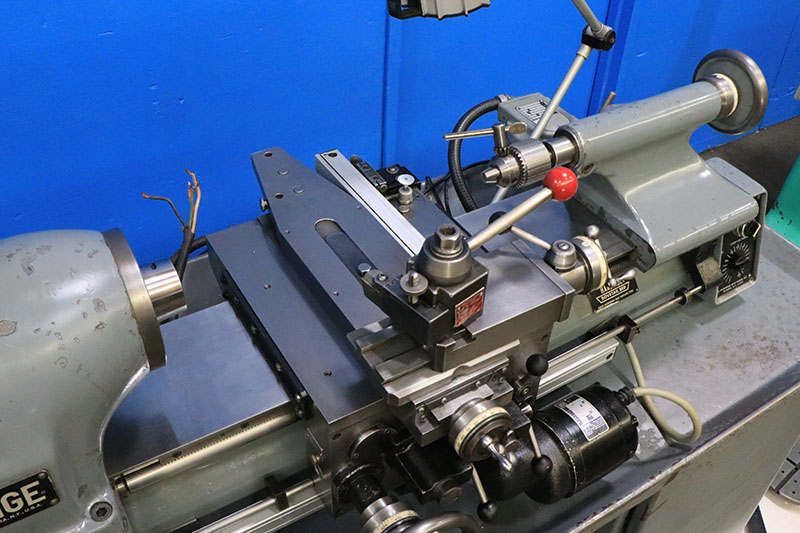

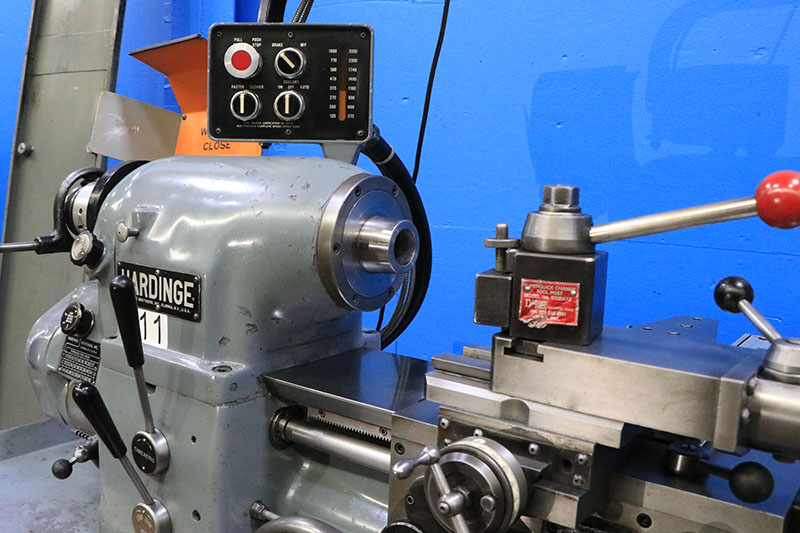

- DORIAN MODEL: AXA QUICK CHANGE TOOLPOST & HOLDERS
- STEADY REST

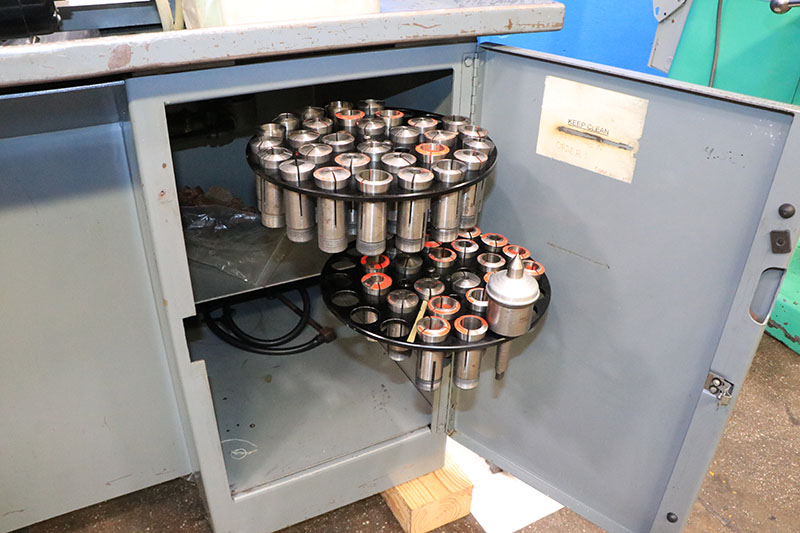

- ASSORTMENT OF 5C COLLETS
- COOLANT SYSTEM

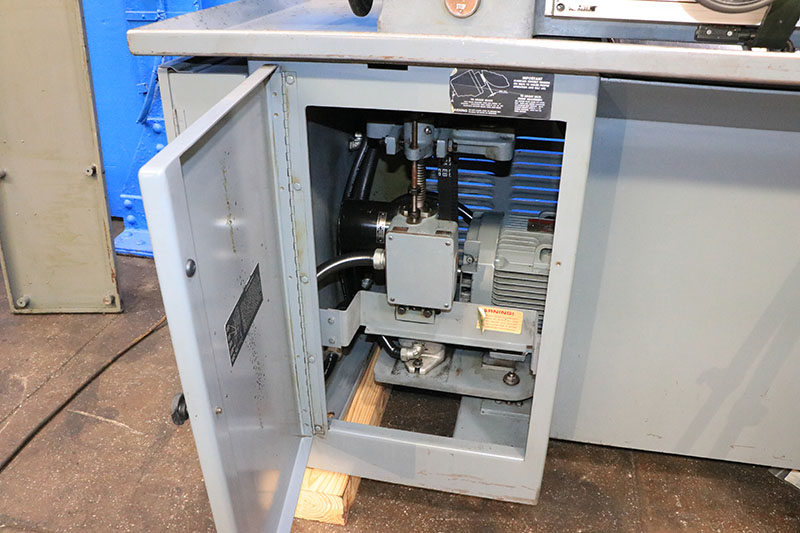

- .5 / 1 HORSEPOWER TWO SPEED MOTOR
- MACHINE IS WIRED FOR 208 VOLT OPERATION

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
