Hardinge HLV-H Reground Bed & New Turcite PRECISION LATHES LIKE HARDINGE

$30,500

Make:: Hardinge

Model:: HLV-H Reground Bed & New Turcite

Year:: 2000

Ref #:: 164183

Or call us for a quote at (973) 497-7500 or send us an email at toolroom@machineryvalues.com

HARDINGE PRECISION LATHE
MODEL: HLV-H, S/N: HLV-H-15475-T, NEW: 2000
MACHINE RECONDITIONED IN 2024

SPECIFICATIONS:

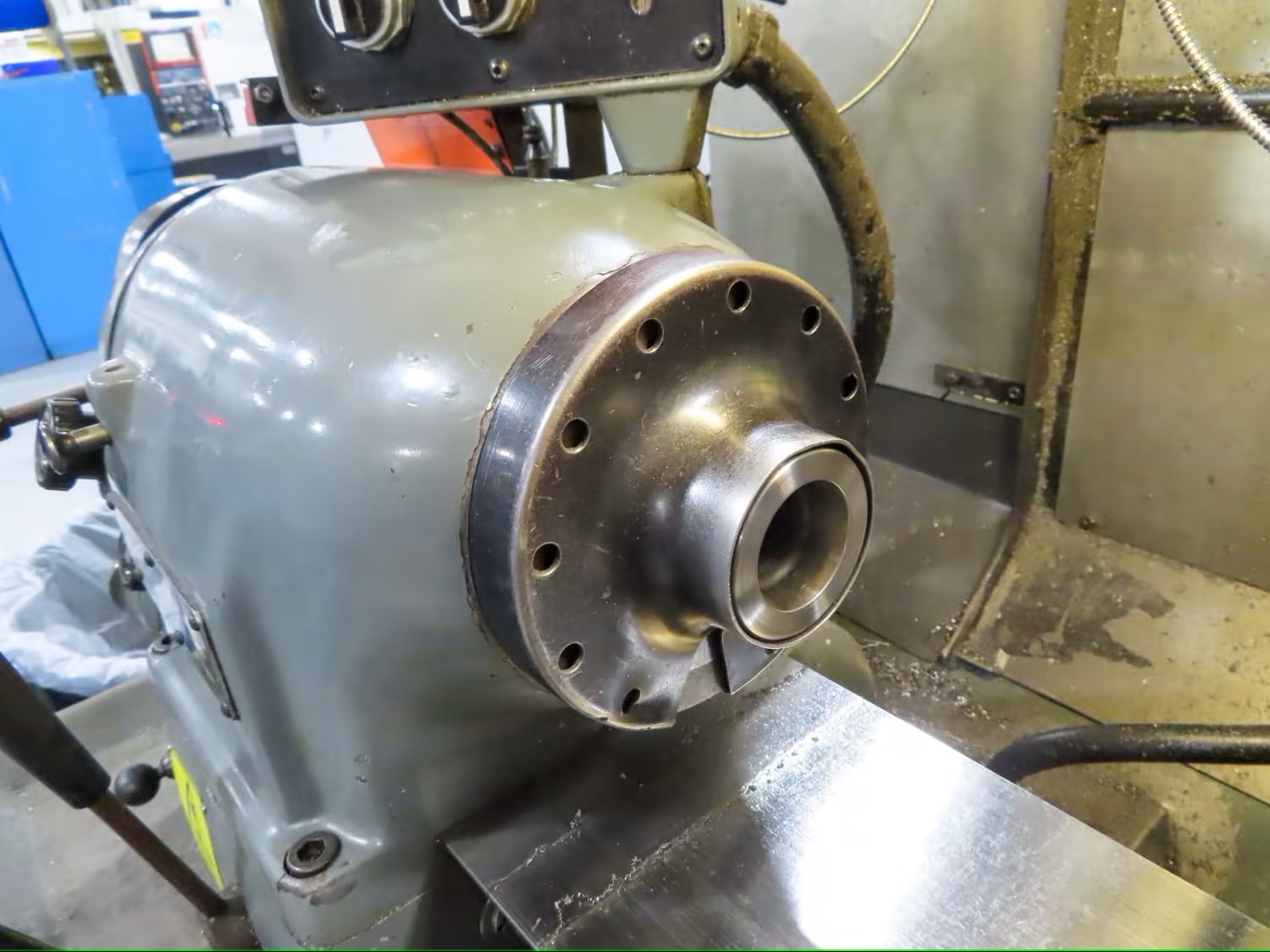

SPINDLE CONSTRUCTION.................... HARDINGE BALL BEARING
SPINDLE NOSE THREAD .................... HARDINGE TAPERED
VARIABLE SPINDLE SPEEDS................. 125 - 3000 RPM
HOLE THROUGH SPINDLE.................... 1-1/4"
SWING OVER BED.......................... 11"
SWING OVER CARRIAGE..................... 9"
SWING OVER CROSS SLIDE.................. 6"
DISTANCE BETWEEN CENTERS................ 18"
COMPOUND SLIDE TRAVEL................... 3"
CARRIAGE POWER FEED RANGE............... 5/16- 7 IPM
CROSS SLIDE POWER FEED RANGE............ 3/16- 4 IPM
TAILSTOCK SPINDLE DIAMETER.............. 1-3/8"
TAILSTOCK SPINDLE TAPER................. #2 MT
RANGE OF THREADS IN GEAR BOX............ 11 - 108 TPI
APPROXIMATE WEIGHT ..................... 1,700 LBS.


EQUIPPED WITH:
- REGROUND BED PLATE & NEW TURCITE UNDER CARRIAGE

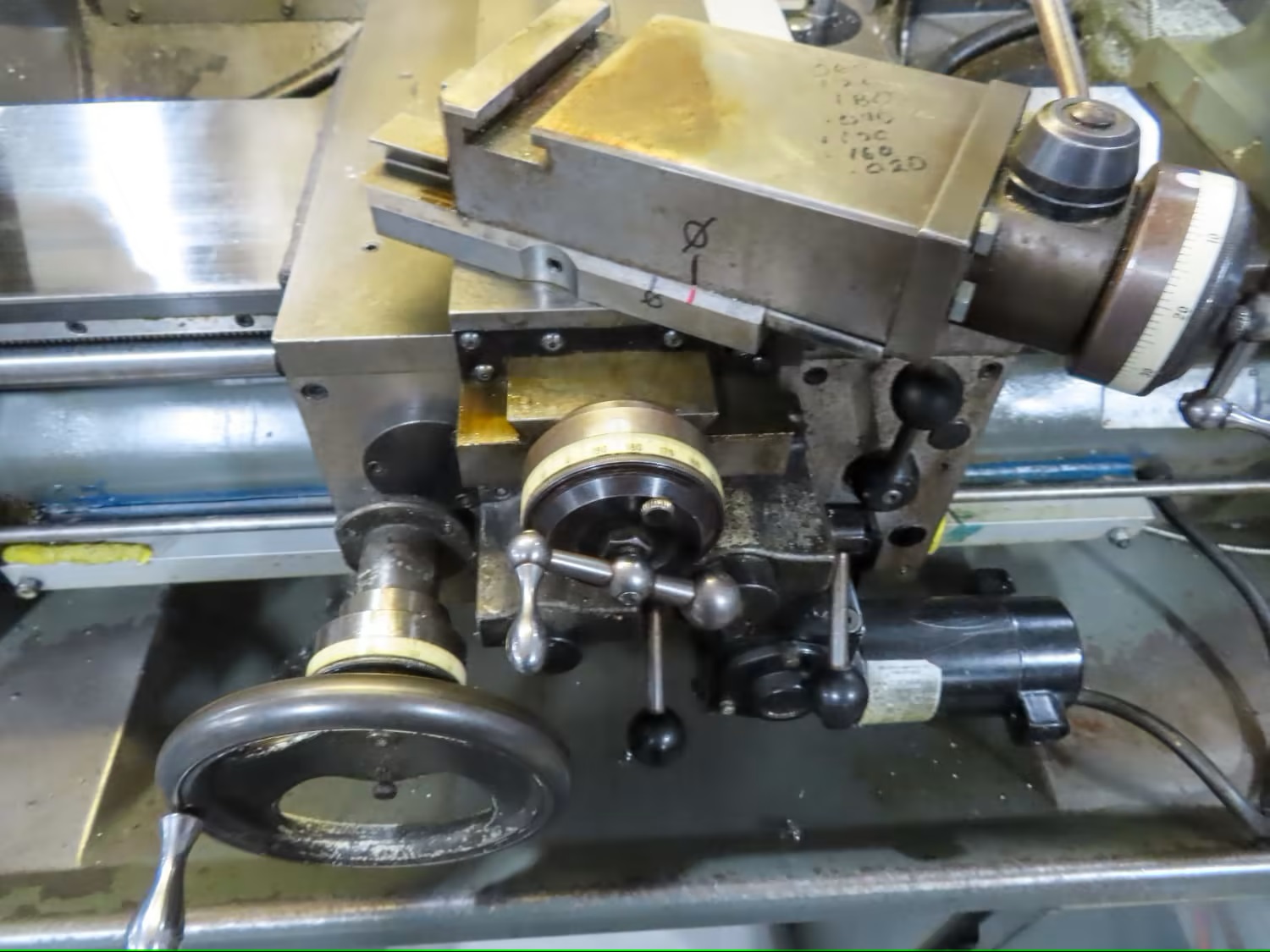

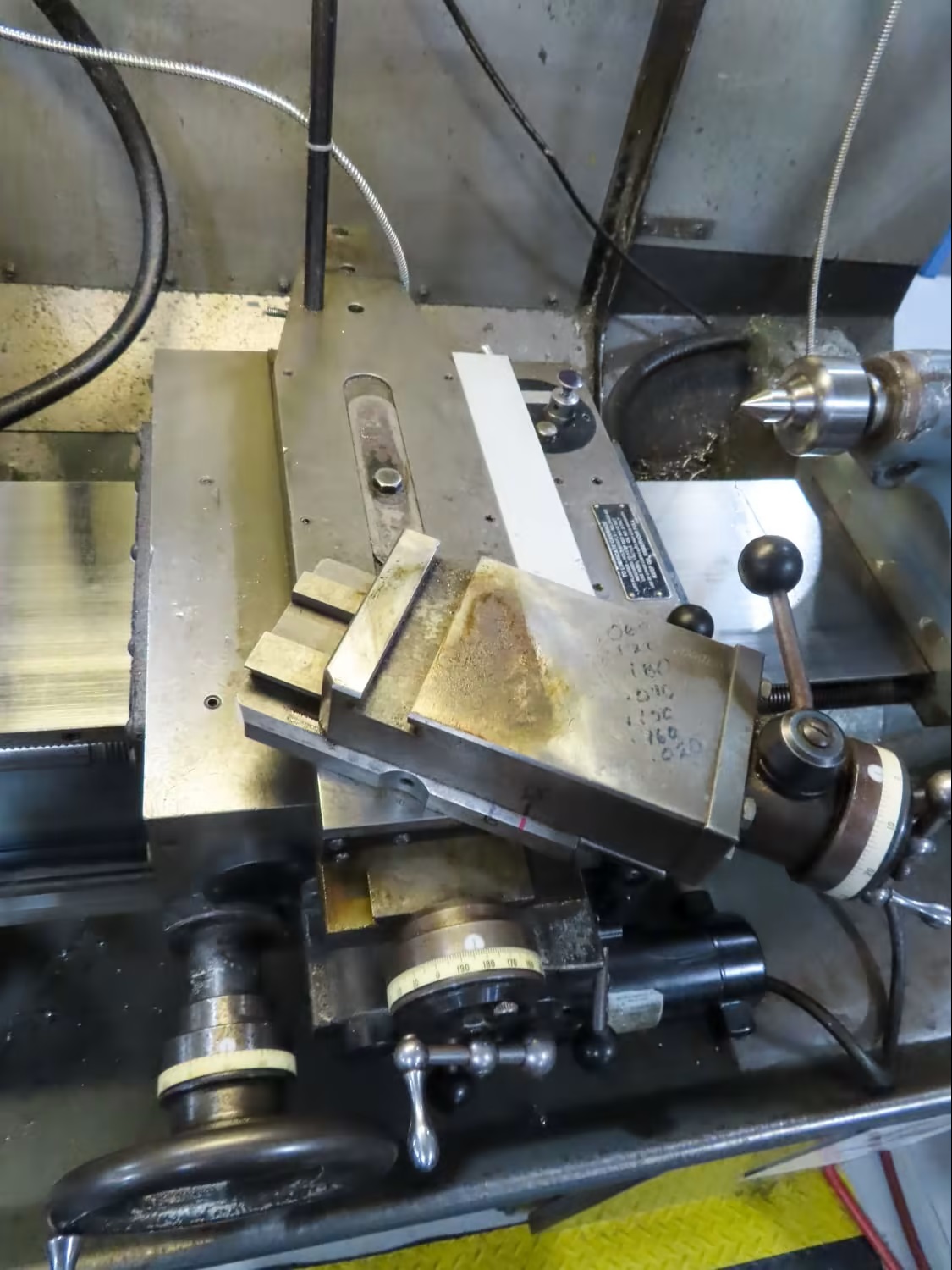

- HARDINGE CROSS SLIDE REGROUND
- NEW HARDINGE CROSS FEED NUT
- BALL BEARING QUICK ACTING 5C COLLET CLOSER

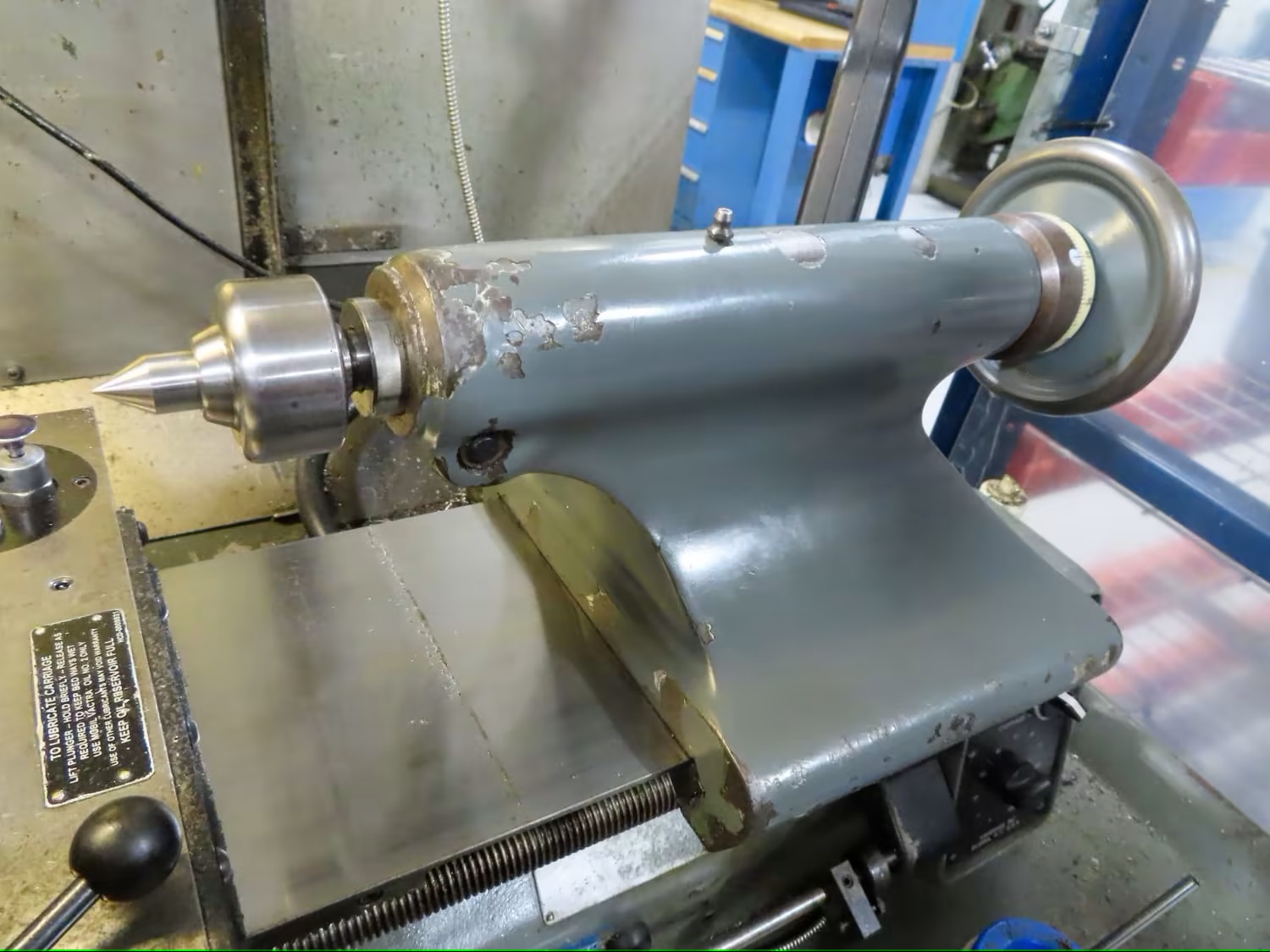

- HEAVY DUTY FULL BEARING TAILSTOCK

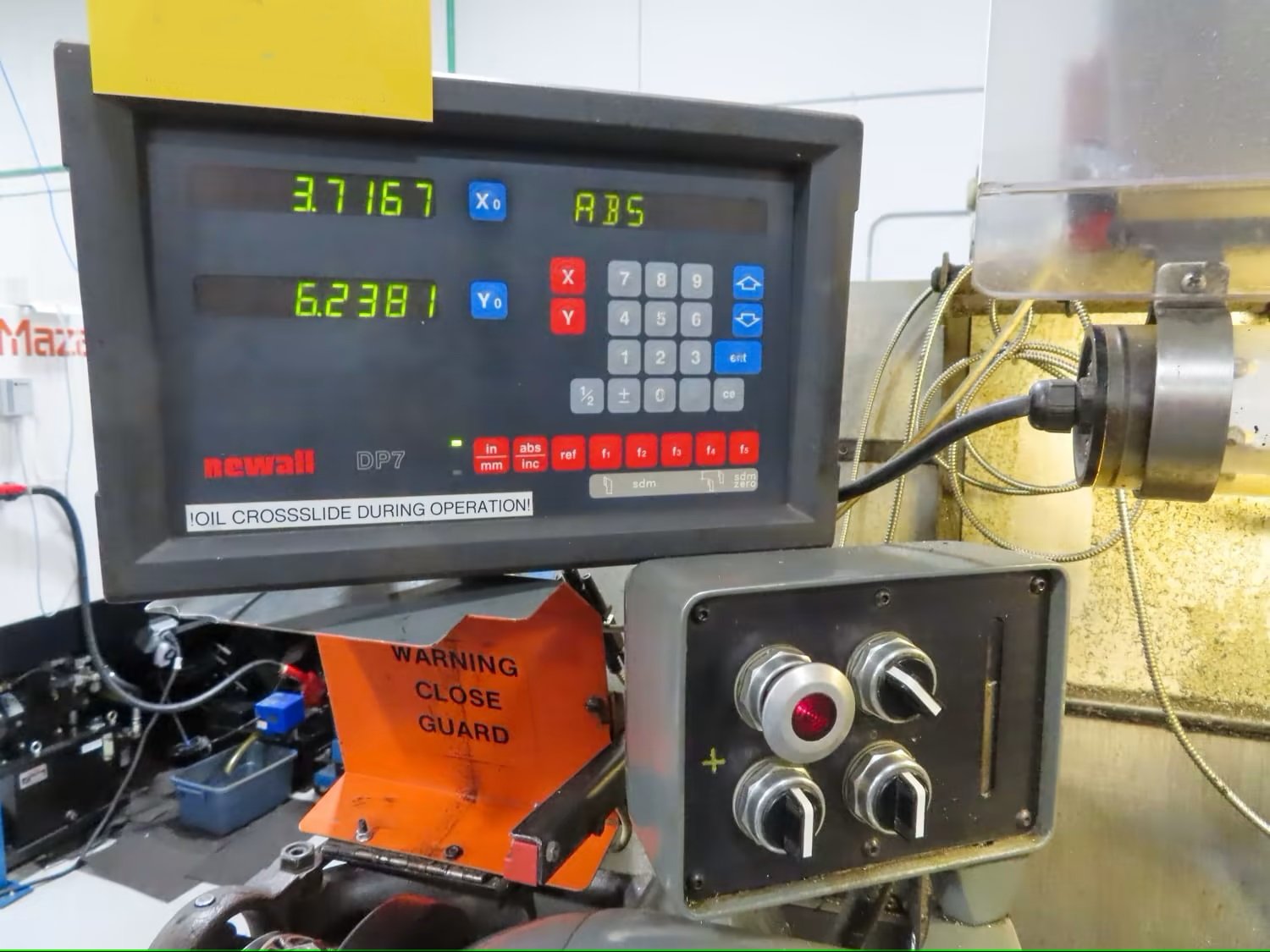

- NEWALL TWO AXIS DIGITAL READOUT
- LIVE CENTER
- ASSORTMENT OF 5C COLLETS
- SELF-CONTAINED COOLANT SYSTEM
- 1 / .5 HORSE POWER TWO-SPEED MAIN DRIVE MOTOR

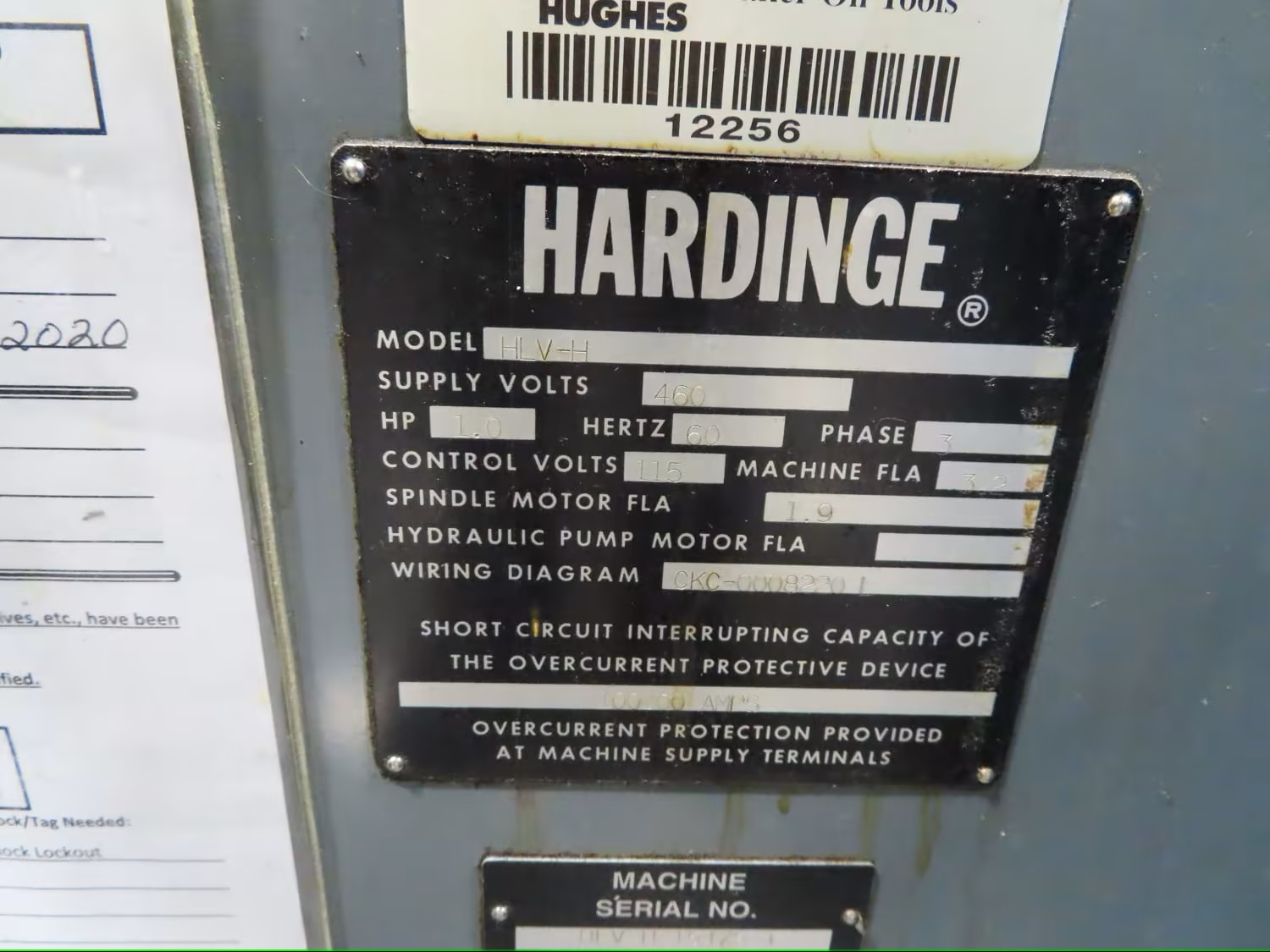

  MACHINE IS WIRED FOR 460 VOLT OPERATION

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE

CONDITION:   ***  SUPERB  ***
