Hardinge HLV-EM Reconditioned 2023 PRECISION LATHES LIKE HARDINGE

$32,950

Make:: Hardinge

Model:: HLV-EM Reconditioned 2023

Year:: 2023

Ref #:: 162004

Or call us for a quote at (973) 497-7500 or send us an email at toolroom@machineryvalues.com

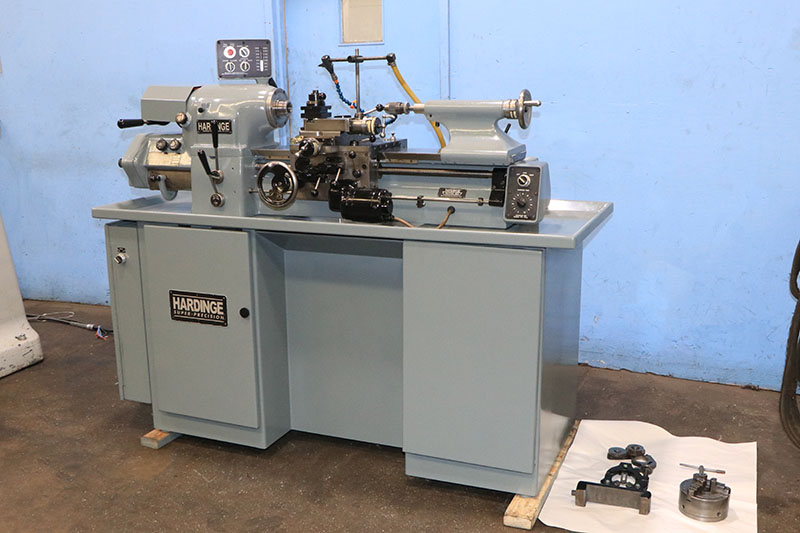

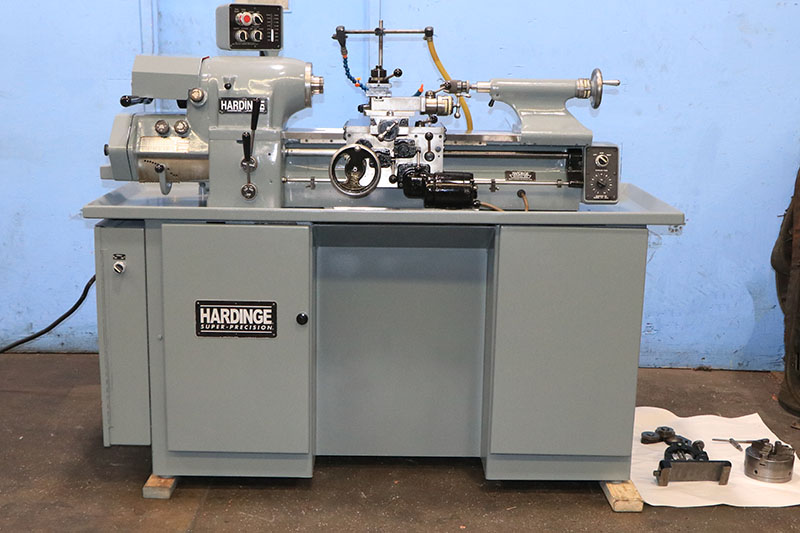

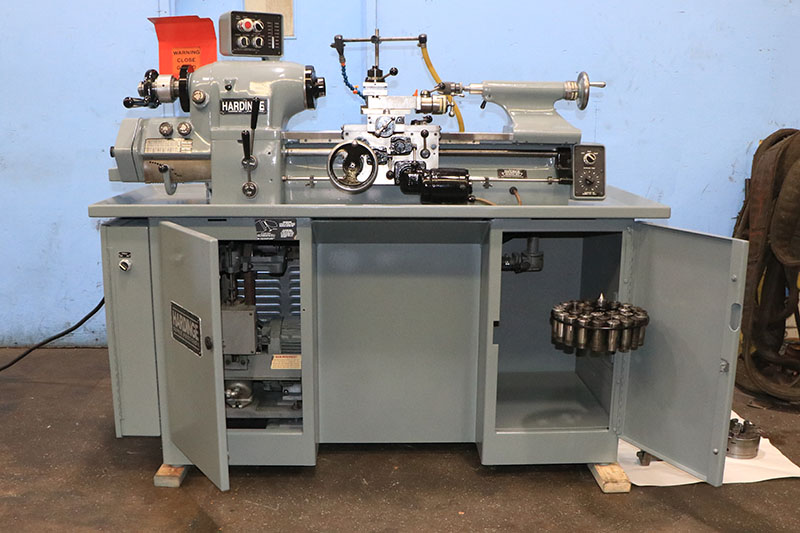

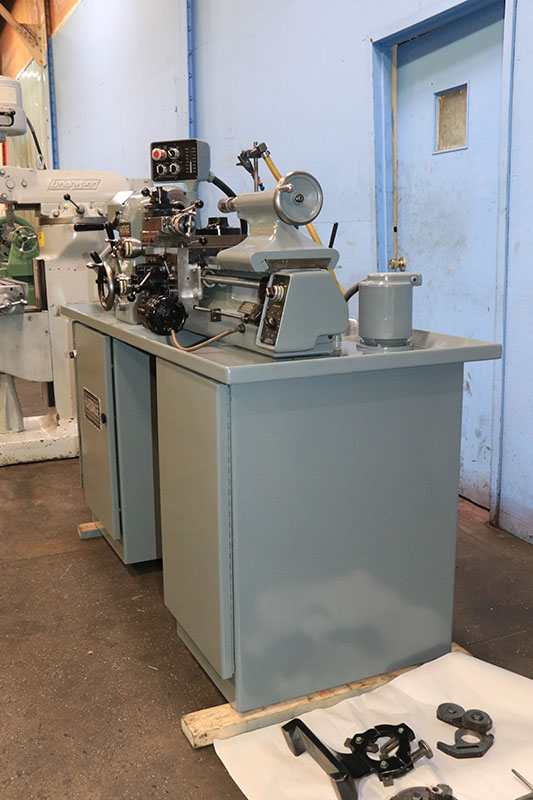

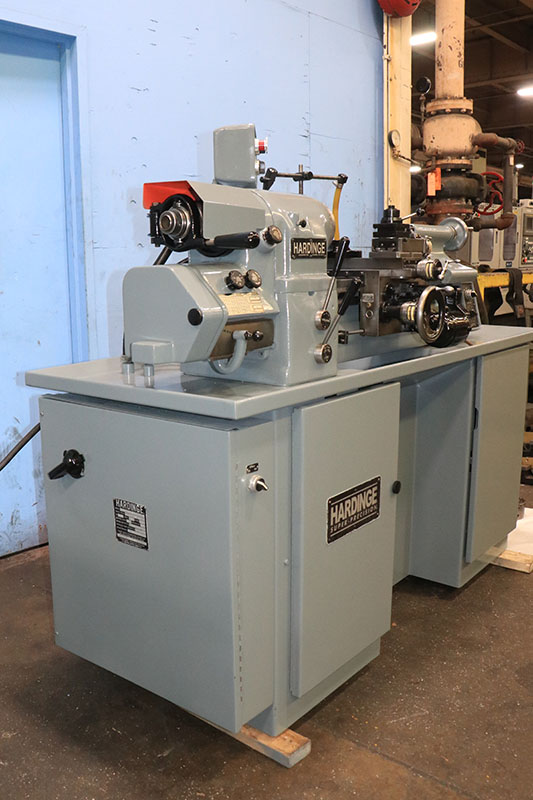

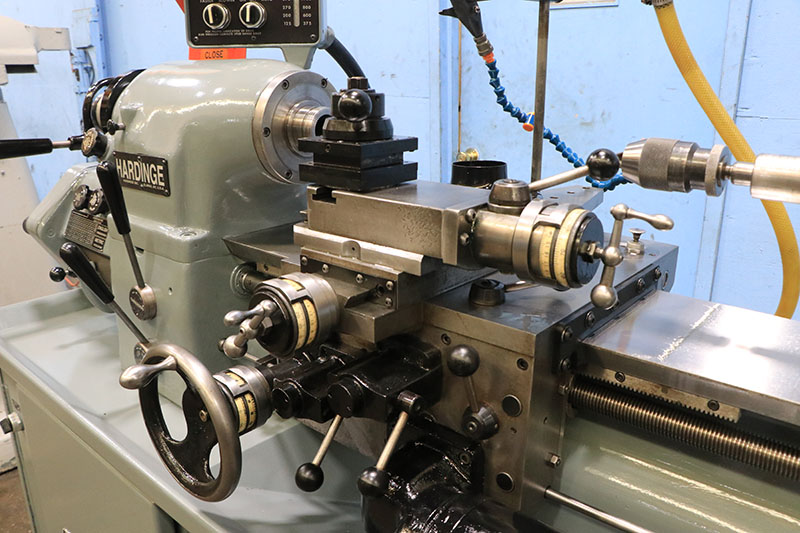

HARDINGE SUPER PRECISION TOOL ROOM LATHE

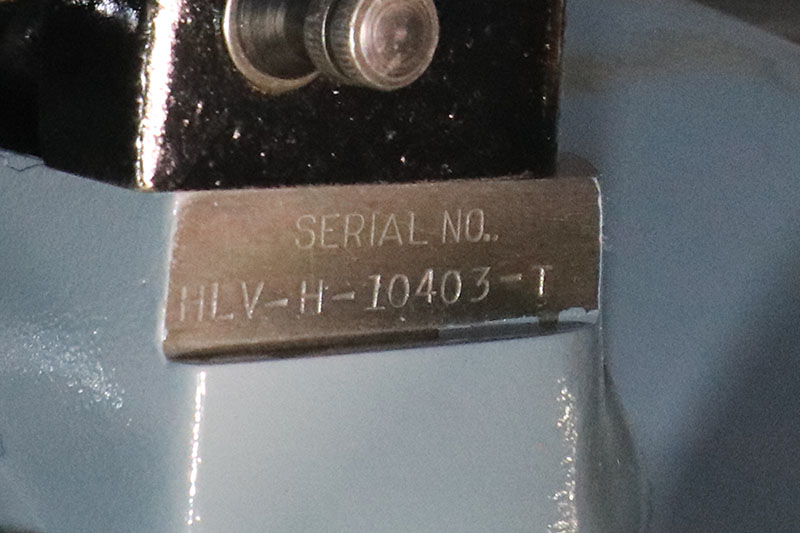

MODEL HLV-EM, S/N: HLV-H 10403-T
MACHINE RECONDITIONED IN 2023


SPECIFICATIONS:
SPINDLE CONSTRUCTION ................. HARDINGE BALL BEARING

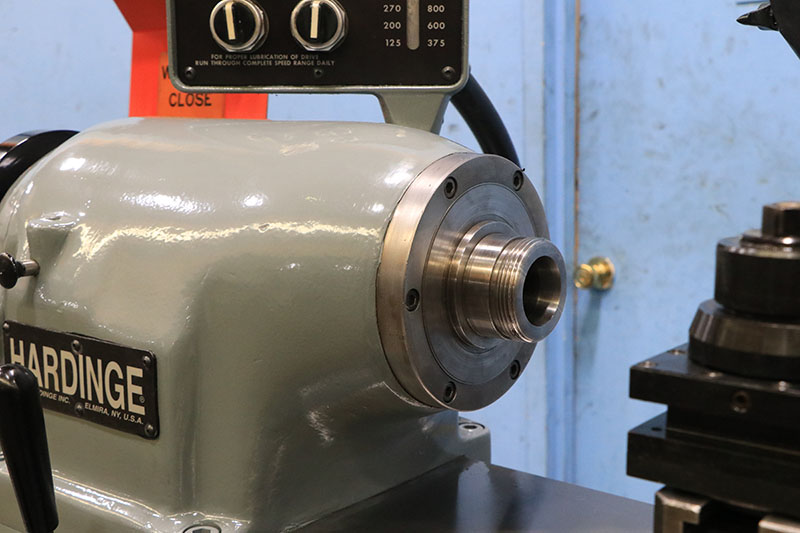

SPINDLE NOSE THREADED ................ 2-3/16" 10RH
SPINDLE CAPACITY:
    WITH ROUND TYPE 5C COLLETS ....... 1-1/16"
WITH STEP CHUCKS ..................... 1-1/16" TO 6"
WITH JAW CHUCKS ...................... 5"
WITH EXPANDING COLLETS ............... 3"

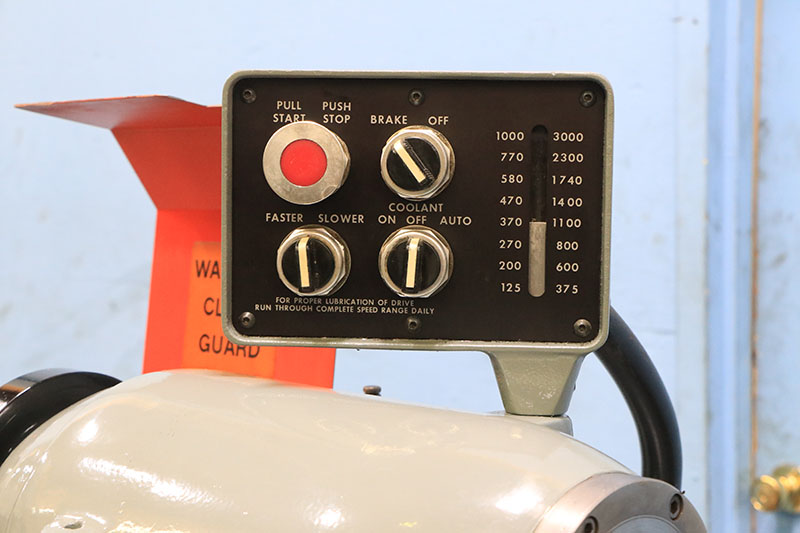

VARIABLE SPINDLE SPEEDS .............. 125 - 3,000 R.P.M.
HOLE THROUGH SPINDLE ................. 1-1/4"
SWING OVER BED ....................... 11"
SWING OVER CARRIAGE .................. 9"
SWING OVER CROSS SLIDE ............... 6"
DISTANCE BETWEEN CENTERS ............. 18"
COMPOUND SLIDE TRAVEL ................ 3"

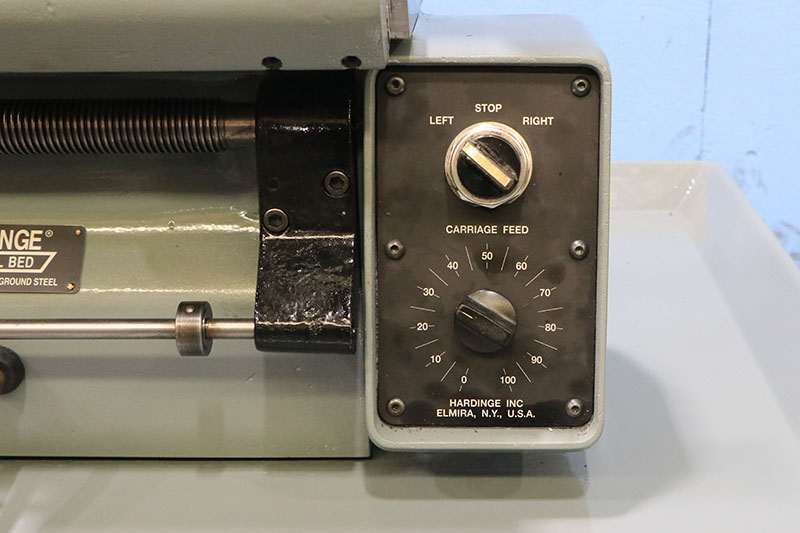

CARRIAGE POWER FEED RANGE ............ 5/16 - 7 I.P.M.
CROSS SLIDE POWER FEED RANGE ......... 3/16 - 4 I.P.M.

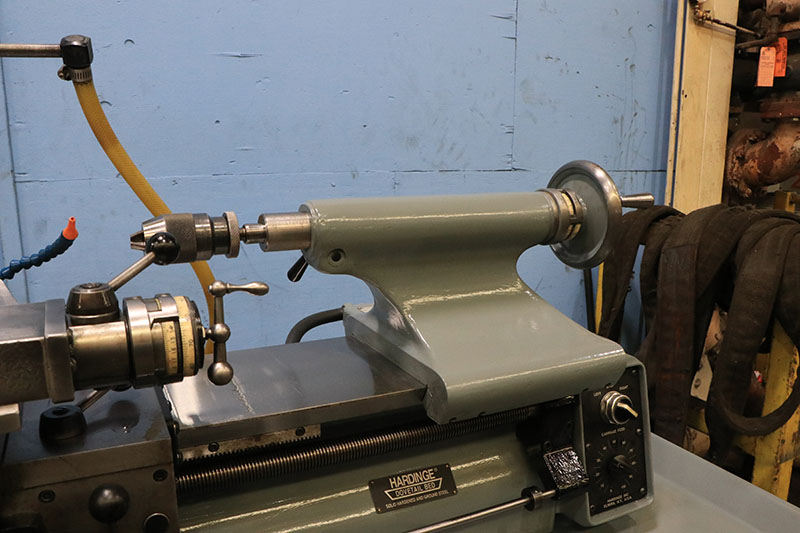

TAILSTOCK SPINDLE DIAMETER ........... 1-3/8"
TAILSTOCK SPINDLE TAPER .............. #2 MT

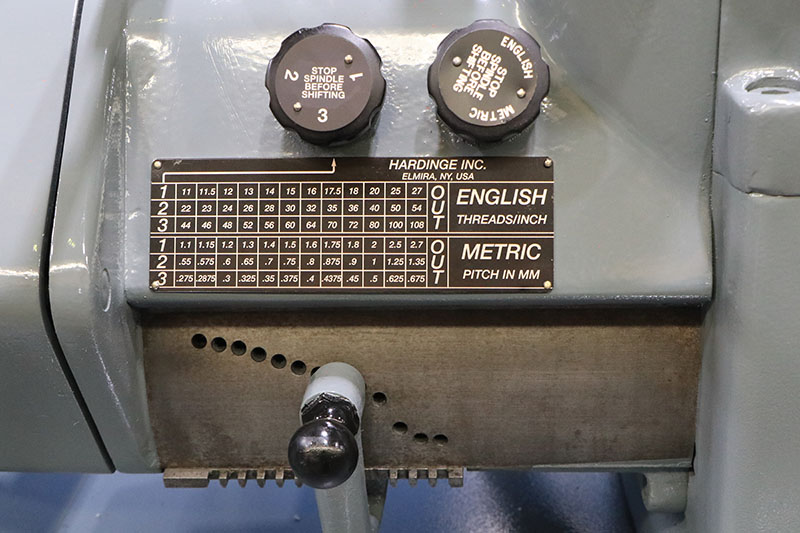

INCH THREADING RANGE IN GEARBOX (36) . 11 - 108 T.P.I.
METRIC THREADING RANGE IN GEARBOX (36) 0.275 - 2.7 MM
APPROXIMATE WEIGHT ................... 1,700 LBS.

EQUIPPED WITH:
- REGROUND BED PLATE & NEW TURCITE UNDER CARRIAGE
- HARDINGE CROSS SLIDE REGROUND
- NEW SPINDLE BEARINGS
- NEW HARDINGE CROSS FEED SCREW & NUT
- DUAL GEARBOX FOR PRECISION ENGLISH OR METRIC THREAD CUTTING
- DUAL READING INCH/METRIC DIAL FOR COMPOUND AND TAILSTOCK

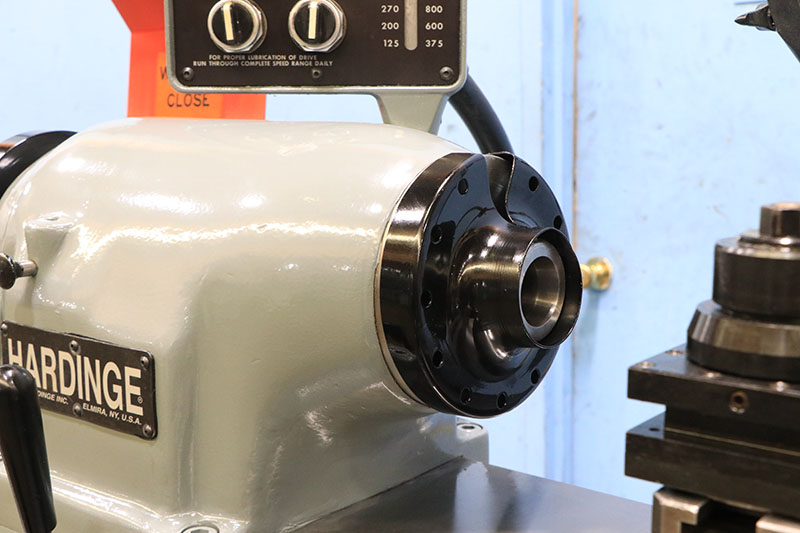

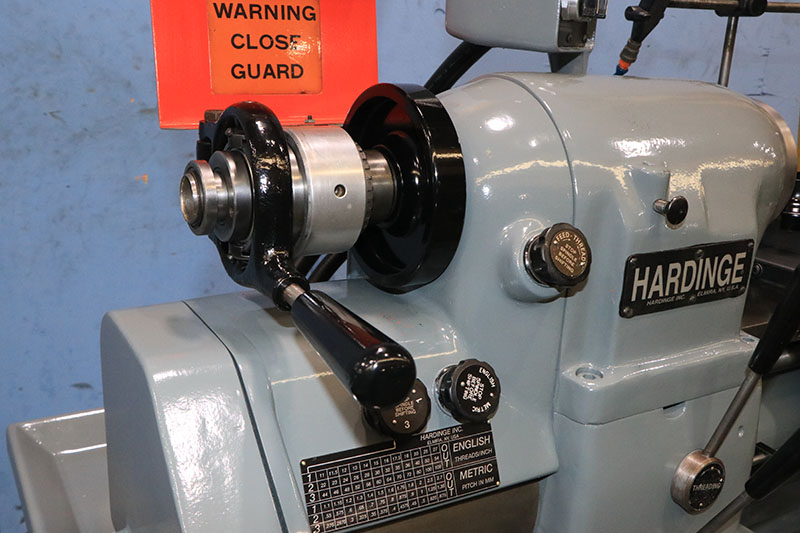

- HARDINGE BALL BEARING QUICK ACTING 5C COLLET CLOSER

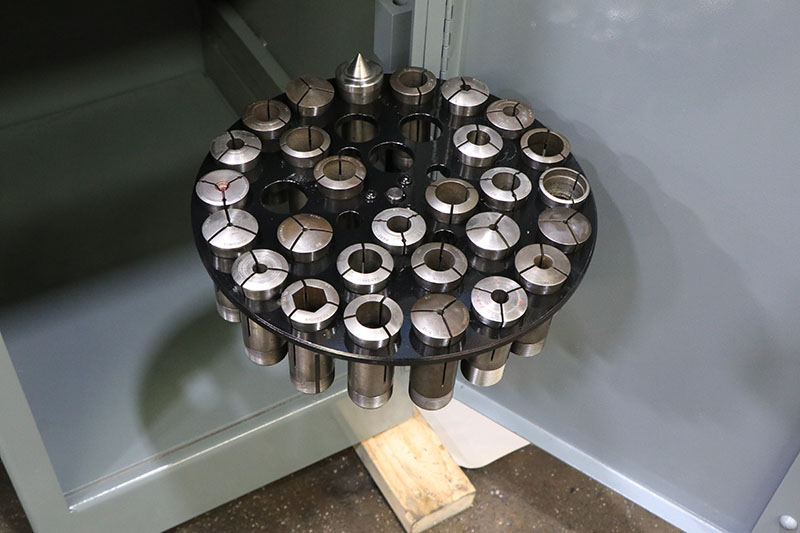

- ASSORTMENT OF 5C COLLETS

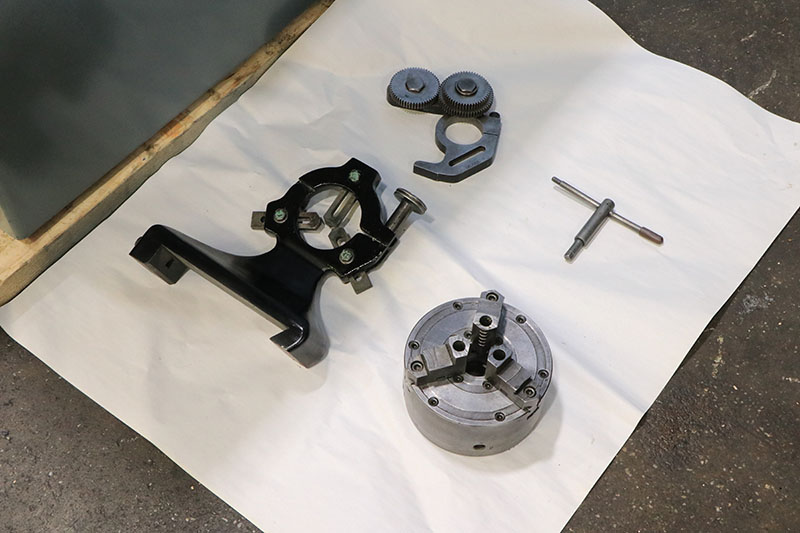

- HARDINGE 3-JAW CHUCK

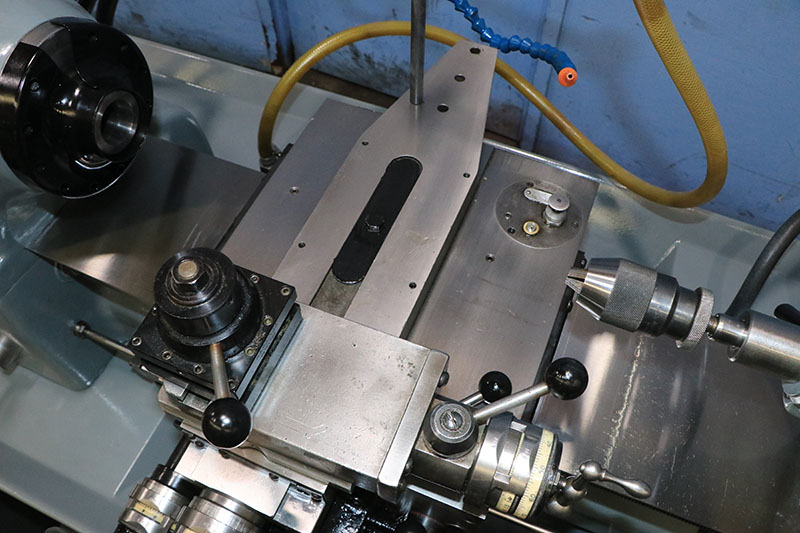

- HARDINGE FOUR-WAY TOOLPOST
- STEADY REST
- ALBRECHT KEYLESS DRILL CHUCK

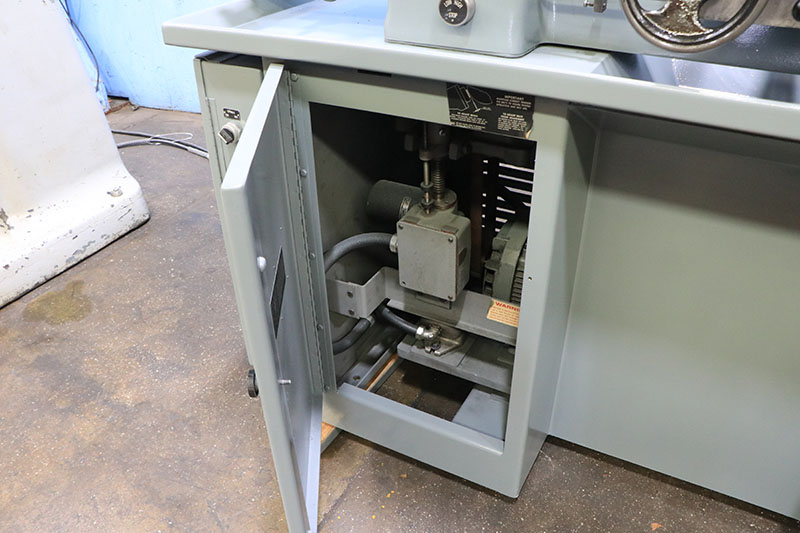

- SELF-CONTAINED COOLANT SYSTEM
- 0.5 - 1 HORSE POWER TWO-SPEED MAIN DRIVE MOTOR
   WIRED FOR 208 VOLT

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE

CONDITION:    **** SUPERB  ****
