Jet EVS-1440B NEW LATHES

Price on Request

Make:: Jet

Model:: EVS-1440B

Year:: NEW

Ref #:: 158933

Or call us for a quote at (973) 497-7500 or send us an email at toolroom@machineryvalues.com

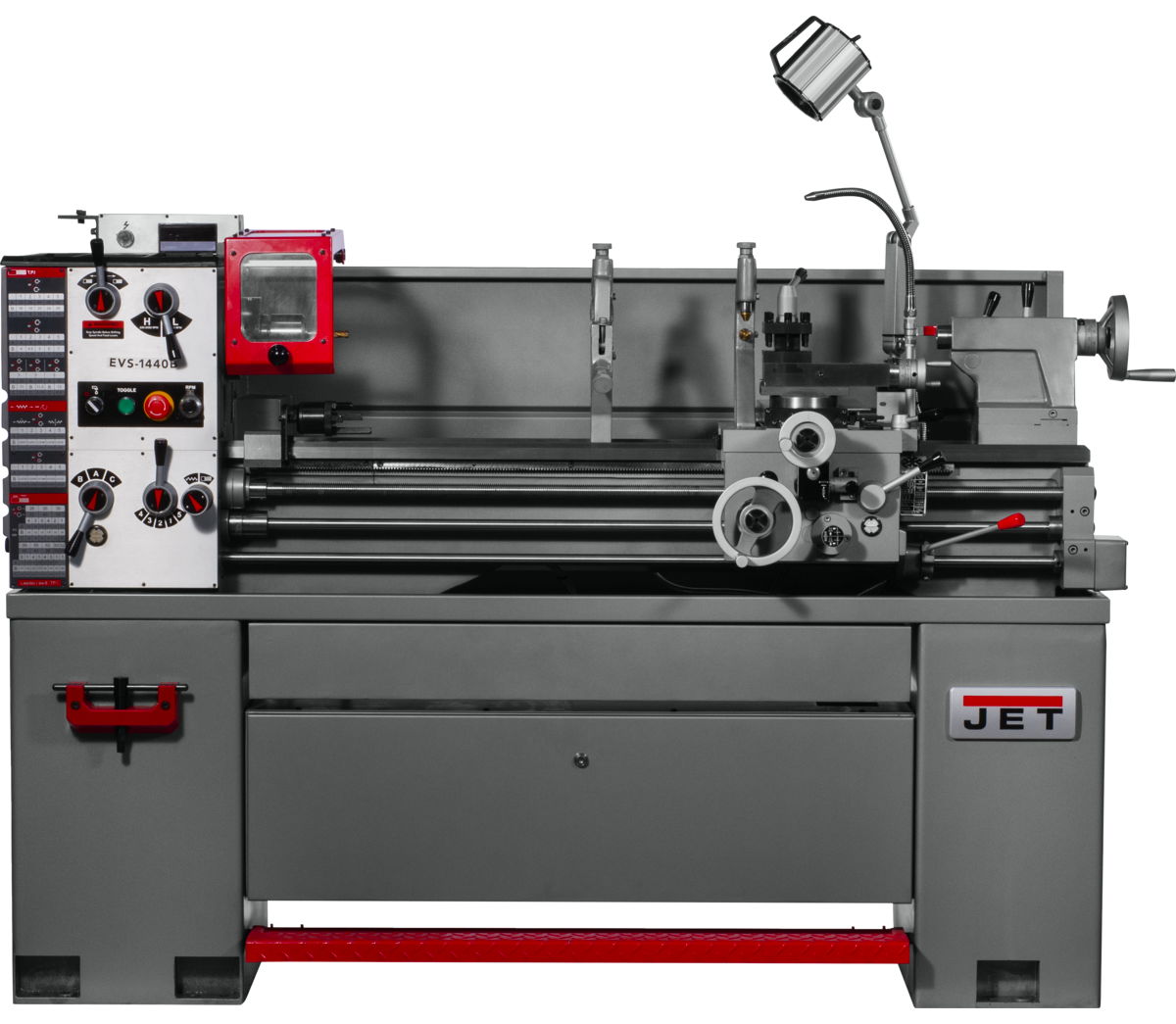

NEW 14" x 40" JET ENGINE LATHE
MODEL: EVS-1440B

SPECIFICATIONS:
SWING OVER BED (IN.).......................... 14
SWING OVER CROSS SLIDE (IN.).................. 9-9/16
SWING THROUGH GAP (IN.)....................... 19-1/2
LENGTH OF GAP (IN.)........................... 9-1/2
DISTANCE BETWEEN CENTERS (IN.)................ 40
SPINDLE BORE (IN.)............................ 1-1/2
SPINDLE MOUNT (TPI)........................... D1-4
NUMBER OF SPINDLE SPEEDS...................... VARIABLE
RANGE OF SPINDLE SPEEDS (RPM)................. 40-2000
SPINDLE TAPER WITH SLEEVE..................... MT-5
NUMBER OF LONGITUDINAL AND CROSS FEED RATES... 25
RANGE OF LONGITUDINAL FEEDS (IPR)............. 0.0016 - 0.0460
RANGE OF CROSS FEEDS (IPR).................... 25
NUMBER OF INCH THREADS........................ 34
RANGE OF INCH THREADS (IPR)................... 2-56
NUMBER OF METRIC THREADS...................... 34
RANGE OF METRIC THREADS....................... 0.5-12
MAX TOOL SIZE (IN.)........................... 3/4 X 3/4
COMPOUND SLIDE TRAVEL (IN.)................... 3-1/2
CROSS SLIDE TRAVEL (IN.)...................... 7
TAILSTOCK SPINDLE TRAVEL (IN.)................ 6-1/8
TAPER IN TAILSTOCK SPINDLE.................... MT-3
STEADY REST CAPACITY (IN.).................... 1/4X5/8
FOLLOW REST CAPACITY (IN.)……………………………………………… . 1/3-2-1/8
WIDTH OF BED (IN.)............................ 7-1/2
MOTOR (HP).................................... 3HP, 230V/460V, 3PH
OVERALL DIMENSIONS (L X W X H) (IN.).......... 68-1/2X28-1/3X50
WEIGHT (LBS.)................................. 1,584

STANDARD ACCESSORIES:

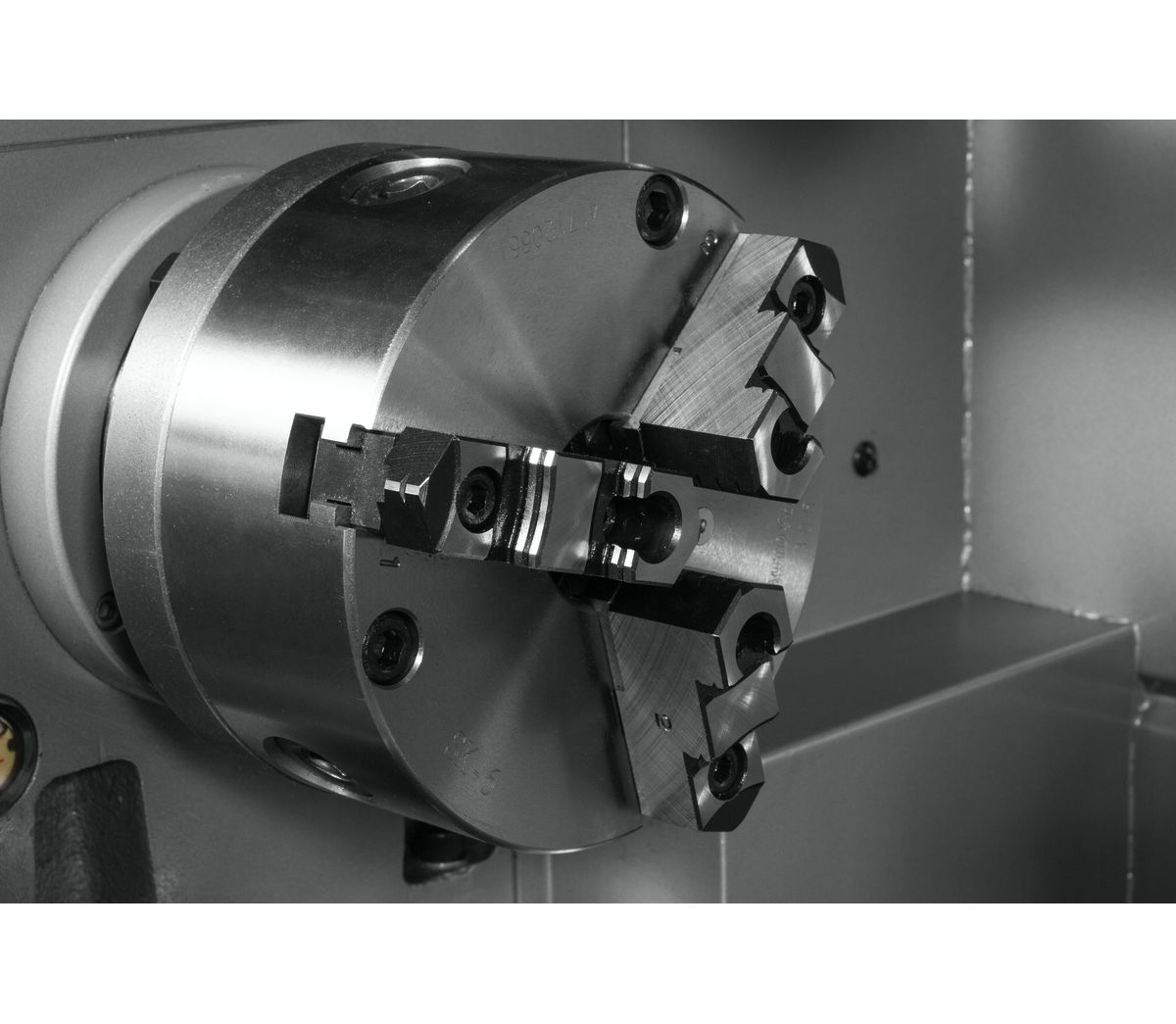

6" 3 JAW CHUCK
TREADING DIAL INDICATOR
COOLANT PUMP

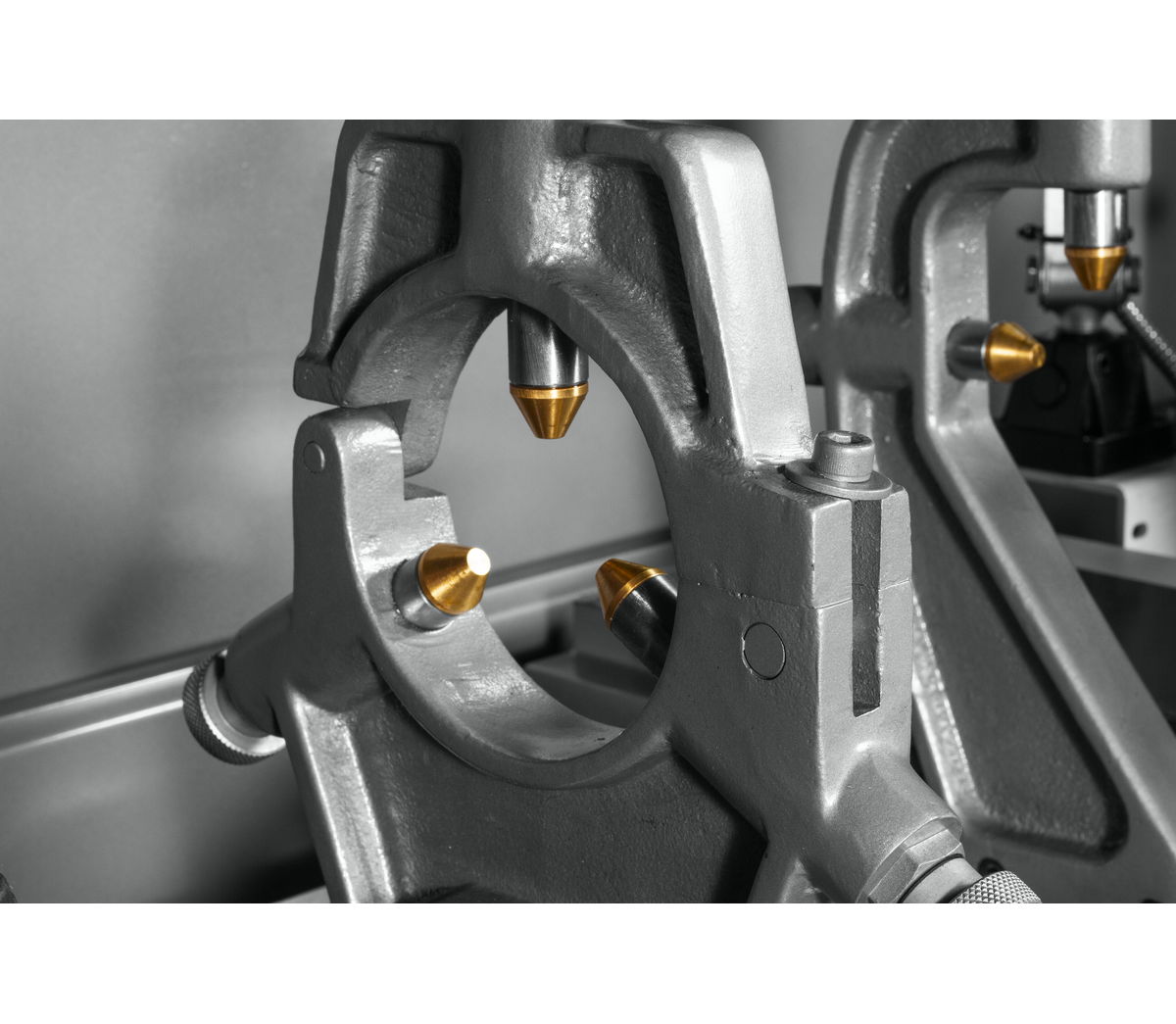

STEADY & FOLLOW REST
METRIC CHANGE GEARS
LED WORK LAMP

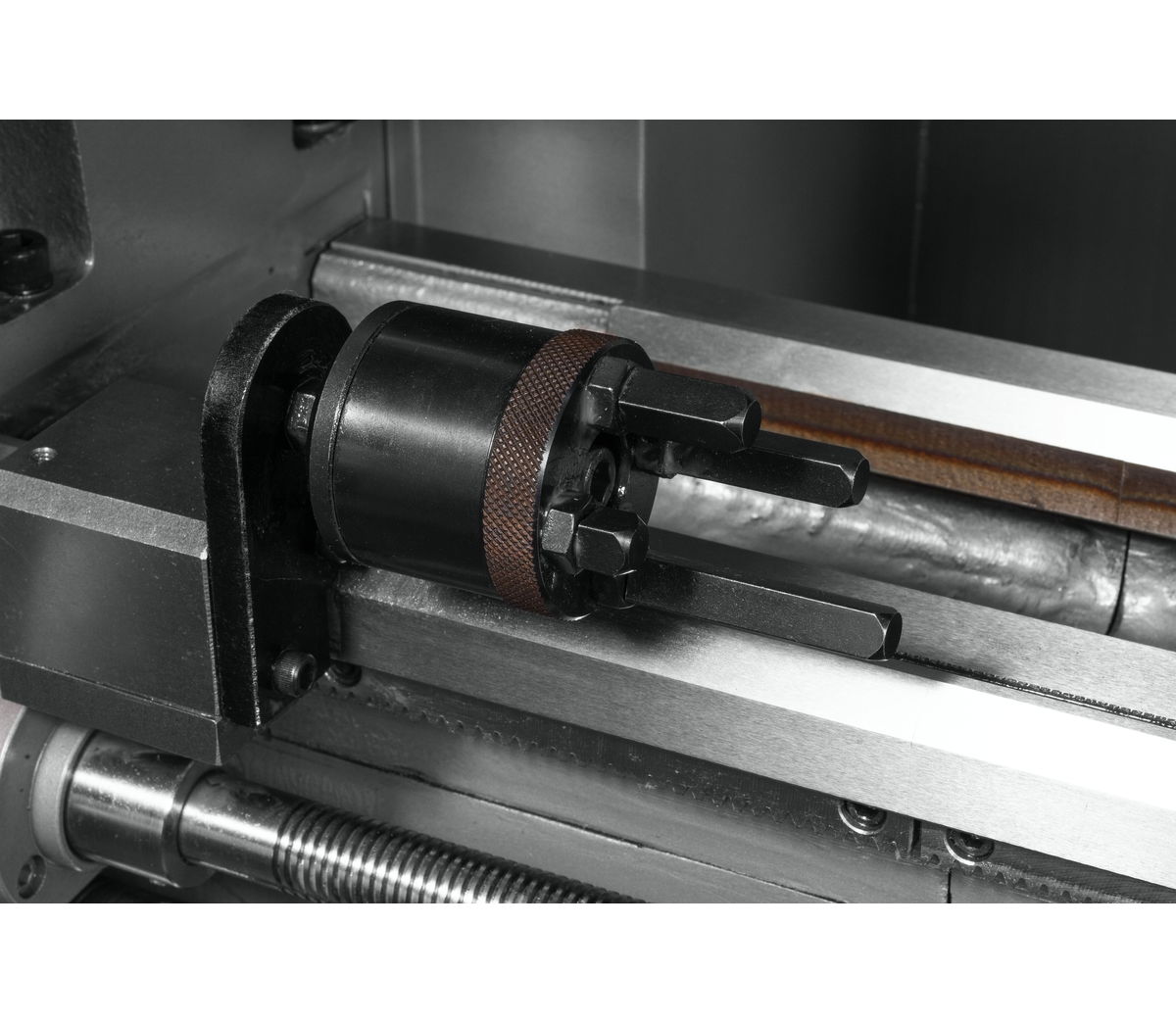

4-POSITION CARRIAGE STOP
CHUCK GUARD

OPTIONAL:
PACKAGES AVAILABLE WITH DRO, TAPER ATTACHMENT, AND COLLET CLOSER
(CALL FOR PRICING)

FEATURES:
V-WAY BED DESIGN IS INDUCTION HARDENED AND GROUND
D1-4 SPINDLE IS PRECISION GROUND FOR ACCURACY AND SUPPORTED BY HIGH-QUALITY TAPERED ROLLER BEARINGS
CLASS 7 PRECISION TAPER ROLLER BEARINGS KEEP SPINDLE RUN OUT TO A MAXIMUM OF 0.0004"
MEHANITE CASTINGS RETAIN THEIR TOLERANCE AND REMAIN RIGID THROUGH MANY YEARS OF MACHINING
ELECTRONIC CHUCK KEY DOCKING STATION PROVIDES OPERATOR SAFETY AS THE LATHE WILL NOT RUN WITHOUT THE CHUCK KEY BEING DOCKED

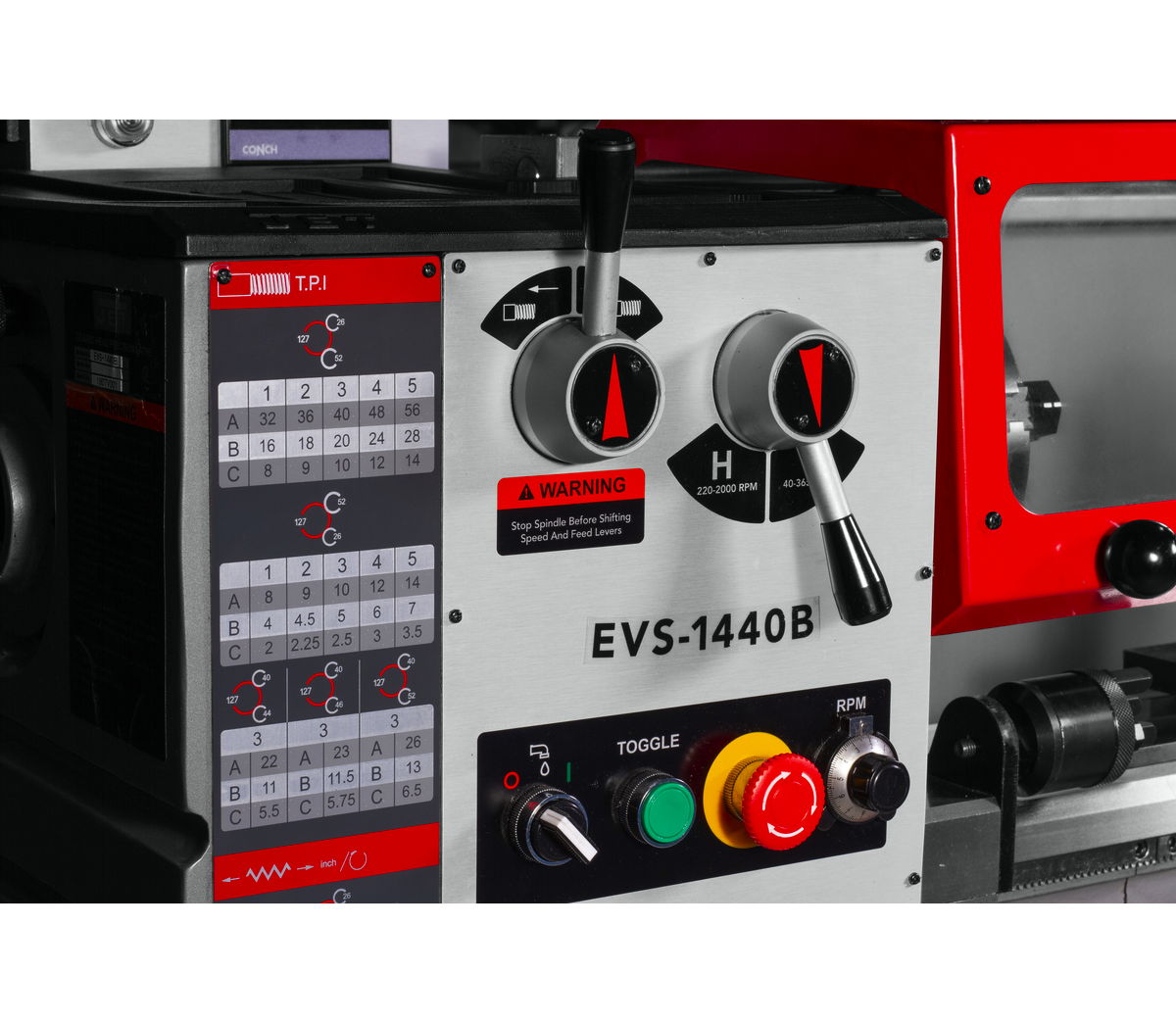

TWO SPEED GEARBOX ALLOWS LOW SPEEDS FROM 40-365 RPM TO HIGH SPEEDS FROM 220-2000RPM JUST BY TURNING A KNOB
LED RPM READOUT ALLOWS FOR PRECISE TURNING SPEEDS

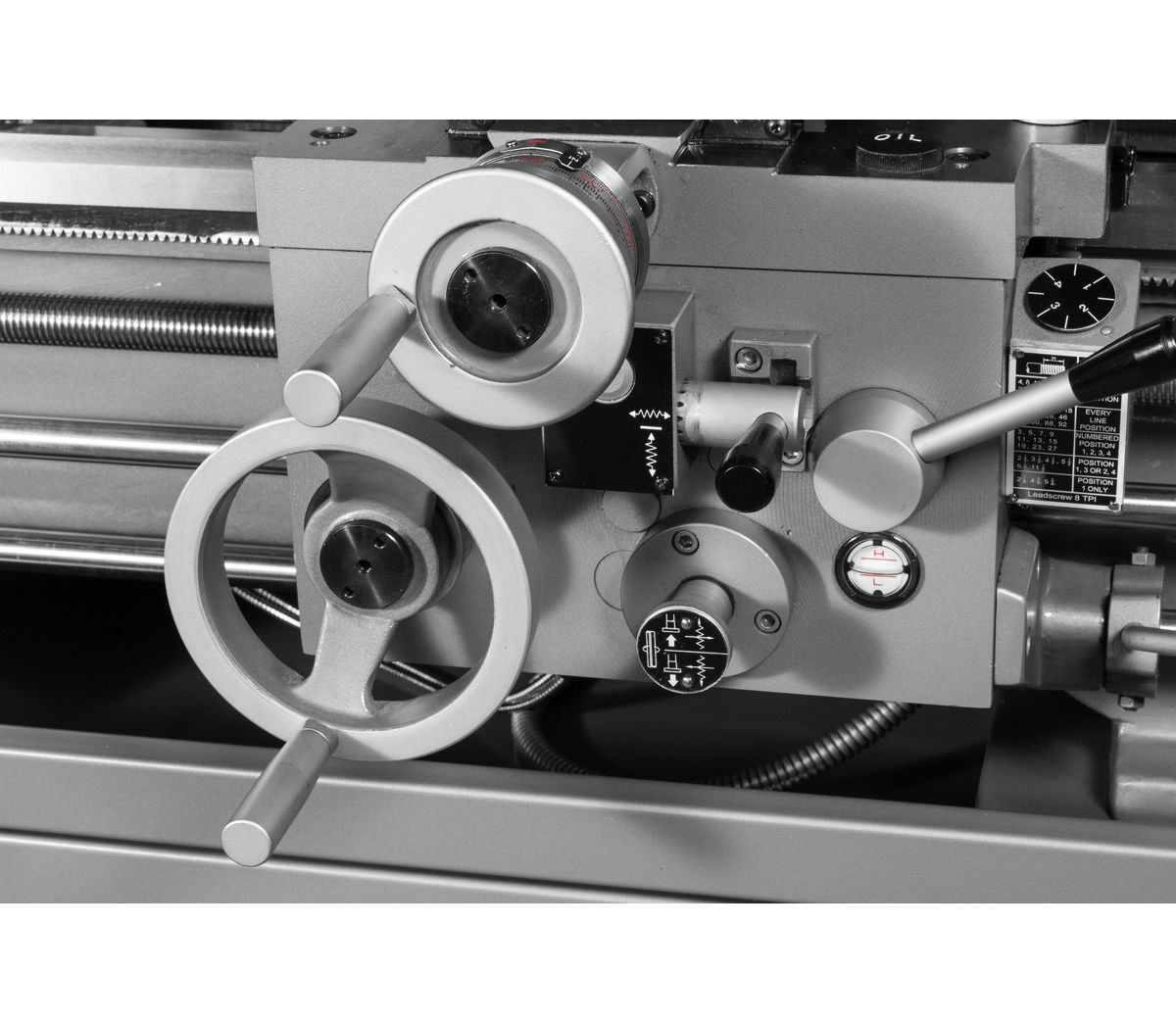

SPINDLE ACTUATION CONTROL IS APRON MOUNTED
GAP BED SECTION PROVIDED FOR LARGER DIAMETER WORK
INTEGRATED LOCKING TOOL STORAGE CABINET IN THE STAND
