Jet GH-1440-1 NEW LATHES

Price on Request

Make:

Jet

Model:

GH-1440-1

Year:

NEW

Ref #:

157813

Get a quote

Get financing

Or call us for a quote at (973) 497-7500 or send us an email at toolroom@machineryvalues.com

---

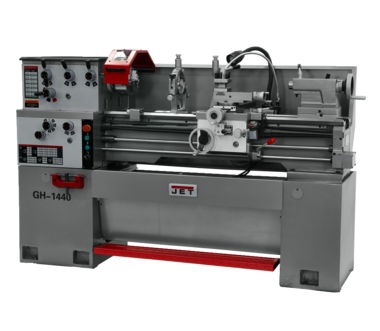

NEW JET LATHE MODEL: GH-1440-1 LATHE WITH ACU-RITE 203 DRO

PART #323374







FEATURES:

• V-way bed design is induction hardened and ground
• Splined, not keyed, shafts are utilized
• D1-4 spindle is precision ground for accuracy and supported by high quality tapered roller bearings
• Independent leadscrew and feed rod
• Adjustable gibs are incorporated in the carriage and slideways



SPECIFICATIONS:

DIGITAL READOUT............................... ACU-RITE 203

SWING OVER BED (IN.).......................... 14

SWING OVER CROSS SLIDE (IN.).................. 8-1/5

SWING THROUGH GAP (IN.)....................... 20

LENGTH OF GAP (IN.)........................... 9-3/8

DISTANCE BETWEEN CENTERS (IN.)................ 40

SPINDLE BORE (IN.)............................ 1-1/2

SPINDLE MOUNT................................. D1-4

NUMBER OF SPINDLE SPEEDS...................... 12

RANGE OF SPINDLE SPEEDS (RPM)................. 40-1800

SPINDLE TAPER WITH SLEEVE..................... MT-5

NUMBER OF LONGITUDINAL AND CROSS FEED RATES... 40

RANGE OF LONGITUDINAL FEEDS (IPR)............. 0.0012 - 0.0294

RANGE OF CROSS FEEDS (IPR).................... 0.0004 - 0.0103

NUMBER OF INCH THREADS........................ 40

RANGE OF INCH THREADS (TPI)................... 4-112

NUMBER OF METRIC THREADS...................... 23

RANGE OF METRIC THREADS....................... 0.45-7.5

MAX TOOL SIZE (IN.)........................... 5/8 X 5/8

COMPOUND SLIDE TRAVEL (IN.)................... 3-1/2

CROSS SLIDE TRAVEL (IN.)...................... 6-3/8

CARRIAGE TRAVEL (IN.)......................... 37-1/2

TAILSTOCK SPINDLE TRAVEL (IN.)................ 4-3/4

TAPER IN TAILSTOCK SPINDLE.................... MT-3

FOLLOW REST CAPACITY (IN.).................... 2-5/8

STEADY REST CAPACITY (IN.).................... 3-1/2

WIDTH OF BED (IN.)............................ 10-1/5

MOTOR (HP).................................... 3HP, 230V, 1PH

PREWIRED (V.)................................. 230V

OVERALL DIMENSIONS (L X W X H) (IN.).......... 74-4/5 X 28 X 46

WEIGHT (LBS.)................................. 2336



ACCESSORIES: (CALL FOR PRICING)

PART# 321519 Collet Closer

PART# 321431 STP-13BD, Single Tool Post

PART# 321520 Taper Attachment

PART# 650016 Premium 35 Piece 5-C Collet Set With Rack (1/32nd)

PART# 660200 22 Piece Turning Tool Kit For 13" and 14" Lathes

PART# 650295 200 Series Quick Change Tool Post Set

PART# 650300 300 Series Quick Change Tool Post Set

PART# 650305 400 Series Quick Change Tool Post Set
