Kingston HJ-1700 NEW LATHES

Price on Request

Make:: Kingston

Model:: HJ-1700

Year:: NEW

Ref #:: 163524

Or call us for a quote at (973) 497-7500 or send us an email at toolroom@machineryvalues.com

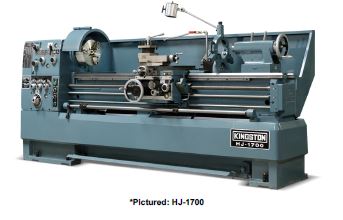

NEW KINGSTON HJ SERIES HIGH PRECISION LATHE
MODEL: HJ-1700

SPECIFICATIONS:
SWING OVER BED: ....................... 17"
SWING OVER CROSS SLIDE: ............... 10.6"
SWING IN GAP: ......................... 24"
DISTANCE BETWEEN CENTERS: ............. 67"
WIDTH OF BED: ......................... 11.75"
WIDTH OF GAP IN FRONT OF FACE PLATE: .. 5.9"
HEIGHT OF CENTER FROM LEG BOTTOM: ..... 42.3"
SPINDLE BORE: ......................... 2.25" (or 3" option)
TAPER OF SPINDLE BORE & CENTER: ....... MT#6 X #4
TYPE OF SPINDLE NOSE: ................. D1-6
NUMBER OF SPINDLE SPEEDS: ............. 12
SPINDLE SPEED: ........................ 35~2,000 RPM
NUMBER OF FEED CHANGES: ............... 16
FEEDS PER REVOLUTION - LONGITUDINAL: .. 0.0012"~0.039"
FEEDS PER REVOLUTION - CROSS: ......... 0.0004"~0.0117
DIAMETER AND PITCH OF LEADSCREW: ...... Ø1.38”, 4 TPI
RANGE OF INCH THREADS: ................ 2-72 TPI (44)
RANGE OF METRIC PITCHES: .............. 0.2 - 14MM (39)
MAXIMUM TRAVEL OF COMPOUND: ........... 5.7"
MAXIMUM TRAVEL OF CROSS SLIDE: ........ 10.4"
TAILSTOCK QUILL TRAVEL: ............... 6.7"
TAILSTOCK QUILL DIAMETER: ............. 2.3", M.T. #4
MAIN DRIVE MOTOR: ..................... 7.5 HP
COOLANT PUMP MOTOR: ................... 1/8 HP
FLOOR SPACE: .......................... 120"X41"
WEIGHT: ............................... 3,960 LBS.

STANDARD EQUIPMENT & ACCESSORIES:
• MAIN MOTOR: 7.5 HP, 230V / 460V, 3 PHASE, 60
CYCLE, SWITCH & WIRING
• 2.25" SPINDLE BORE
• SPINDLE NOSE: D1-6
• 12 SPINDLE SPEEDS (35 – 2000 RPM)
• TIMING BELT FOR GEAR CHANGES
• HARDENED & GROUND BED WAYS AND CROSS SLIDE
• AUTOMATIC LONGITUDINAL FEED STOP BAR
• 4-WAY TOOL POST FITTED TO T-SLOTTED COMPOUND
• THREAD CHASING DIAL
LED WORK LIGHT
• 10” 3-JAW SCROLL CHUCK
• CHUCK GUARD
• 8” DRIVE PLATE & 14” FACE PLATE
• HEADSTOCK SPINDLE CENTER ADAPTOR: MT#6 TO #4
• 4.7” STEADY REST WITH ROLLER JAWS
• COOLANT SYSTEM WITH PUMP AND PIPING
• FULL-LENGTH SPLASH GUARD
• TOOL BOX W/ NECESSARY WRENCHES

OPTIONAL ACCESSORIES:
6" STEADY REST W/ ROLLER JAW (MIN. CAPACITY 0.6”)
8" STEADY REST W/ METAL JAW (MIN. CAPACITY 0.6”)
3.5" FOLLOW REST
3” SPINDLE BORE UPGRADE (2 PT. BEARING SYSTEM, D1-8)
TELESCOPIC TAPER TURNING ATTACHMENT
TURRET CARRIAGE STOP
MICROMETER CARRIAGE STOP
ADD LIMIT SWITCH TO CHUCK GUARD
ALORIS CXA TOOL POST ONLY
ALORIS CXA TOOL POST PLUS 6 TOOL HOLDERS (SET #3)
ALORIS CA TOOL POST ONLY
ALORIS CA TOOL POST PLUS 6 TOOL HOLDERS (SET #4)
NEWALL DP-700 2-AXIS DIGITAL READ OUT 17” X 43”
12” 4-JAW INDEPENDENT CHUCK
JFK LEVER-TYPE 5C COLLET CLOSER
PBA HANDWHEEL-TYPE 5C COLLET CLOSER
CHUCKS UPON REQUEST

ALSO AVAILABLE MODEL:
HJ-1100 17"X43"
