Knuth BASIC 180 V NEW LATHES

$16,500

Make:
Knuth
Model:
BASIC 180 V
Year:
Ref #:
157457

Or call us for a quote at (973) 497-7500 or send us an email at toolroom@machineryvalues.com

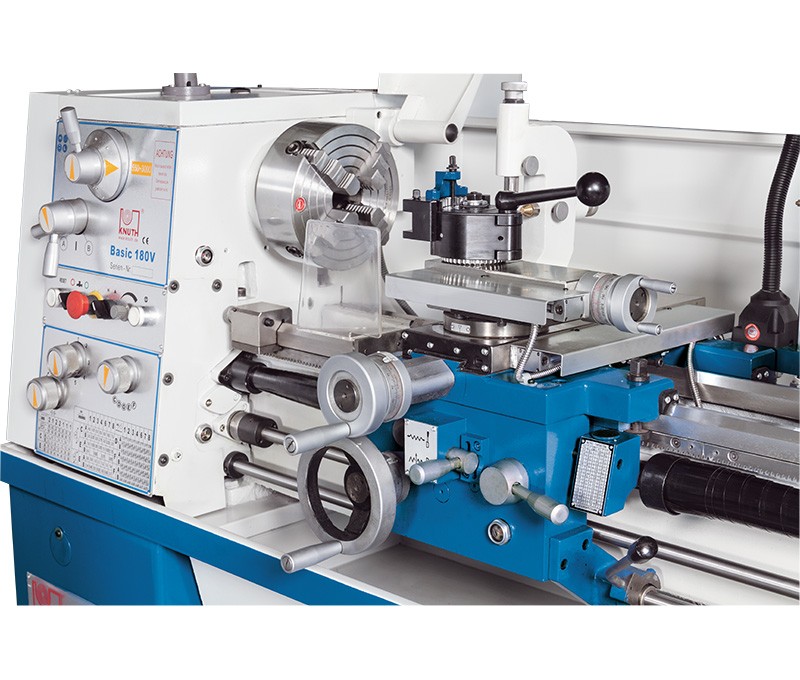

NEW KNUTH BASIC 180 V MECHANICS LATHE

*** 5 YEAR WARRANTY ***

DESCRIPTION:
  • Cast-iron bed, heavily ribbed
  • All box ways are induction-hardened and precision-ground
  • Headstock with D1-4' mount, bore diam. 1,5", run in 2 adjustable tapered roller bearings
  • All gears are made of Cr-Ni steel, hardened, precision-ground, with oil-bath lubrication
  • Tailstock can be moved ± 0.4" mm for taper turning
  • Guides are adjustable via tapered gibs
  • Test certificate in accordance with DIN
  • Including 3-axis position indicator, fully assembled
  • Position indicator with speed display
  • Infinitely variable spindle speed 2 gear levels
  • Speed up to 3000 rpm

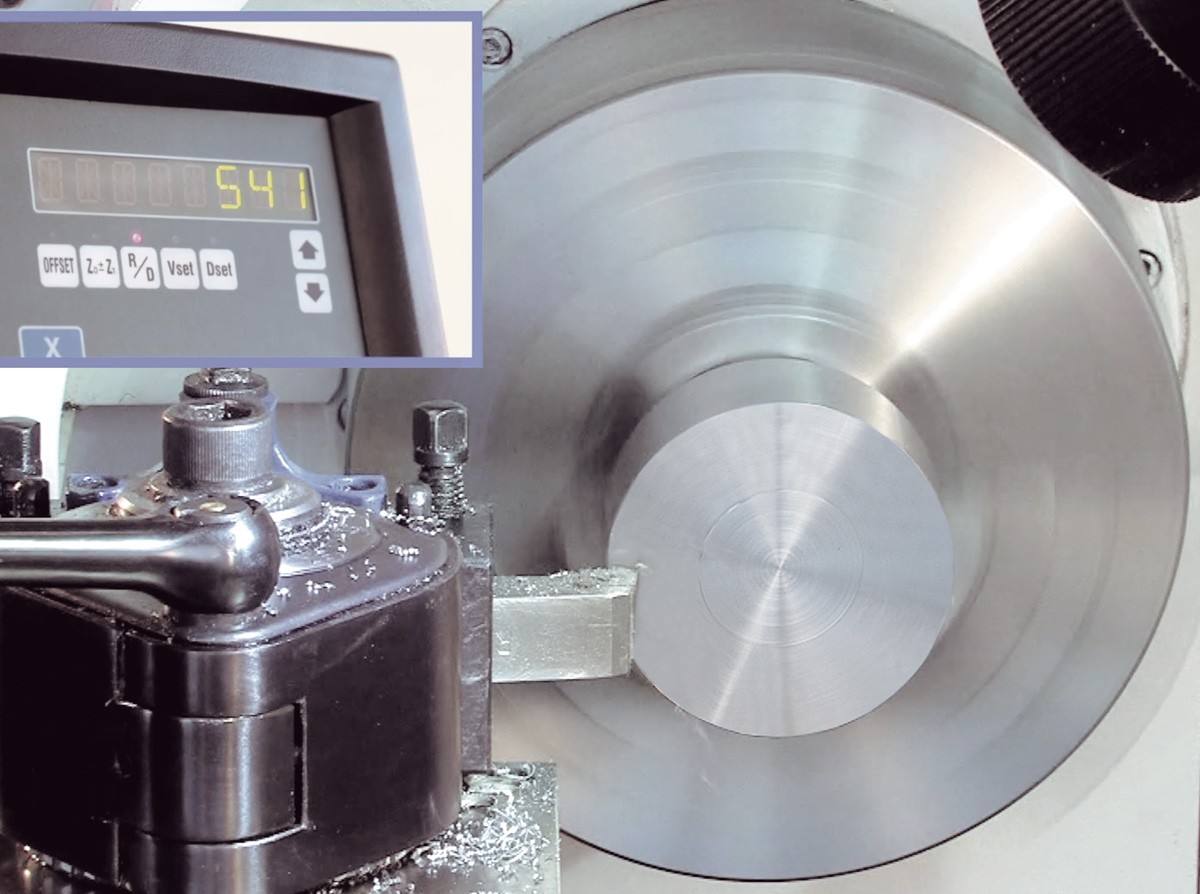

  • Speed adapts to the part radius - constant speed ensures uniform quality finish at any
 diameter
  • Constant cutting speed
  • Main motor rating 5.5 Hp

3-AXIS POSITION INDICATOR
  • More accuracy
  • Lower error rate
  • Increased productivity
  • Resulting in valuable time savings
  • For increased productivity
  • Easy to read display
  • Operator-specific features
  • Convenient keyboard layout
  • Resolution: 0.0004 / 0.0002"
  • Default coordinates
  • Axis position is maintained when display is turned off
  • Hole circle pattern calculation
  • Calculator function
  • Storage for 10 tools
  • Radius / diameter toggle
  • Mm/inch conversion
  • Easy expansion and maintenance-free operation
  • Display for top (Z0) and box way slide (Z1) both separate and in differential/cumulative
  mode for lathes

WORKING ARE:
Center width: 39.37 in
Turning diameter over bed: 14 in
Turning diameter over support: 9 in
Turning diameter over gap bridge: 20 in
Travel Z1-axis: 4 in
Gap bridge length: 8 in
Bed width: 8 in
Swing range of top slide: ± 50°

TRAVELS:
Travel X-axis: 7 in

HEADSTOCK:
Speed range,high:    550 - 3,000 rpm
Speed range,low:     30 - 550 rpm
Spindle mount:       Camlock D1-4
Spindle bore:        1.5 in
Spimdle taper:       MK5

FEED:
Feed X-axis:         0 - 0.01 in/R
Feed Z-axis:         0 - 0.03 in/R

TAPPING:
Tapping, metric:     (37) 0.02-0.3 in
Tapping, whithworth: (28) 4-56 TPI

TAILSTOCK:
Tailstock quill diameter: 2 in
Tailstock taper:          MK 3
Tailstock quill stroke:   5 in
Tailstock traverse adjustment: ± 0.5 in

DRIVE CAPACITY:
Motor rating main drive:  5.4Hp


MEASURES AND WEIGHTS:
Overall dimensions: (Length x Width x Height): 76.77x31.1x47.24 in
Weight:  1,936 lbs

STANDARD EQUIPMENT:
  • 3-axis position indicator
  • 4-jaw face plate chuck Ø 8" (not for Basic 180V)
  • face plate Ø 12"
  • Change gears
  • quick change tool holder head WE
  • quick change tool holder WED 20100
  • coolant system
  • steady and follow rest
  • chip tray
  • includes fixed splash guard (wall)
  • chuck guard
  • foot brake pedal
  • base
  • LED work lamp
  • micrometer longitudinal stop
  • reducing sleeves
  • dead center
  • thread gauge
  • operating tools
  • operator manual
