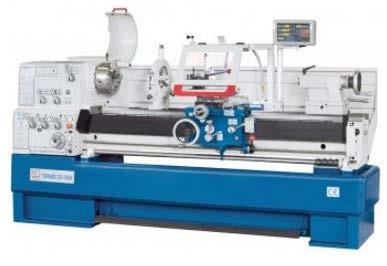

Knuth Turnado 280/1500 V NEW LATHES

Price on Request

Make:: Knuth

Model:: Turnado 280/1500 V

Year:

Ref #:: 157546

Or call us for a quote at (973) 497-7500 or send us an email at toolroom@machineryvalues.com

TURNADO 280/1500 V LATHE
3-AXIS DIGITAL READOUT SYSTEM

A proven classic with infinitely variable speed adjustment and constant speed

Cost-effective, lasting value
Practically arranged control panel with ergonomic layout of selection levers
Camlock spindle mount D1-8
Wide bed, ground and hardened
Offset tailstock for taper turning
Large number of thread leads
Removable gap bridge for machining of large diameter
Stop spindle with adjustable travel stops
A quick-action tool changer system is available as an option

Infinitely variable speed adjustment
Back gearing, first-class control technology and a powerful headstock motor allow a wide range of speeds and high torque for powerful machining
Very quiet operation at maximum spindle speed
Spindle speed infinitely variable 1600 rpm
The extensive features of the X.Pos Position Indicator are complemented by a speed display and vconst (constant speed)function: During face turning, the spindle speed automatically adapts to the changing workpiece diameter – the constant cutting speed at the cutting edge of the turning tool ensures superior turning results with a quality comparable to CNC lathes

3-AXIS POSITION INDICATOR
More accuracy, Lower error rate, & Increased productivity resulting in valuable time savings
Easy to read display
Operator-specific features
Convenient keyboard layout
Resolution: 0.0004 / 0.0002"
Default coordinates
Axis position is maintained when display is turned off
Hole circle pattern calculation
Calculator function
Storage for 10 tools
Radius / diameter toggle
 Mm/inch conversion
Easy expansion and maintenance-free operation
Display for top (Z0) and box way slide (Z1) both separate and in differential / cumulative mode for lathes

SPECIFICIATIONS:
Working area
Workpiece length (max.) – 56"
Turning diameter over bed – 22"
Turning diameter over support – 14"
Turning diameter over gap bridge – 31"
Travel X-axis – 12"
Travel Z1-axis – 5"
Gap bridge length – 7"
Bed width – 14"
Swing range of top slide - +/- 52 degrees

Headstock
Spindle speeds – L 25-200 / H 200-1600 rpm
Spindle bore – 3"
Spindle mount – D1-8
Spindle taper – MT 7

Feed
Feed X-axis – 0-0.02"/rev
Feed Z-axis – 0-0.06"/rev

Threading
Threading, metric – (41) 0.1 – 14 mm
Threading, diametric - (50) 4-112 DP
Threading, module – (34) 0-0.28"
Threading, whitworth – (60) 2-112 GPZ

Tailstock
Tailstock quill diameter – 3"
Tailstock taper – MT 5
Tailstock quill stroke – 7"
Tailstock traverse adjustment - +/- 0.5"

Drive capacity
Motor rating main drive – 10 HP

Measures and weights
Overall dimensions – 112" x 45" x 57"
Weight – 5,214 lbs

Standard Equipment:
3-axis position indicator
3-jaw chuck (13" diam.)
4-jaw face plate chuck (15" diam.)
Face plate (23" diam.)
Quick tool changer head WC
Quick change tool holder WCD 32x150
Coolant system
Follow and steady rest
Stop spindle
Includes fixed splash guard (wall)
Chuck guard
Foot brake pedal
Halogen lights
Reducing sleeve
Dead center
Thread gauge
Operating tools
Operator manual
