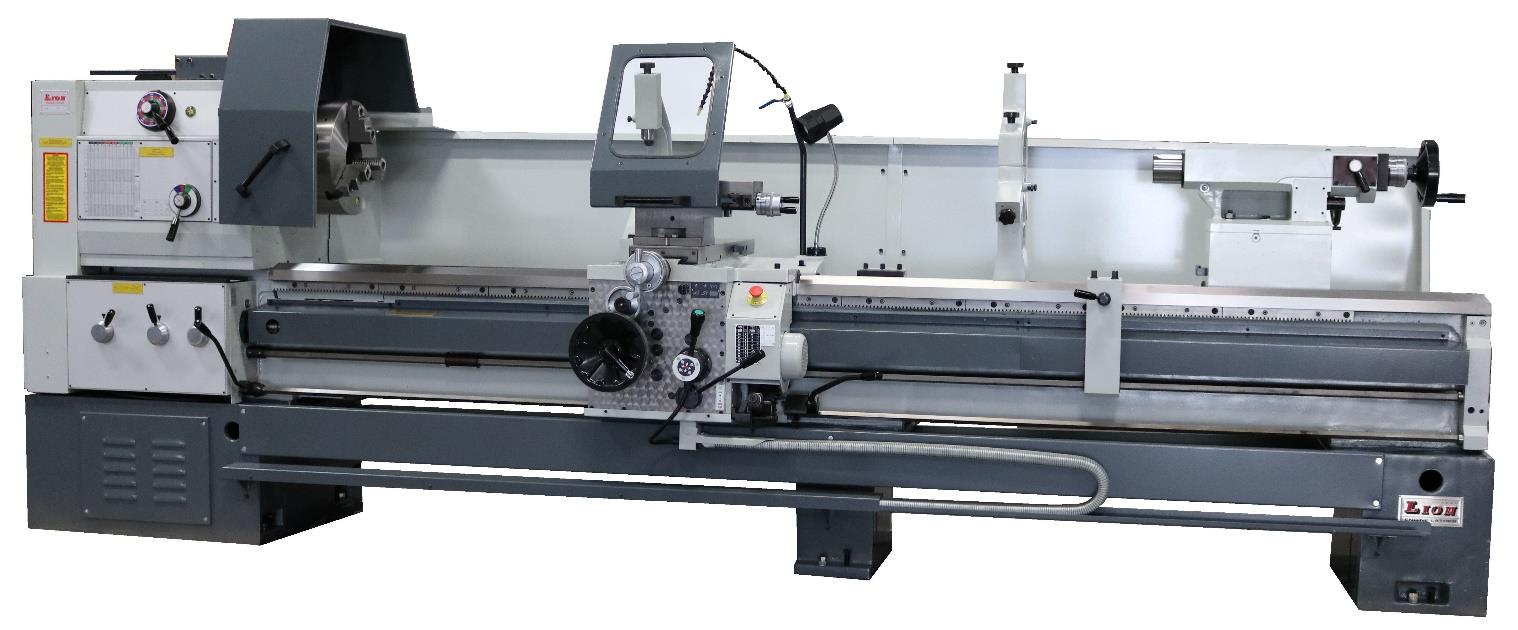

Lion 25-MC, 25" x 120" NEW LATHES

Price on Request

Make:: Lion

Model:: 25-MC, 25" x 120"

Year:: NEW

Ref #:: 169113

Or call us for a quote at (973) 497-7500 or send us an email at toolroom@machineryvalues.com


NEW LION HEAVY DUTY LATHE
MODEL: 25-MC
MADE IN EUROPE

SPECIFICATIONS:
SWING OVER BED: ..................... 25"
SWING OVER CROSS SLIDE: ............. 17"
SWING IN THE GAP: ................... 31 1/2"
LENGTH IN GAP FROM 4 JAW CHUCK: ..... 7 1/4"
DISTANCE BETWEEN CENTERS: ........... 60" /80"/ 120"/160"
SPINDLE NOSE: ....................... D1-11
SPINDLE BORE: ....................... 4-1/8"
SPINDLE BEARING: .................... SKF
NUMBER OF SPINDLE SPEEDS: ........... 21
RANGE OF SPEEDS: .................... 12.5 - 1250 RPM
NUMBER OF THREADS: .................. 64
RANGE OF INCH THREADS: .............. 60 - 1/4 TPI
RANGE OF METRIC THREADS: ............ 0.5 - 120
NUMBER OF FEEDS: .................... 64
RANGE OF LONGITUDINAL FEEDS: ........ 0.019 - .4447"
RANGE OF CROSS FEEDS: ............... 0.0010" - .2224
LEAD SCREW DIAMETER: ................ 2"
LEAD SCREW PITCH: ................... 2 TPI
MAX TRAVERSE OF CROSS SLIDE: ........ 12-1/4"
MAX TRAVERSE OF TOP SLIDE: .......... 5"
TAPER TURNING WORKING LENGTH: ....... 15-3/4"
MAXIMUM TAPER: ...................... +/- 10 DEGREES
TAILSTOCK QUILL DIAMETER: ........... 3-1/2"
TAILSTOCK QUILL TAPER BORE: ......... 5 MT
MAXIMUM QUILL STROKE: ............... 8-1/2"
LATERAL STROKE OF TAILSTOCK: ........ +/- 1/2"
WIDTH OF BED: ....................... 15-3/4"
BEDWAYS: ............................ HARDENED& GROUND
MOTOR POWER: ........................ 15 H.P.
ELECTRICS: .......................... 3 PHASE 220V (440V OPT)

EQUIPPED WITH:
TAPER TURNING ATTACHMENT
3-JAW CHUCK 15"
4-JAW CHUCK 15-3/4"
STEADY REST 7" WITH ROLLERS
FOLLOW REST
SPLASH GUARD & CHIP GUARD

OPTIONAL ACCESSORIES:
LARGE STEADY REST 13" WITH ROLLERS
NEWALL DRO INSTALLED

HEAVY DUTY CROSS RIBBED BED CONSTRUCTION
15-3/4" WIDE BEDWAY, HARDENED AND PRECISION GROUND
HEAVY DUTY CLUTCHED HEADSTOCK WITH HARDENED AND GROUND GEARS & SHAFTS (SPLINED)
ACCURATE SPINDLE WITH PRECISION SKF OR FAG BEARINGS
4" SPINDLE BORE WITH D1-11 CAMLOCK SPINDLE NOSE
MULTI-DISC CLUTCH IN HEADSTOCK FOR QUICK, SMOOTH, AND CONTROLLED POWER TRANSMISSION TO SPINDLE
QUICK CHANGE FEEDBOX, WHICH CUTS INCH AND METRIC THREADS WITHOUT CHANGE OF GEAR
4-WAY RAPID TRAVERSE STANDARD
SINGLE LEVER FEED JOYSTICK FOR SIMPLIFIED OPERATION OF FEEDS AND RAPID TRAVERSE
DIALS IN BOTH INCH AND METRIC
2-SPEED TAILSTOCK WITH TAG ALONG FEATURE. 5MT QUILL
