Sharp 1440F NEW LATHES

Price on Request

Make:: Sharp

Model:: 1440F

Year:: NEW

Ref #:: 136738

Or call us for a quote at (973) 497-7500 or send us an email at toolroom@machineryvalues.com

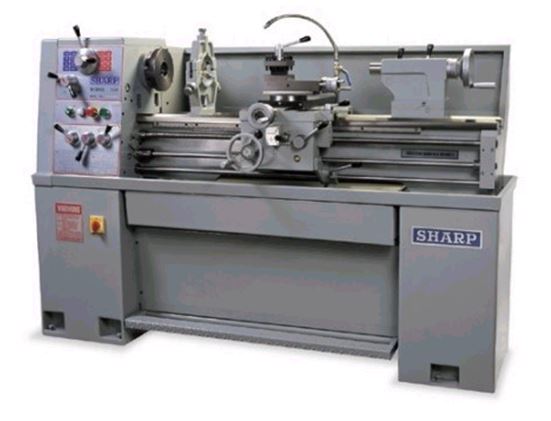

NEW SHARP PRECISION LATHE
MODEL: 1440F

SPECIFICATIONS:
CAPACITY
SWING OVER BED: ................... 14”
SWING OVER CROSS SLIDE: ........... 8-5/8”
SWING OVER GAP: ................... 20”
WIDTH OF BED: ..................... 8-1/2”
WIDTH OF GAP: ..................... 9.25”
CENTER HEIGHT FROM TOP OF COMPOUND: 1.5”
DISTANCE BETWEEN CENTERS: ......... 40”
HEADSTOCK
SPINDLE NOSE TYPE: ................ D1-4 CAMLOCK
SPINDLE BORE: ..................... 1-1/2”
SPINDLE SPEEDS: ................... 45-1,800 RPM
THREADS AND FEEDS
LONGITUDINAL FEEDS – IN/REV (40): . 0.0012 - 0.0294”
CROSS FEEDS – IN / REV (40): ...... 0.0003 –0.01”
INCH THREADS (40): ................ 4-112 TPI
METRIC THREADS (22): .............. 0.45 – 7.5MM
LEADSCREW PITCH, DIAMETER: ........ 8 TPI, 7/8”
CARRIAGE
SADDLE WIDTH: ..................... 13-1/4”
APRON WIDTH: ...................... 11”
CROSS SLIDE WIDTH: ................ 6-3/4”
CROSS SLIDE TRAVEL: ............... 7”
COMPOUND REST TRAVEL: ............. 4”
COMPOUND WIDTH X LENGTH: .......... 3-1/2 X 8-1/2”
BED
BED LENGTH: ....................... 66”
BED WIDTH: ........................ 8-1/8”
TAILSTOCK
QUILL TRAVEL (GRADUATED): ......... 4-1/2”
QUILL DIAMETER: ................... 1-3/4”
QUILL TAPER: ...................... MT#3
NET WEIGHT (APPROX.): ............. 1,650 LBS
STANDARD COLOR: ................... SILVER
ELECTRICAL:
STANDARD VOLTAGE .................. 220V
SPECIAL ORDER ( DIFFERENT MOTOR VS 220 V) 440 V
PHASE ............................. 3 PHASE
DIMENSIONS: ....................... 77” X 29” X 55”
TOTAL POWER CONSUMPTIONS:
220V .............................. 3.5KVA/10 AMPS
440V .............................. 3.5KVA/5 AMPS

STANDARD EQUIPMENT:
3-JAW 8” CHUCK
STEADY REST (CAPACITY ,¼” – 3”)
COOLANT SYSTEM
16 SPEEDS
FULL LENGTH SPLASH GUARD
4-WAY TOOL POST (REMOVABLE GAP)
6” DIAMETER BACK PLATE
TAILSTOCK, BACK PLATE, FOOT BREAK, THREAD DIAL & THREADING DIAL
CENTER SLEEVE (MT #5 X 3)
DEAD CENTERS (MT #3)
TOOL KIT INCLUDES:
MACHINE MANUAL, HALF NUT WRENCH, WRENCH 17M, 19M, SET OF 6 ALLEN WRENCHES, PHILLIP SCREW DRIVER,
FLAT HEAD SCREW DRIVER, OIL CAN, GREASE GUN, REAR WAY COVER BRACKET, 2 SET OF DEAD CENTER, PIN FOR INDICATOR, CAN OF PAINT

FEATURES:
14”X 40” CAPACITY
8-5/8” OVER CROSS SLIDE
16 SPEEDS (45- 1,800 RPM)
D1-4 CAMLOCK SPINDLE 1-1/2” BORE
GAP BED
3 HP MOTOR (2-SPEED MOTOR)
HARDENED AND GROUND BED WAYS (ROCKWELL 50)
LARGER COMPOUND, TAILSTOCK, AND APRON ALLOW HEAVIER CUTTING WITH LESS VIBRATION THAN COMPETITIVE MODELS
16 SPEEDS, ALL GEARED HEADSTOCK HOUSED INSIDE A STURDY CAST IRON BASE.
JOG BUTTON FOR EASY GEAR ENGAGEMENT AND INCHING SPINDLE
QUICK CHANGE GEARBOX OFFERS A WIDE RANGE OF THREADS
STANDARD EQUIPMENT IS 220 V ONLY. 440 V NEEDS A DIFFERENT MOTOR ( FACTORY ORDER) OR PURCHASE A TRANSFORMER. PLEASE SPECIFY.

OPTIONAL ACCESSORIES:
380V, 440V, 575V TRANSFORMER – 3HP 440T4
4 - JAW CHUCK 8” (QU) 4J8D4
4 - JAW CHUCK 10" (QU) 4J10D4
3 - JAW CHUCK 8” (BISON) 803-0834
4 - JAW CHUCK 8” (BISON) 853-0834
CHUCK GUARD W/ LIMIT SWITCH 13/14-08
FOLLOW REST - FOR 1340VS ( CAPACITY, 0.4” – 2.17”) 13V-07
ROLLER JAWS FOR STEADY REST, 3 PCS 13F-RJAW
TAPER ATTACHMENT - FOR 1340 ( FACTORY INSTALLED) 13F-02
QUICK CHANGE TOOL HOLDER SET (ALORIS) - 7 PCS/HOLDER BXA-2511-7150
LIVE CENTER - MT#3 LC-MT3
LIVE CENTER WITH 7 INTERCHANGEABLE POINTS CL-21-007
DRILL CHUCK & ARBOR (JACOBS) 13/14-D/A
FACE PLATE (12”) D1-4 FACE-12-D4
4-WAY CARRIAGE STOP - FOR 1440 13/14-01
MICROMETER CARRIAGE STOP - FOR 1340
VS 13V-01
HALOGEN WORK LIGHT L-24V70W

DIGITAL READ OUT SYSTEMS:
FAGOR 20I D.R.O. FG-14VS
FAGOR 40I D.R.O. FG-40I-14VS
ACU-RITE 200S D.R.O. AR-14VS
NEWALL DP700 D.R.O. NWDP-14VS
NEWALL NMS 800 DRO NWN-14
