Sharp 1440V NEW LATHES

Price on Request

Make:: Sharp

Model:: 1440V

Year:: NEW

Ref #:: 136736

Or call us for a quote at (973) 497-7500 or send us an email at toolroom@machineryvalues.com

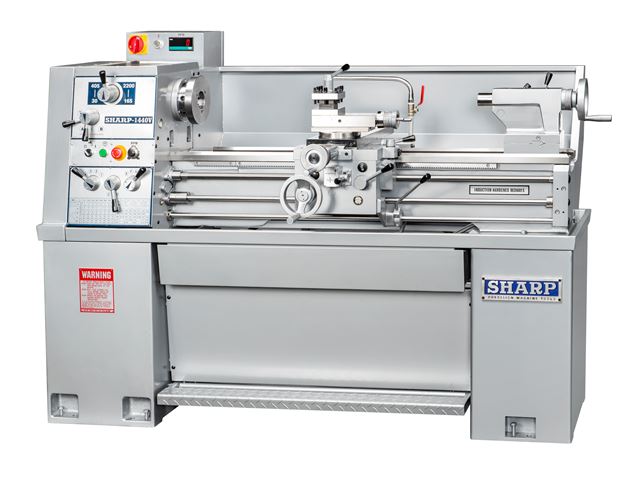

NEW SHARP PRECISION LATHE
MODEL: 1440V

SPECIFICATIONS:
SWING OVER BED: .................... 14”
SWING OVER CROSS SLIDE: ............ 8-5/8”
SWING OVER GAP: .................... 20”
WIDTH OF BED: ...................... 8-1/2”
WIDTH OF GAP: ...................... 9.25”
CENTER HEIGHT FROM TOP OF COMPOUND:. 1.5"
DISTANCE BETWEEN CENTERS: .......... 40”
SPINDLE NOSE TYPE: ................. D1-4 CAMLOCK
SPINDLE BORE: ...................... 1-1/2”
SPINDLE SPEEDS: .................... 30-2,200 RPM, VS
LONGITUDINAL FEEDS – IN/REV (40): .. 0.0012 - 0.0294
CROSS FEEDS – IN / REV (40): ....... 0.0003 –0.01”
INCH THREADS (40): ................. 4-112 TPI
METRIC THREADS (22): ............... 0.45 – 7.5MM
LEADSCREW PITCH, DIAMETER: ......... 8 TPI, 7/8”
SADDLE WIDTH: ...................... 13-1/4”
APRON WIDTH: ....................... 11”
CROSS SLIDE WIDTH: ................. 6-3/4”
CROSS SLIDE TRAVEL: ................ 7”
COMPOUND REST TRAVEL: .............. 4”
COMPOUND WIDTH X LENGTH: ........... 3-1/2 X 8-1/2”
BED LENGTH: ........................ 66”
BED WIDTH: ......................... 8-1/8”
QUILL TRAVEL (GRADUATED): .......... 4-1/2”
QUILL DIAMETER: .................... 1-3/4”
QUILL TAPER: ....................... MT#3
NET WEIGHT (APPROX.): .............. 1,650 LBS
STANDARD COLOR: .................... GRAY
VOLTAGE: ........................... 220 (**440 OPTIONAL)
PHASE: ............................. SINGLE OR 3 PHASE
220V ............................... 3.2KVA/10 AMPS
440V ............................... 3.2KVA/5 AMPS

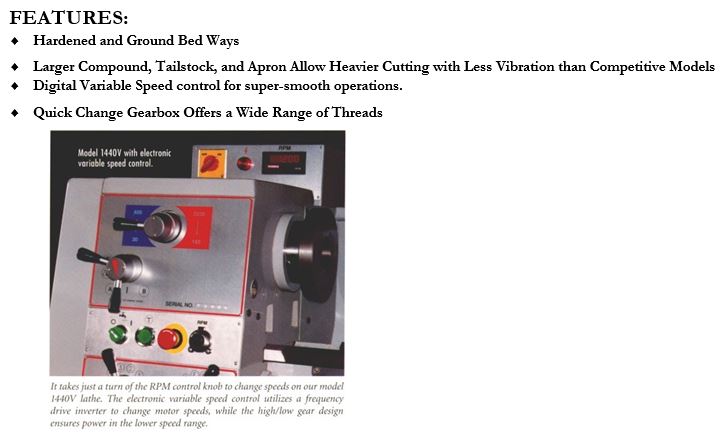

FEATURES:
HARDENED AND GROUND BED WAYS
LARGER COMPOUND, TAILSTOCK, AND APRON ALLOW HEAVIER CUTTING WITH LESS VIBRATION THAN COMPETITIVE MODELS
DIGITAL VARIABLE SPEED CONTROL FOR SUPER-SMOOTH OPERATIONS.
QUICK CHANGE GEARBOX OFFERS A WIDE RANGE OF THREADS

STANDARD EQUIPMENT:
3-JAW 8” CHUCK
STEADY REST (CAPACITY, ¼” – 3”)
COOLANT SYSTEM
INFINITELY VARIABLE SPEED
SPLASH GUARD
4-WAY TOOL POST (REMOVABLE GAP)
6” DIAMETER BACK PLATE
THREADING DIAL
CENTER SLEEVE (MT #5 X 3)
DEAD CENTERS (MT #3)
WIRED 220V (**440V – REQUIRES OPTIONAL TRANSFORMER CHARGE)TOOL KIT : MACHINE MANUAL,HALF NUT WRENCH, WRENCH 17M, 19M, SET OF 6 ALLEN WRENCHES, PHILLIP SCREW DRIVER, FLAT HEAD SCREW DRIVER, OIL CAN, GREASE GUN, REAR WAY COVER BRACKET, 2 SET OF DEAD CENTER, PIN FOR INDICATOR, CAN OF PAINT

OPTIONAL ACCESSORIES
380V, 440V, 575V TRANSFORMER – 3HP
4 - JAW CHUCK 8” (QU)
4 - JAW CHUCK 10" (QU)
3 - JAW CHUCK 8” (BISON)
4 - JAW CHUCK 8” (BISON)
CHUCK GUARD W/ LIMIT SWITCH
FOLLOW REST - FOR 1340VS ( CAPACITY, 0.4” – 2.17”)
ROLLER JAWS FOR STEADY REST, 3 PCS
QUICK CHANGE TOOL HOLDER SET (ALORIS) - 7 PCS/HOLDER BXA-2511-7150
CENTER - MT#3 LC-MT3
LIVE CENTER WITH 7 INTERCHANGEABLE POINTS
DRILL CHUCK & ARBOR (JACOBS)
FACE PLATE (12”) D1-4
4-WAY CARRIAGE STOP
HALOGEN WORK LIGHT
UL RATED ELECTRICAL PARTS & MOTOR IN LIEU OF STANDARD VERSION ** 13/14-UL
CSA RATED ELECTRICAL PARTS & MOTOR IN LIEU OF STANDARD VERSION ** 13/14 CSA
SAFETY COVER AT END OF SPINDLE
TOOL GUARD INCLUDE LIMITED SWITCH
LEAD SCREW COVER ( ACCORDION TYPE)
UL OR CSA COMPLIANCE CERTIFICATE FOR ENTIRE MACHINE BY A LOS ANGELES AREA UL LICENSED COMPANY. GOOD FOR CALIFORNIA ONLY. CSA IS GOOD FOR CANADA.
FOR OUTSIDE CALIFORNIA, PLEASE CHECK WITH LOCAL UL LICENSED COMPANY FOR CERTIFICATION.

MUST ORDER WITH
1. UL OR CSA ELECTRICAL COMPONENTS AND MOTOR (ITEM 13/14-UL,OR 13/14-CSA).
2. SPINDLE SAFETY COVER (ITEM 13/14-G1).
3. TOOL GUARD (ITEM # 13/14-G3) .
4. LEAD SCREW COVER (ITEM # 13/14-G4)
5. CHUCK GUARD (13/14-08) IN ORDER TO BE CERTIFIED.
CE MARK ( FACTORY ORDER)
5C COLLET SET, 1/8” TO 1” BY 1/16” (16 PCS)
5C COLLET CLOSER SET (ATLAS) CCD1-4
DIGITAL READ OUT SYSTEMS
FAGOR 20I D.R.O. (FG-13VS)
FAGOR 40I D.R.O. (FG-40I-13VS)
ACU-RITE 200S D.R.O. (AR-13VS)
NEWALL DP700 D.R.O. (NWDP-13VS)
