Sharp 1640LV NEW LATHES

Price on Request

Make:: Sharp

Model:: 1640LV

Year:: NEW

Ref #:: 136728

Or call us for a quote at (973) 497-7500 or send us an email at toolroom@machineryvalues.com

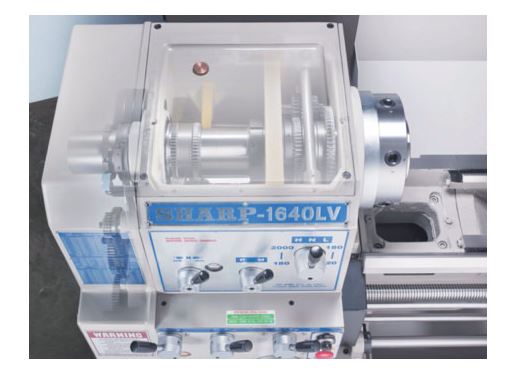

NEW SHARP 16" X 40" PRECISION LATHE
MODEL: 1640LV MADE IN TAIWAN

FEATURES:
D1-8 Camlock, 3” Hole
Direct Selection For Inch/Metric Threads
One Piece Cast Meehanite Bed
7-1/2 Hp Spindle Motor

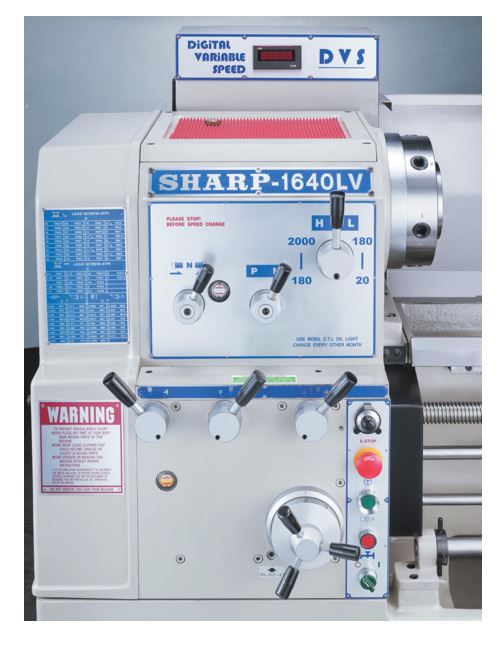

Digital Variable Speed (DVS) on “LV” Models
“LV” Models wired at 220v only.  (440V requires optional transformer.) Please specify.
STANDARD EQUIPMENT:
3-Jaw Chuck 10”
Face Plate (16”)

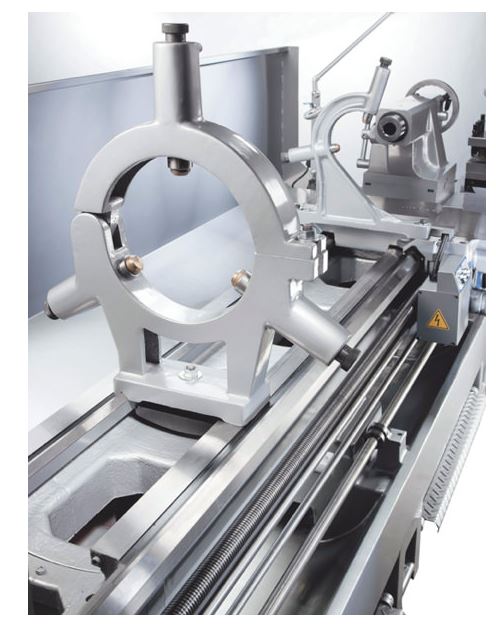

Steady Rest (1/2” to 6”)
Follow Rest ( 0.59” – 2.76”)
Coolant System
Full Length Splash Guard
American Tool Post
Halogen Worklight
Longitudinal Carriage Stop
Center sleeve ( MT 5 x 3)
Dead centers ( MT# 4x1, MT # 5 x1)
Tailstock
Machine is set only for  220 V. Needs an optional transformer for other applications.
Tool Kit includes:
Machine Manual, Half Nut Wrench, Wrench 17m, 19m, Set of 6 Allen wrenches, Phillip Screw Driver, Flat Head Screw Driver, Oil can, Grease Gun, Rear Way Cover Bracket, 2 set of dead center, Pin for Indicator, Can of Paint

SPECIFICATIONS:
Capacity
Swing Over Bed: 16”
Swing Over Cross Slide: 8-3/4”
Swing Over Gap: 24-3/8”
Width of Gap: 9-3/4’
Center height from top of compound: 1.9"
Distance Between Centers: 40”
Headstock

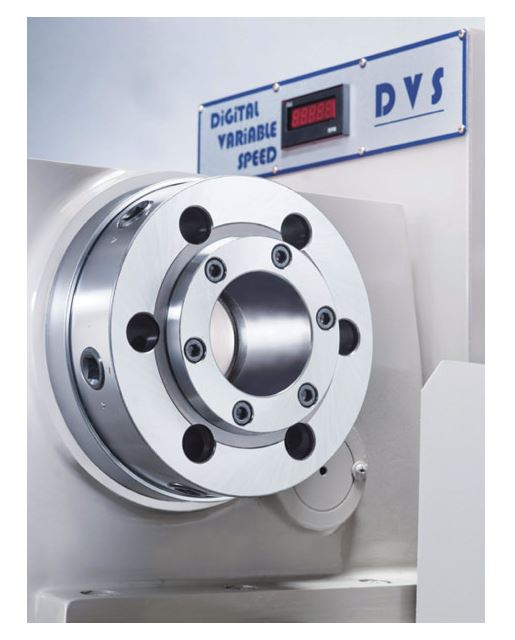

Spindle Nose Type: D1-8 Camlock
Spindle Bore: 3- 1/16”
Spindle Speeds (12): 20-2,000 rpm
Taper of  Spindle Bore: MT#6
Taper of Center: MT#4
Threads and Feeds
Longitudinal Feeds – in/rev (18):  0.002 - 0.032”
Cross Feeds – in / rev {#}: 0.0001 –0.0094” {12}
Inch Threads (#): 4-56 tpi {36}
Metric and Module Threads {#}: 0.5-7mm {17}
D.P. Threads (36): 4-56 mm
Leadscrew Pitch, Diameter: 4 tpi, 1-3/8”
Carriage
Cross Slide Width: 8.7”
Compound Rest Travel: 4.9”
Compound Width: 4.5”
Bed
Bed Length: 59”
Bed Width: 11-3/4”
Tailstock
Quill Travel (graduated): 5”
Quill Diameter: 2-1/4”
Quill Taper: MT#4
General
Spindle Motor (220V or 440V, 60, 3): 7-1/2 hp
Net Weight (approx.): 3,600 LBS
Standard Color: Gray

Specifications may be changed or improved without notice.


Electrical:

 Voltage:230V

460V requires additional transformer

 Phase: 3 phase






Total Power Consumptions
¨ 230V: 8KVA/25 amps
¨ 460V: 8KVA/12.5 amps

Options:
3 - Jaw 12” Chuck (QU) in lieu of the 3 - Jaw 10” (Std Eqpt) #3J12D8
3-Jaw 12” Chuck (QU)     #3J12D8
4 - Jaw 12” Chuck (QU)   #4J12D8
3 - Jaw Chuck 10” (Bison)#803-1038
3 - Jaw Chuck 12” (Bison)#803-1238
4 - Jaw Chuck 12” (Bison)#853-1238
Chuck Guard( factory order only) #18C-01
Tool guard ( factory order only) #TG 16 L
Lead screw guard ( factory order only)#LSG-1640 L
Guard behind spindle( factory order only)#GBS-16L
UL/CSA switch board/UL motor/CSA pump in lieu of regular version UL/CSA-16(factory order only)

    All heighted items are factory order only and all guards are needed for UL compliance certificate

Micrometer Carriage Stop #18C-02
4-Way Toolpost for 16” Swing Lathe #18C-05
Taper Attachment ( factory installed) #18C-03
Roller Jaws for Steady Rest #18C-04
(Extra) Steady Rest 16” for Lathes (1/2 – 6” Capacity) #16C-01
Steady Rest for 16” Lathes (4 – 9” Capacity) #16C-09
Drill & Arbor (JACOBS)  #16/18-D/A
Quick Change Tool (7 pcs) Holder Set (Aloris)  #CXA-2511-7250
Live Center – Royal (Dual Bearing) MT#4  #10854
Live Center – MT#4  #LC-MT4
5C Collet Set (1/8” to 1-1/16”  by 1/16”) 16 pcs.  #ACC-5C
5C Collet Closer for 16 / 18” Lathe (Atlas)  #CCD1-8
575 V transformer, please select #440 T 10
10 HP motor in lieu of 7.5 HP   #MTR 16/18LV-10HP


DIGITAL READ OUT SYSTEMS:
Fagor 20i D.R.O. #FG-1640
Fagor 40i D.R.O. #FG-40i-1640
Acu-Rite 200S D.R.O. #AR-1640
Newall DP700 D.R.O. # NWDP-1640

Note:  All prices and specification subject to change without notice.
NOTE:   SHARP DOES NOT PROVIDE UL/CSA STICKERS ON THE MACHINES,
 BUYERS NEED TO CONTRACT A LOCAL AGENCY TO REVIEW THE ISSUES THEN  PUT  "COMPLIANCE" STICKERS ON THE MACHINES AFTERWARDS.
