Sharp 2240B NEW LATHES

Price on Request

Make:

Sharp

Model:

2240B

Year:

Ref #:

158183

Get a quote

Get financing

Or call us for a quote at (973) 497-7500 or send us an email at toolroom@machineryvalues.com

---

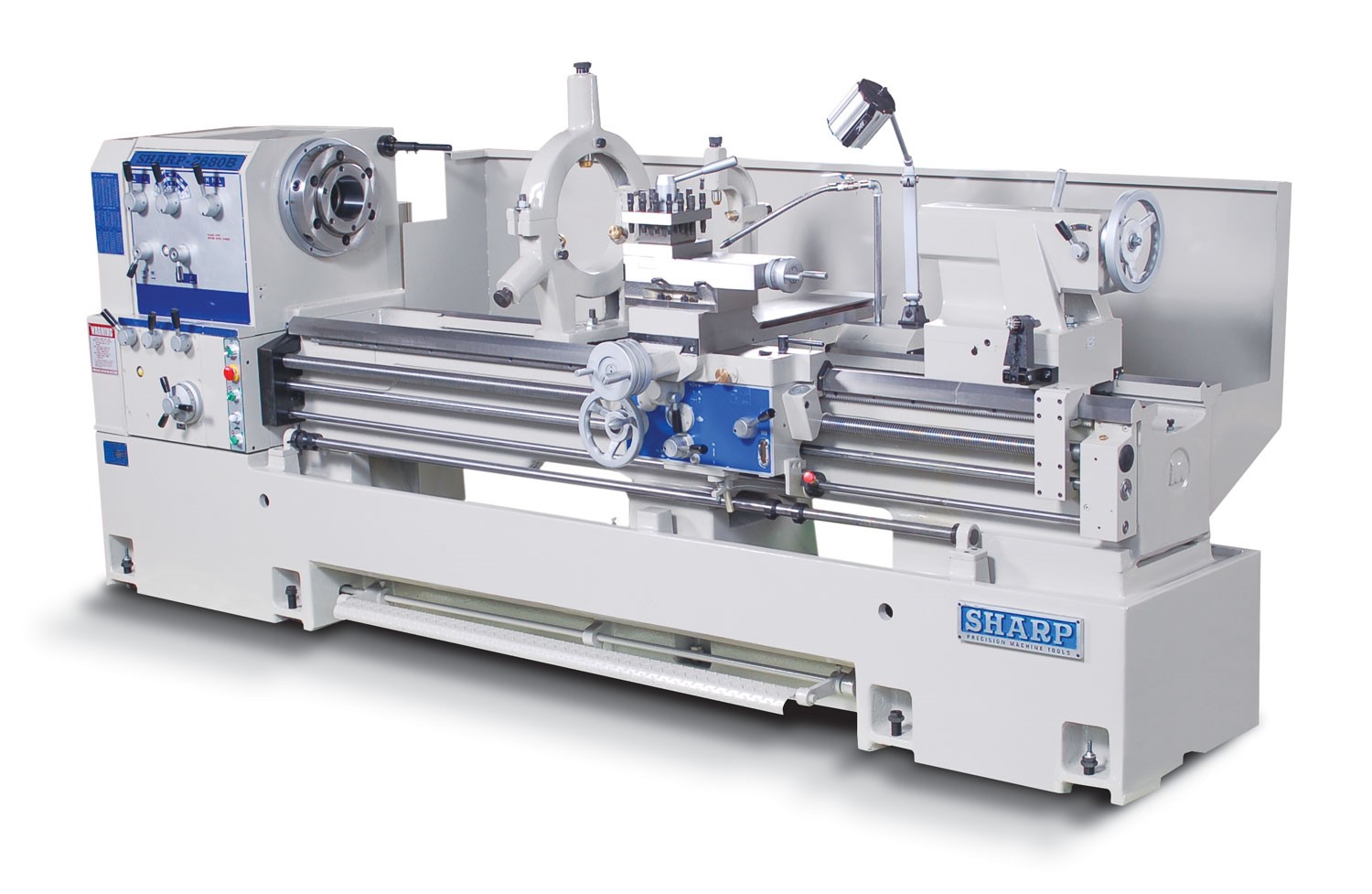

NEW SHARP MODEL: 2240B

PRECISION GAP BED ENGINE LATHE



FEATURES:

• D1-11 Camlock
• 4.5” Spindle Bore
• Direct Selection For Inch/Metric Threads
• One Piece Cast Meehanite Bed
• Quick Change Gearbox
• 15 HP Motor
• 12-Speed Gear Head (10-1,000 RPM)





SPECIFICATIONS

CAPACITY:

Swing Over Bed: 22"

Swing Over Cross Slide: 13.2"

Center Height: 11"

Swing Over Gap: 31"

Distance Between Centers: 40"



HEADSTOCK:

Spindle Nose Type: D1-11 Camlock

Spindle Bore: 4.5"

Spindle Speeds (12): 10-1,000 rpm

Taper of Spindle Bore: MT#7

Taper of Center: MT#5



THREADS AND FEEDS:

Longitundinal Feeds - in/rev (18): 0.0022-0.032"

Cross Feeds - in/rev (#): 0.00026 -0.035" (17)

Inch Threads (#): 2-56 tpi (44)

Metric and Module Threads (#): 0.5-14mm (24)

D.P. Threads (36): 4-56 mm

Leadscrew Pitch, Diameter: 4 tpi, 1-1/2"



CARRIAGE:

Cross Slide Travel: 14.75"

Compound Rest Travel: 8"

Compound Width: 6"



BED:

Bed Width: 15-3/4"



TAILSTOCK:

Quill Travel (graduated): 6-1/2"

Quill Diameter: 3"

Quill Taper: MT#5



GENERAL:

Spindle Motor (220V or 440V, 60,3)

Net Weight (approx.): 5280 lbs

Dimensions: (L x W x H): 85" x 41" x50"

Standard Color: Gray



ELECTRICAL:

Voltage: 220 & 440

Phase: 3 phase

Total Power Consumptions

230V.….….….….. 16KVA/45 amps

460v.….….….….. 16VA/22.5 amps



STANDARD EQUIPMENT:

• 4-Jaw 16” Chuck.
• Coolant System
• 4 Way Tool Post
• Halogen Work Light
• Face Plate 20”
• Steady Rest 12” (3.2”-10.6”)
• 4-Way Carriage Stop
• Splash Guard
• 16” Chuck Guard
• Tailstock
• Follow Rest ( 0.79” – 3.94”)
• Wired 220V or 440V. Please Specify
• Tool Kit:

Machine Manual, Half Nut Wrench, Wrench 17m, 19m,

Set of 6 Allen wrenches, Phillip Screw Driver,

Flat Head Screw Driver, Oil can, Grease Gun,

Rear Way Cover Bracket, 2 sets of dear center,

Pin for Indicator, and Can of Paint



OPTIONAL ACCESSORIES:

• 3 - Jaw Chuck 12” D1-11 (Bison) - 4.05” Bore
• 3 - Jaw Chuck 16” D1-11 (Bison) - 5.34” Bore
• 4 - Jaw Chuck 16” D1-11 (Bison)
• 3 - Jaw Chuck 15”  D1-11 (BTC)
• 4 - Jaw Chuck 16” D1-11 (BTC)
• Taper Attachment (Factory order)
• Drill & Arbor (JACOBS)
• Quick Change Tool Holder (Aloris) 7 pcs.
• Live Center – Royal (Dual Bearing)
• Live Center – MT#5
• 5C Lever Collet Closer
•  5C Collet Set (1/8 to 1/16” x 1/16”) 16 pcs.
• Micrometer Carriage Stop
• Steady Rest 12” ( 3.2”- 10.6”)
• Steady Rest 15” ( 6.7” – 15.2”)
• Roller Jaws Set (3 pcs)
• Chuck Guard with limited switch ( factory order only)
• Tool guard  with limited switch ( factory order only)
• Lead screw guard ( factory order only)
• Guard behind spindle( factory order only)
