Victor 1740E, 1760E, 1790E NEW LATHES

Price on Request

Make:: Victor

Model:: 1740E, 1760E, 1790E

Year:

Ref #:: 157812

Or call us for a quote at (973) 497-7500 or send us an email at toolroom@machineryvalues.com

NEW VICTOR MODELS: 1740E 1760E 1790E
PRECISION HIGH SPEED LATHE

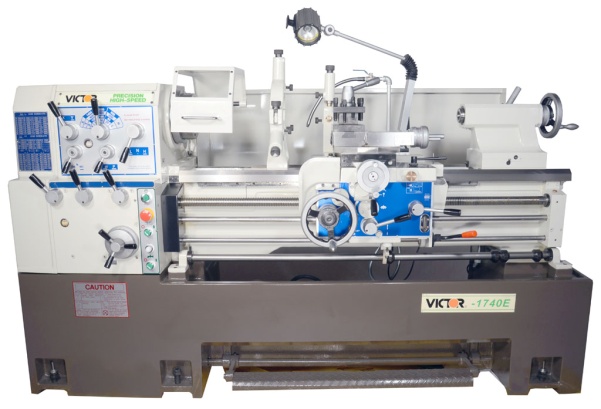

Photo shown 1740E

Features:
One-piece high rigidity and low vibration base
Thermal treated Meehanite cast bed
Hardened and precision ground bedways
Thermal treated and precision ground alloy gears
Universal gearbox for both inch and metric threading
Double reservoir oil bath type cross slide
Safety overload device
Wear-resistant phosphor bronze leadscrew nuts
High capacity coolant tank provides sufficient coolant output

Specifications:
Max. swing over bed........................... 16.93"
Max. swing over cross-slide................... 9.45"
Max. swing in gap............................. 25.59”
Width of gap: MODEL 1730E & 1740E............. 9.84”
Width of gap: MODEL 1760E & 1790E............. 11.81"
Width of bed.................................. 11.81"
Max. distance between centers MODEL 1740...... 39.37"
Max. distance between centers MODEL 1760E..... 59"
Max. distance between centers MODEL 1790E..... 86.60"

HEADSTOCK
Spindle bore diameter......................... 2.28"
Spindle bore taper............................ M.T. No. 6
Taper of center in sleeve..................... M.T. No. 4
Spindle nose.................................. D1-6
Number of spindle speeds...................... 12 steps
Range of spindle speeds....................... 20~2,000 rpm

THREADS AND FEEDS
Range of longitudinal feeds..........0.002" ~ 0.03"/rev. (0.05 ~ 0.76 mm/rev.) x 18 kinds
Range of cross feeds...............0.0008" ~ 0.011"/rev. (0.02 ~ 0.28 mm/rev.) x 17 kinds
Inch threads per inch......................... 4 ~ 56 TPI x 36 kinds
Metric threads................................ 0.5 ~ 7 mm x 17 kinds
Leadscrew diameter............................ 1.38” (35 mm)
Leadscrew pitch............................... 4 TPI

CARRIAGE
Cross slide travel............................ 9.65”
Compound slide travel......................... 4.92”

TAILSTOCK
Tailstock spindle diameter.................... 2.28"
Max. tailstock spindle travel................. 5.91"
Tailstock spindle bore taper.................. M.T. No. 4

POWER
Main Motor.................................... 7.5 HP 3 PH
Coolant Pump.................................. 1/8 HP 3 PH

SPECIAL PACKAGE INCLUDES:
8” 3-Jaw Chuck
Steady Rest w/ Rollers
Follow Rest
4-Way Tool Post
Halogen Work Light
Full Length Splash Guard
Chuck Cover w/ Limit Switch

OPTIONAL ACCESSORIES:
21032-5 8” 3-jaw chuck (D1-6)
21032-Z 8” zero-set 3-jaw chuck with D1-6 back plate
21033-Z 8” zero-set 6-jaw chuck with D1-6 back plate
21036-5 10” 3-jaw chuck (D1-6)
21036-Z 10” zero-set 3-jaw chuck with D1-6 back plate
21120-5 10” 4-jaw chuck (D1-6)
21122-5 12” 4-jaw chuck (D1-6)
06742-02 Face plate 14” (D1-6)
06842-03 Steady rest with rollers (6”)
06862-03 Steady rest with rollers (9”)
06842-04 Follow rest
06762-04 Drive plate
06842-05 Micro carriage stop
06862-05 4-position carriage stop
06842-06 Taper turning attachment
21202 Live center M.T. #4
06842-12 Halogen work light
06742-14 5C lever type collet closer
06842-20 Full length splash guard 1730E
06842-21 Change gears for D.P. and module thread
32536-P Quick change tool set ¾” (one toolpost & 5 holders, #1,2,4,7,10)
31536-P Quick change tool set 1” (one toolpost & 5 holders, #1,2,4,7,10)

MODEL: 1730E SPECIAL ORDER ONLY.  ETA 90 DAYS
