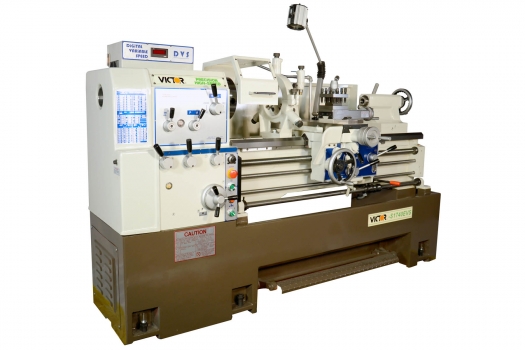

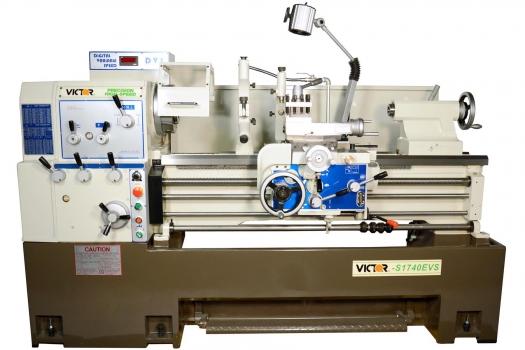

NEW VICTOR MODELS: 1740EVS 1760EVS 1790EVS
3-1/8" THRU HOLE ELECTRONIC VARIABLE SPEED LATHE
Features:
Inverter drive infinitely variable speed spindle system
Easy spindle speed change by rotary switch control
Large 3-1/8" thru spindle hole
One-piece high rigidity and low vibration base
Thermal treated Meehanite cast bed
Hardened and precision ground bedways
Thermal treated and precision ground alloy gears
Universal gearbox for borth inch and metric threading
Double reservoir oil bath type cross slide
Safety overload device
High capacity coolant tank provides sufficient coolant output
10 HP spindle motor
Specifications:
Max. swing over bed: 16.93"
Max. swing over cross-slide: 9.45"
Max. swing in gap: 25.59”
Width of gap: 1740EVS: 9.84”
Width of gap: MODEL 1760EVS & 1790EVS: 11.81"
Width of bed: 11.81"
Max. distance between centers MODEL 1740EVS: 39.37"
Max. distance between centers MODEL 1760EVS: 59"
Max. distance between centers MODEL 1790EVS: 86.60"

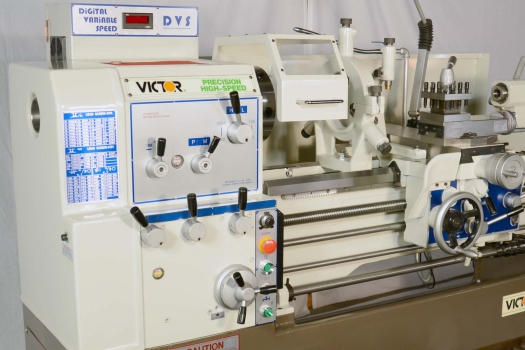

HEADSTOCK
Spindle bore diameter: 3-1/8"
Spindle bore taper: M.T. No. 7
Taper of center in sleeve: M.T. No. 4
Spindle nose: D1-8
Number of spindle speeds: 12 steps
Range of spindle speeds: 2 Ranges (Digital Variable Speed)
Range of spindle speeds: 20 ~ 2,000 rpm
THREADS AND FEEDS
Range of longitudinal feeds: 0.002" ~ 0.03"/rev. (0.05 ~ 0.76 mm/rev.) x 18 kinds
Range of cross feeds: .0.0008" ~ 0.011"/rev. (0.02 ~ 0.28 mm/rev.) x 17 kinds
Inch threads per inch: 4 ~ 56 TPI x 36 kinds
Metric threads: 0.5 ~ 7 mm x 17 kinds
Leadscrew diameter: 1.38” (35 mm)
Leadscrew pitch: 4 TPI

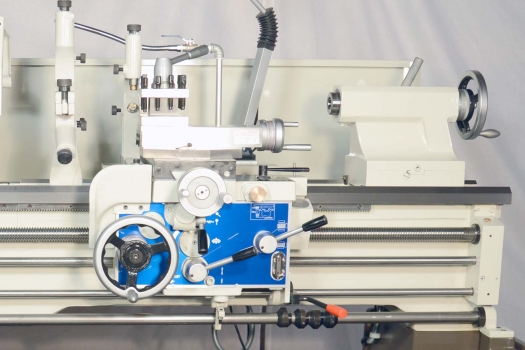

CARRIAGE
Cross slide travel: 9.65”
Compound slide travel: 4.92”
TAILSTOCK
Tailstock spindle diameter: 2.28"
Max. tailstock spindle travel: 5.91"
Tailstock spindle bore taper: M.T. No. 4
POWER
Main Motor: 10 HP 3 PH
Coolant Pump: 1/8 HP 3 PH
MACHINE Approx weight & Packing Dimensions:
MODEL: S1740EVS: 4,100 lbs gross weight
90"x38"x64"
MODEL: S1760EVS: 4,850 lbs gross weight
110"x38"x64"
MODEL: S1790EVS: 5,450 LB gross weight
143"x38"x64"
SPECIAL PACKAGE INCLUDES:
10” 3-Jaw Chuck
Steady Rest w/ Rollers
Follow Rest
4-Way Tool Post
Halogen Work Light
Full Length Splash Guard
Chuck Cover w/ Limit Switch
ACCESSORIES:
Accessories Price
21046-Z 10” adjustable 3-jaw scroll chuck with D1-8 back plate
21048-5 12” 3-jaw scroll chuck (D1-8)
21048-Z 12” adjustable 3-jaw scroll chuck with D1-8 back plate
21128-5 10” 4-jaw independent chuck (D1-8)
21130-5 12” 4-jaw independent chuck (D1-8)
06842-02 Face plate 14” (D1-8)
06842-03 Steady rest with rollers (6”)
06862-03 Steady rest with rollers (9”)
06862-04 Drive plate 585.00
06842-05 Micro carriage stop
06862-05 4-position carriage stop
06842-06 Taper turning attachment
21202 Live center M.T. #4
06842-14 5C lever type collet closer
43052 5C collet set (16 pcs.)
06842-21 Change gears for D.P. and module thread
31533 5/8" drill chuck and MT#4 Arbor
32536-P Quick change tool set ¾” (one tool post & 5 holders)
31536-P Quick change tool set 1” (one tool post & 5 holders)
50001 Newall NMS800 2-axis DRO for S1740EVS
50001 Newall NMS800 2-axis DRO for S1760EVS
50001 Newall NMS800 2-axis DRO for S1790EVS
