Victor 2060S NEW LATHES

Price on Request

Make:: Victor

Model:: 2060S

Year:: NEW

Ref #:: 147942

Or call us for a quote at (973) 497-7500 or send us an email at toolroom@machineryvalues.com

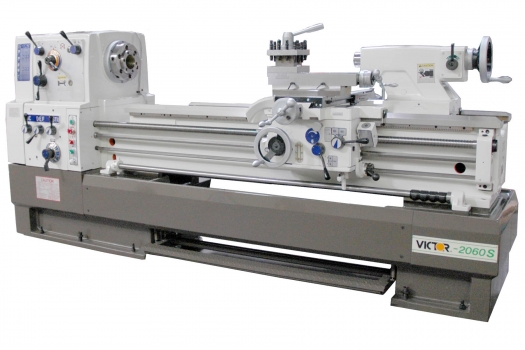

										NEW VICTOR 20" x 60" PRECISION HIGH SPEED LATHE
 MODEL: 2060S       *MADE IN TAIWAN*

 FEATURES:

 Oversized rigid compound rest for heavy cutting

Hardened and precision ground gears and bedways

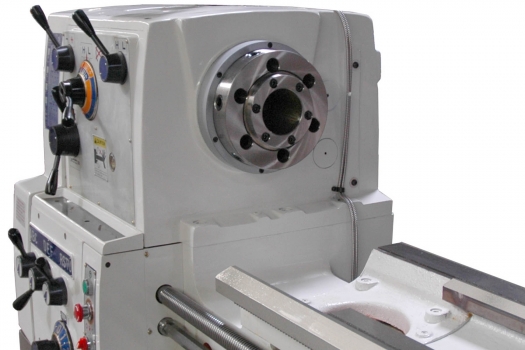

Hardened and ground spindle nose

Full Meehanite casting bed

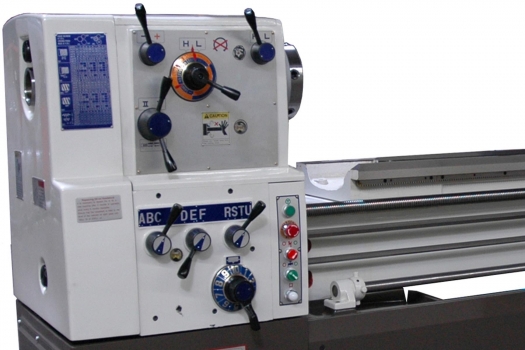

Headstock transmission gears driven by spline shafts

Spindle is supported at 3 points by precision bearings

Safety overload device

Inch/metric threading without changing gears

10 HP main motor delivers full power at all 12 speeds

Dual speed tailstock quill (ratio 1:1, 1:5) provides easy drilling operation

2-way longitudinal (z-axis) power rapid traverse on 20120S and 20160S



 MACHINE INCLUDES:

 Center sleeve
 Tool post wrench
 Hex wrenches
 Oil gun
 Change gear
 Z-axis rapid feed for 20120S/160S only
 Leveling screws and pads
 Thread dial indicator
 M.T. No. 5 dead center
 Screw driver
 10 HP 3 PH motor
 Operation manual & parts list
 Coolant system
 Level change inch/metric gear box
 Inch/metric dual dials


 SPECIFICATIONS:


 Swing over bed:     20"
 Swing over cross slide:     13"
 Distance between centers:     60"
 Bed width:     15-3/4"
 Spindle bore diameter:    Ø 3-1/8"
 Spindle bore taper:     M.T. #7
 Taper of center in sleeve:     M.T. #5
 Spindle nose:     D1-8 Camlock
 Number of spindle speeds:     12 Steps
 Range of spindle speeds (rpm):     20 ~ 1,550 rpm
 Inch threads:     2 ~ 112 TPI x 60 kinds
 Metric threads:     0.2 ~ 14mm x 60 kinds
 Module Pitch threads:     0.2 - 7 M.P. x 50 kinds
 D.P. Threads:      4 - 112 D.P.I. x 50 kinds
 Longitudinal Feed range:      0.0014" - 0.0387"/rev
 Cross feed range:        0.0007" - 0.01935"/rev
 No. of cross longitudinal feed:     50
 Cross slide travel:     12-1/2"
 Compound slide travel:     10"
 Tailstock spindle diameter:     2-15/16"
 Max. tailstock spindle travel     6-5/16"
 Tailstock spindle bore taper:        M.T. No. 5
 Main Motor:        10 HP   3 PH
 Coolant pump:     1/8 HP     3 PH
 Rapid Feed motor: N/A
 Shipping dimensions (LxWxH):     120"x45"x65"
 Gross weight:     5,320 lb.

 OPTIONS (Call for pricing):

 Four-way tool post
 Quick change tool post
 American tool post
 Digital readout
 3-jaw scroll chuck
 4-jaw independent chuck
 Chuck cover
 Steady rest with roller support
 Live center M.T. No. 5
 Follow rest
 Face plate
 Full length splash guard
 Micro carriage stop
 Taper turning attachment
 Lever type 5C collet closer
 5C collet set
 Halogen work light
