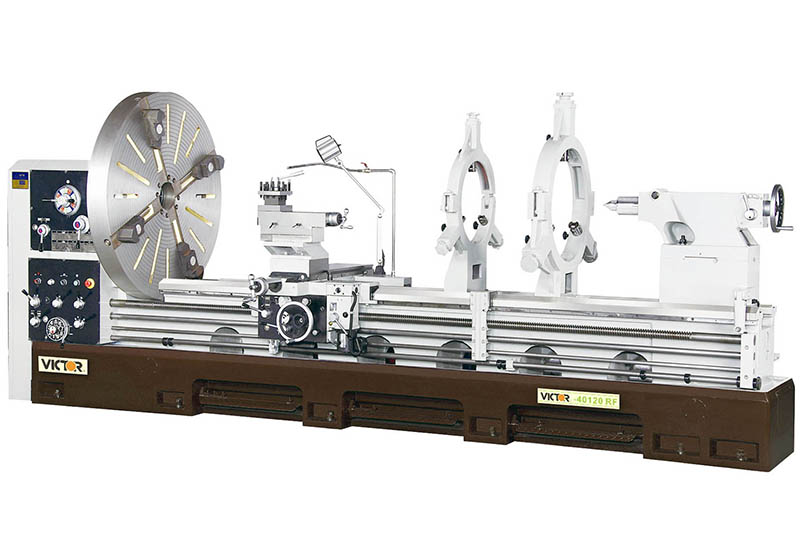

Victor 4000RF BIG BORE SERIES NEW LATHES

Price on Request

Make:: Victor

Model:: 4000RF BIG BORE SERIES

Year:: NEW

Ref #:: 147976

Or call us for a quote at (973) 497-7500 or send us an email at toolroom@machineryvalues.com

NEW 40" x 80" VICTOR BIG BORE
HEAVY DUTY LATHE
MODEL: 4080RF
other cc Options available:
4060RF 4080RF 40120RF 40160RF 40200RF 40240RF

SPECIFICATIONS (FOR 4080RF):
CAPACITY:
SWING OVER BED: ................. 40"
SWING OVER CROSS SLIDE: ......... 30.70"
SWING OVER GAP: ................. 50"
BED WIDTH: ...................... 20"
DISTANCE BETWEEN CENTERS: ....... 78.74"

HEADSTOCK
SPINDLE BORE DIAMETER: .......... 6.02"
TAPER OF CENTER IN SLEEVE: ...... M.T.#6
SPINDLE NOSE: ................... A2-11 (OPT. 9.06" BORE IS A2-15)
NUMBER OF SPINDLE SPEEDS: ....... 12 STEPS
RANGE OF SPINDLE SPEEDS (RPM): .. 15 ~ 1,000 RPM

THREADS & FEEDS
RANGE OF LONGITUDINAL FEEDS: .... 0.0020" ~ 0.0276"/REV.
RANGE OF CROSS FEEDS: ........... 0.0010"~0.0138"/REV.
INCH THREADS: ................... 2 ~ 28 TPI X 36 KINDS
METRIC THREADS: ................. 0.8 ~ 14 00 X 33 KINDS

CARRIAGE
CROSS SLIDE TRAVEL: ............. 23"
COMPOUND SLIDE TRAVEL: .......... 10"

TAILSTOCK
TAILSTOCK TAPER CENTER: ......... M.T. #6
TAILSTOCK QUILL TRAVEL: ......... 9"

POWER
MAIN MOTOR: ... ................. 30 HP 3 PHASE
COOLANT PUMP: ................... 1/8 HP

WEIGHT & DIMENSIONS
SHIPPING DIMENSIONS (LXWXH): .... 158"X71"X83"
GROSS WEIGHT: ................... 14,330 LB.

EQUIPPED WITH:
STEADY REST WITH ROLLERS
4-WAY TOOL POST
DOUBLE CHUCK SYSTEM
HALOGEN WORK LIGHT
ON-CARRIAGE SPLASH GUARD
CHUCK COVER WITH LIMIT SWITCH

STANDARD ACCESSORIES:
CENTER SLEEVE
DEAD CENTER M.T. #6
AUTO LUBRICATION SYSTEM
COOLANT SYSTEM
TAILSTOCK WITH TWO-SPEED QUILL
REMOVABLE GAP
4-WAY POWER RAPID TRAVERSE
LEVELING SCREWS AND PADS
MANUAL AND PARTS LIST
TOOL BOX WITH TOOLS

FEATURES:
6.02" SPINDLE BORE IS DESIGNED FOR LARGE CHUCKING CAPABILITY
HARDENED AND PRECISION GROUND ALLOY STEEL GEARS AND SHAFTS
THE PRECISION GROUND SPINDLE IS SUPPORTED AT THREE POINTS BY HIGH PRECISION BEARINGS
ONE PIECE STRUCTURE BED TO ENHANCE THE MACHINE LIFE AND WORKING PERFORMANCE
HIGH TENSILE RIBBED WIDE BED WITH HARDENED AND PRECISION GROUND BED WAYS FOR RIGIDITY AND LOW VIBRATION
UNIVERSAL GEARBOX FOR INCH, METRIC, D.P., AND MODULE THREADING WITHOUT CHANGING GEARS
CENTRAL LUBRICATION SYSTEM CAN BE OPERATED AUTOMATICALLY OR MANUALLY FOR SLIDE WAYS
ADJUSTABLE SAFETY OVERLOAD DEVICE
ROTATING TYPE SPEED CHANGING SYSTEM FOR EASY OPERATION
TAILSTOCK IS EQUIPPED WITH A TWO-SPEED QUILL THAT IS SUITABLE FOR HEAVY DUTY AND EASY DRILLING WORK
4-WAY POWER RAPID TRAVERSE
AUTOMATIC STOPPER FOR LONGITUDINAL FEEDS


Victor 4000RF series lathe is designed to provide outstanding performance and structural rigidity with large 6.02" spindle bore suitable for turning and cutting a large workpiece.
