Victor S2600S series NEW LATHES

Price on Request

Make:: Victor

Model:: S2600S series

Year:: NEW

Ref #:: 161100

Or call us for a quote at (973) 497-7500 or send us an email at toolroom@machineryvalues.com

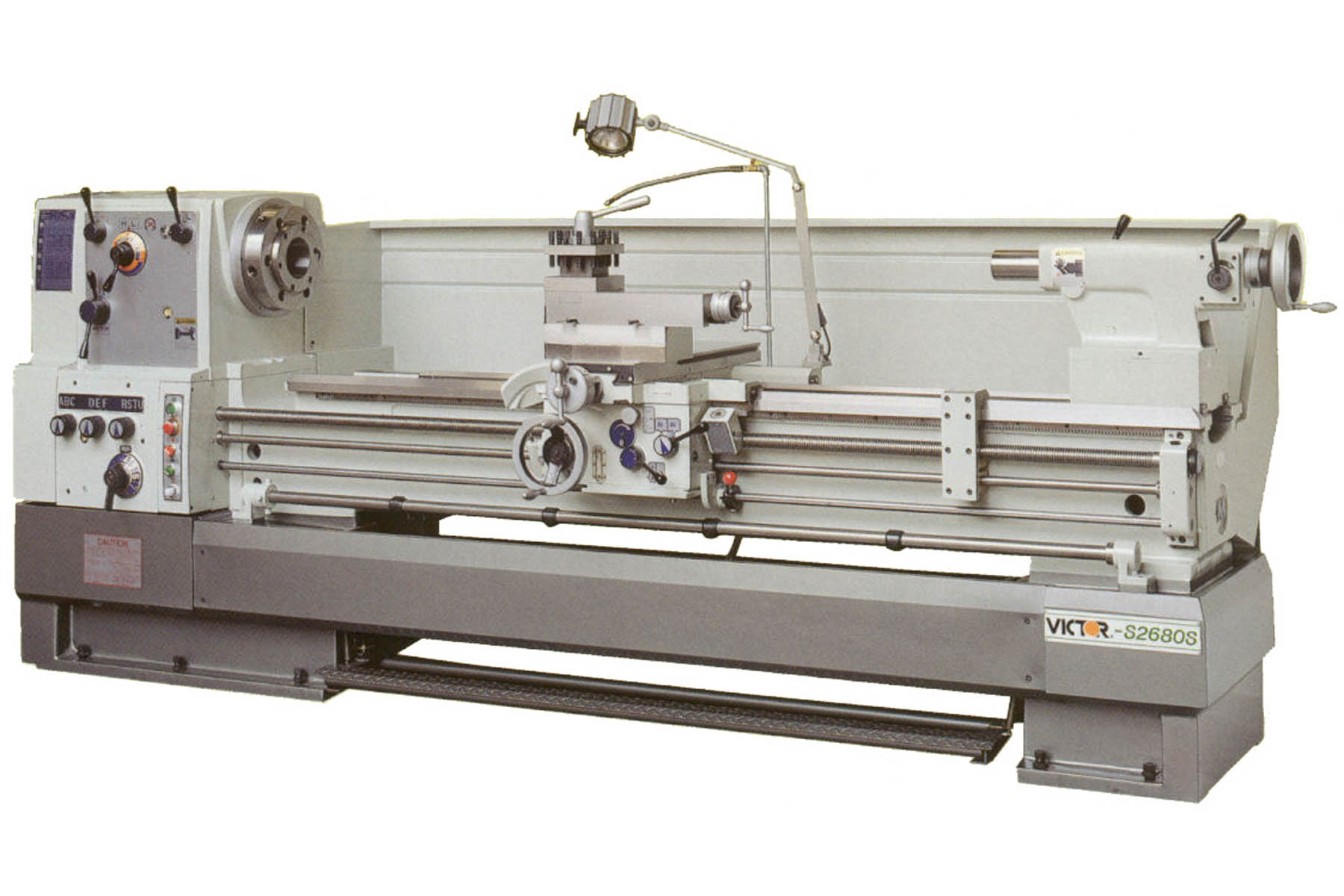

NEW VICTOR PRECISION HEAVY DUTY LATHE
MODELS: S2640S, S2660S, S2680SS26100S, S26120S, S26160S

WITH SPECIAL PACKAGE

Large 4-1/8" spindle bore and 15 HP main motor high
precision heavy-duty lathe designed to turn heavy parts
smoothly and efficiently. The quality built
construction ensures maximum durability, rigidity,
and unsurpassed reliability.


FEATURES:
Hardened and precision ground chromium molybdenum steel gears in headstock
Hardened and ground bed ways
Meehanite casting bed
Large 4-1/8" spindle bore with D1-11 spindle nose
The spindle speed ranges from 15 ~ 1,200 rpm
Carriage with a mechanical overload device
Turcite B coated slideways between saddle and bed
Cross slide is induction hardened to HRC 52º and precision ground
2-speed tailstock quill speed
Universal inch/metric gearbox
Dual speed tailstock quill (ratio 1:1 and 5:1) provides easy drilling operation
2-way longitudinal (z-axis) power rapid traverse on S26100S, S26120S and S26160S

CAPACITY
Swing over bed:26"
Swing over cross slide:18-1/16"
Swing over gap:33-1/4"
Bed width:15-3/4"
Distance between centers: 40"/60"/80"/100"/120"/160"

HEADSTOCK
Spindle bore diameter:4.13"
Spindle bore taper:M.T. #8
Taper of center in sleeve:M.T. #5
Spindle nose:D1-11
Number of spindle speeds:12 Steps
Range of spindle speeds (rpm):15 ~ 1,200 rpm
Speed selections:15, 25, 35, 50, 85, 120, 160, 265, 375, 520, 860, 1200

THREADS & FEEDS
Range of longitudinal feeds:0.0014" ~ 0.0387" /rev.
Range of cross feeds:0.0007" ~ 0.01935"/rev.
Inch threads:2 ~ 112 TPI x 60 kinds
Metric threads:0.2 ~ 14 mm x 60 kinds

CARRIAGE
Cross slide travel:15"
Compound slide travel:10"
TAILSTOCK
Tailstock taper center:M.T. #5
Tailstock quill travel:6-5/16"

POWER
Main motor:15 HP 3 Phase
Coolant pump:1/8 HP

WEIGHT & DIMENSIONS
Shipping dimensions (LxWxH):140"x45"x67"
Gross weight:6,270 lb

SPECIAL PACKAGE INCLUDES
Steady Rest w/Rollers
4-Way Tool Post
Face Plate
Halogen Work Light
Chuck Cover w/Limit Switch
Full Length Guard (S2640S, S2660S & S2680S only)
On-Carriage Splash Guard (S26100S, S26120S & S26160S)

** S26100S and longer is equipped with 2-way longitudinal (Z-Axis) power rapid traverse **

STANDARD ACCESSORIES:
Removable gap
Tailstock with duo speed quill
Coolant system
Chuck cover with limit switch
D.P. / module thread change gears
Threading dial indicator
Center sleeve
Dead center M.T. #5
2-way longitudinal z-axis power rapid traverse (S26100S, S26120S and S26160S only)
Leveling screws and pads
Manual and parts list

 CALL FOR PRICING
