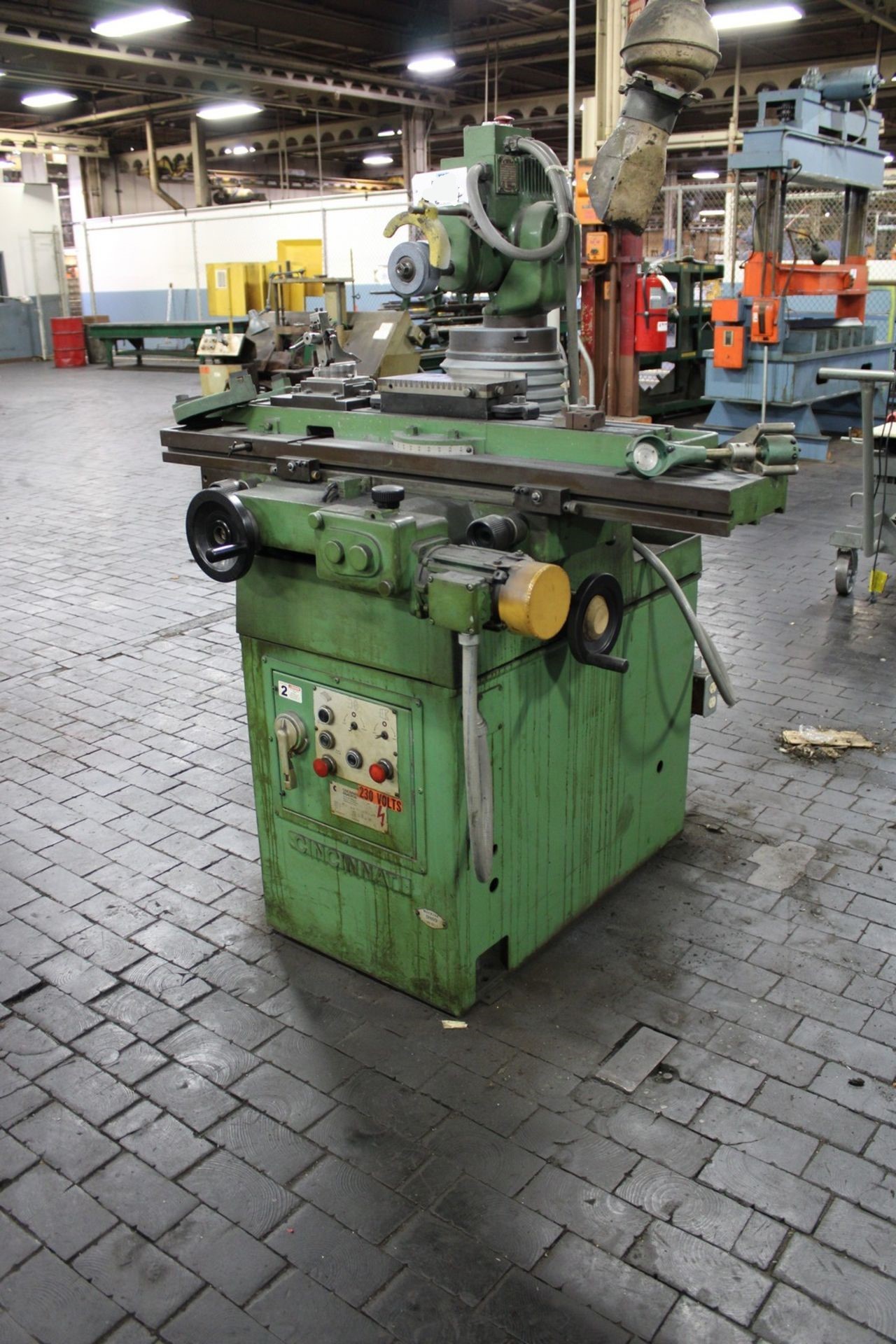

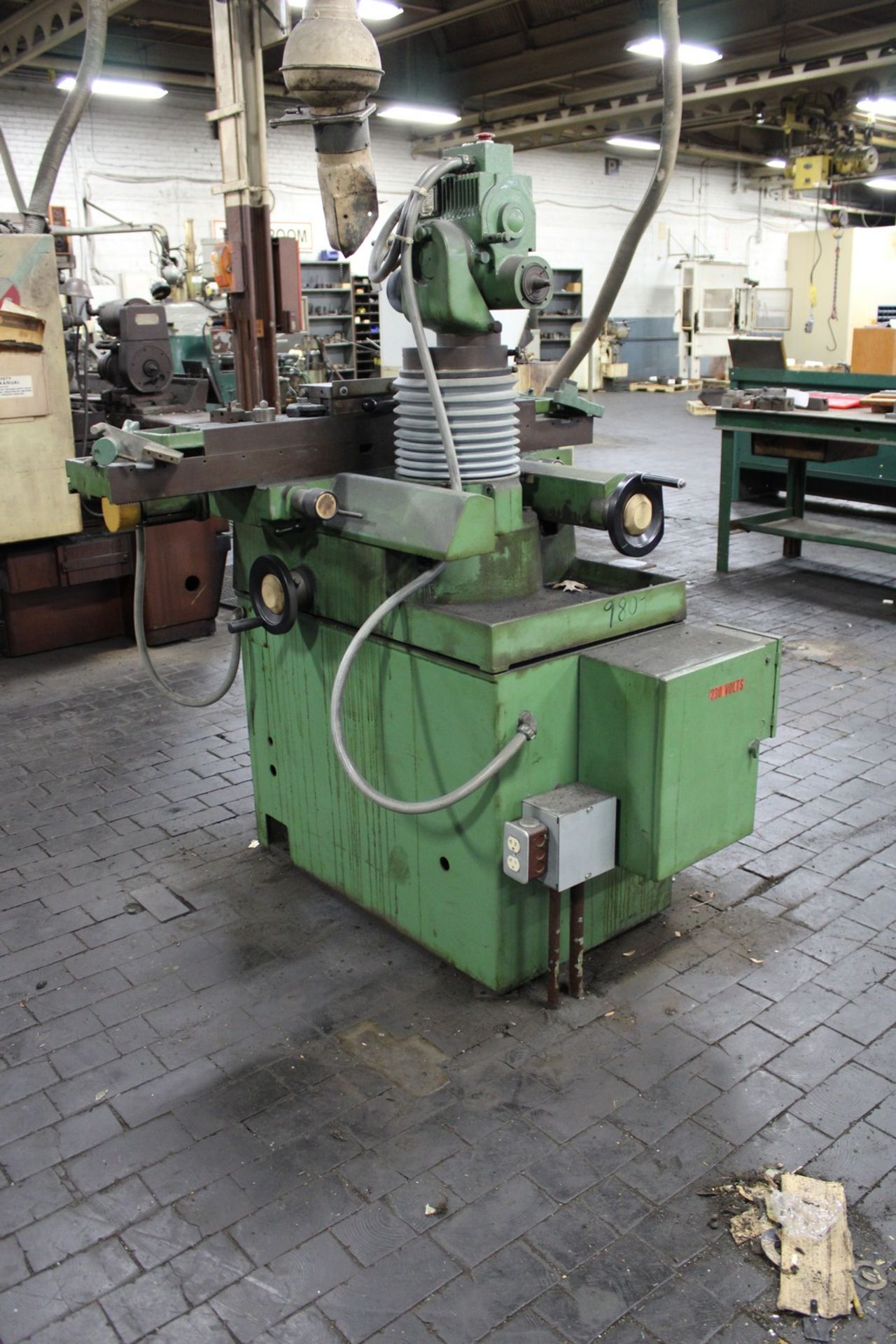

Cincinnati-Milacron NO. 2 MT, '73, POWER TABLE OPTION, TILT WHEELHEAD TOOL & CUTTER GRINDERS

Price on Request

Make:: Cincinnati-Milacron

Model:: NO. 2 MT, '73, POWER TABLE OPTION, TILT WHEELHEAD

Year:: 1973

Ref #:: 175657

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

    #2 CINCINNATI-MILACRON MODEL #MT
    UNIVERSAL TOOL & CUTTER GRINDER
       WITH POWER TABLE OPTION

MANY ACCESSORIES IN STOCK CAN BE PURCHASED
         FOR THIS MACHINE

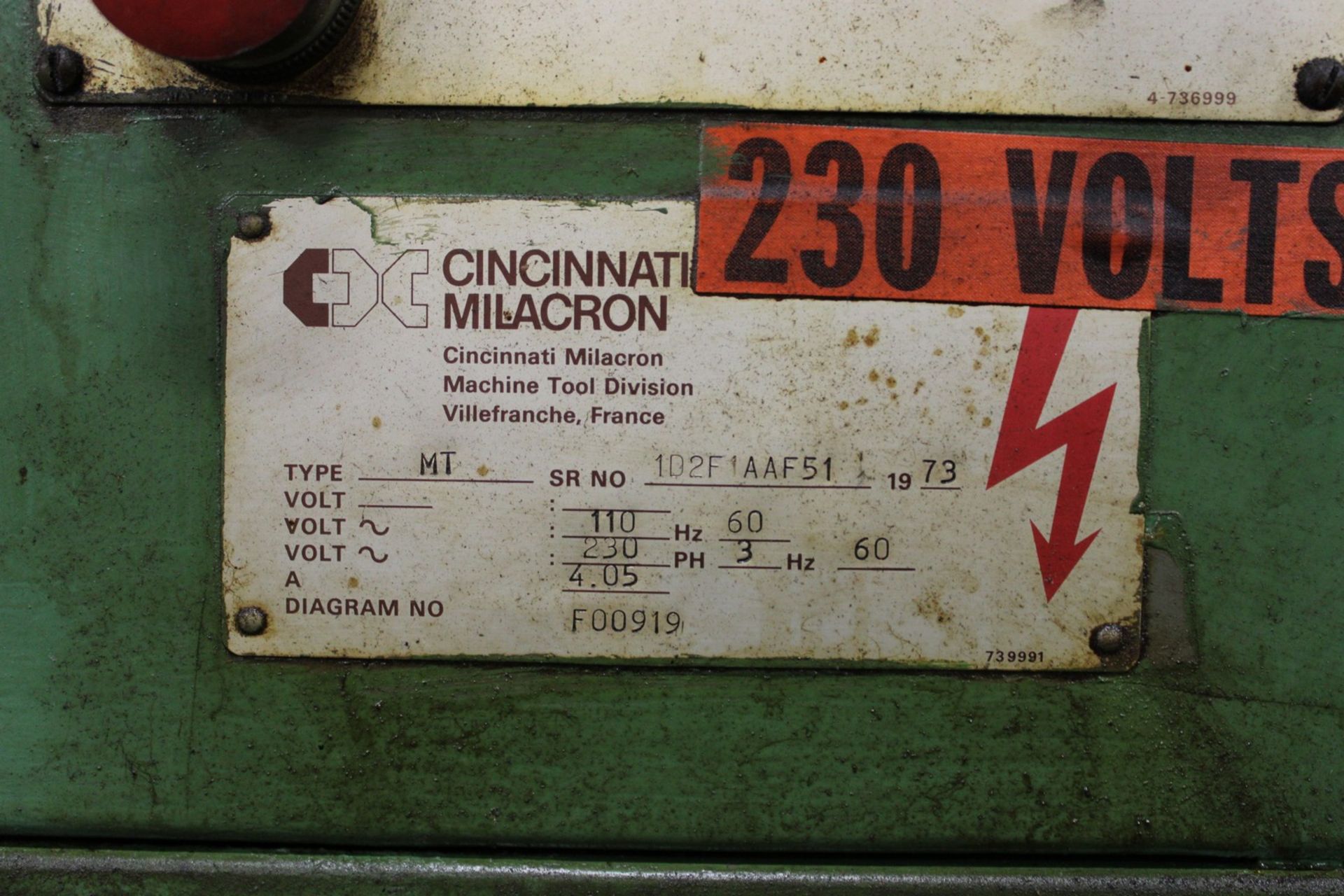

  S/N: 1D2F1AAF51      NEW: 1973

  CAPACITY:
SWING OVER TABLE DIAMETER .......................... 10"
LENGTH, BETWEEN RIGHT & LEFT-HAND TAILSTOCKS ....... 27"
LENGTH, BETWEEN TAILSTOCK & WORKHEAD ............... 21-1/2"
FACE MILLS ON WORKHEAD DIAMETER .................... 10"
FACE MILLS USING FACE MILL GRINDING ATTACH. DIA. ... 18"
SAWS ON TABLE DIAMETER ............................. 48"
FORMED CUTTERS (USING 6" WHEEL) DIAMETER ........... 10"

  RANGE:
TABLE SIZE ......................................... 6" x 36"
LONGITUDINAL TABLE TRAVEL .......................... 16"
POWER TABLE SPEEDS (6 FEED RATES) ... 28-47-80-141-236-382 IPM
CROSS MOVEMENT OF TABLE ............................ 10"
TABLE SWIVEL ....................................... 180 DEG.
TABLE TAPER PER FOOT ON DIA. (TOWARD & AWAY) ....... 5"
FINE ADJ. TAPER PER FT. ON DIA. (TOWARD & AWAY) .... 2"
TABLE GRADUATIONS IN CENTER, IN DEGREES ............ 90 DEG.
VERTICAL MOVEMENT OF GRINDING WHEEL SPINDLE ........ 10-1/2"
MAX. DIST. CENTERLINE OF SPINDLE TO TABLE .......... 13-1/2"
SPINDLE TILTS ABOVE AND BELOW CENTER ............... 15 DEG.
SWIVEL MOVEMENT OF GRINDING WHEEL SPINDLE .......... 360 DEG.

  SPINDLE SPEEDS:

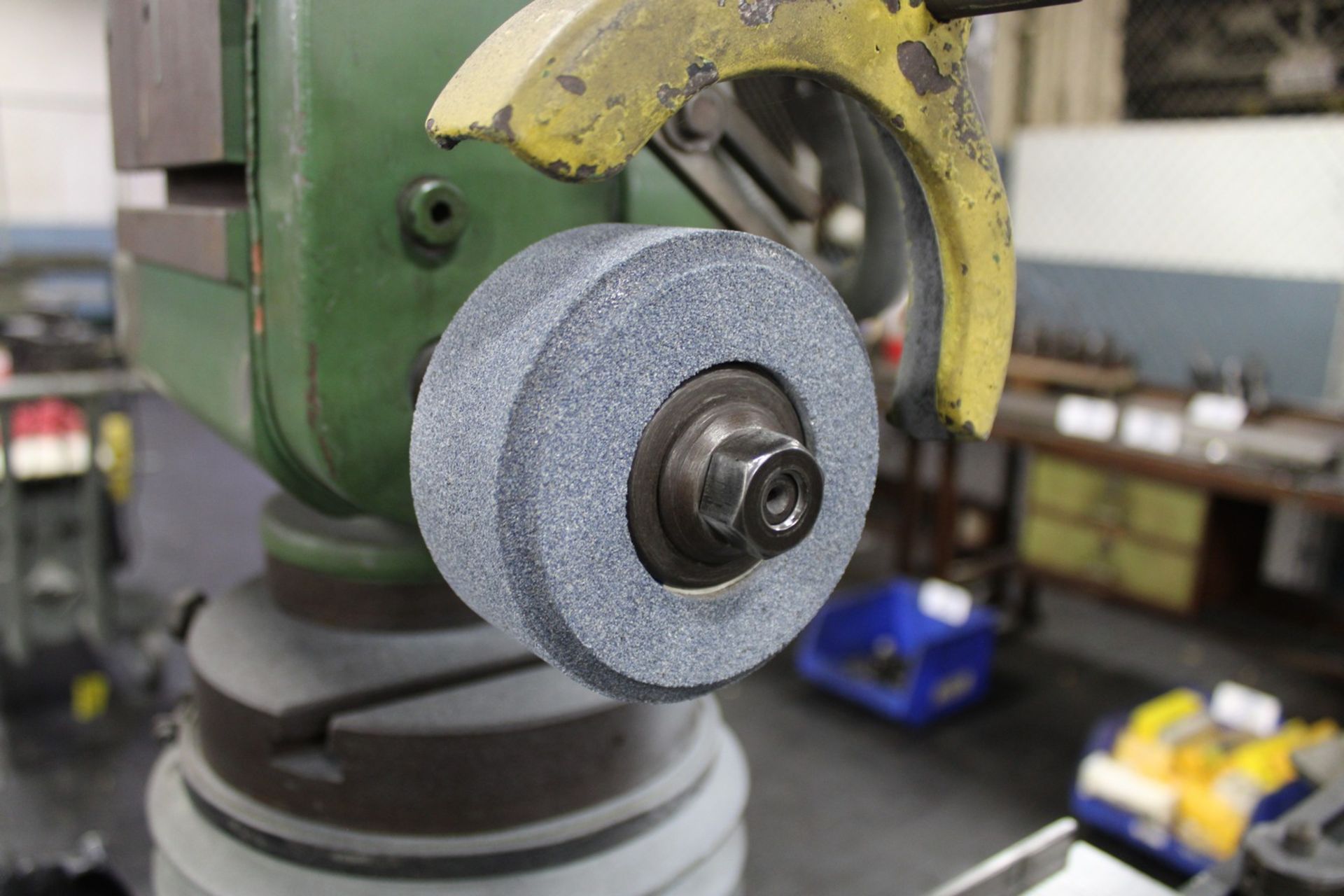

6" WHEEL, SURFACE SPEED 6,022 FT./MIN. ............. 3,834 RPM
3" WHEEL, SURFACE SPEED 5,887 FT./MIN. ............. 6,425 RPM

  APPROXIMATE MACHINE WEIGHT ....................... 3,000 LBS
APPROXIMATE DIMENSIONS ............................. 3' X 38"D X 5'H

  MACHINE FEATURES:
POWER TABLE OPTION
TILTING WHEELHEAD (15 DEG. ABOVE & BELOW)
DUPLICATE CONTROLS @ THE FRONT & REAR OF THE TABLE
BALL BEARING ANTI-FRICTION TABLE ROLLING IN
REPLACEABLE HARDENED STEEL V-WAYS
360 DEG. ECCENTRIC WHEELHEAD & SWIVEL TABLE WHICH
CAN INCREASE SPECIFIED CROSS RANGE BY 70%
CAST IRON CONSTRUCTION
ONE-SHOT LUBRICATION SYSTEM
2-SPEED SPINDLE, INSTANTLY REVERSIBLE
1 HP 3/60/230-460 VOLT SPINDLE MOTOR

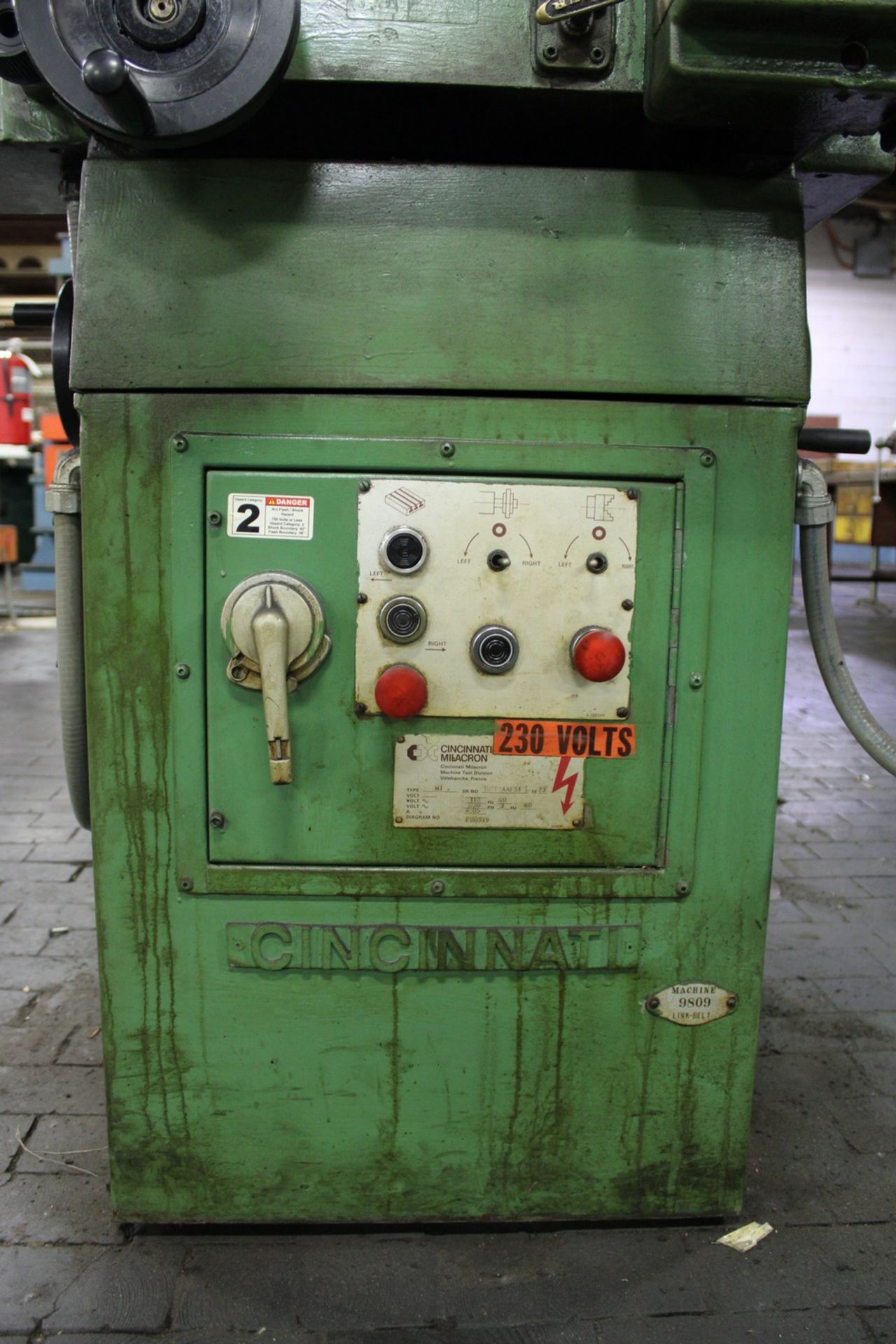

MACHINE IS PRESENTLY WIRED FOR 3/60/230 VOLTS

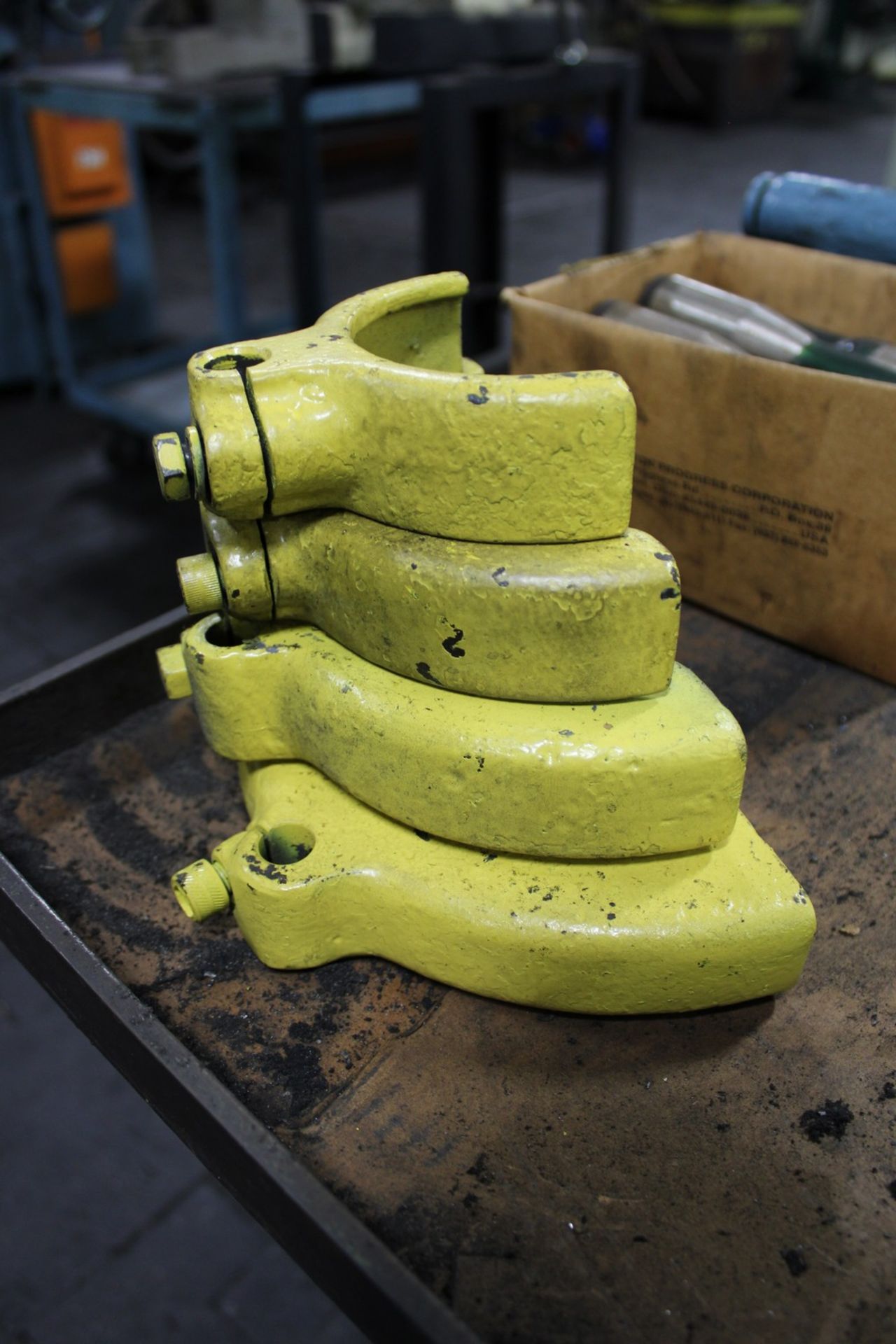

AVAILABLE TO PURCHASE SEPERATELY FOR THIS MACHINE:
- CINCINNATI MOTORIZED WORKHEAD
- CINCINNATI NON-MOTORIZED WORKHEAD
- CINCINNATI RADIUS GRINDING ATTACHMENT
- SET OF CINCINNATI MILACRON TAILSTOCKS
- "HYBCO" MODEL #2100-SB FORM RELIEVING FIXTURE
- K.O. LEE UNIVERSAL VISE, SWIVELS & TILTS
- K.O. LEE B942 "SENSITIVE" NON-MOTORIZED WORKHEAD
    WITH 5C COLLET ATTACHMENT
- OTHER CINCINNATI TCG ACCESSORIES AVAILABLE, IN STOCK

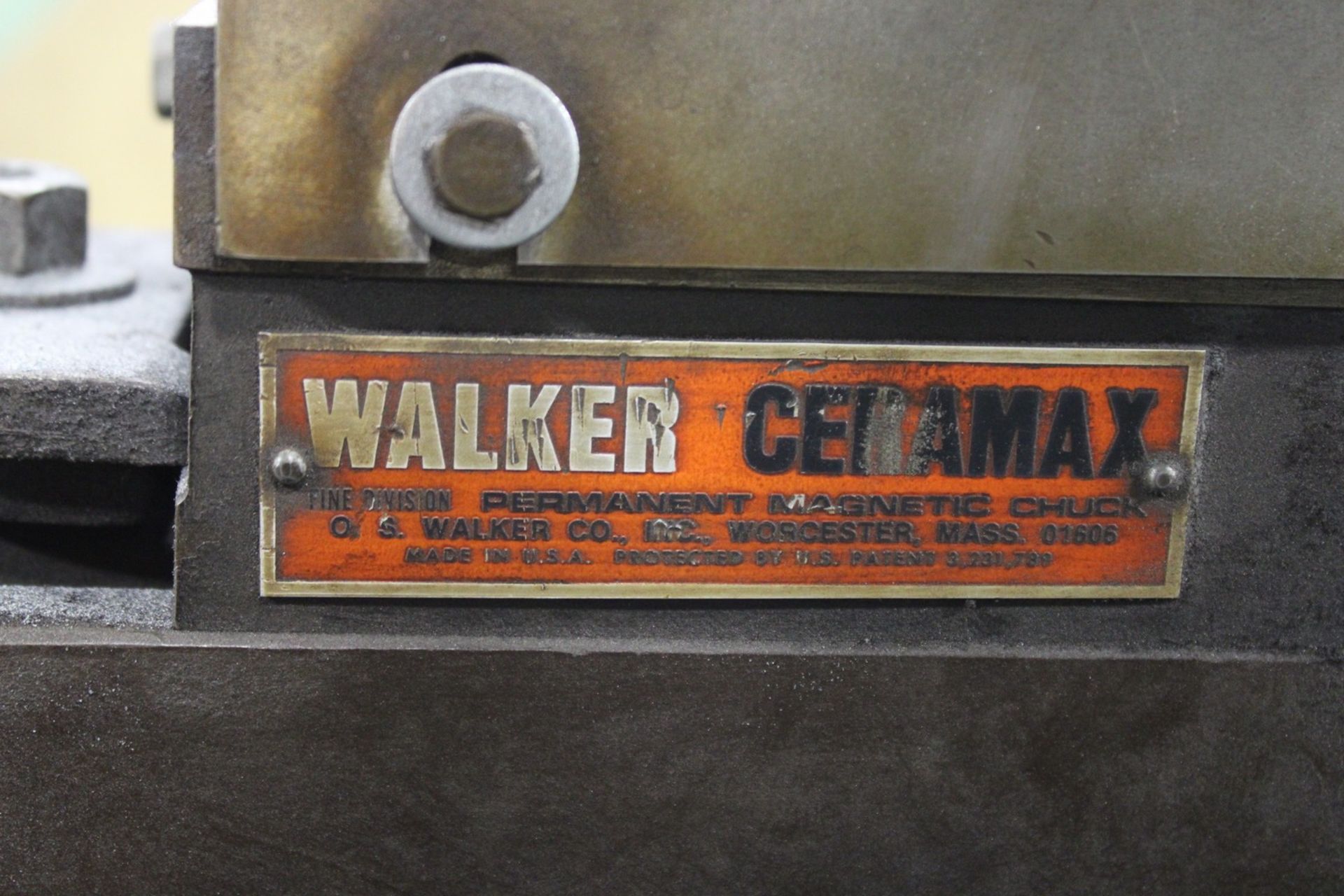

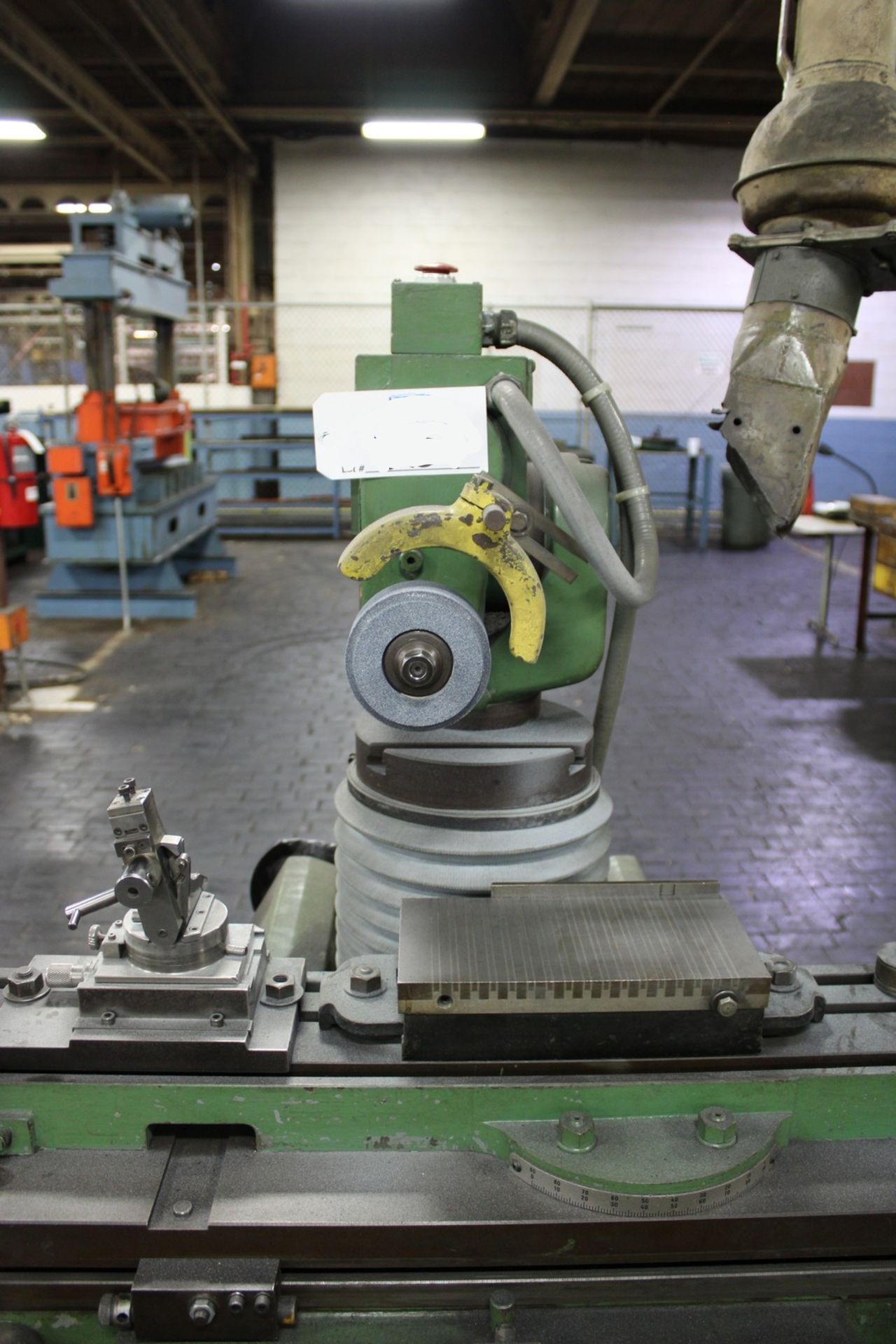

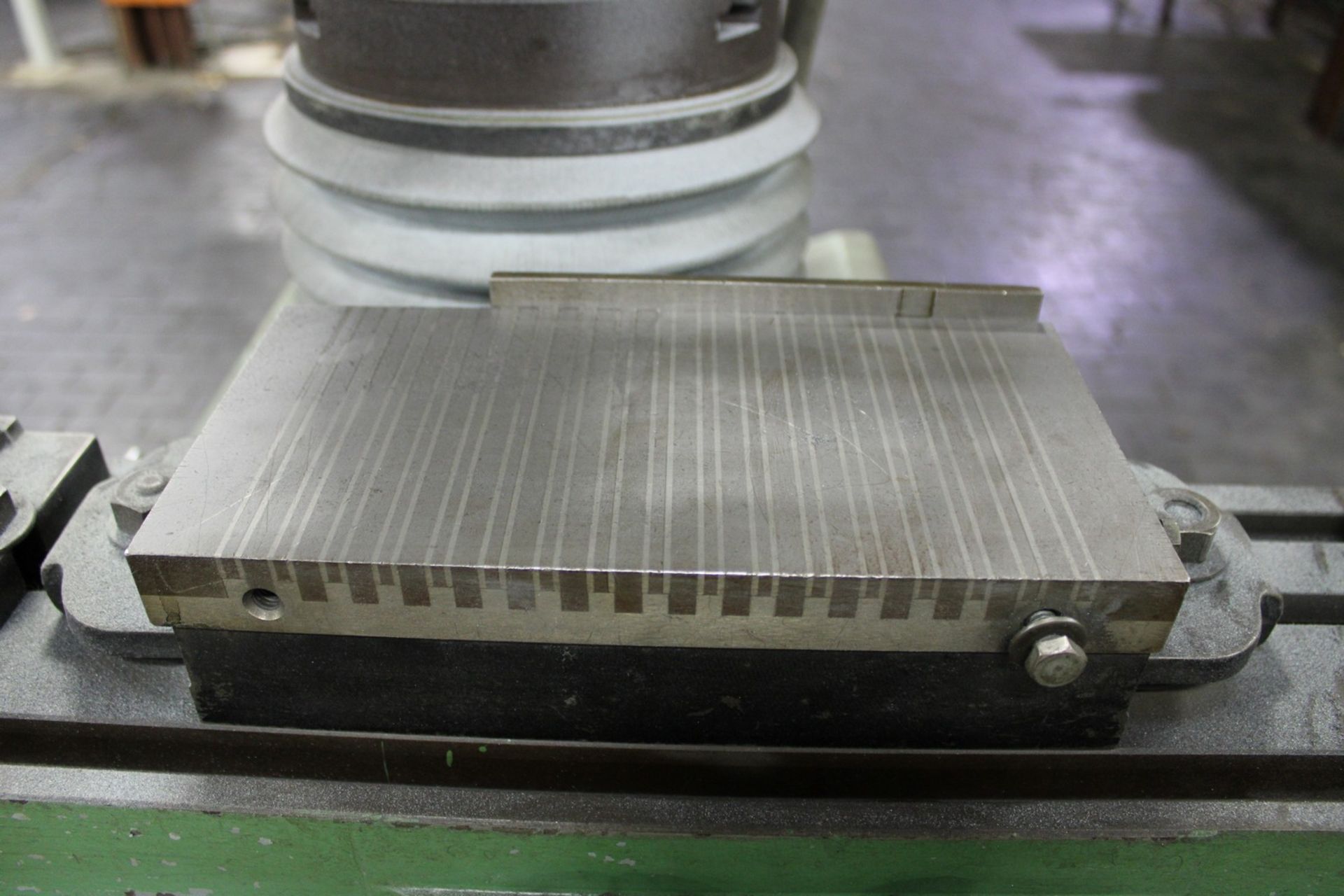

NOTE: MACHINE DOES NOT COME WITH ITEMS SHOWN ON TABLE

** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **
** EXCELLENT CONDITION & APPEARANCE **
