O.K. Tool R6, NEW 1990, WITH WORKHEAD, TOOL & CUTTER GRINDERS

Price on Request

Make:: O.K. Tool

Model:: R6, NEW 1990, WITH WORKHEAD,

Year:: 1990

Ref #:: 152725

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

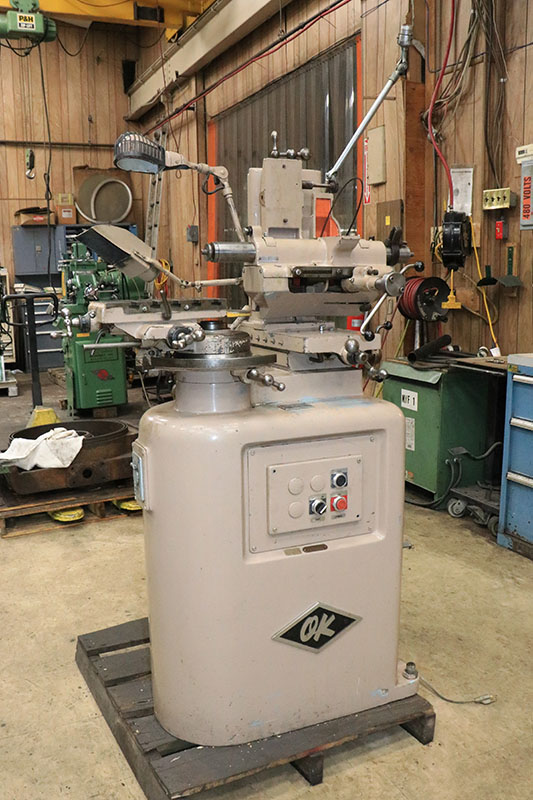

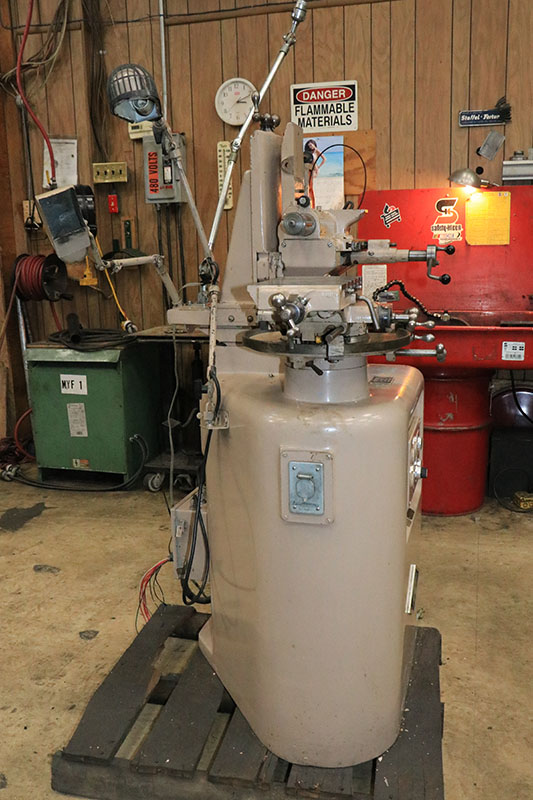

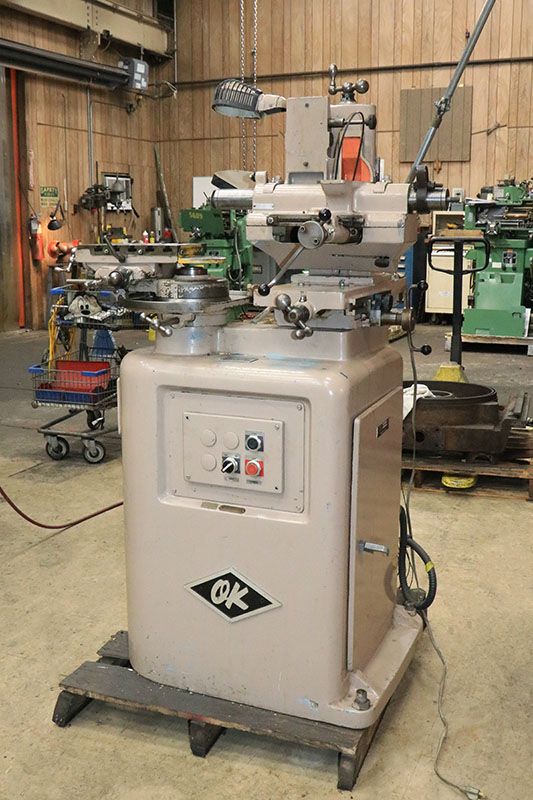

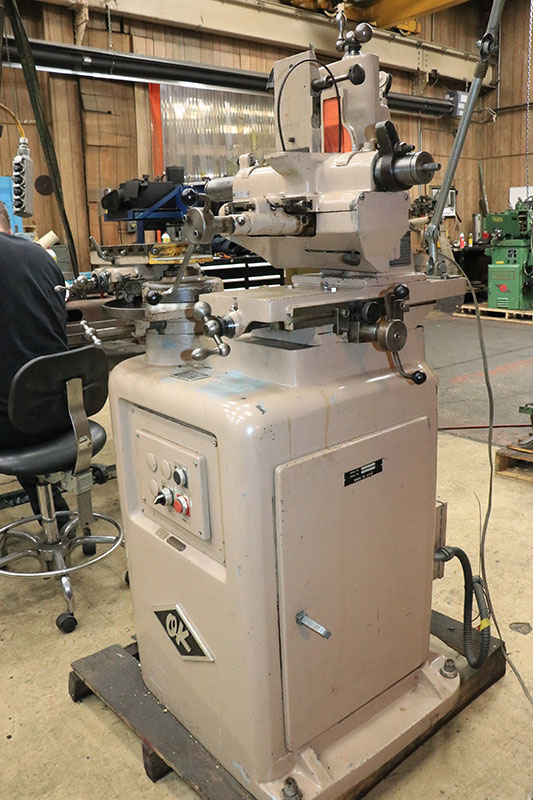

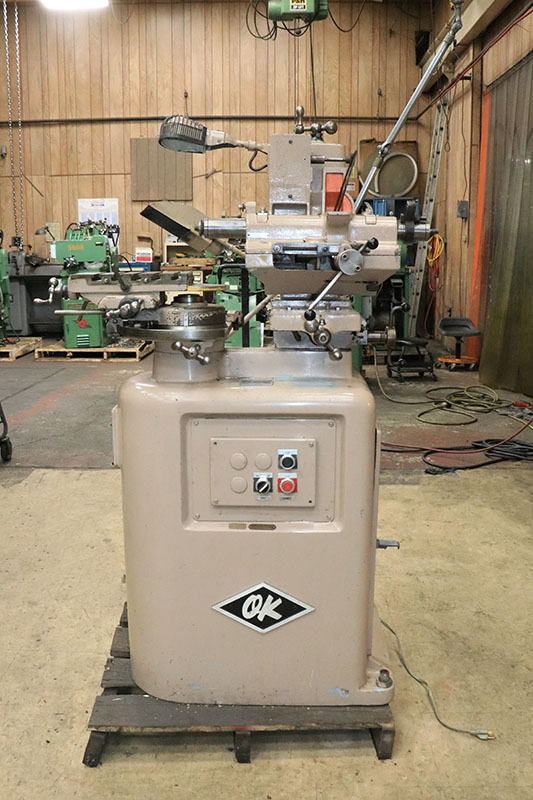

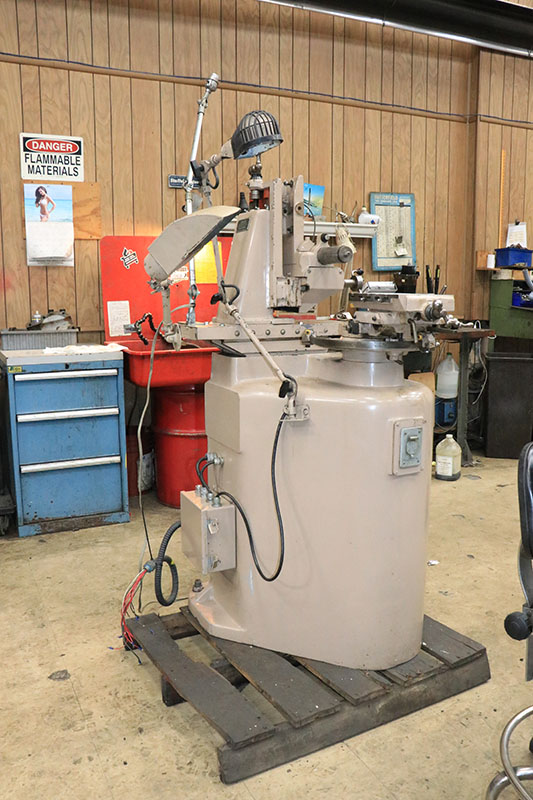

  O.K. TOOL Radius/Ball Nose Grinder

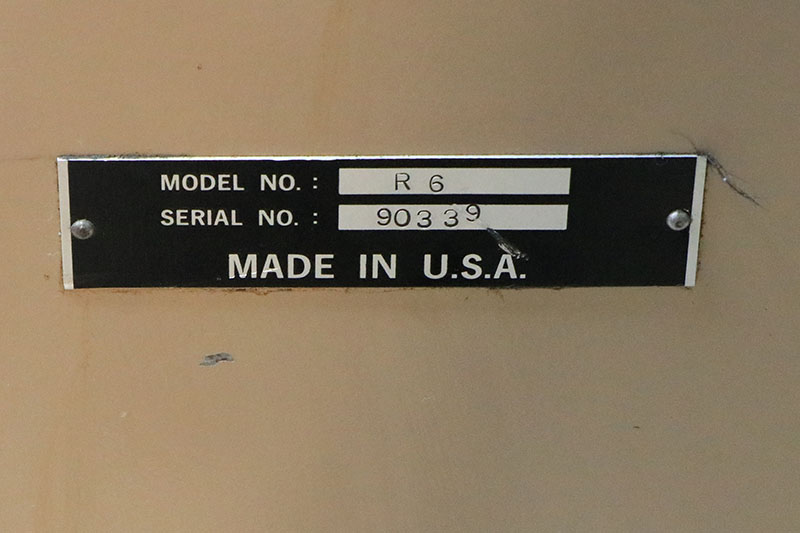

 Model: R6     S/N: 90339     New 1990



 -GRIND END MILLS, REAMERS, MILLING CUTTER,
  COUNTERBORES, COUNTERSINKS, ALL LATHE, SHAPER
  & PLANER FLAT FORM TOOLS .. CARBIDE OR HIGH
  SPEED STEEL, INCLUDING THE FLUTE GRINDING OF
  STRAIGHT FLUTED TOOLS (TAPS, COUNTERBORES,
  ETC.)

  -GRIND BALL NOSE, EVEN ON TAPERED TOOLS,& OTHER
  DIFFERENT SHAPES

  -PUT ACCURATE CORNER RADII WITH PERFECT BLENDS ON
  END MILLS, MILLING CUTTERS, REAMERS, OUNTERBORES
  &SPECIALIZED TOOLING

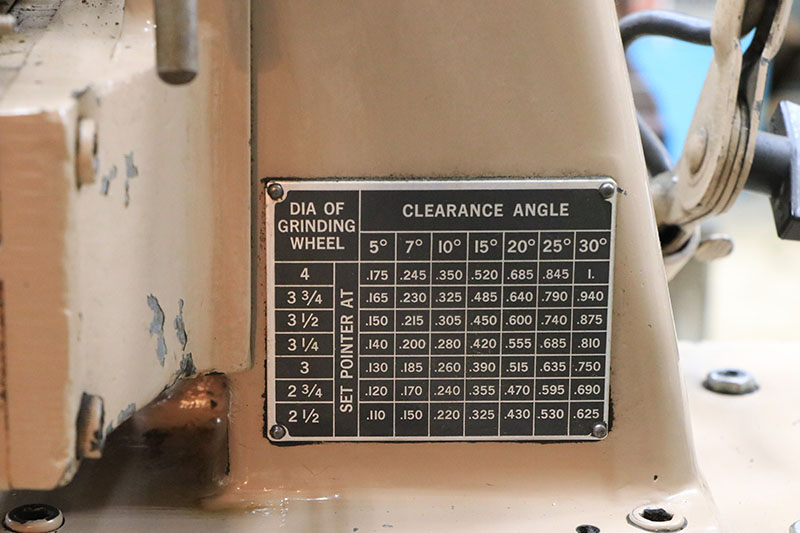

  -GRIND CLEARANCE ANGLE ON REGULAR OR TAPERED
  FLUTES, STRAIGHT OR HELICAL, AS WELL AS MULTIPLE
  STEPS ON ALL TYPES OF TOOLS

  -WILL ACCOMODATE FLUTE LENGTH TO 4- 1/2".

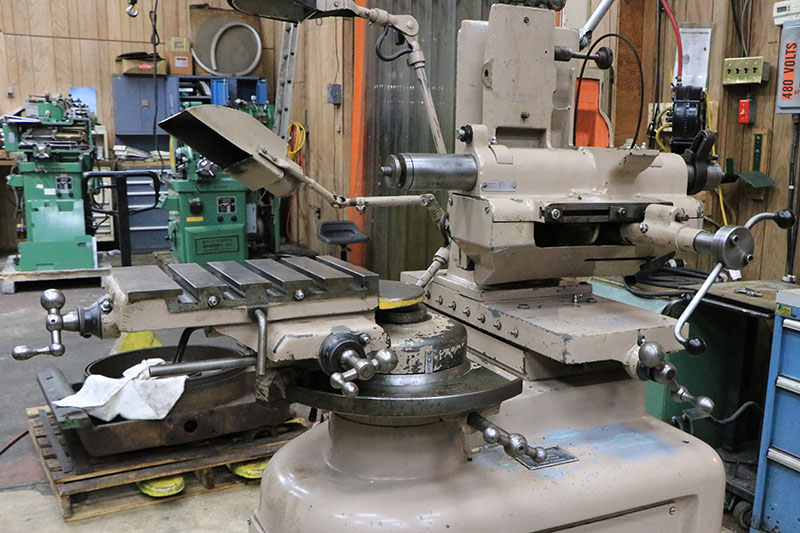

  -WORKHEAD FEATURES X& Y MOTIONS PLUS ROTARY
   &TILT.

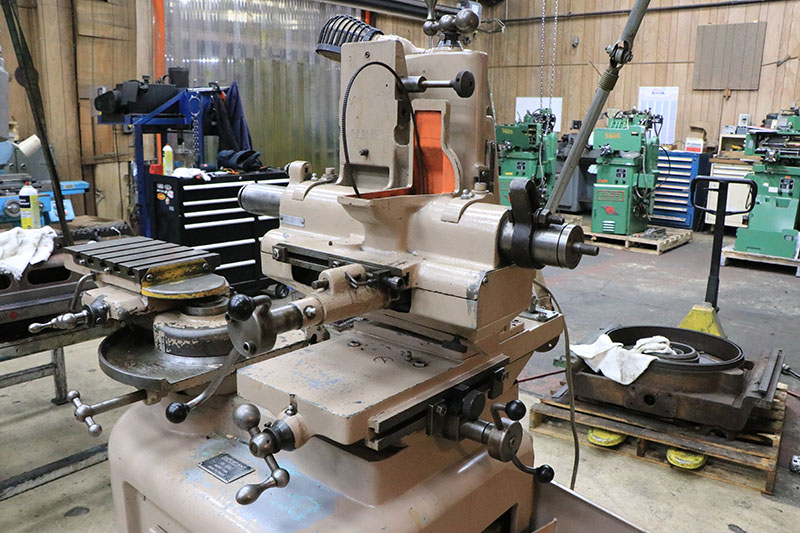

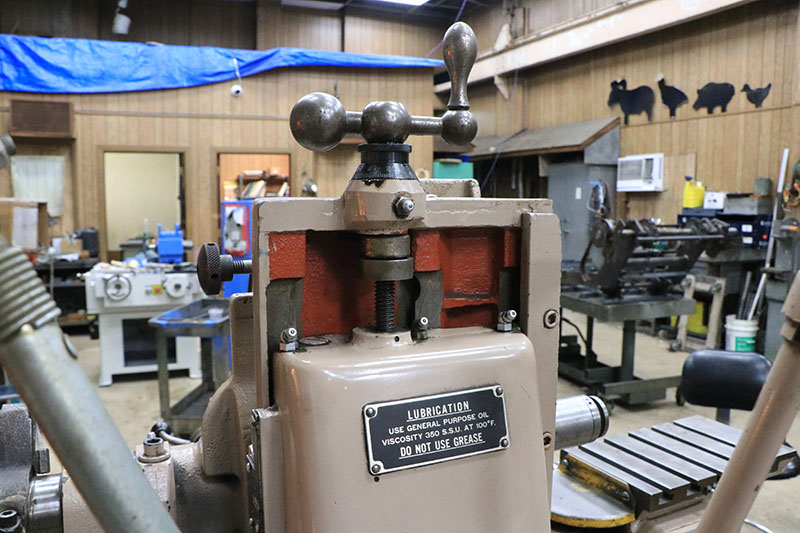

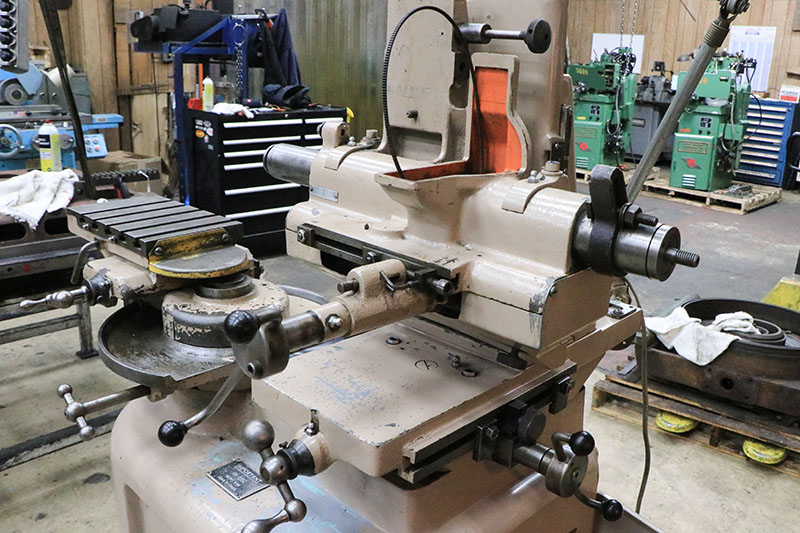

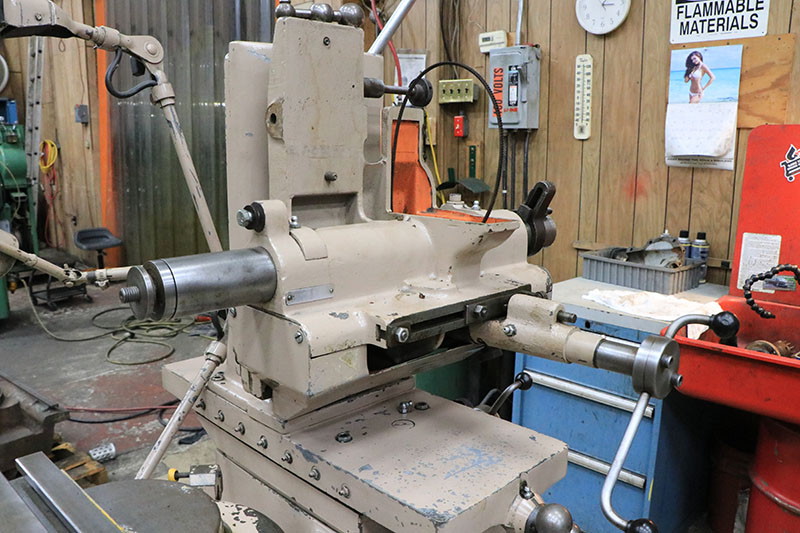

  -GRINDING WHEELHEAD MOVES IN X, Y& Z.

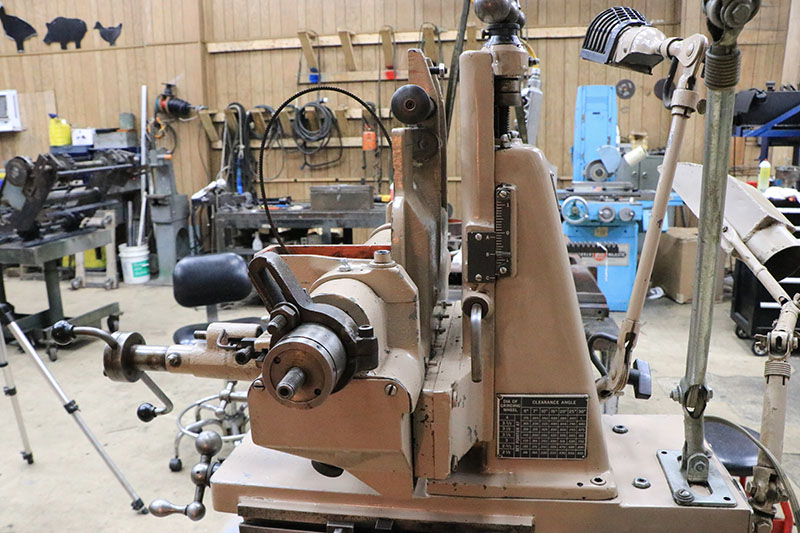

  -THE #R6 HAS AN ADDITIONAL GRINDING WHEELHEAD
   FOR HAND GASHING OPERATIONS, SUCH AS OPENING
   UP THE POINT OF A BALL NOSE CUTTER.





Capacity
Maximum length of flute accommodated by
  standard machine:....................... 4- 1/2"
Maximum mill diameter (for head with #9
  B&Sspindle) over table:................ 9-1/2"
Maximum mill diameter (for head with #9 B&S
  spindle) in front of table:............. 12"

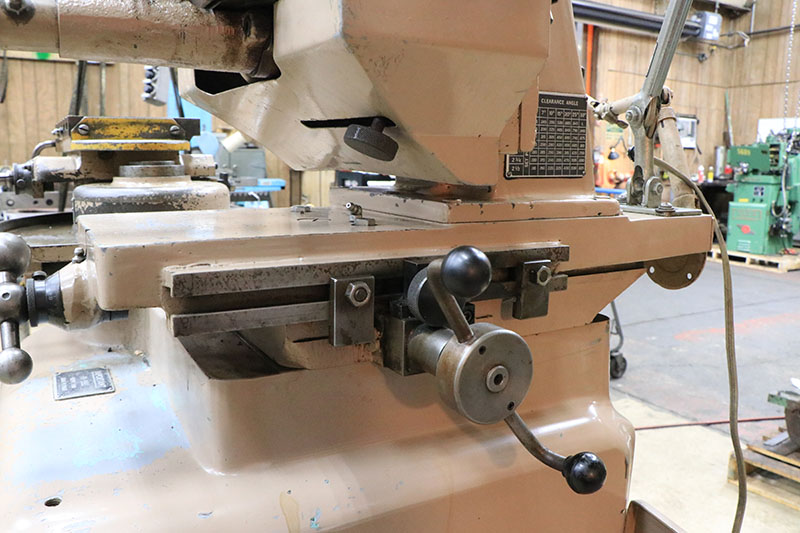

Wheel Spindle Movement
Axial Travel:............................. 4- 1/2"
Vertical adjustment:...................... 5-3/8"
Cross Travel:............................. 6-1/4"
  By rack and pinion feed:................ 4"
  By screw feed for fine adjustment:...... 2-1/4"

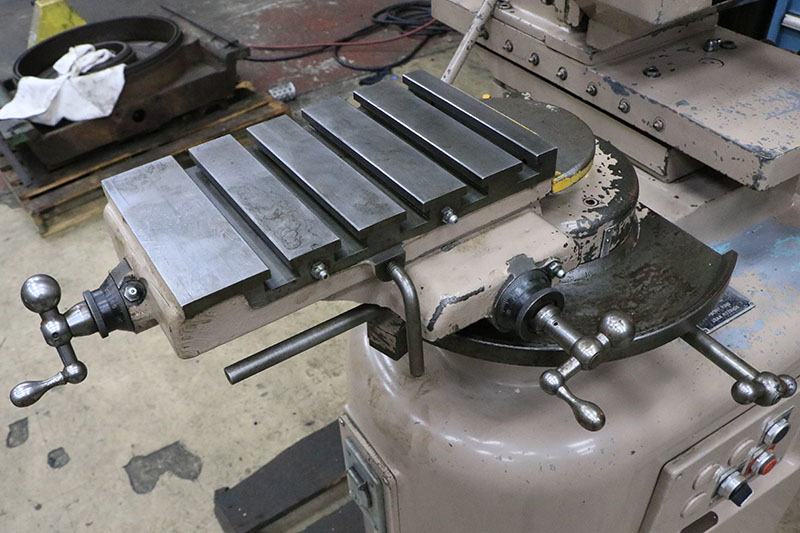

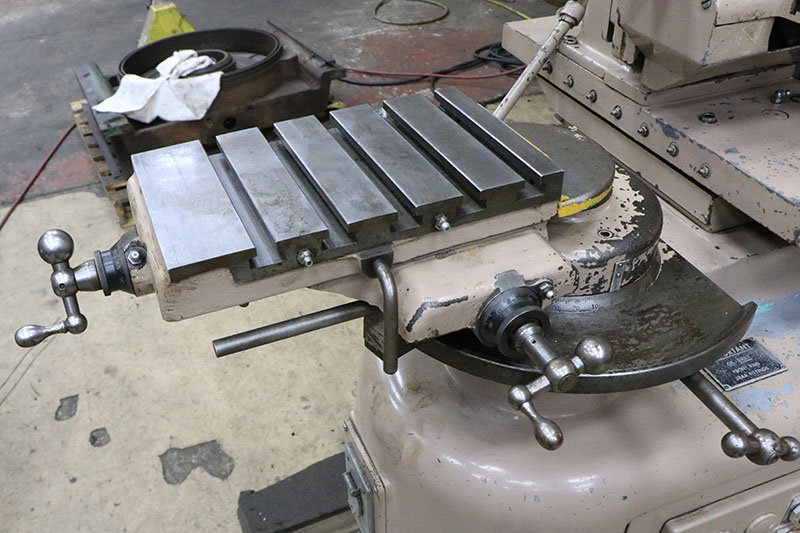

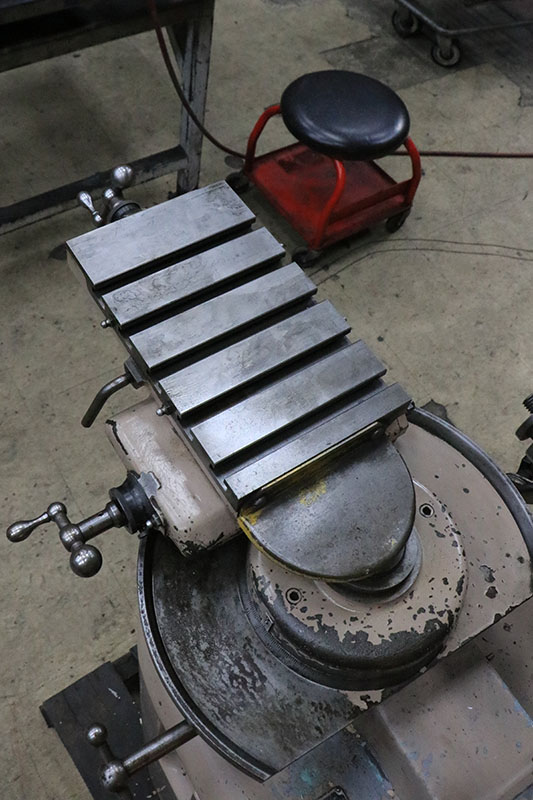

Work Table Size:............... 6-7/16" x 10-7/8"

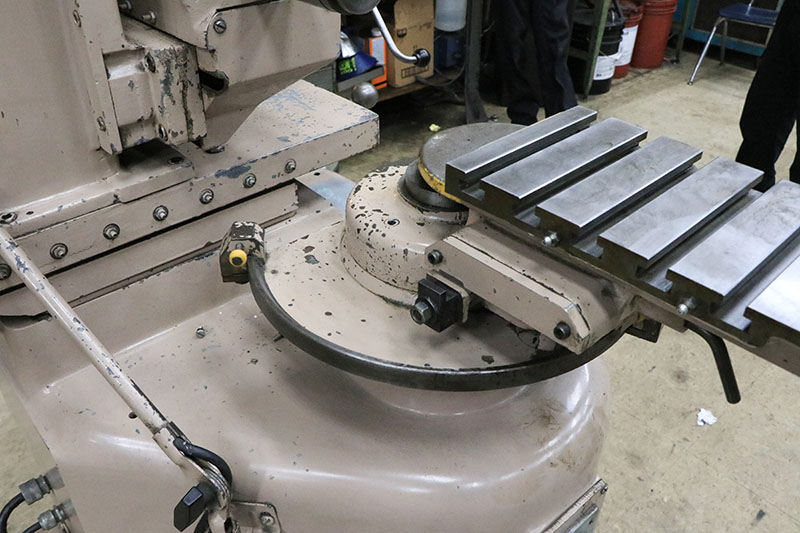

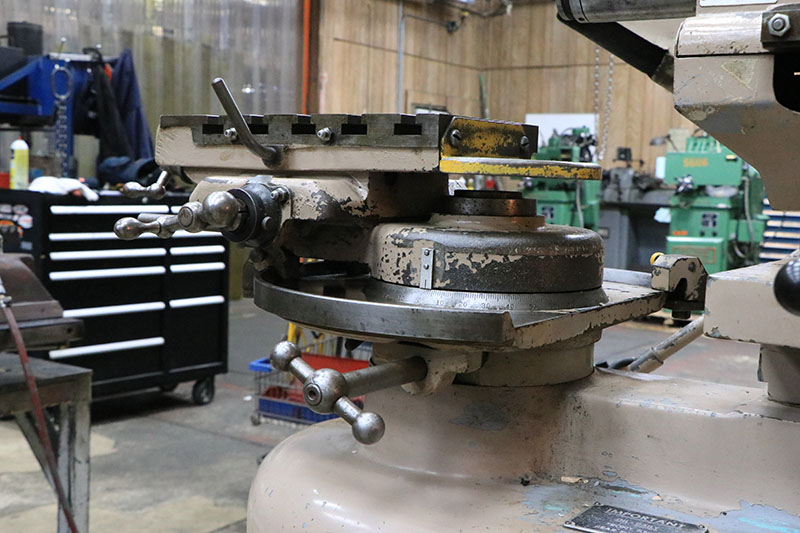

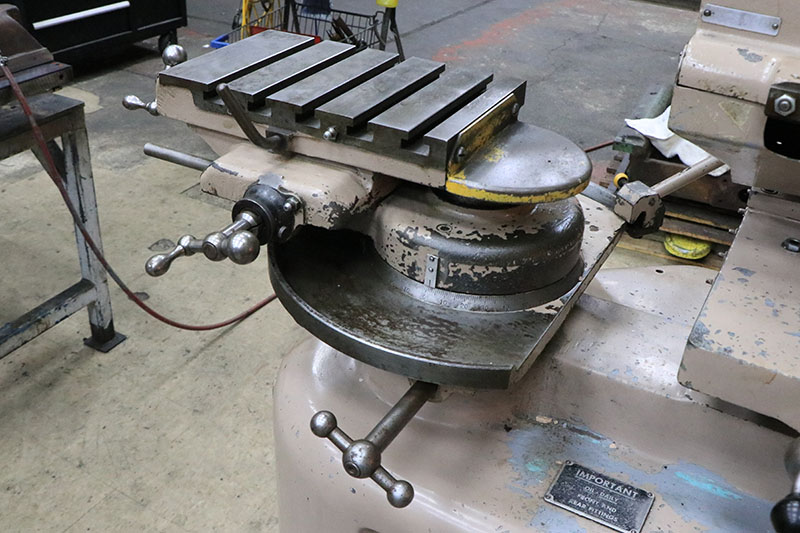

Work Table Movement

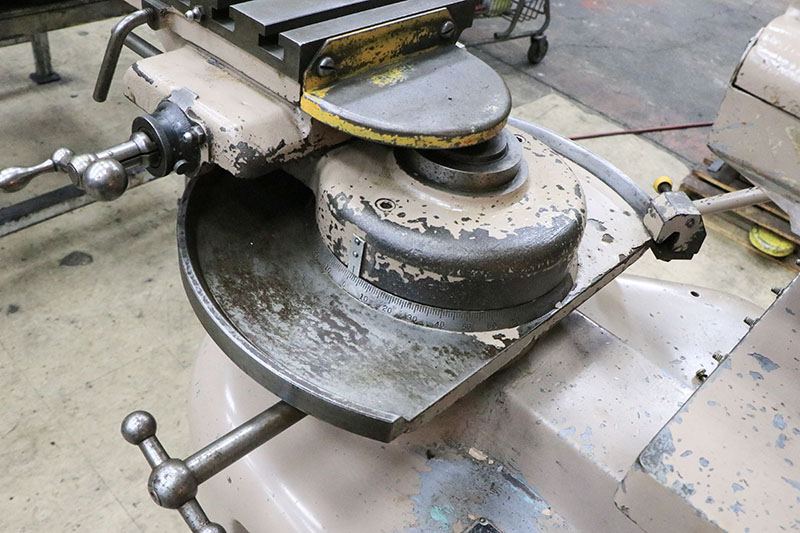

Graduated swivel range:.............. 210 degrees
Adjustment toward and from swivel center:. 3-1/4"
Cross adjustment:......................... 1-1/4"

Cutter Head Angular Range
Tilting of cutter head (each way)......... 20 degrees
Wheel Spindle Speed, RPM:................. 5,000

Approx. Weight ......................... 1000 Lbs.


Equipped With:

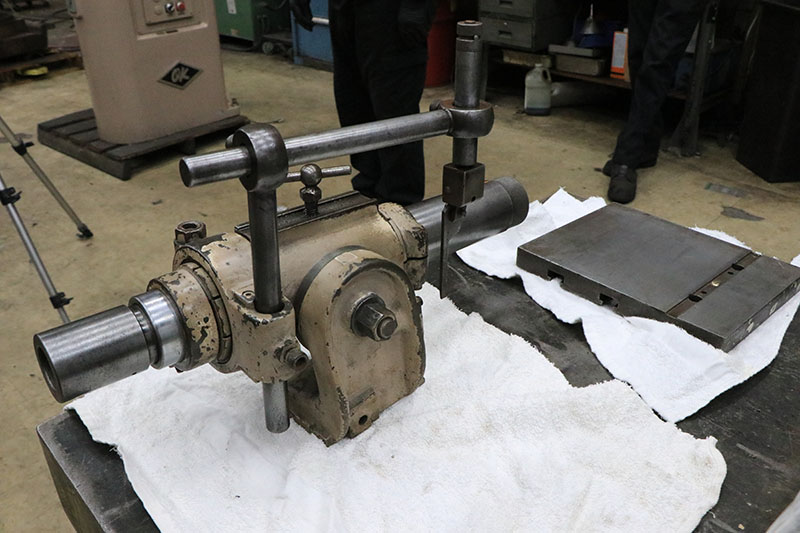

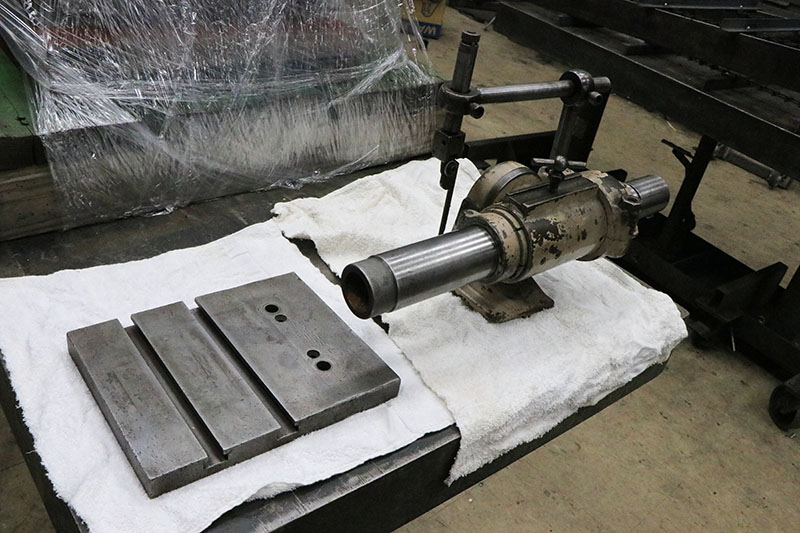

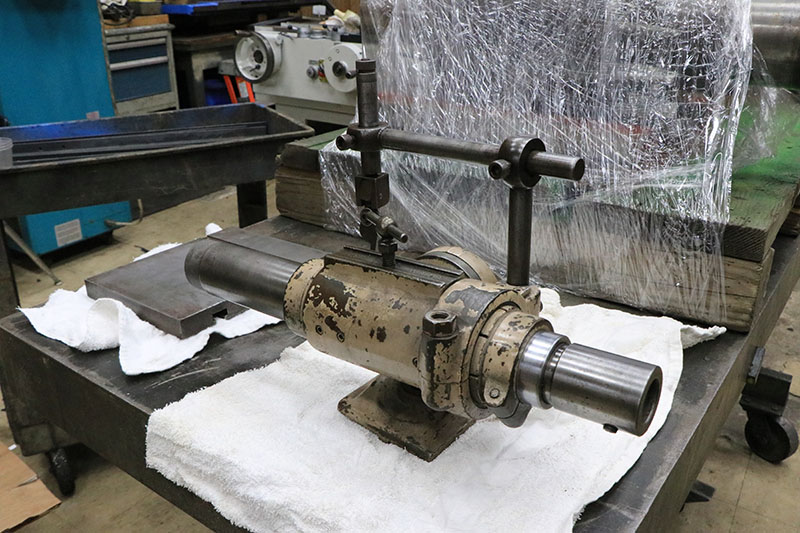

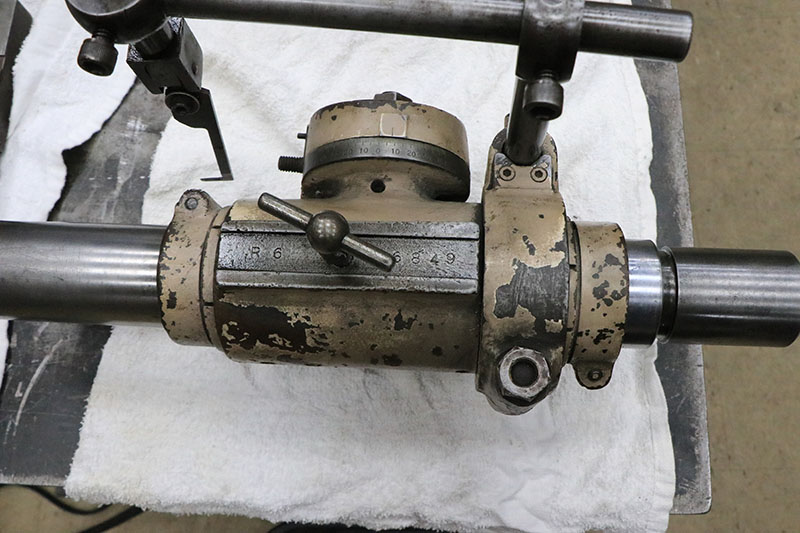

Workhead

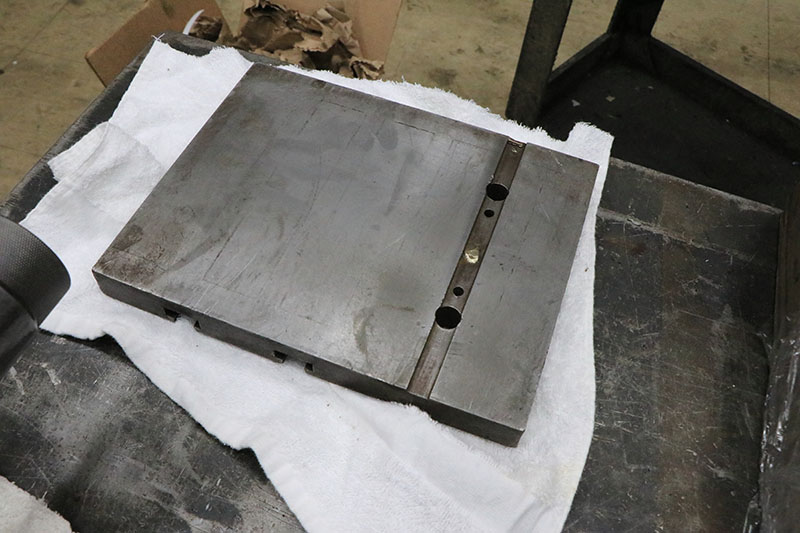

Tooling

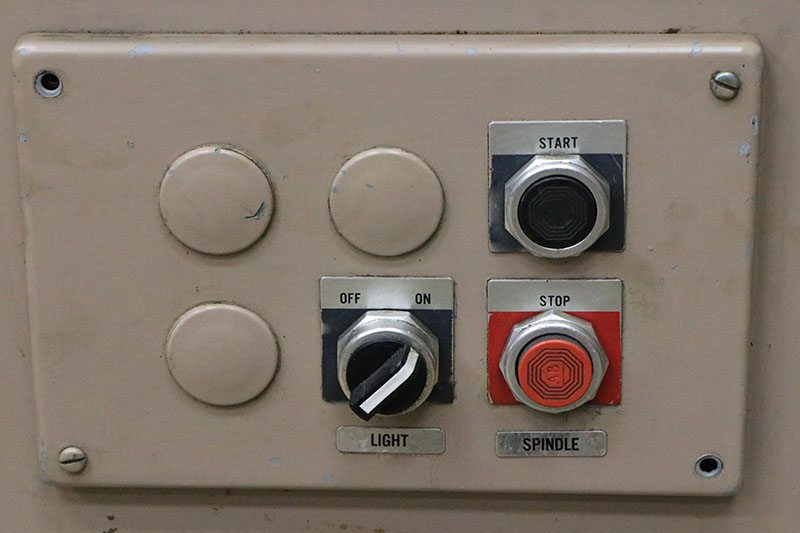

1/3 HP 3/60/230-460 Volt spindle drive motor


** Inspect Under Power in our Harrison, NJ
   Warehouse **

** Superb Condition & Appearance **
